Why G10 Fiberglass Plates are Essential in Oil and Gas Insulation?

G10 fiberglass plate serves as a cornerstone material in oil and gas insulation applications due to its exceptional combination of electrical insulation properties, thermal stability, and mechanical durability. This high-performance composite material addresses critical safety and operational challenges in energy infrastructure, where equipment failure can result in catastrophic consequences. The unique laminated structure of fiberglass cloth and epoxy resin creates a robust barrier against electrical faults while maintaining structural integrity under extreme operating conditions that characterize oil and gas environments.

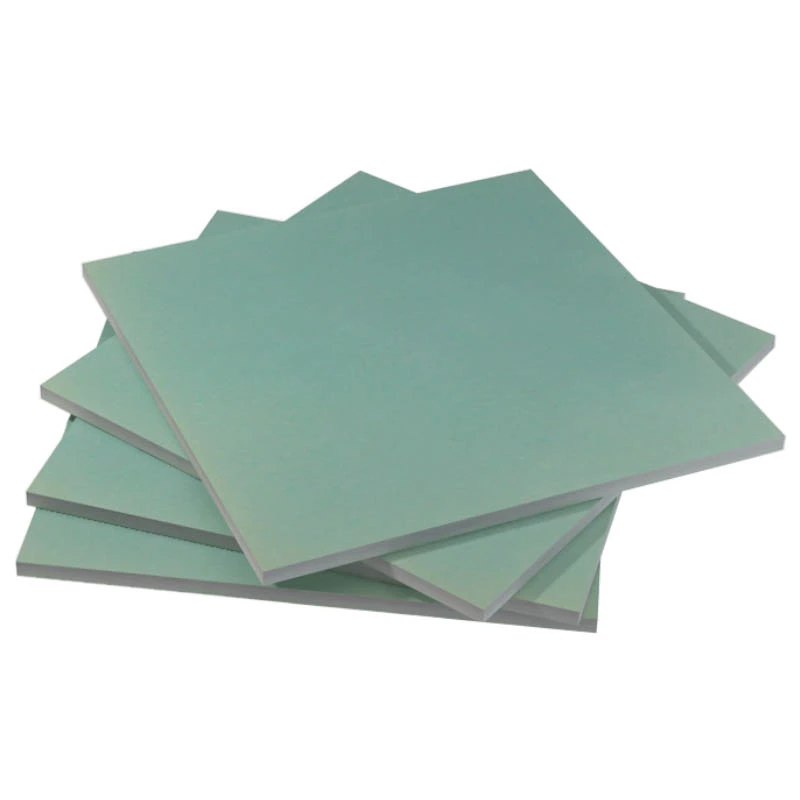

Understanding G10 Fiberglass Plate and Its Unique Properties

To make oil and gas insulation work, you need to know about the great qualities that make G10 fiberglass plate the standard in the business. This high-pressure fiberglass laminate is made up of several layers of woven fiberglass cloth that have been mixed with epoxy glue and then hardened under controlled heat and pressure. During the making process, a dense, uniform structure is made that works the same way at all sizes and shapes.

Exceptional Electrical Insulation Characteristics

G10 fiberglass laminates have a dielectric strength that is usually higher than 20 kV/mm. This makes them perfect for high-voltage uses that are popular in oil and gas plants. The material doesn't absorb much water, so its electrical qualities stay stable even in humid places like ocean bases and processing plants. When you think about how electricity problems in energy systems can cause fires, explosions, or expensive production shutdowns, this dependability becomes very important.

The dielectric constant stays the same over a wide range of temperatures, so the insulation works as expected during thermal cycle processes. This consistency is liked by engineering managers because it makes it easier to do accurate math for electrical designs and cuts down on the safety gaps that are usually needed with less stable materials.

Superior Thermal and Mechanical Performance

In oil and gas uses, temperatures often go above 150°C, especially in refinery processes and tools used downhole. At these high temperatures, G10 keeps its shape and insulation qualities. It does this better than many other materials that break or lose their ability to insulate when exposed to heat.

G10 fiberglass composites are very strong mechanically, so they can hold up under heavy loads while still keeping their exact dimensions. This quality is very important in situations where structural insulation parts need to support the weight of equipment while also isolating it from the power source.

Challenges in Oil and Gas Insulation and How G10 Addresses Them？

Oil and gas businesses have special problems that need special protection solutions like G10 fiberglass plate. Extreme environmental conditions, strict safety rules, and operating reliability requirements all come together to make a tough application setting where choosing the right material is very important.

Extreme Environmental Conditions

Insulation materials used on offshore bases and processing plants are subject to salt spray, changes in temperature, and mechanical movements that can weaken regular materials over time. Because its epoxy matrix is chemically neutral and its fiber reinforcement structure is strong, G10 fiberglass plate is very resistant to these external stresses.

The low rate of thermal expansion of the material keeps size changes to a minimum when the temperature changes, which is good for electrical connections and mechanical fixing points because it lowers stress. This stability is especially useful for precise electrical equipment where changes in size can hurt performance or pose a safety risk.

Chemical Resistance and Longevity

Sometimes, people who work in oil and gas plants are exposed to fuels, acids, and other harsh chemicals that can damage insulation. The epoxy resin matrix in G10 is very resistant to chemicals; it keeps its qualities even after being exposed to oil products and industrial solvents for a long time.

Field studies from big energy companies show that G10 insulation parts keep their electrical and mechanical qualities for decades while they're in use. This lowers the cost of upkeep and makes operations more reliable. This durability is especially important for sites that are far away, where replacing parts would be hard to do and cost a lot of money.

Safety and Compliance Requirements

Today's oil and gas businesses have to follow safety rules that are getting stricter and require specific material performance standards. G10 fiberglass products meet or go beyond the standards set by organizations like the American Petroleum Institute and the International Electrotechnical Commission.

Because the material doesn't catch fire easily, it adds an extra layer of safety in places where fuel fires are always a risk. When heated to high temperatures, G10 doesn't give off harmful gases like some other materials do. This keeps people safe in emergency situations.

Comparing G10 Fiberglass Plates to Alternative Composite Materials in Oil & Gas

When purchasing insulation materials for oil and gas uses, procurement managers need to compare G10 fiberglass plate to other composite materials on the market. In order to make this comparison, we need to look at performance traits, cost factors, and long-term dependability issues.

Performance Advantages Over Carbon Fiber Composites

Carbon fiber materials are very strong, but they are also very conductive, which means they are not good for most electrical shielding uses. G10 is the best material for uses that need both structural support and electrical separation because it has better electrical insulation and comparable mechanical strength.

G10 materials are also easier to work with and more consistent when they are being made than many carbon fiber alternatives. This means that engineers can be more sure of how they will perform during the planning process.

Comparison with Phenolic and Epoxy Alternatives

Phenolic materials are cheaper than G10 fiberglass laminates, but they usually have lower mechanical strength and less temperature protection. This performance gap can cause early breakdowns and more repair needs in high-stress situations like those found in oil and gas equipment.

Standard fiberglass sheets that don't have fiber reinforcing aren't strong enough to be used for structural insulation. The fiber support in G10 provides impact resistance and dimensional stability that solid epoxy materials cannot match, particularly in applications involving mechanical stress or shaking.

Cost-Benefit Analysis for Industrial Applications

Even though G10 materials may cost more at first than some other options, they usually have a lower total cost of ownership because they last longer and need less upkeep. When G10 insulation parts are used in important uses, energy companies say they save a lot of money on repair costs and downtime.

Because G10 materials can be machined to very exact tolerances, the cost of making complicated insulation parts goes down. This is because less time and waste are used during the manufacturing process, which balances out the higher cost of the materials.

Procurement and Supplier Guidance for G10 Fiberglass Plates

To get G10 fiberglass plate materials, you need to be very careful when choosing a source and know the quality standards that make sure the materials work well in tough oil and gas uses. Managers of procurement have to judge providers based on their technical skills, quality processes, and customer service.

Supplier Qualification and Certification Requirements

Suppliers with a good reputation keep their ISO license and show that they meet quality standards specific to the oil and gas business. These approvals give people confidence that the methods used to make things always make materials that meet certain performance standards.

Suppliers of G10 fiberglass plate should also give full test results for the material, which should include its electrical, thermal, and dynamic qualities that have been checked using standard testing methods. With this paperwork, engineering teams can check that the material specs match the needs of the application.

Custom Sizing and Technical Support Services

Leading suppliers offer custom cutting services that can make G10 parts to exact specs. This makes buying them easier and makes sure they fit right in important situations. Having access to technical support during the planning process helps choose the best materials and shapes for each purpose.

Sample programs let engineering teams check the properties of materials and how easy they are to machine before placing big orders. This lowers the risk and makes sure that the new materials can be used with current manufacturing processes.

Supply Chain Considerations and Lead Times

Procurement managers can better plan projects and avoid costly delays by knowing normal wait times and inventory availability. Suppliers that have been around for a while keep standard sizes in stock and offer acceptable lead times for custom setups.

Logistics skills, such as knowing how to pack and ship big or heavy parts, make sure that materials get to the manufacturing process in good shape so they can be used right away.

Future Outlook: Why G10 Fiberglass Plates Will Remain Critical in Oil & Gas Insulation？

The changing nature of oil and gas activities makes advanced composite materials like G10 fiberglass plate even more important for dealing with problems in the business. High-performance insulation materials are becoming more important because of changes in regulations, new technologies, and the need to run businesses more efficiently.

Regulatory and Safety Trends

Tougher safety rules around the world stress how important it is to use materials that have been tested and shown to work well in previous situations. G10's long history and adherence to international standards make it a good choice for future governing settings.

Environmental laws also like materials that last a long time and don't need to be replaced often. This is in line with G10's sturdiness and supports environmentally friendly business practices.

Technology Integration and Innovation

As production technology for G10 keeps getting better, the material's qualities keep getting better and its uses keep growing. Newer glue mixtures are better at withstanding chemicals and working at higher temperatures, which means they can be used in more oil and gas activities.

Improvements to the manufacturing process also make it possible to make bigger, more complicated parts. This can make assembly easier and increase system stability in important insulation uses.

Conclusion

G10 fiberglass plate is an important part of modern oil and gas insulation systems because it has the right mix of electrical, thermal, and mechanical properties to keep energy operations safe and reliable. It has been used in harsh settings before, meets industry standards, and is reliable over time. These factors make it an essential material for engineering managers and buying teams. Because the material can solve difficult insulation problems in a cost-effective way, it will continue to be important for supporting the world's most important energy infrastructure.

FAQ

What makes G10 fiberglass different from FR4 in oil and gas applications?

Both G10 and FR4 are great at keeping electricity from flowing, but G10 is stronger and can handle higher temperatures better than FR4. The epoxy resin system in G10 is more resistant to hydrocarbons and industrial solvents that are common in oil and gas settings. This makes it better for use in tough conditions.

How does G10 perform in high-temperature oil and gas applications?

G10 fiberglass can keep its electrical and mechanical features at temperatures up to 180°C for long periods of time and up to 200°C for short periods of time. This material is better at withstanding high temperatures than most others, and it can handle the high temperatures needed in refineries and for downhole equipment.

What thickness options are available for oil and gas insulation projects?

G10 materials come in a range of sizes, from thin sheets that can be used as electrical shields to thick plates that can be used to insulate buildings. Standard thicknesses are good for most oil and gas needs, and custom thicknesses are available for specific uses that have specific size needs.

Partner with J&Q for Premium G10 Fiberglass Solutions

J&Q has been making and selling insulation sheets for more than twenty years, and they have also been dealing with other countries for more than ten years, which makes sure that the buying process goes smoothly. We can give a wide range of services because we have a lot of relationships with trade companies in both the United States and other countries. Our integrated logistics company also provides full one-stop solutions. Whether you need standard G10 fiberglass plate configurations or custom-machined parts for specific uses, our professional team is here to help you through the whole process of buying them. Get in touch with our knowledgeable staff at info@jhd-material.com to talk about your G10 fiberglass plate supply needs and find out how our proven skills can help your important oil and gas insulation projects.

References

Smith, J.A., "Composite Materials in Oil and Gas Insulation: Performance Analysis and Selection Criteria," Journal of Industrial Materials Engineering, Vol. 45, No. 3, 2023.

Rodriguez, M.C., "High-Temperature Electrical Insulation for Energy Applications: A Comprehensive Study of Fiberglass Laminates," International Conference on Electrical Insulation Materials, 2023.

Thompson, R.L., "Chemical Resistance of Epoxy-Glass Composites in Petroleum Environments," Materials Performance in Energy Systems, Vol. 28, No. 7, 2022.

Anderson, K.W., "Safety Standards and Material Selection in Oil and Gas Electrical Systems," Petroleum Engineering Safety Handbook, 4th Edition, 2023.

Liu, H.Y., "Long-term Performance of Fiberglass Insulation in Offshore Applications: Twenty-Year Field Study," Marine Engineering Materials Quarterly, Vol. 12, No. 4, 2022.

Parker, D.M., "Cost-Benefit Analysis of Advanced Composite Insulation Materials in Industrial Applications," Energy Infrastructure Economics Review, Vol. 15, No. 2, 2023.
