Composition and Manufacturing Process
Raw Materials and Resin Systems

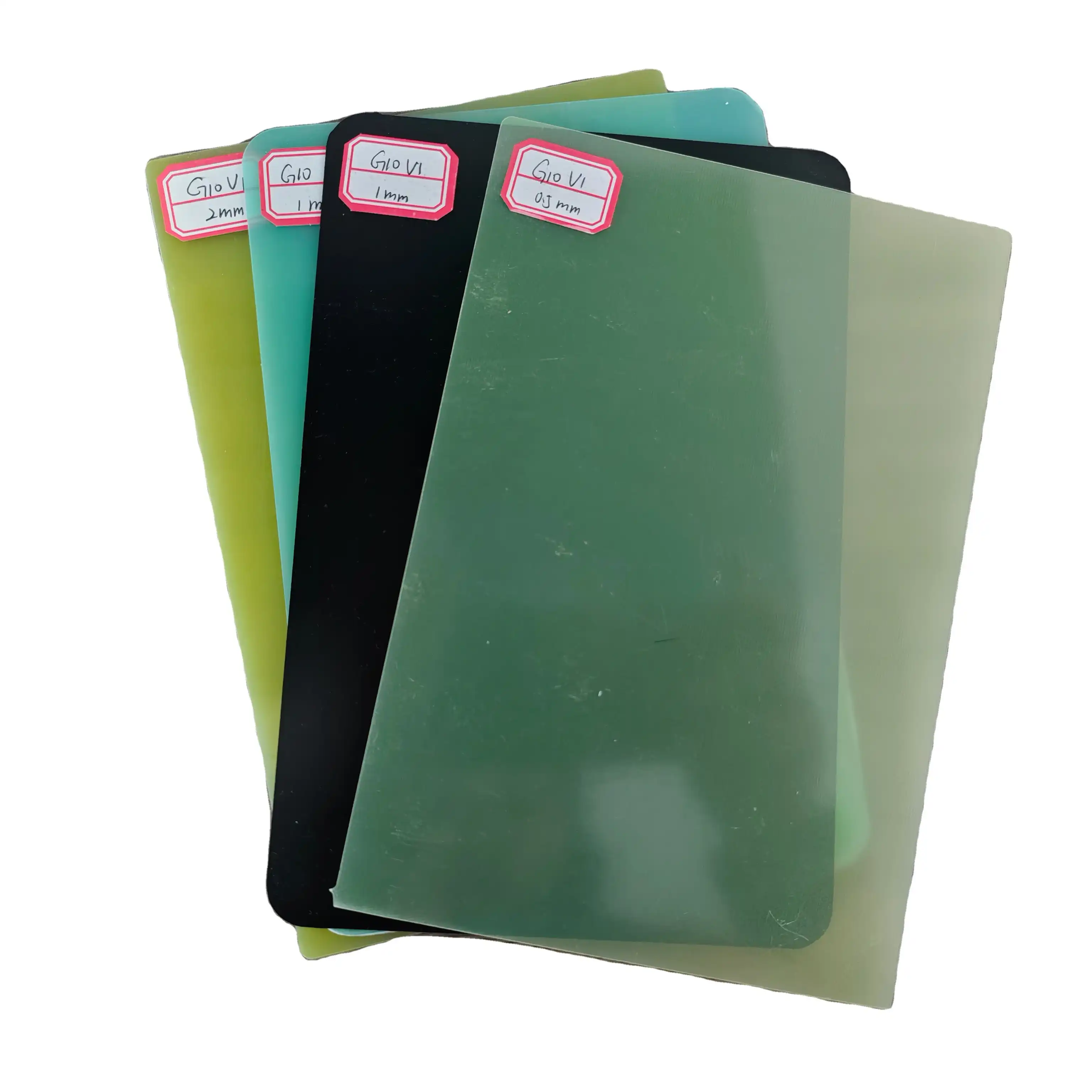

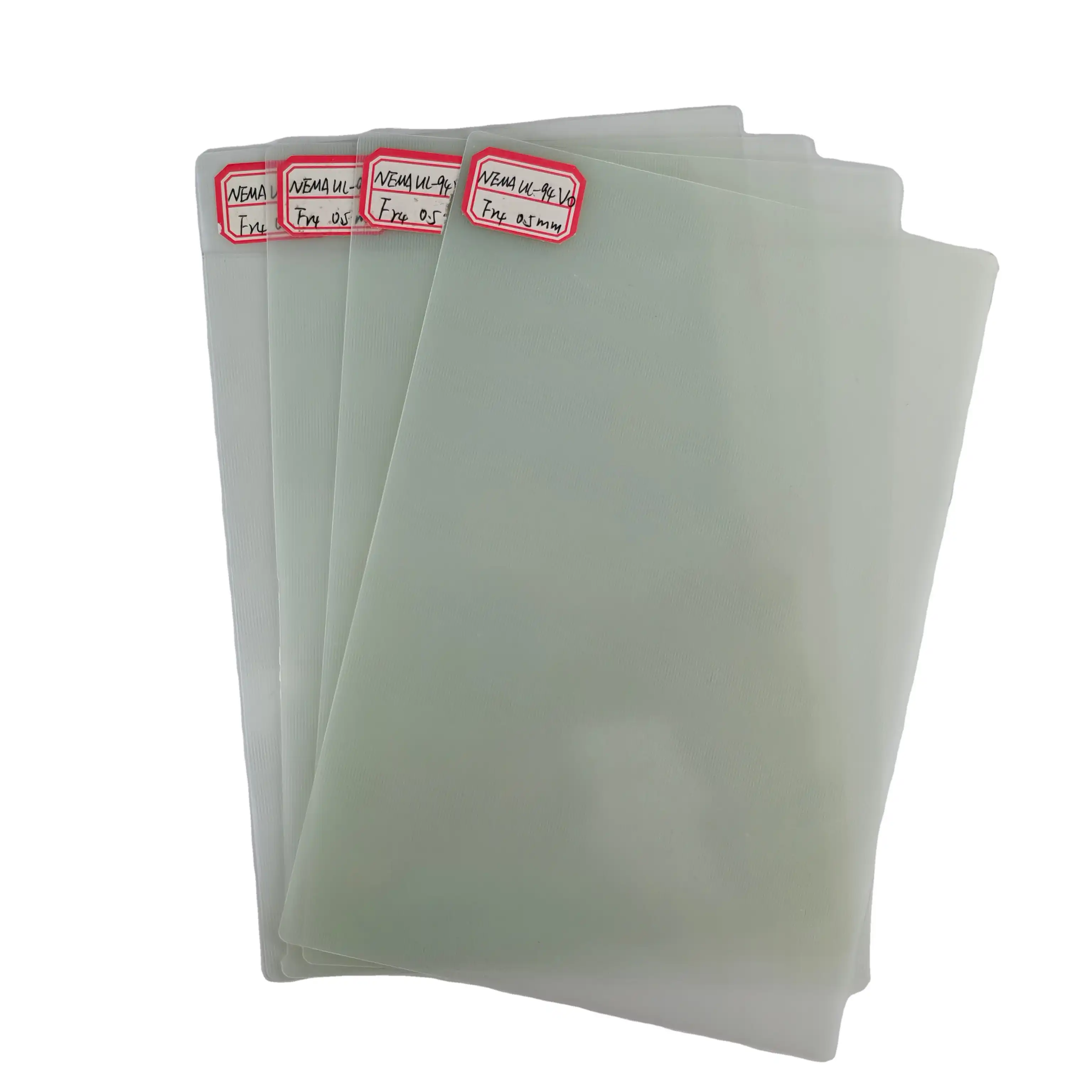

The composition of G10 and FR4 sheets plays a pivotal role in their distinct properties. G10 typically utilizes a high-grade epoxy resin system reinforced with continuous filament glass fabric. This combination results in a material with exceptional mechanical strength and dimensional stability. FR4, in contrast, incorporates a flame-retardant epoxy resin system, often containing bromine compounds, which imparts its characteristic fire-resistant properties.
Fabrication Techniques
The manufacturing processes for G10 and FR4 sheets share similarities but diverge in key aspects. Both materials undergo a layering process where multiple sheets of glass fabric are impregnated with their respective resin systems. However, FR4 production often involves additional steps to ensure uniform distribution of flame-retardant additives throughout the material. The curing process for G10 may be tailored to optimize its mechanical properties, while FR4 curing focuses on achieving the desired electrical and flame-retardant characteristics.
Quality Control Measures
Rigorous quality control is essential in the production of both G10 and FR4 sheets. For G10, manufacturers often employ advanced testing methods to verify its mechanical strength, such as flexural and tensile strength tests. FR4 quality control places a strong emphasis on electrical properties, with dielectric strength and surface resistivity being key parameters. Both materials undergo thorough inspections to ensure consistency in thickness, flatness, and overall quality, adhering to industry standards and specifications.
Performance Characteristics and Applications
Electrical Properties
FR4 sheets excel in electrical applications due to their superior dielectric properties. They boast low dielectric constants and loss tangents, making them ideal for high-frequency circuit boards. G10, while also a good electrical insulator, may not match FR4's performance in this aspect. However, G10's electrical properties remain sufficient for many industrial applications where extreme electrical performance is not the primary concern.
Mechanical Strength
G10 sheets outshine FR4 in terms of mechanical strength. The high-grade epoxy resin and continuous filament glass fabric in G10 result in exceptional tensile, compressive, and flexural strengths. This makes G10 the preferred choice for applications requiring robust mechanical properties, such as structural components in aerospace or industrial machinery. FR4, while adequately strong for PCB applications, may not meet the demanding mechanical requirements of certain high-stress environments.
Thermal Performance
Both G10 and FR4 sheets exhibit good thermal stability, but their performance differs under extreme conditions. FR4's flame-retardant properties give it an edge in applications where fire resistance is crucial. It maintains its integrity at higher temperatures and has a higher glass transition temperature (Tg) compared to standard G10. However, G10 often demonstrates better thermal conductivity, making it suitable for applications where heat dissipation is important.
Selection Criteria and Industry-Specific Considerations
Electronics and PCB Manufacturing
In the realm of electronics and printed circuit board (PCB) manufacturing, FR4 sheets reign supreme. Their combination of excellent electrical insulation, flame retardancy, and consistent performance across a wide range of frequencies makes them the go-to choice for most PCB applications. FR4's low moisture absorption also contributes to its reliability in varying environmental conditions. While G10 can be used in some electronic applications, it's generally reserved for specialized cases where its mechanical properties are more critical than its electrical performance.
Aerospace and Defense
The aerospace and defense industries often require materials that can withstand extreme conditions while maintaining high performance. G10 sheets find extensive use in these sectors due to their exceptional mechanical strength, dimensional stability, and resistance to harsh environments. They're commonly employed in structural components, radomes, and insulation panels. FR4, while less common in structural applications, still plays a crucial role in avionics and other electronic systems within aircraft and military equipment.
Industrial and Mechanical Applications
In industrial settings, the choice between G10 and FR4 sheets depends on the specific requirements of the application. G10's superior mechanical properties make it ideal for high-stress components, such as gears, bearings, and insulating bushings. Its excellent machinability allows for precise fabrication of complex parts. FR4, while less commonly used in purely mechanical applications, finds its niche in industrial control panels and equipment where both electrical insulation and flame retardancy are essential.
Conclusion
The choice between G10 and FR4 sheets ultimately depends on the specific requirements of your application. FR4 excels in electrical and flame-retardant properties, making it the preferred choice for PCBs and electronics. G10, with its superior mechanical strength and moisture resistance, is ideal for structural and high-stress applications. Understanding these differences allows engineers and designers to select the most appropriate material, ensuring optimal performance and reliability in their projects. As material science continues to advance, we can expect further refinements and specialized variants of these versatile laminates to meet evolving industry needs.
