What Makes 3240 Epoxy Resin Suitable for EV Battery Pack Insulation Solutions?

When engineers and procurement teams evaluate insulation materials for EV battery packs, one material consistently earns attention: the 3240 epoxy glass cloth laminated sheet. Composed of E-glass fabric bonded with epoxy phenolic resin and cured under heat and pressure, this yellow-toned rigid laminate has proven its worth across demanding electrical and industrial applications. For those sourcing Lithium Battery Pack 3240 Epoxy Resin, the answer lies in a combination of superior dielectric strength, mechanical load-bearing capacity, chemical inertness, and low shrinkage during curing—all properties that directly address the real engineering challenges inside a high-voltage battery module.

Understanding 3240 Epoxy Resin and Its Role in Lithium Battery Packs

What Is 3240 Epoxy Sheet?

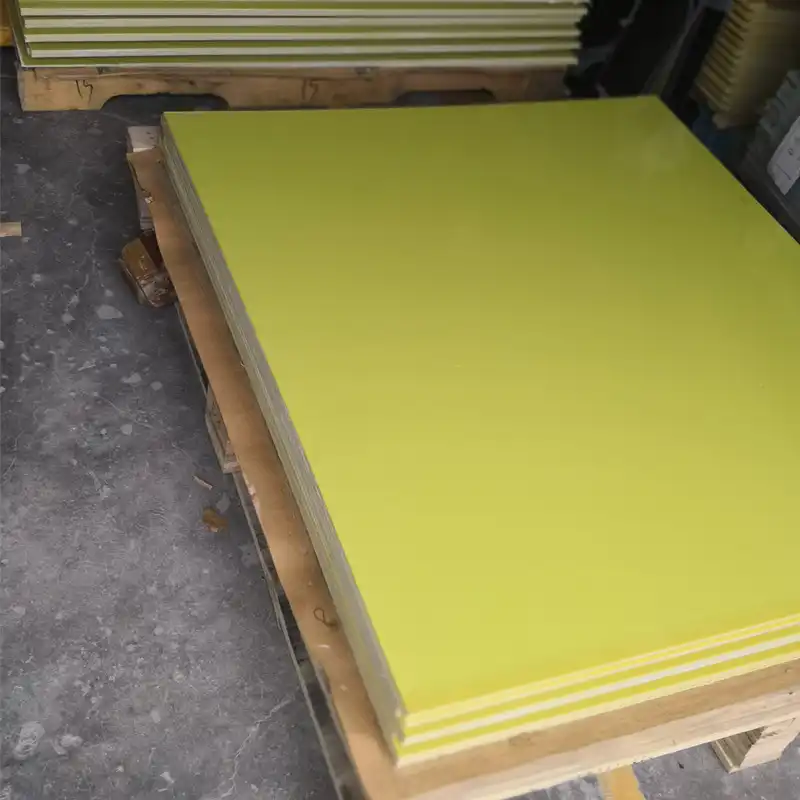

Epoxy phenolic glass cloth board of the 3240 grade is made by mixing alkali-free E-glass knitted fabric with epoxy phenolic resin and then pressing it hot into hard sheets. This material is made by JingHong in thicknesses ranging from 0.5mm to 100mm and standard sheet sizes of 1020mm × 2020mm. This gives design engineers a lot of options for CNC machining into custom battery parts.

Role Inside a Battery Module

Inside a lithium battery pack, the epoxy sheet acts as a barrier between cells and high-voltage busbars to keep them physically separate. It keeps the positive and negative electrodes from touching each other directly, stops galvanic short circuits, and acts as a structural spacer that stops the stress that cells feel when they swell during charge-discharge cycles. These jobs aren't just for looks; they have a real effect on how safe the battery is and how long it lasts.

Thermal and Electrical Performance

The Lithium Battery Pack 3240 Epoxy Resin material remains structurally stable at temperatures above 140°C based on its deflection temperature under load, covering typical EV operating conditions as well as short-term temperature spikes. For battery insulation applications, Lithium Battery Pack 3240 Epoxy Resin also provides a vertical layer breakdown voltage of 15.5 kV/mm at Grade A, as tested in transformer oil at 90°C. After soaking, the Lithium Battery Pack 3240 Epoxy Resin achieves an insulation resistance of 4.1 × 10²³, demonstrating strong electrical insulation performance under demanding conditions. These properties make Lithium Battery Pack 3240 Epoxy Resin suitable for helping prevent leakage current between electrically connected components and supporting reliable insulation across series-connected battery units.

Performance Advantages of 3240 Epoxy Resin Over Other Resins

As cheaper options for battery protection, polyurethane glue and regular thermoplastic sheets are sometimes put forward. When engineers compare the two, these are the main reasons why they always choose the 3240 epoxy laminate instead:

• Mechanical strength: Grade A bending strength perpendicular to laminations reaches 484 MPa, and compressive strength hits 401 MPa. These values allow the sheet to function as a load-bearing end plate that keeps prismatic or pouch cells compressed without deforming under vibration or impact—something polyurethane foams cannot replicate.
• Low curing shrinkage: Shrinkage stays below 2% during the curing process, so machined slots, holes, and edges retain dimensional accuracy. For battery assemblies where tolerances are tight, this property prevents misalignment between cells and busbars.
• Chemical resistance: Battery electrolytes are corrosive to many polymer materials. The epoxy resin matrix resists both acidic and alkaline electrolyte contact without degrading, meaning the insulation barrier stays intact across thousands of charge cycles.
• Flammability rating: Grade A achieves a V-0 flammability classification, which meets the fire-safety thresholds required by many automotive and industrial energy storage system (ESS) specifications.

These benefits directly lower the number of upkeep tasks, warranty claims, and failures that happen in the field. For OEM makers and tier-1 suppliers, this means that they save money over the lifespan of the product.

Environmental and Safety Considerations of Using 3240 Epoxy Resin

Regulatory Compliance

The factory where JingHong makes things is certified to ISO 9001, ISO 14001, and ISO 45001 standards. Environmental management systems are regulated by ISO 14001, which makes sure that production processes meet the highest standards for controlling waste and emissions around the world. During supplier qualification audits, buyers who supply North American or European auto brands can look at these certifications.

Handling and Storage Protocols

Under normal working conditions, the raw sheets are safe to touch. When people cut or drill, they make glass fiber dust, so they should wear the right eye and lung protection while they work. Sheets store best when they are dry, covered, and not directly exposed to water. The material can handle moderate humidity (39.9 mg under test conditions for Grade A) without losing much of its insulation, but it should not be left in standing water for long periods of time.

Alignment with EV Industry Sustainability Goals

The Lithium Battery Pack 3240 Epoxy Resin laminate structure contains no halogens, making it a suitable option for applications where compliance with evolving RoHS requirements is important across the electronics supply chain. In addition to supporting environmental compliance goals, Lithium Battery Pack 3240 Epoxy Resin offers a durable laminate structure designed for long-term service. Its extended service life can reduce the frequency of component replacement, helping lower material consumption over the operational life of an electric vehicle. By combining halogen-free construction with durable electrical insulation, Lithium Battery Pack 3240 Epoxy Resin can support more sustainable material use while maintaining the performance requirements of battery and electronic applications. For EV manufacturers and component suppliers, Lithium Battery Pack 3240 Epoxy Resin provides a practical material option when both regulatory considerations and long-term reliability need to be addressed.

Procurement Guidance for B2B Buyers of 3240 Epoxy Resin

To efficiently find this material, you need to look at a number of practical factors before placing an order.

JingHong has a minimum order quantity of 500 kg, which works for both testing prototypes and buying in bulk for production. T/T is used for payment, and based on the urgency and location, you can choose to ship by ocean freight, land freight, or air freight. The company can produce 43,000 tons of goods each year across two sites, so even for large-volume contracts, supply continuity is a reasonable goal.

Here are the most important things buyers should make sure of with every supplier:

• Certifications on file: ISO 9001 for quality management, ISO 14001 for environmental compliance, and ISO 45001 for occupational safety should all be current and verifiable.
• Thickness and size tolerances: Confirm that the supplier can hold the thickness tolerance your CNC machining process requires. JingHong offers sheets from 0.5mm to 100mm, covering most battery component designs.
• Customization capability: OEM-format cutting, custom sheet dimensions, and priority production scheduling are available, which shortens lead times for time-sensitive EV programs.
• Logistics support: JingHong operates its own logistics company, providing end-to-end delivery tracking from the production floor to your receiving dock—useful for supply chain managers coordinating cross-border shipments.

Having direct access to the factory also means that orders get made faster, which reduces the uncertainty about lead times that comes with using a third-party distributor.

Case Studies and Future Prospects of 3240 Epoxy Sheet in EV Battery Insulation

Current Real-World Applications

Epoxy glass laminates in the 3240 grade are already used as structural insulation boards in energy storage systems, AGV forklift battery packs, and light electric vehicle (LEV) battery modules. In ESS rack installations, Lithium Battery Pack 3240 Epoxy Resin provides the high compressive strength needed to help keep stacked modules stable as additional cells and hardware are installed. The dielectric performance of Lithium Battery Pack 3240 Epoxy Resin also helps maintain electrical separation between adjacent voltage levels, reducing the risk of unintended contact between conductive components. In AGV battery applications, Lithium Battery Pack 3240 Epoxy Resin can serve as a durable insulating barrier, while the chemical resistance of its epoxy matrix helps protect against conductive dust and exposure to industrial fluids. For manufacturers of energy storage equipment and electric mobility systems, Lithium Battery Pack 3240 Epoxy Resin offers a practical combination of structural support, electrical insulation, and environmental resistance for demanding battery applications.

Technical Trajectory

Material scientists are currently working on epoxy laminates that are better at transferring heat so that they can be used in next-generation high-energy-density packs. Because its glass fabric support structure already works with changed resin systems, the base 3240 platform is in a good place to get these changes. As EV battery designs keep getting better, procurement teams that build relationships with suppliers now will be able to get better material grades before anyone else.

Conclusion

For EV battery shielding applications, Lithium Battery Pack 3240 Epoxy Resin meets key technical requirements through its combination of mechanical strength, stable dielectric performance, chemical resistance, and low shrinkage. With a V-0 flame-retardant rating and manufacturing processes aligned with ISO requirements, Lithium Battery Pack 3240 Epoxy Resin can be considered for a range of energy storage applications across the automotive, power, and industrial sectors. Consistent batch quality and flexible sizing also make Lithium Battery Pack 3240 Epoxy Resin a practical option for manufacturers that require reliable insulation materials for different battery configurations. For procurement teams evaluating the insulation material supply chain, sourcing Lithium Battery Pack 3240 Epoxy Resin directly from an established manufacturer such as JingHong can simplify material selection, specification matching, and supply coordination. These advantages give Lithium Battery Pack 3240 Epoxy Resin both technical and procurement value for battery shielding and electrical insulation programs.

FAQ

Is 3240 epoxy sheet compatible with all lithium battery chemistries, including LFP and NMC?

Yes. The epoxy resin structure can handle both the slightly acidic and alkaline chemical conditions that are found in nickel manganese cobalt (NMC) and lithium iron phosphate (LFP) electrolyte systems. Because it doesn't absorb much water and doesn't react with chemicals, it can be used in these cell types without losing many of its properties over time.

How should 3240 epoxy sheets be stored before use?

Lay the sheets out flat and keep them somewhere dry and covered. Stay away from direct wetness or standing water for long periods of time. The material doesn't absorb much water, but keeping it dry while it's being stored keeps its shape and prevents surface insulation before it's machined.

How does the 3240 grade differ from FR4 for battery applications?

Both are made of E-glass and epoxy, but FR4 has a flame-retardant resin system that is brominated, which makes it work better in V-0 fires over a wider temperature range. Grade A 3240 also gets a V-0, but Grade B gets a V-1. FR4 is better for PCB applications because it has tighter size tolerances. On the other hand, 3240 is often chosen for structural battery insulation parts because it has high bending strength and is cost-effective.

What is the minimum order quantity for JingHong's epoxy sheet?

The minimum order quantity is 500 kg. Ocean, land, and air freight are all possible ways to ship. Payment is made through T/T.

Request a Sample or Bulk Quote — Contact J&Q Today

J&Q sells Lithium Battery Pack 3240 Epoxy Resin all over the United States. They can do this because JingHong can produce 43,000 tons of insulation sheets every year and has more than 20 years of experience making them. Whether you need sample sheets for engineering approval or a long-term source for Lithium Battery Pack 3240 Epoxy Resin for your production line, our expert and foreign trade teams are ready to help you find what you need. To get specifications, samples, or a bulk quote, email us at info@jhd-material.com or visit our blog at blog.jhd-material.com.
