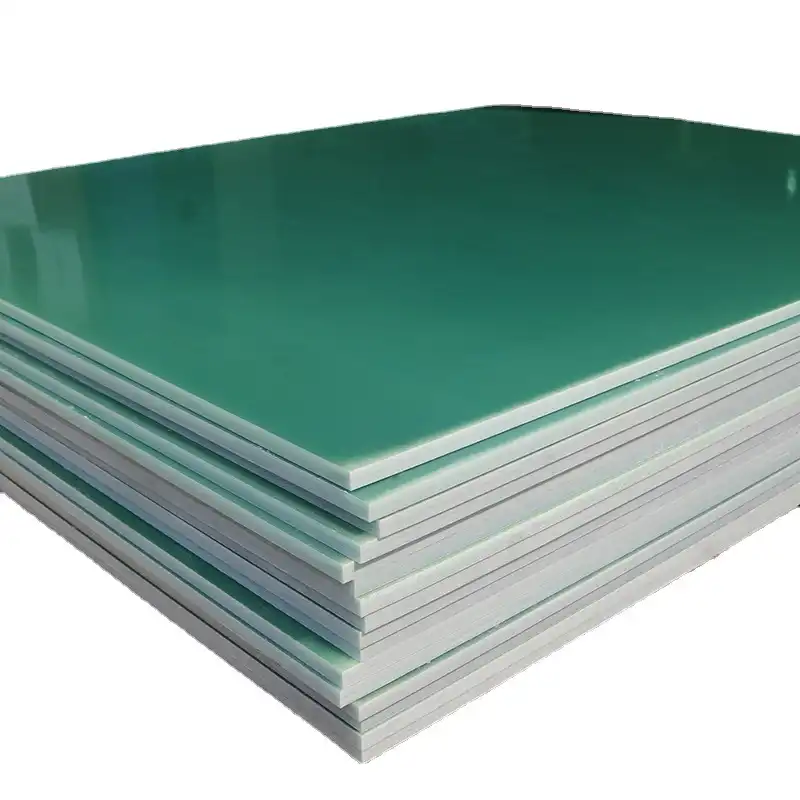

Flame Resistance FR4 Fiber Glass Laminate Sheet Supports Safe Insulation in Industrial Control Cabinets

When electrical engineers and procurement managers evaluate insulation materials for industrial control cabinets, one material consistently appears at the top of the specification list. The Flame Resistance FR4 Fiber Glass Laminate Sheet is a fiberglass-reinforced epoxy laminate that meets UL94 V-0 flammability standards, making it a proven choice for applications where fire propagation poses a serious risk. Manufactured under the NEMA FR-4 grade designation, it has largely replaced older G-10 boards in switchgear, PCB support, and arc barrier applications because of its self-extinguishing behavior and stable dielectric properties across both dry and humid conditions.

Understanding Flame Resistance in FR4 Fiber Glass Laminate Sheets

It's not just a marketing term for epoxy fiberglass laminates that are flame resistant; flame resistance is a measured, standardized trait that tells you how a material reacts to an ignition source. When procurement teams know what this really means, they can make more confident decisions about where to source things.

What "FR" Actually Means in FR-4

Based on what the National Electrical Manufacturers Association (NEMA) says, "FR" stands for "Flame Retardant." Bromine- or phosphorus-based chemicals are mixed into the epoxy resin core of Flame-Retardant FR4 fiberglass laminate sheets to make them fire-resistant. These chemicals stop the cycle of combustion, so the material goes out on its own when the source of ignition is taken away. This is not a surface process; it is chemically built into the material.

UL94 V-0: The Benchmark Standard

UL94 V-0 is the most common grade for how flammable insulation materials are in industrial control systems. If you put two 10-second flames on the same piece of material, it must stop burning within 10 seconds, with no dripping of flaming bits. Based on GB/T 2408-2008, Hongda's Flame Resistance FR4 Fiber Glass Laminate Sheet is classified as V-0, which is the same as this worldwide standard. This grade is an absolute must for buyers in the United States who are looking for materials to go into UL-listed equipment.

IEC Standards and Global Compliance

IEC 60893 is an international standard for industrial laminated sheets that goes beyond UL94. The IEC number for Flame Resistance FR4 Fiber Glass Laminate Sheet is EPGC 202/203, and it has a glass cloth base with epoxy resin binders on top of it. Buyers who sell goods in the US and also in Europe or Asia will find that Flame Resistance FR4 Fiber Glass Laminate Sheet meets both regional and international electrical safety standards. This makes it easier to source goods for more than one market.

Key Performance Attributes of Flame Resistant FR4 Fiber Glass Laminates

Performance in real-world working situations tells the difference between insulation that works and materials that really protect people and equipment. Here are the main technical features of Flame Resistance FR4 Fiber Glass Laminate Sheets that make them stand out in harsh industrial settings.

• High mechanical strength: Hongda's Flame Resistance FR4 Fiber Glass Laminate Sheet has a bending strength of 571 MPa and a tensile strength of 282 MPa. This means it can be used as spacers, mounting plates, and mechanical barriers without deforming when loaded.
• Strong dielectric performance: This material has strong dielectric performance. Its vertical layer breakdown voltage is 16.7 kV/mm, and its parallel layer breakdown voltage is more than 100 kV. This makes it a reliable choice for high-voltage control cabinet uses.
• Low moisture absorption: Water absorption was measured at only 5.3 mg, which means that the dielectric properties stay stable even in humid production areas or outdoor enclosures.
• Chemical resistance: The cured epoxy matrix is resistant to oils, common solvents, and cleaning agents. This is important in places like auto and machinery assembly lines where fluids are often present.

Together, these features make the material something that engineering teams can be sure of when they define it. A control cabinet insulation board that keeps its shape and electrical integrity even when temperatures and humidity change lowers the need for inspections and unplanned downtime.

Comparison and Selection Guide: FR4 vs. Other Flame Resistant Laminates

Not all fire-rated laminates work the same, and the difference between a well-engineered cabinet and one that just meets the bare requirements is matching the material to the job.

FR4 vs. FR5

The glass cloth reinforcement in FR5 is the same as in Flame Resistance FR4 Fiber Glass Laminate Sheet, but the glass transition temperature (Tg) is higher, usually above 170°C. It works well in places with very high temperatures, like power converters and motor generators. Since Flame Resistance FR4 Fiber Glass Laminate Sheet is much cheaper and can be used for most control cabinet applications, it is the standard grade that most electrical and electronics manufacturers choose.

FR4 vs. Polyimide Laminates

Polyimide laminates are better at keeping their shape above 250°C and are perfect for fine-pitch PCB designs. When it comes to aerospace, they are the best material. Though, polyimide is much more expensive and tougher to work with than Flame Resistance FR4 Fiber Glass Laminate Sheet. Flame Resistance FR4 Fiber Glass Laminate Sheet is still the most useful and cost-effective choice for industrial control box insulation where temperatures stay below 140°C.

Selecting by Thickness and Application

Hongda's Flame Resistance FR4 Fiber Glass Laminate Sheet comes in thicknesses ranging from 0.3 mm to 100 mm, so it can be used for anything from thin PCB support films to thick structural insulation barriers. The standard size of a sheet is 1030 mm × 1230 mm. Other special sizes are 1220 mm × 2440 mm and 1030 mm × 2030 mm. With this range, buyers in power distribution, switchgear manufacturing, and device manufacturing can find a single seller for a number of different part shapes.

Procurement Considerations for Industrial Buyers

If you buy flame-rated laminate materials directly from the manufacturer instead of a distributor, you can usually see the prices better, get technical help faster, and have more control over how consistent each batch is. J&Q is one of the biggest insulation board makers in China. It is backed by Hebei JingHong Electronic Technology Co., Ltd. and has two factories that together produce 43,000 tons of insulation board every year. This scale means that lead times will stay the same and material grades will stay the same for large orders.

MOQ, Pricing, and Payment Terms

You must buy at least 500 kg of Hongda Flame Resistance FR4 Fiber Glass Laminate Sheets. We accept T/T as payment. Production priority scheduling helps buyers who place repeat orders because it lowers the chance of supply gaps during times of high demand. Since we own our own logistics company, we directly coordinate ocean, land, and air freight. This takes away a layer of uncertainty that can affect orders for goods sent across borders.

Custom Orders and Quality Verification

Custom sheet sizes can be made to cut down on waste in CNC machining processes. Buyers should ask for material test reports that confirm the UL94 V-0 rating, breakdown voltage data, and bending strength values before placing a large order. Hongda's technical data matches the test methods in GB/T 1303.4-2009, and it's easy for a third party to check them because the test settings are standard.

Packaging and Delivery

Sheets are put on boxes and protected with normal packing before they are sent overseas. This keeps the edges and surfaces of the sheets safe during ocean freight, which is the most common way for large industrial orders to get to the US. You can send samples or replacements by air freight if you need them quickly.

Practical Applications and Case Studies in Industrial Control Cabinets

Flame Resistance FR4 Fiber Glass Laminate Sheets are used all over the inside of industrial control boxes. They are used as arc barriers between phases, mounting platforms for relay modules, and structural spacers between high-voltage terminals. They are placed behind bus bars to keep them cool. Because they are both strong electrically and mechanically, they are good for these structural-insulation hybrid roles.

Switchgear Insulation Barriers

In medium-voltage switchgear, phase-to-phase barriers need to be able to handle spark energy when there is a fault. In these situations, Flame Resistance FR4 Fiber Glass Laminate Sheets with a rating of more than 100 kV parallel breakdown voltage work as a solid block. Manufacturers of switchgear say that Flame Resistance FR4 Fiber Glass Laminate Sheet barriers keep their shape and ability to insulate even after faults that would normally cause less durable materials to crack or carbonize.

PCB Support and Test Fixtures

Flame Resistance FR4 Fiber Glass Laminate Sheets are used by companies that make electronics to make fixed PCB testing jigs and insulation plates for automatic test equipment. The material can be cut with a CNC machine to make slots and mounting holes with tight tolerances that don't delaminate. This keeps the accuracy of registration in test setups over thousands of insertion cycles.

Battery Pack Insulation in Automotive Applications

Tier-1 automotive makers use Flame Resistance FR4 Fiber Glass Laminate Sheets as insulation pads and separators in lithium battery pack systems. The low moisture absorption and self-extinguishing behavior take into account both the changing humidity that happens in a car and the safety standards for thermal runaway control.

Conclusion

For years, Flame Resistance FR4 Fiber Glass Laminate Sheet has been the standard insulation material in industrial control cabinets because it performs consistently well in fire resistance, dielectric strength, and mechanical durability. The Hongda Flame Resistance FR4 Fiber Glass Laminate Sheet is made under controlled test conditions and comes in a range of thicknesses from 0.3 mm to 100 mm. This gives procurement teams a material that meets both US compliance requirements and operational needs. When people buy straight from J&Q, they are connecting with a manufacturer that has been making things for more than 20 years and offers combined transportation support.

FAQ

What makes FR4 different from standard G-10 fiberglass laminate?

Both G-10 and Flame Resistance FR4 Fiber Glass Laminate Sheet are made of glass cloth and epoxy resin, but UL94 V-0 classification is given to Flame Resistance FR4 Fiber Glass Laminate Sheet because it has flame-retardant additives. G-10 has not been treated to be flame-retardant, so it can continue to burn. Most safety rules for industry and electricity now say that materials in control cabinets must be V-0 rated. This is why Flame Resistance FR4 Fiber Glass Laminate Sheet has mostly replaced G-10.

Can I order FR4 sheets in non-standard sizes?

Hongda Flame Resistance FR4 Fiber Glass Laminate Sheets can be made to order in custom sizes, such as 1030 mm × 2030 mm, 1220 mm × 2440 mm, 1030 mm × 1030 mm, and 1030 mm × 2070 mm. Custom sizing cuts down on waste from offcuts in CNC cutting. This is especially helpful for people who are making big insulation panels or long arc barrier strips.

How do I verify a supplier's FR4 quality before placing a bulk order?

Ask for a material test record that lists the exact GB/T or IEC test methods that were used and includes information on the material's flammability grade, bending strength, and breakdown voltage. Make sure that the answer for flammability shows V-0. You can also ask for a sample batch and check it against your own acceptance standards before committing to the full amount.

What is the standard lead time for bulk FR4 sheet orders?

Lead times depend on the number of orders and how busy production is at the moment. If you order directly from J&Q, your order will be produced first, which cuts down on the lead time compared to buying through distributors.

Partner with J&Q for Your Next FR4 Laminate Sheet Order

J&Q sells certified Flame Resistance FR4 Fiber Glass Laminate Sheet straight from our factory, so there are no markups for middlemen, and we handle all of the freight ourselves. We are a reliable Flame Resistance FR4 Fiber Glass Laminate Sheet manufacturer with more than 20 years of experience. We can handle custom sizes, large orders, and technical documentation for compliance checks. You can email our team at info@jhd-material.com or go to blog.jhd-material.com to ask for a sample or talk about the details of your project.

References

1. National Electrical Manufacturers Association (NEMA). NEMA LI 1: Industrial Laminating Thermosetting Products. NEMA, 2020.

2. Underwriters Laboratories. UL 94: Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances. UL, 2018.

3. International Electrotechnical Commission. IEC 60893-3-2: Industrial Rigid Laminated Sheets Based on Thermosetting Resins for Electrical Purposes — Specifications for Individual Materials. IEC, 2019.

4. Coombs, Clyde F. Printed Circuits Handbook, 7th ed. McGraw-Hill Education, 2016.

5. Harper, Charles A. Electronic Materials and Processes Handbook, 3rd ed. McGraw-Hill, 2004.

6. Lau, John H. Reliability of RoHS-Compliant 2D and 3D IC Interconnects. McGraw-Hill, 2011.
