What Causes Warping During Bakelite Sheet Machining Processes?
Warping during Bakelite sheet machining stems from a combination of thermal stress, mechanical forces, moisture absorption, and material inconsistencies. When cutting tools generate excessive heat, the phenolic resin matrix softens temporarily, leading to dimensional distortion as the material cools unevenly. Mechanical stresses from aggressive feed rates or dull tooling create internal tension that manifests as bending or twisting. Environmental factors like humidity cause the cellulose fiber base to swell slightly, while variations in resin content across batches result in unpredictable responses during machining operations.

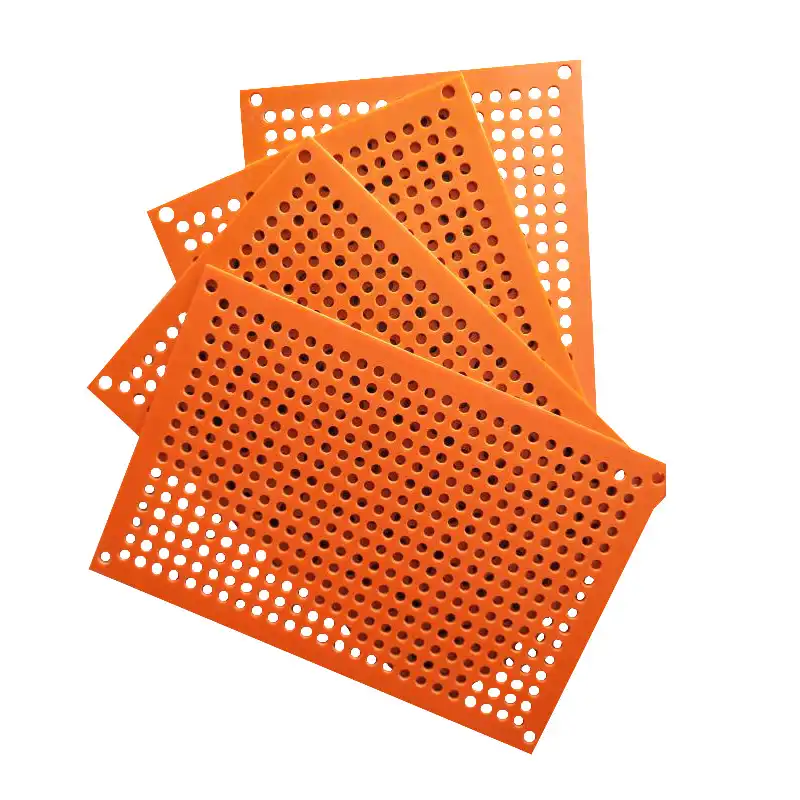

Introduction
Bakelite Sheets are used by makers in the electrical, automobile, power distribution, and machinery industries for important structural and insulation purposes. The dielectric strength, mechanical stability, and heat resistance of this thermoset phenolic laminate are all far higher than those of thermoplastics. However, warping during CNC drilling, cutting, or machining operations makes things very hard for procurement teams and production engineers who need to keep the dimensions accurate.
Figuring out why things warp saves your investment by cutting down on wasteful materials, repairs, and keeping the tight tolerances needed for switchgear units, motor parts, and PCB supports. Over the past 20 years, we've worked with hundreds of engineering managers and technical sourcing experts. One of the most common quality issues they bring up is warping. In addition to the cost of scrap, warped parts cause production plans to slip, electrical safety gaps to be lowered, and seller relationships to be harmed.
This guide uses our many years of experience in manufacturing to help you find out what causes your materials to bend, how to stop it, and how to choose sources who always send stable materials. These tips will help you make better buying decisions and get better results when you're machining, whether you're looking for transformer insulation or automotive battery barriers.
Understanding Warping in Bakelite Sheet Machining
What Warping Means for Your Components
When phenolic laminates bend, twist, or curve in ways that aren't wanted, this is called warping. It can happen during or after machining operations. In contrast to elastic compression, which goes away when the stress is taken away, warping is a lasting change in size that makes it harder to fit, function, and keep electrical connections clear. Visual inspection is usually enough to spot warping. For example, sheets that don't lie flat on measuring tables, parts that won't fit into assembly fixtures, or parts that are curved along their length can all be signs of warping.
With precise measuring tools, you can find more minor bending problems. Coordinate measuring tools can find differences as small as 0.05 mm, and laser scanning can record the surface structure of whole sheets. If you catch warping early, it stops problems later on in the assembly process, where out-of-place insulation panels create dangerous electrical gaps or mechanical interference.
Why Phenolic Laminates Behave Differently
Because of how they are structured, Bakelite Sheets react to machining stresses in a way that other engineering materials don't. Several layers of paper or cotton cloth are mixed with phenolic resin and then heated and pressed together to form a stiff compound. Because of the layers, the material has anisotropic properties, which means it acts differently along its length, width, and thickness.
As the resin cross-links during the hardening process, it locks in internal pressures that were there before. These pressures are released unevenly during machining processes, especially when material is taken away from one side of a sheet. The phenolic matrix is fragile and easily breaks into tiny cracks when it is mechanically loaded. The cellulose fiber base, on the other hand, takes in water from the air around it. This hygroscopic behaviour changes the size of things in ways that solid metals and plastics don't.
When compared to FR4 epoxy laminates, normal phenolic sheets are more easily damaged by water and don't keep their shape as well. Compared to pure plastics like acetal or nylon, phenolic materials are more rigid, but they are harder to machine. Knowing how these materials behave helps you make the right changes to your processes and make sure your supplier understands your technical needs.
Key Causes of Warping During Machining
Thermal Effects from Cutting Operations
The main thing that can cause phenolic laminates to warp is heat buildup during cutting processes. When fast-moving cutting tools hit a surface, friction turns mechanical energy into thermal energy that quickly raises the temperature in the area. Standard Bakelite Sheets keep their shape up to about 120°C when they are being used continuously, but temperatures in the cutting zone can easily go over 150–180°C in an instant.
The localised heating briefly weakens the phenolic resin matrix, making it less able to keep the sheet's rigid structure. The resin forms again in a slightly different shape as the hot area cools down after the cutting tool moves through it. Different rates of cooling on the machined surface compared to the inside of the sheet create thermal gradients that cause bending stresses. During long machining runs, heating and cooling processes that happen over and over again make this effect worse, gradually deforming the part.
The choice of tool has a direct effect on heat production. When cutting edges are dull, it takes more force to remove material, which causes too much friction and heat. Cutting speeds that are too fast or too slow make it impossible for chips to escape properly, which causes material to heat up as chips rub against surfaces that have just been cut. If you don't use the right cooling methods, the heat that builds up moves through the sheet and affects places that aren't even in the cutting zone.
Mechanical Stress from Cutting Parameters
It is the physical forces used to remove material that cause internal stresses that make bending problems worse. When cutting tools go through the laminate surface, they put a lot of pressure on the material around it, which temporarily changes its shape. Cutting forces go up when the feed rate is high, and deformation is more severe when deep cuts are made in a single pass. The brittle phenolic matrix doesn't bend and absorb these stresses as metals do. Instead, the material builds up residual tension that bends the sheet into different shapes after the clamps are taken off.
The shape of the tool is very important for how the stress is distributed. When carbide or diamond-tipped tools are sharp, they make clean cuts with little side force. Worn-out tools, on the other hand, tear material instead of cutting it cleanly. Tools don't cut through material as well when the rake angle isn't right, which causes vibration and uneven stress patterns. When spindle speeds don't match the properties of the material, chattering happens, which sends repetitive stress waves through the whole part.
During grinding, clamping techniques can either help or hurt mechanical stress problems. When clamps are over-tightened, they create pressure points that deform the sheet locally. These deformations leave permanent marks on the material that keep it from lying flat afterward. Not enough clamping allows movement and shaking during cutting, which leads to differences in size and stress concentrations. The workpiece is held in place without adding to the stress by balanced clamping with the right amount of surface area distribution.
Environmental Moisture and Humidity
Phenolic paper laminates are hygroscopic, which means that they naturally take in water from the air through their cellulose fiber base. As water molecules move between the fiber layers and the resin surfaces, the dimensions of the material expand. If you store a sheet at 80% relative humidity, it can grow by 0.3% to 0.5% across its length and width, but not if you store it at 30% humidity. This change, which might not seem like much, can cause big screens or precision parts with tight standards to warp a lot.
Different materials absorb water in different ways, depending on how they are stored and handled. When sheets are stored vertically with one edge open to humid air, they absorb water unevenly, which causes the panel to bend. When things are moved from climate-controlled warehouses to humid production floors, they quickly absorb water during the acclimatisation process. Parts that are machined before physical stabilisation happen keep changing size and shape for days after they are cut.
Material Inconsistencies and Quality Variations
Even within the same grade, not all phenolic laminates have the same resistance to warping. Material errors that affect machining behaviour are caused by differences in the amount of resin used, the parameters of the cure cycle, and the orientation of the layers during manufacturing. Sheets with a little less glue are not as stable in terms of their shape because there is less binding to hold the fiber layers together when they are stressed. If the glue doesn't cure all the way, it can cross-link when it comes in contact with machining heat, which can cause the material to twist hours after it was cut.
Thickness tolerances have a direct effect on how likely something is to bend. Industry standards usually allow a thickness difference of ±10%. This means that a sheet that is supposed to be 10mm could actually be 9mm to 11mm in some places. Thinner sections are less rigid mechanically and bend more easily when cut, while thicker sections are more resistant to bending. When material is taken away from one side during cutting, the differences in thickness cause uneven stress release, which bends the sheet.
The conditions of storage before the material gets to your facility add to the variability. Sheets that were stored in places that weren't well controlled may have already absorbed water unevenly or gone through thermal cycling that relieved some of the stress inside them. Even when bought to the same specs, material from different production batches often warps in different ways. You won't be able to plan production well if you don't have strict quality control at the supplier level and keep track of each batch.
Best Practices to Minimize Warping in Bakelite Sheet Machining
Optimizing Machining Parameters
Warp-free grinding is based on controlling the cutting settings. For cutting tasks, we suggest spinning speeds between 3,000 and 6,000 RPM, with feed rates set so that chips are formed continuously instead of dust. Feed rates between 1 and 2 meters per minute are slower and lower the cutting forces while still leaving enough space for chips. Compared to strong single-pass cuts, multiple short passes remove material more slowly, preventing heat buildup and mechanical stress.
Care must be taken when choosing a tool. Cutting tools made of carbide stay sharp longer than those made of high-speed steel, which means less friction and heat buildup during production runs. Although they cost more at first, diamond-coated tools work even better for large-scale tasks. To cleanly shear material instead of crushing it, the shape of the tool should have positive rake angles between 5 and 10 degrees. If you change your tools before they show any signs of wear, you can stop the cutting forces that come with dull edges from rising exponentially.
Cooling strategies should be looked at in the same way. Flood coolant doesn't work on porous phenolic materials, but directing compressed air at the cutting zone gets rid of chips and cools things down. Cutting in short bursts with breaks in between lets heat escape, which is especially important for sheets thinner than 3 mm. Some makers are able to use cool backing plates that keep the temperature of the material more even by conducting heat away from the workpieces while they are being machined.
Pre-Machining Conditioning and Stabilization
Conditioning the material before cutting greatly lowers the number of times it warps. Before cutting, keep new sheets in your production area for 48 to 72 hours so that the moisture levels can equalise with the air. During this time, the sheets can expand or contract to meet the humidity in your building. This keeps the dimensions from changing after they have been machined. To keep moisture cycling to a minimum, keep storage areas between 18°C and 40°C and the relative humidity between 40 and 60%.
How things are stacked during storage affects how flat they are. Gravitational sagging causes curves to appear before machining even starts. Horizontal stacking with full-surface support stops this. Don't lean sheets against walls or store them vertically; instead, put them on flat pallets or tables. Putting sheets together that are made of moisture-resistant materials stops water from moving between layers while keeping them apart so air can flow.
During the pre-cutting check of Bakelite Sheet, material that won't machine well is found. Before spending time cutting, check the sheets to see if they are already warped, have surface flaws, or are delaminated. Using a straightedge to measure along with visual inspection helps find problems early. Checking the thickness of a sheet in several places shows differences that indicate how the stress will be released unevenly during cutting. Rejecting bad material before it is machined saves time and prevents quality problems from happening later.
Post-Machining Stress Relief
After machining, stress release methods help keep the measurements stable and stop warping from happening later. To relieve thermal stress, finished parts are heated to 80–100°C for two to four hours and then slowly cooled to room temperature. This process lets any remaining stresses go away while keeping the resin slightly soft. This lets the material reach a lower-energy state that stops it from deforming again. Avoid temperatures above 120°C during stress relief to keep the material from breaking down.
Another option is to use limited restraints to relieve mechanical stress. Put parts that have been machined between flat plates that have light, evenly spread weight on them for 24 to 48 hours after cutting them. This restraint stops the material from warping while the residual stresses go away on their own at room temperature. This method works especially well for big screens, where large ovens would be needed to relieve heat stress.
Quality control checks make sure that stress relief works. After cutting, measure important measurements right away and again 48 to 72 hours later to find any changes that happened later. Parts that stay fixed show that stress is being managed well, while parts that keep moving show that stress is not being managed well or that there are problems with the quality of the material. This information helps you improve your processes and gives you clear proof to show your suppliers when material consistently fails to meet your needs.
Real-World Application Examples
The electrical equipment companies we've worked with put in place staged cooling methods that cut the number of rejects due to warping by 67%. Their process includes rough-cutting blanks that are too big, letting them dry for 24 hours, and then finishing to the final size. The intermediate stabilisation period lets the initial stress release happen before precision machining, which makes the consistency of the dimensions a lot better.
Manufacturers of automotive battery barriers fixed the problem of warping by making work-holding fittings that spread clamping pressure over bigger areas. This method, along with lower feed rates and regular sharp tool maintenance, cut their rework rate from 12% to less than 3%. The money spent on better fixtures paid for itself within five months because the company saved money on materials and made more things.
Comparative Analysis: Warping in Bakelite Sheets Vs. Other Materials
Material-Specific Warping Characteristics
Phenolic paper laminates bend in a way that is different from other shielding materials that are often used in industrial settings. Because they are made with higher-grade epoxy resin systems and glass fiber support, FR4 epoxy glass laminates usually have better dimensional stability. The glass fibers are better at resisting both heat expansion and mechanical damage, but FR4 is a lot more expensive than regular phenolic grades. When money is tight and cost-effective solutions are needed, phenolic materials work well as long as the right steps are taken when they are machined.
Phenolic cotton laminates are stronger mechanically than paper-based grades, but they react the same way to factors that cause warping. The cotton fiber base makes the material more resistant to pressure and easier to work with, but it still reacts the same way to wetness. Fiberglass-reinforced plastics behave very differently. Their continuous fiber structure stops bending better, but they need special diamond tools because they are rough. It's easier to machine pure thermoplastics like acetal or nylon without making chips that break easily, but they don't have the temperature resistance and electrical properties that are needed for high-voltage insulation.
Knowing about these changes in materials helps you match specs to real-world application needs. Sometimes, procurement teams ask for too many expensive materials when standard resin grades would work just fine with the right cutting. On the other hand, cost-conscious buying sometimes chooses phenolic materials for uses that need FR4's better reliability. To balance technical needs with limited budgets, engineering, procurement, and suppliers must be able to communicate clearly and honestly about what materials can and cannot do.
Supplier Quality Impact on Warping Control
Material consistency is directly linked to how well a provider can make things and their quality processes. Reputable makers keep tight process controls during the curing, layup, and resin impregnation stages, which decide the final qualities of the material. Their written processes make sure that all of their production batches have the same amount of resin, the same cure time, and the same fiber direction. This means that the material will machine reliably and won't twist too much from shipment to shipment.
Lower-tier providers often don't have sophisticated process tracking, so the material they make varies more from batch to batch. Even if the grade specifications are the same, you might get sheets that machine beautifully one month and warp too much the next. When you add in higher scrap rates, extra work, and output delays, the cost savings from cheaper suppliers quickly go away. We've seen procurement teams switch suppliers three times to find lower prices, but after figuring out the total cost of ownership, they always go back to high-end manufacturers.
Certification standards give some assurance that a supplier can do what they say they can do. If you want to be sure that a manufacturer has documented methods and systems for ongoing growth, look for one that has ISO 9001 quality management certification. UL recognition for electrical materials shows that they meet safety standards that apply to insulation applications. RoHS compliance makes sure that materials are made in a way that is good for the earth. Certifications don't promise perfect material, but they do show that quality is being managed in a way that lowers the risk of damage compared to sources that aren't verified.
Procurement Tips for High-Quality Bakelite Sheets to Reduce Warping Risks
Supplier Selection Criteria
Finding makers whose skills match your quality standards and application needs is the first step to successful buying. In addition to price quotes, we suggest judging possible providers on a number of other important factors. Experience making phenolic laminates and Bakelite Sheet is important—suppliers who mostly make other materials might not know how to do the specific steps needed to keep the laminates from warping. Find out how old their production equipment is and how often they maintain it. Materials of different qualities can come from worn presses and temperature controls that don't work right all the time.
Ask for technical data sheets that are very detailed and list not only the nominal properties but also any tolerances and test methods. Reliable sellers give detailed information about their products, such as the thickness tolerances, moisture content at shipping, internal stress levels, and the best ways to store them. This openness shows that they trust that their products will always be the same. Suppliers who don't want to share exact specs usually have problems with quality control that they don't want to show.
Customer recommendations from people who work in the same field as you are very helpful. Real-world performance data that marketing materials won't show can be found by talking to engineers at companies that use similar apps. Find out how often the provider delivers on time, how quickly they respond to technical help requests, and how they handle quality problems when they happen. Long-term ties with customers mean that you can count on them to do business with you again and again, while high customer change rates mean that problems keep happening.
Sample Evaluation and Testing
Before you place a big order, ask for samples that are representative of the whole that will go through your actual machining processes. To make sure that test samples are a good representation of what you'll get in large sales, they should come from current production batches instead of material that was specially chosen. Make these samples using your normal settings and write down any problems with warping, surface quality, or tool wear that aren't normal. Check the stability of the dimensions right after cutting and again after 72 hours to find signs of delayed warping.
By measuring thickness in several places on sample sheets, you can see how consistent the manufacturing is. Variations greater than 8% mean that the process is not being controlled well, which will lead to unpredictable machining behaviour. Look at the surface quality with a microscope to find areas that are resin-rich or resin-poor, which could mean that the impregnation isn't uniform. When test cutting, delamination at the cut edges means that the interlayer bonding is weak, which lowers the mechanical qualities.
When you use the same machining parameters and evaluation standards on samples from different sources, you can compare them. Instead of relying only on technical claims, this head-to-head testing gives procurement decisions objective data. Photographs, measures, and notes on the machining can help buying teams remember what you found when negotiating with suppliers and doing yearly reviews.
Balancing Cost and Quality Considerations
Price differences between suppliers are caused by real changes in how well they make things, the grades of the raw materials they use, and how they control the process. The cheapest material usually comes from sellers who cut corners by using shorter fix times, less resin, or less strict quality control. These lower costs show up as more warping, inconsistent dimensions, and batch variation, which adds up to hidden costs later on.
Instead of just looking at the piece price, figure out the total cost of ownership. Add up the prices of your normal rate of scrap, repairs, production delays, and quality inspections. A seller with 15% lower prices but 25% higher scrap rates will end up costing more than a premium source whose quality is always the same. Include the value of the supplier's technical support—responsive engineering help that helps you optimise your machining processes saves you money by increasing yields and cutting down on the time you spend fixing problems.
In buy agreements, make sure there are clear quality standards for things like thickness tolerance, flatness, and surface quality. Include ways for samples to be inspected upon delivery, before the material goes into production. These contractual defences give you the power to deal with quality problems right away, instead of finding them after making hundreds of bad parts. Such requirements are fine with premium suppliers because their quality systems already meet or go beyond standard requirements.
Conclusion
When Bakelite Sheet is being machined, it warps because of thermal, mechanical, and environmental factors that are all linked and need to be managed in a thorough way. Controlling the cutting factors lowers the amount of heat and mechanical stress that is created, and pre-machining conditioning makes sure that the measurements are stable before the processing starts. Post-machining quality checks and stress relief find problems early on, so bad parts don't make it to the assembly steps. Choice of material and working together with a source are both very important. High-quality, consistent phenolic laminates work more reliably and warp less often than uneven materials, even when efforts are made to improve the process. By using these tried-and-true methods, buying teams and production engineers can work together to lower the risk of warping, cut down on waste, and keep the tight standards needed for electrical insulation, structural parts, and mechanical parts used in many industries.
FAQ
Does moisture really cause warping in phenolic laminates?
Because they are made of hygroscopic cellulose fibers, phenolic sheets made from paper lose a lot of their shape when they absorb water. Thirty to forty percent changes in relative humidity can cause three to five percent changes in dimensions, which can be seen in precision parts that warp. Keep the material in a climate-controlled space with a relative humidity of 40 to 60 percent. Give it 48 to 72 hours to acclimatise before cutting it to keep changes in size caused by wetness to a minimum. Based on our production experience, controlling the air properly cuts down on bending by about 40 to 50 percent.
How does sheet thickness affect warping tendency?
Because they are more structurally stiff and can handle more bending forces, thicker sheets usually don't twist as much as thin ones. However, uniform thickness is more important than absolute thickness. For example, a 6mm sheet with a variation of ±0.8mm bends more easily than a 3mm sheet that is all the same thickness. When cutting, materials with thickness differences of more than 8% warp much more quickly because uneven stress release creates different bending forces across the sheet surface.
What cutting parameters work best for minimizing thermal warping?
The best settings match the rate of material removal with the amount of heat produced. We suggest that you use spindle speeds between 3,000 and 6,000 RPM and feed rates between 1 and 2 meters per minute. Also, make several short passes instead of one forceful cut. When compared to dull or HSS tools, sharp carbide or diamond-tipped tools have a lot less friction. Compressed air cooling aimed at the cutting zone gets rid of chips and heat well without the problems with moisture that come with using liquid coolants.
Partner With J&Q for Warp-Free Bakelite Sheet Solutions
J&Q has been making high-quality phenolic laminates for over 20 years. These laminates are engineered to work better with machines and have less chance of warping. Our vertically integrated production handles every step, from making the resin to curing it at the end. This makes sure that the material is consistent, which stops lower-grade providers from having problems with unstable dimensions. We have written quality systems that keep track of each batch and do full tests on them before they are shipped to make sure the thickness is regular, the moisture content is correct, and the internal stress levels are acceptable. As a well-known company that makes Bakelite Sheet for the electrical, automotive, power distribution, and machinery industries, we know exactly what your applications need in terms of tolerances.
The technical support team at our company works directly with your engineers to make sure that the machining parameters are best for your equipment and needs. We give you thorough information about the materials you need, suggest the best tools and cutting methods, and fix any problems with dimensions that come up during production. In addition to providing high-quality materials, we also offer dependable shipping plans that help your production stay on track. This one-stop service approach gets rid of the hassles of planning and speeds up problem-solving when projects need to be done right away.
You can get example sheets to see for yourself how good our material is, or you can email our engineering team at info@jhd-material.com to talk about your unique needs. We'll help you choose the best grade and thickness for your machining processes and give your buying team the technical information they need to confidently qualify suppliers. See the difference that reliable, non-wrinkling phenolic laminates can make in the quality and speed of your production.
References
1. Harper, C.A. (2004). Handbook of Plastics, Elastomers, and Composites, Fourth Edition. McGraw-Hill Professional Publishing.
2. Richardson, M.O.W. & Zhang, Z.Y. (2000). "Experimental Investigation of Residual Stresses in Thermosetting Laminates." Composites Science and Technology, 60(12), 2483-2491.
3. Mantell, C.L. (1958). Phenolic Resins: Their Structure, Properties, and Chemical Technology. Reinhold Publishing Corporation.
4. Mallick, P.K. (2007). Fiber-Reinforced Composites: Materials, Manufacturing, and Design, Third Edition. CRC Press.
5. Kaw, A.K. (2005). Mechanics of Composite Materials, Second Edition. Taylor & Francis Group.
6. DiBenedetto, A.T. (1987). "Tailoring of Interfaces in Glass Fiber Reinforced Polymer Composites: A Review." Materials Science and Engineering, 94, 123-134.
