NEMA CE Sheet Manufacturing and CNC Machining Capabilities

When it comes to electrical uses that need better protection and strength, NEMA CE sheet is a special kind of phenolic cotton laminate. Under controlled heat and pressure, this thermoset composite material mixes phenolic glue with cotton fabric support to make parts that are needed for electrical switches, motor insulation, and precision-machined electrical parts in many industrial industries.

Understanding NEMA CE Sheet: Properties, Specifications and Applications

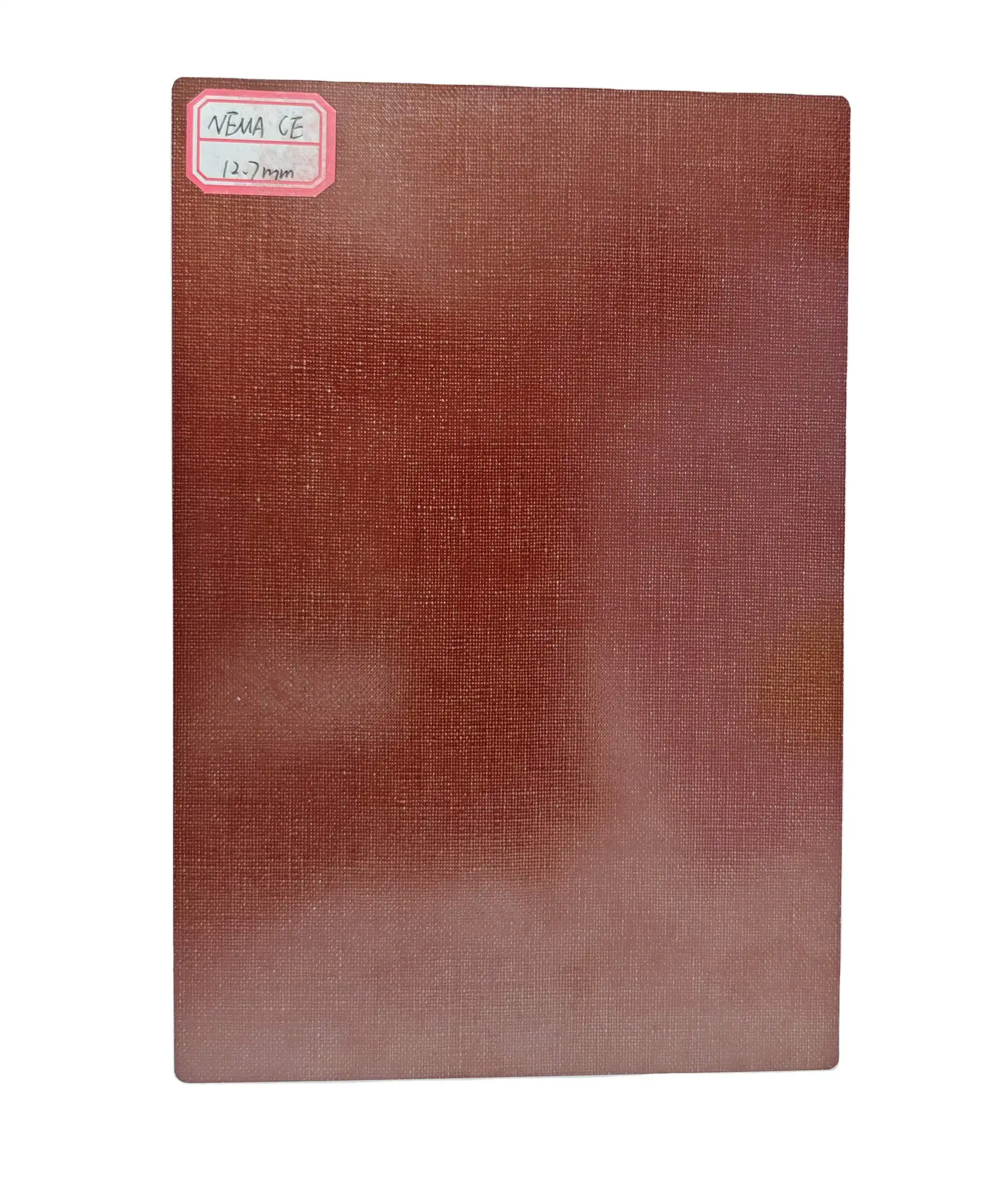

What is NEMA CE Sheet and Its Material Composition

When phenolic resin binder is mixed with cotton canvas cloth, it forms a high-pressure thermoset laminate called NEMA CE sheet. While "CE" stands for "Canvas Electrical," this grade is different from other mechanical phenolic grades because it has better electrical qualities and can fight moisture better.

The material is made according to NEMA LI-1 standards and has a coarse cotton cloth weave that makes it very resistant to pressure and easy to work with. The phenolic resin matrix is resistant to oils, solvents, and weak acids chemically, and it keeps its shape when it's put under mechanical stress. The specific gravity of this mix is between 1.35 and 1.38, and the Rockwell Hardness (M Scale) is between 100 and 105.

Key Electrical and Mechanical Properties of NEMA CE Grade

Because of how it reacts to electricity, NEMA CE sheet is great for use as shielding. When compared to normal industrial grades, this material has higher dielectric strength and lower rates of moisture absorption, which keeps the electrical integrity in damp places. For a layer of 1/16", moisture uptake usually stays below 1.6% for 24 hours, which meets the standards of ASTM D570.

On a mechanical level, NEMA CE grade performs very well. It has an impact strength of about 1.6 to 2.0 ft-lb/in notch and a flexural strength of over 15,000 psi lengthwise. These properties make the material what experts call a "silent mechanical bridge," which means it can dampen vibrations better than metal alternatives while still keeping electrical isolation.

Temperature Rating and Performance Characteristics

The NEMA CE sheet works reliably within the Class B insulation temperature limits, which support continuous operation at around 125°C to 130°C. This temperature range makes the material suitable for motor parts, transformers, and electrical switchgear where thermal stability is still important.

In addition to basic temperature resistance, the material's phenolic resin system keeps its shape across a wide range of temperatures, so it doesn't warp or distort in ways that could affect electrical clearances. This stability is very important in situations where exact tolerances need to be kept while temperatures change.

Industrial Applications and Use Cases

Electrical manufacturers use NEMA CE sheet in many different situations where it needs to be electrically insulated and mechanically useful. It is often used for bus bar supports in electrical switchgear, precise machining on terminal boards, and structural parts in oil-filled transformers where its resistance to mineral oils extends the material's service life.

NEMA CE sheet is used more and more in the automotive industry for battery pack barriers and heat-resistant electrical fixtures. This is because the material can keep its electrical properties while providing mechanical support. This makes it useful for electric vehicle applications where weight reduction and electrical safety are still very important.

Manufacturing Process Excellence for NEMA CE Sheet Production

Raw Material Selection and Quality Control Standards

We start the manufacturing process for NEMA CE sheet by carefully choosing cotton canvas fabric and phenolic resin formulations that meet the requirements for electrical grade. The cotton fabric is then inspected for fiber quality and consistency of weave, which makes sure that the finished sheet has the same mechanical properties all the way through.

When choosing phenolic resins, it's important to find formulations that have the best electrical properties while still being easy to machine. The chemistry of the resins balances the way they cure with how they behave in the end, making sure that they cross-link completely during the lamination process without becoming too brittle, which could affect the quality of the machining.

Lamination Process and Press Technology

In the lamination process, high-pressure hydraulic presses work with precisely controlled temperature and pressure profiles. Several layers of cotton canvas that has been impregnated with resin are compressed at pressures exceeding 1,000 psi while the temperature reaches the best levels for complete cross-linking of the resin.

Automated pressure and temperature monitoring systems in press technology make sure that the processing conditions are the same from one production run to the next. This consistency is very important for keeping the tight tolerances needed for precision CNC machining, where dimensional stability has a direct effect on the quality of the final part.

Quality Assurance and Testing Protocols

The quality control procedures follow the guidelines set by ASTM D709 and NEMA LI-1. They check for dimensional stability, lamination integrity, and electrical performance. A visual inspection finds any problems, like delamination, blisters, or areas where resin isn't getting enough, that could affect how well the component works.

Electrical testing protocols check the dielectric strength and moisture absorption properties that are specific to the CE grade. These tests make sure that every production lot meets the electrical grade requirements before it is released for CNC machining operations. Bond strength testing checks the levels of ply adhesion that keep the pieces from splitting during precision machining processes.

Compliance with NEMA Standards and Certifications

Regular third-party audits and testing of materials at our production facility make sure that we're following NEMA LI-1 standards. Documentation systems allow full traceability from receiving raw materials to shipping finished goods, meeting both customer quality needs and regulatory compliance needs.

As part of certification programs, ISO quality management systems are taught. These systems control the production process and how materials are handled. They make sure that the quality of the products is always the same and give important uses in the car and electrical industries the paperwork they need.

Advanced CNC Machining Capabilities for NEMA CE Sheet

Precision Cutting and Shaping Technologies

For CNC machining, we use carbide-tipped tools made especially for phenolic materials to keep them from getting damaged by heat during cutting. High-speed machining centers keep the temperature under tight control to avoid resin carbonization, which could damage the quality of the surface or the accuracy of the measurements.

Cutting paths and feed rates are optimized using advanced programming methods that take into account the thickness of the material and the shape of the component. This makes sure that the edges are clean and keeps the tight limits needed for electrical applications where fit and finish have a direct effect on performance.

Custom Fabrication Services and Tolerances

Custom fabrication services can handle complicated shapes like precise gear cutting, intricate slot patterns, and multi-level parts that need more than one machining operation. Standard machining tolerances reach ±0.005" for most uses, and tighter tolerances are available for important dimensions.

Specialized fixturing systems for NEMA CE sheet hold thin-wall parts and forms that are hard to describe while keeping the shapes and sizes accurate during cutting processes. Because of these skills, parts can be made that would be hard or impossible to make using normal manufacturing methods.

Complex Geometry Machining and Multi-Axis Capabilities

Multi-axis CNC machines can work with complicated three-dimensional shapes, like curved surfaces, compound curves, and built-in features that get rid of the need for extra building steps. Five-axis machining lets you finish an entire part in a single setup, which increases accuracy while cutting down on production time.

Programming skills include using complicated CAM software to make the best tool paths for phenolic materials. This improvement shortens the time it takes to machine while keeping the quality of the surface and the accuracy of the dimensions even when the geometry is complicated.

Surface Finishing Options and Edge Treatment

Precision grinding is one way to finish the surface of something that needs to be a certain level of sharpness or flatness. Edge treatment choices include chamfering, radius generation, and making custom shapes that improve the performance of a component or the way it fits together.

Specialized finishing methods take into account the unique properties of phenolic cotton materials, making sure that the surfaces are smooth and meet the requirements for electrical clearance while also looking great for uses that people can see.

Quality Standards and Manufacturing Certifications

NEMA Standards Compliance and Testing Requirements

Our quality systems make sure that all of our products meet NEMA LI-1 standards by testing them thoroughly and checking their electrical and mechanical features for every batch. Some of the things that need to be tested are the electrical strength, the amount of moisture absorbed, and the dynamic properties.

Customers can check that materials are compliant for their specific uses with documentation systems that keep full records of test results and material certifications. This paperwork backs up quality standards for electrical, automobile, and industry uses.

ISO Quality Management Systems in Production

The ISO 9001 quality management systems we use control our production processes and make sure that the quality of our materials and our work are always the best. Some of the things that these systems do to improve product quality and customer happiness are seller training programs, process control methods, and ongoing improvement projects.

Regular internal and external checks make sure that quality standards are being met and look for ways to make the process better. Tracking quality measures makes it possible to find problems before they affect shipments to customers.

Material Traceability and Documentation

Full material tracking systems keep track of parts from the time they are received as raw materials until they are shipped out. This gives buyers a complete record of the past of the materials and allows them to check their quality. Traceability records have information like tests data, process factors, and source certificates.

Documentation packages include test results on materials, certificates of compliance, and records of processes that meet the quality needs of customers and the needs of regulators. By keeping digital records, you can quickly get to past data when you need it.

Third-Party Testing and Validation Processes

Independent lab testing confirms the features of materials and their agreement with industry standards. This gives an unbiased check of the quality of the product. Third-party testing includes checking the electrical properties, the mechanical properties, and the chemical protection.

Validation processes make sure that our internal testing methods are in line with industry standards and give customers independent proof of how well materials work. On a regular basis, association studies check that the tools and methods used for internal testing are accurate.

Custom Solutions and Engineering Support Services

Design Consultation and Material Selection Guidance

We offer full design advice services by our engineering team to help customers choose the best material specs for their needs. When choosing materials, the guidelines take into account things like electricity needs, motor loads, the environment, and cost goals.

Technical knowledge includes application analysis, which finds ways to make designs better and different materials that might work better or cost less. Collaborative engineering methods make sure that all of the needs of the customer are known and met.

Prototype Development and Testing Services

Prototype development helps customers with their product development plans by making test parts and design proof samples quickly. Custom cutting, testing support, and help with design iteration are all part of prototype services.

Electrical property verification, mechanical testing, and outdoor exposure testing for NEMA CE sheet that confirms how well a material works in real-world situations are all part of testing services. The test results help with making choices about the design and finalizing the material specifications.

Volume Production and Supply Chain Management

Customers can get what they need from prototypes to full production runs when they can do volume production. Inventory plans, planned orders, and just-in-time shipping that fits with customers' work dates are all parts of supply chain management.

Production planning systems make sure that the right materials are bought, that production dates are followed, and that shipping plans are made so that customers get their orders on time and quality standards are met. Scheduling that is flexible can adapt to changing customer needs and urgent needs.

Technical Support and Application Engineering

Ongoing professional support includes help with application engineering, fixing, and making suggestions for how to improve the design. When it comes to choosing materials, machining methods, and application-specific issues, our team knows what to do.

Application engineering services help customers make sure that component designs can be made while still meeting performance standards. Technical support helps with new apps and design changes throughout the whole interaction with the customer.

Procurement Considerations for NEMA CE Sheet

Sizing Options and Standard Thickness Availability

Standard sheet sizes include 48" x 96" panels with widths from 1/32" to 2" to meet the needs of a wide range of applications. Customers can get sizes that are just right for them, and the material's features and quality standards are still met.

There are both standard and custom thickness choices available, and precise thickness control makes sure that they work with the design needs of the customer. Stock programs keep popular sizes in stock so that they can be delivered quickly. Custom widths are also available, but they require longer wait times.

Lead Times and Production Scheduling

Stock materials usually have lead times that range from right away for typical sizes to two to three weeks for normal production items. Depending on how complicated the order is and how busy the factory is right now, custom requirements and special orders usually take 4 to 6 weeks.

Production timing systems match what customers want with what factories can make so that deliveries are made as quickly and efficiently as possible. Customers with pressing needs can place rush orders, and quality standards and service promises will still be met.

Packaging and Shipping Considerations

Protective wrapping methods keep things from getting damaged during shipping and can handle different sheet sizes and numbers. There are different types of packaging, such as moisture barrier protection for electrical grade materials and shock-resistant packing for precision-machined parts.

Shipping plans include a choice of carriers and delivery ways based on where the customer lives and when they need the goods. Tracking tools let you know about the state of your package and confirm arrival in real time.

Bulk Order Benefits and Volume Pricing

Volume price programs help customers save money when they buy a lot of materials at once or for big projects. Advantages of bulk orders include lower prices, inventory management programs, and first choice for arranging for customers who place a lot of orders.

Long-term supply deals help customers meet their cost goals and make sure they have the materials they need for important projects. Volume agreements make it easier to plan output, which is good for both buyers and factory operations.

Conclusion

For electrical and industrial uses that need reliable insulation properties and precise manufacturing, NEMA CE sheet manufacturing and CNC machining are essential solutions. The material's unique mix of electrical performance, mechanical strength, and machinability makes it essential for switchgear components, motor applications, and specialized electrical assemblies. Advanced manufacturing processes ensure consistent quality, and comprehensive machining capabilities allow for complex geometries and tight tolerances. Knowing the properties of the material, manufacturing standards, and application requirements is important for choosing the right material and designing the right components for demanding electrical applications.

FAQ

In general, how long does it take to make a custom NEMA CE sheet?

Custom cutting lead times depend on how complicated the job is and how busy the factory is right now. Simple tasks like cutting and drilling usually take one to two weeks, but jobs with complicated shapes or close limits may take three to four weeks. We keep enough space for rush orders when customers' plans require faster shipping.

What should I do to make sure that NEMA CE is the right grade for my electrical job?

The NEMA CE grade is good for uses that need electrical protection that can handle temperatures up to 130°C and has good tensile qualities. Our research team can look at your unique needs, such as power levels, weather conditions, and mechanical loads, to make sure the material is right for the job and suggest other options if necessary.

What kinds of limits can be used for cutting with NEMA CE sheet materials?

Standard machining tolerances of ±0.005" are possible for most applications, and tighter tolerances are possible for critical dimensions. Tolerance capabilities depend on the shape of the part, the thickness of the material, and the surface finish requirements. Our quality systems make sure that tolerances are met consistently across all production quantities.

Partner with J&Q for Superior NEMA CE Sheet Solutions

As a trusted NEMA CE sheet supplier for both prototypes and production, J&Q combines over 20 years of experience making insulating sheets with advanced CNC machining to deliver precise NEMA CE sheet components for your critical applications. Our experienced engineering team knows the specific needs of electrical manufacturers and provides full support from material selection to final delivery. We have ISO-certified quality systems, full material traceability, and our own logistics network that guarantees reliable delivery schedules. Contact our technical specialists at info@jhd-material.com to talk about your specific application needs and learn how our manufacturing excellence can improve your product performance and production efficiency.
