How to Reduce Burrs During Phenolic Cotton Sheet Drilling?

Reducing burrs during phenolic cotton sheet drilling requires selecting carbide-tipped drill bits with a 135-degree point angle, maintaining moderate spindle speeds between 1,500 and 3,000 RPM, using backing plates to prevent exit-side tear-out, and implementing peck drilling techniques. These composite materials—made of cotton fabric impregnated with phenolic resin—demand controlled feed rates and sharp tooling to minimize fiber tearing at hole edges, which directly impacts assembly precision and reduces costly secondary deburring operations.

Understanding Burr Formation in Phenolic Cotton Sheet Drilling

Figuring out how burrs form in phenolic cotton sheet drilling. The unique structure of phenolic cotton laminated sheets makes them difficult to drill through. In contrast to materials that are all the same, these sheets are made up of several layers of cotton fabric that are saturated with phenolic resin binders. This creates interfaces where mechanical stress behaves in an unpredictable way.

Why Burrs Form in Composite Laminates

When drill bits go through phenolic materials that are reinforced with cotton, the cutting forces make the resin core and fabric reinforcement react in different ways. The resin breaks apart easily, but the cotton fibres are hard to cut and often tear or pull away from the matrix, leaving behind unwanted material at the entry and exit places. This effect gets worse when dull tools produce too much heat, which softens the resin and bends the fibres. Cotton cloth is more complicated because it is woven, so the drill can catch individual threads and pull them free instead of cutting them neatly.

Impact on Manufacturing Quality

The appearance of burrs causes problems that can be measured across all production processes. In the assembly of electrical switches, burrs make tiny holes that weaken the seals and could let water in, which lowers the insulating performance. Part sizes in mechanical assemblies aren't always the same, which means that they have to be deburred by hand, which costs money and time, or the assembly could fail. When burr control measures aren't used correctly, we've seen rework rates go up by 15–30%, which directly affects production flow and material loss.

Cost Implications for Procurement Teams

When engineering managers look at a supplier's skills, they should know that flaws caused by burrs are a sign of bigger problems with quality control. Parts that need a lot of secondary finishing raise the total cost of acquisition above the unit price. The people who work in procurement have to think about the costs that aren't obvious, like extra work hours, late output plans, and field failures that hurt relationships with customers.

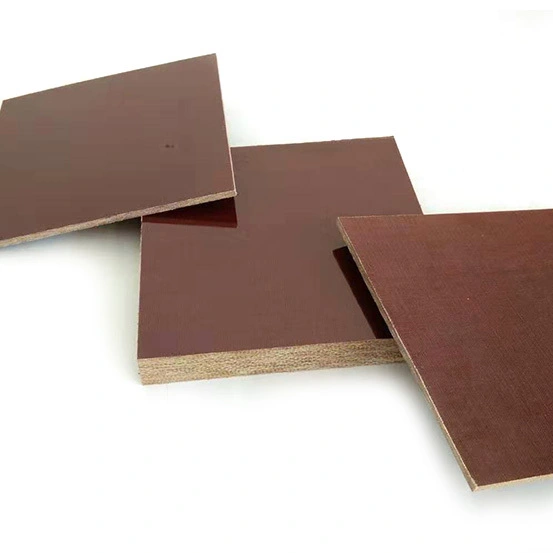

Key Properties of Phenolic Cotton Sheets Affecting Drilling Outcomes

By knowing about the properties of a material, we can guess how it will behave when drilled and choose the best cutting methods. Phenolic cotton sheets are different from phenolics made from paper or fibreglass materials in a number of ways.

Mechanical and Physical Characteristics

The material has a density of 1.35 to 1.45 g/cm³ and a bending strength that is higher than 100 MPa according to NEMA standards. When it comes to impact protection, cotton reinforcement is better than paper-based options. This keeps the material from breaking into huge pieces when it's hit hard. But because fibres are tough, they don't cut cleanly, so sharper tooling geometries are needed. The coarse weave structure (NEMA C/CE grades) tends to leave more burrs than the fine weave structure (NEMA L/LE grades), which can be machined to smoother finishes because the fibres are closer together.

Chemical and Thermal Behavior During Machining

The chemical properties of phenolic glue have a big effect on how tools interact with each other. The substance doesn't react with mineral oils or hydraulic fluids, but when it's machined, it makes rough phenolic dust that wears down tools faster. Thermal properties that allow continuous operation at 120°C mean that too much drilling friction can reach temperatures where resin softens, which leads to gumming and more burrs forming. Above 150°C, the cotton base starts to carbonise, making charred areas that make fibre breaking worse.

Comparative Drillability Analysis

Compared to FR4 fibreglass laminates, phenolic cotton sheets have softer support fibres that cause less tool wear. However, they make bigger burrs because cotton fibres are more flexible than glass. The phenolic materials made from paper drill cleaner, but they don't have the impact strength needed for mechanical uses. Metal surfaces can predictably form chips, but they can't offer the electrical insulation and vibration dampening benefits that make cotton phenolics useful for motor and gear uses.

Proven Techniques to Reduce Burrs During Phenolic Cotton Sheet Drilling

When you use optimised drilling methods, phenolic cotton sheet burr problems become controllable process factors. Instead of just treating symptoms, the following strategies get to the root of the problem.

Optimal Drill Bit Selection and Geometry

The most important factor in burr control is the choice of tool. Here are the important things to think about:

Carbide-tipped or solid carbide bits keep their sharp cutting edges for a lot longer than high-speed steel when working with rough phenolic materials. The longer edge life makes sure that the cutting action stays the same from one production run to the next. Even better performance in high-volume uses is diamond-coated tools, but it costs more at first.

Point angle geometry should match the thickness of the material and the hole diameter. The 135-degree split point design works best for phenolic cotton sheets because it allows the sheets to center themselves and lowers the push forces that tear out the fibres. Steeper angles (118 degrees) work for smaller sheets but make it more likely for burrs to form on materials thicker than 6 mm.

Helix angle and flute design affect how well chips are evacuated. Standard helix angles of 30 to 35 degrees evenly distribute cutting force and remove debris. Polished flutes cut down on friction and heat buildup, which keeps the resin from melting and causing gums and burrs to form.

These decisions about tools directly affect how the material behaves by cutting fibres neatly instead of ripping them out of the resin matrix. Instead of waiting for obvious dulling, we suggest changing drill bits after a certain number of holes are drilled. This is because gradual edge degradation leads to larger burrs.

Drilling Parameter Optimization

Spindle speed and feed rate can be changed to make the cutting process more precise. Most phenolic cotton jobs can be done at speeds between 1,500 and 3,000 RPM, which is fast enough to cut without making too much frictional heat. Higher speeds could cause the resin to break down when heated, while slower speeds let the fibres bend instead of split neatly.

Feed rates need to be just right. If they are too fast, high thrust forces push fibres ahead of the cutting edge, and if they are too slow, heat builds up. Target feed rates of 0.05-0.15 mm per turn usually get the best results, but it's still important to try with different types of material.

Peck drilling cycles stop the constant cutting process so that heat can escape and chips can be blown away. This method works especially well for holes that are deeper than three times their diameter because it stops burrs from forming on both the entry and exit surfaces.

Support and Backing Strategies

Backing plates are very important because they support the fibres and keep them from tearing out at the drill exit points. By clamping the part to a protective phenolic or wood backing, a composite plate is made that holds the fibres in place until the drill goes all the way through. In our tests, this easy method cuts exit burrs by 60–80%.

The holding pressure on the workpiece needs to be high enough to keep the material from moving or lifting, but not so high that it deforms the sheet. For flat sheets, vacuum clamps work well because they spread the binding forces out evenly across the surface.

Advanced Solutions and Innovations in Burr Reduction

Today's manufacturing tools allow levels of accuracy that would be hard to achieve by hand alone. What is possible in phenolic cotton sheet burr control keeps growing thanks to progress in automation and material science.

CNC and Robotic Drilling Systems

With computer-controlled machining, feed rates, positioning, and tool engagement are all fixed by the machine, not by a person. CNC systems keep the same settings for thousands of holes, which makes sure that the quality is the same every time. This is something that hand drilling can't do. Cutting conditions are naturally optimised by programmable pecking cycles, rest times, and retraction speeds.

Vision systems built into robotic drilling cells find the position of the workpiece and change the tool paths in real time. This feature is useful for working with sheets that have different sizes because it keeps the accuracy of the hole location while keeping the best drilling settings.

Real-Time Process Monitoring

Adding sensors gives you immediate information about how the drilling is going. Spindle load tracking finds unusual thrust forces that could mean that a tool is wearing down or that parameters are drifting. This sets off automatic tweaks or tool change alerts before the burr quality gets worse. Acoustic emission sensors find the frequencies that cause fibres to tear, which lets problems be fixed before they happen.

Temperature monitoring keeps the object and tool from getting damaged by heat by keeping an eye on their temperatures and changing settings when they get close to the places where the resin starts to soften.

Material Treatment Innovations

Formulations that are best for machinability are made by working together with material sources during development. Changing the chemicals in the resin can make the fibres stick to the matrix better, which makes delamination less likely to happen during drilling. Pre-applied surface processes prepare the top layers so that tools can enter more easily and with fewer burrs.

Some companies make sheets with different levels of resin. The levels of resin are higher on the areas where drilling will happen, which improves both the control of burrs and the mechanical qualities of the core. These advanced grades cost more than others, but they lower the overall cost of production by getting rid of unnecessary steps.

Best Practices for Procurement and Supplier Collaboration

Looking at the total cost of ownership is important when looking for phenolic cotton sheet products, not just the unit price. Strategic relationships with suppliers improve both the quality of the materials and the speed of production.

Supplier Selection Criteria

Certifying quality means that the process is being controlled in a planned way. Suppliers who use well-known quality control systems show they care about maintaining consistent material properties, such as thickness standards, uniform resin content, and the lack of gaps or inclusions that can make drilling uncertain.

Custom sizing lets you buy sheets that are already the right size to cut down on waste and handling. Suppliers that offer CNC pre-machining can send blanks that are ready for final drilling, and they can sometimes control burrs better than an in-house team could because they have the right tools.

Technical Collaboration Approaches

By asking for detailed technical datasheets, you can make smart choices about the materials you use. Important specs include bending strength, resistance to contact, rates of moisture absorption, and machining suggestions that are unique to your needs.

Validation testing can be done in real production conditions with physical sampling before large-scale commitments. Drilling tests with your tools and settings show how different batches of material react, which keeps you from having to pay a lot of money for unpleasant surprises after big purchases.

Negotiation and Value Optimization

When you commit to buying in bulk, you can often get better prices, but only after you think about how much it costs to store the goods and how long they last. If you don't control the temperature where you store phenolic sheets, they can soak up water, which can make drilling less effective.

After-sale technical support is worth more than the cost of the materials. When drilling problems happen, suppliers who offer fixing help, machining advice, and paperwork support make your engineering staff's job easier and speed up the problem-solving process.

Conclusion

Getting rid of burrs in phenolic cotton sheet drilling requires strategies that include choosing the right tools, optimising parameters, using process support methods, and working together with suppliers. Burr problems can be solved right away with carbide tools that have the right shape, moderate drilling speeds, backing plate support, and peck drilling techniques. Advanced CNC automation and sensor monitoring make it possible to keep quality high at a large scale. Strategic partnerships with experienced suppliers give manufacturers access to better materials and technical know-how that make the process more efficient. Using these tried-and-true methods will lower the cost of rework, raise the quality of your assemblies, and make you more competitive in tough electrical, mechanical, and industrial settings.

FAQ

What causes burrs when drilling phenolic cotton laminates?

Because phenolic resin doesn't react the same way to cutting forces as cotton cloth support, burrs form in the phenolic cotton sheet. Fibres don't break neatly as resin does; instead, they tend to tear or pull away from the core. This uneven behaviour is made worse by dull tools, too-fast speeds, and not enough support for the workpiece. This causes unwanted material to protrude at the edges of holes, which affects the accuracy of measurements and the quality of the assembly.

Can I use standard metal-cutting drill bits for phenolic sheets?

Standard high-speed steel bits work at first, but they get dull quickly because of the rough phenolic dust, which makes the burrs bigger over time. Solid carbide or carbide-tipped tools keep their sharp cutting edges for a much longer time, so the quality of the holes is the same from one production run to the next. Specialised tools pay for themselves through less work that needs to be redone and longer tool life.

How do NEMA C and L grades differ in drilling behavior?

The coarser cotton canvas weave used in NEMA C grades gives them better impact strength, but the larger fibre bundles make the burrs stand out more. The NEMA L grades have a finer linen weave that can be machined to smoother finishes with fewer burrs, but they aren't as resistant to impact. Grades should be chosen based on the needs of the application.

Does drilling speed or feed rate matter more for burr control?

Both parameters have a big effect on each other. Too much speed makes heat that softens resin and warps fibres, while not enough speed lets fibres bend instead of split neatly. In the same way, high feed rates cause tear-out through thrust forces, while low feed rates build up heat. When you balance the parameters—moderate speeds and managed feed rates—you get the best results that deal with both thermal and mechanical burr reasons.
