Bakelite Sheet Production Process: From Compression Molding to CNC Machining

The production of phenolic laminated sheets—commonly known as Bakelite sheets—involves a sophisticated two-stage manufacturing journey that transforms phenolic resin and reinforcing fibers into precision-engineered industrial components. Understanding how compression molding creates the raw sheet material and how CNC machining refines it into application-ready parts reveals why this thermoset material remains essential across electrical, mechanical, and automotive sectors. This production pathway delivers the dimensional accuracy, electrical insulation, and mechanical durability that procurement teams demand for mission-critical applications.

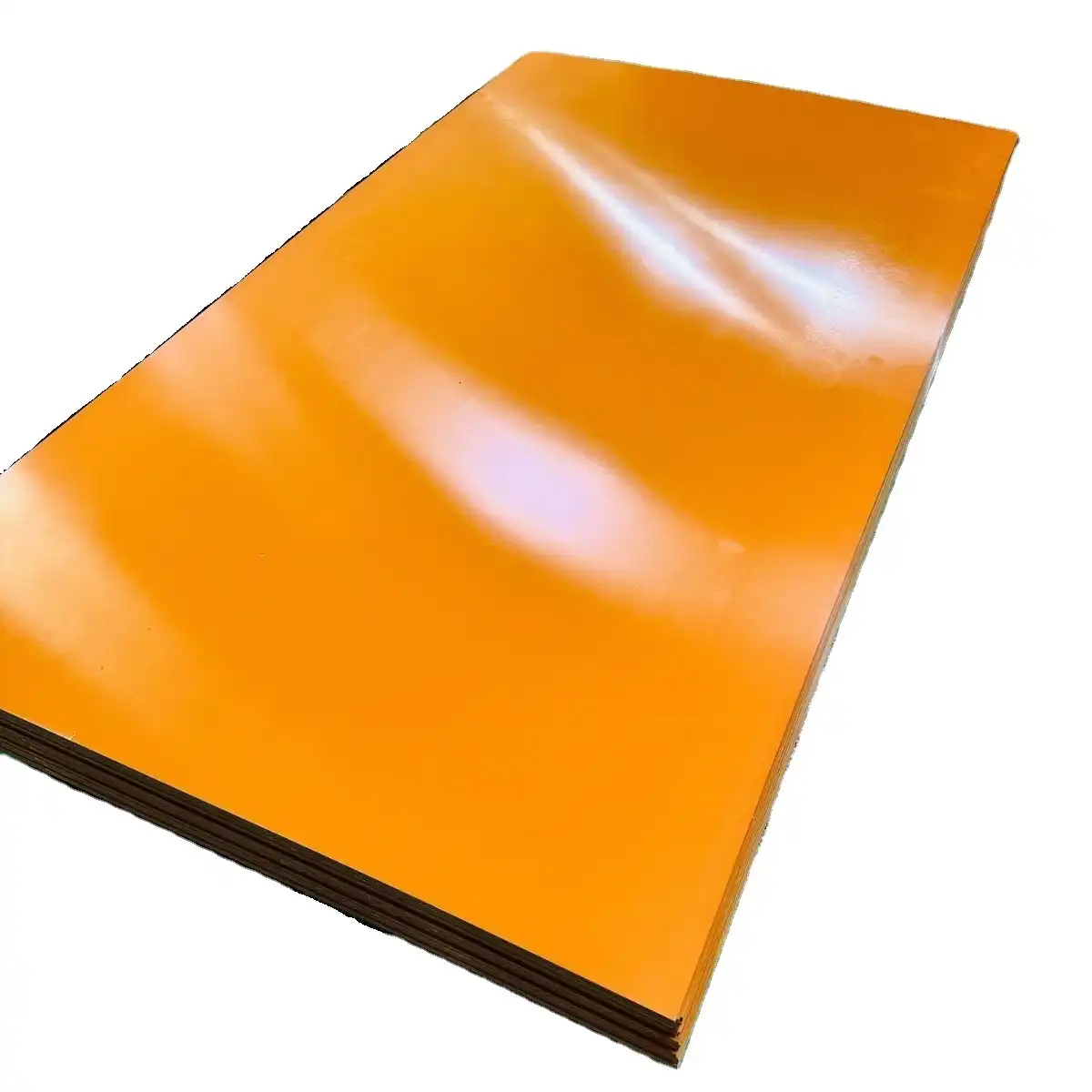

Understanding Bakelite Sheets and Their Industrial Value

What Makes Phenolic Laminates Different from Standard Plastics

When engineering managers look at different types of insulation, they quickly find that phenolic paper laminates are the best of the bunch. Thermoplastics weaken and melt when heated, but these thermoset composites are made by chemically cross-linking them in a way that can't be undone. This change at the molecular level makes a material that stays structurally sound at temperatures where other plastics break. The phenol-formaldehyde network works continuously up to 120°C and doesn't change shape even when mechanical loads and electrical stress are applied for a long time.

The combined design is very important. When layers of phenolic resin-soaked cellulose paper dry, they form a thick, uniform structure. This design gets rid of the gaps and unevenness that come with cast or moulded options. Manufacturers of electrical equipment like this regularity because it promises that the dielectric strength will be the same in every square inch. This is important because in high-voltage switchgear, a single weak place can cause the whole system to fail.

Industrial Applications Across Manufacturing Sectors

Electrical and electronics companies use phenolic laminates for PCB boards, terminal blocks, and arc barriers because they are flame-resistant and meet the needs for electrical separation. The arc resistance of the material stops tracking and carbonisation, which keeps sensitive circuits safe from failure chains.

These sheets are cut by industrial machinery builders into gears that don't wear out, bearing supports, and structural insulators. The material can handle mechanical stress without cold flow or creep, which are important qualities for equipment that works with constant loads. Companies that make parts for cars are asking for phenolic materials more and more for heat shields and insulation barriers in battery packs. These materials are thermally stable and keep lithium-ion cells from overheating.

Certification bodies that distribute electricity depend on phenolic products to insulate transformer coils and make arc chutes for circuit breakers. In this case, material function isn't just a matter of taste; it's required by safety and electrical rules. The makers of home appliances use these sheets to make motor housings and heat shields because they like how useful the material is and how cheap it is to make in large quantities.

Material Grades and Performance Distinctions

Not every phenolic resin works the same way. When you see the label "Grade X," it means that the resin content is smaller and is best for mechanical uses that need the highest levels of rigidity and compressive strength. Higher resin ratios in Grade XXX variants make them better at resisting moisture and keeping their electrical properties when used in damp places or outside.

Canvas-based Bakelite sheets are used instead of woven fabric to reinforce things, which makes them much stronger and less likely to tear. These types are used in places where shock loads or shaking are present. When complicated geometries need a lot of CNC work, cotton cloth phenolic types are easier to machine. Procurement experts have to choose the right grade for the job. For example, choosing Grade XXX for sites near the coast or Grade X for dry, physically demanding areas will ensure the best performance without spending too much.

The Compression Molding Process in Phenolic Sheet Production

Raw Material Preparation and Resin Formulation

The process of making something starts with the condensation of phenol and formaldehyde in temperature-controlled tanks. To make resoles or novolacs, process engineers carefully control pH levels, temperature profiles, and reaction time. These are two different types of glue that cure in different ways. Hexamethylenetetramine speeds up the curing process, and mineral fillers change the cost and thermal expansion of the liquid resin.

Paper reinforcing comes in rolls for producing Bakelite sheet, and its thickness, density, and porosity are all carefully managed. These traits determine how evenly the resin absorbs; uneven paper can cause problems in the Bakelite sheet manufacturing process later on. The paper goes through resin impregnation boxes with controlled thickness and temperature to make sure it is fully saturated without having too much resin. Squeeze rollers get rid of extra resin until the goal weight percentages are reached. In the B-stage, partially cured sheets used for Bakelite sheet materials come out of the drying ovens. They are still flexible enough to stack, but far enough along to stop resin movement during moulding. This controlled process helps ensure that Bakelite sheet products achieve consistent mechanical strength, stable electrical insulation performance, and reliable dimensional accuracy for applications in electrical equipment, industrial components, and precision machinery. High-quality Bakelite sheet production depends on accurate resin control, uniform reinforcement, and strict manufacturing standards to deliver long-term performance.

Compression Molding Parameters and Quality Control

Stacks of B-stage sheets go into hydraulic presses that have polished steel platens between them. There are three important parts to the compression moulding method. The stack is heated up to 150–180°C at first, which softens the resin so it can move. Applying pressure, usually between 1000 and 1500 psi, makes layers stick together, getting rid of air pockets and making sure all the fibres are wet. During the cure phase, the temperature and pressure stay the same while cross-linking finishes. This turns the thermoplastic intermediate into a hard thermoset.

Cooling has to happen slowly. Rapid drops in temperature cause forces inside the material that show up later as bending or delamination. Platen temperature, hydraulic pressure, and cure time are all monitored by automated press cycles, which change the parameters based on the thickness of the sheet and the type of resin used. When the press is opened, quality control starts. A visual check finds flaws on the surface, and thickness measurements make sure that the material is equal within ±0.1mm tolerance bands.

Post-cure training keeps the sizes stable. Sheets that have just been moulded still have stresses from the heating cycle. Controlled ageing at room temperature lets molecules relax, which stops changes in size after cutting. This step tells the difference between trustworthy makers and sellers who rush to get goods to market.

Advantages Over Alternative Manufacturing Methods

For making Bakelite sheets, compression moulding has a number of strong advantages. The process makes great use of the materials it uses, and compared to subtractive methods, it produces very little waste. When the pressure stays the same, the density stays the same across the whole thickness of the sheet. This makes sure that the mechanical and electrical properties are predictable.

Press platens directly produce a high-quality surface finish, which means that extra finishing processes are cut down or eliminated. By lowering tool wear and allowing for tighter tolerances, smooth surfaces make later CNC machining easier. The process works well at a large scale; once the factors are checked, the quality of the production stays high over thousands of sheets. This consistency is very important for companies that make a lot of products for customers who can't stand differences between batches.

Compression moulding can work with sheets of different sizes and thicknesses on the same press frame. Without having to retool, manufacturers can quickly make both standard commodity sheets and sheets that are made to specific needs. This adaptability helps just-in-time production methods, which lowers the costs of keeping supplies for both manufacturers and customers.

CNC Machining of Phenolic Laminates: Precision Finishing for Advanced Applications

Why CNC Machining Suits Thermoset Composites

Bakelite sheets have special ways of being machined. The abrasive quality of the material—which comes from both the hardened resin and the paper fibers—makes regular tools dull very quickly. If feed rates or tool geometry are off, brittleness can lead to edge chipping. But if you work with the material the right way, it can be machined beautifully, with tolerances of less than 0.05 mm and finishes that are good enough for electrical uses that don't need to be polished again.

CNC cutting, drilling, and routing make it possible to make complicated shapes that can't be made by moulding alone. With complex shapes, precise holes for fixing hardware, and multiple levels of pocketing, flat sheets can be turned into useful parts. Computer control gets rid of human error, making sure that every part exactly matches the CAD specifications. This is very important when parts need to connect to other parts that were made somewhere else.

Tooling Selection and Machining Best Practices

For Bakelite sheet cutting to work, you need to use tools made of carbide. Fibre tearing and surface flaws are kept to a minimum with solid carbide end mills that have sharp cutting edges. Diamond-coated tools have a much longer useful life, which makes up for their higher initial cost by reducing the number of times they need to be replaced and maintaining consistent part quality. The shape of the tool is important. For example, positive rake angles lower the cutting forces, and polished flutes make it easier for chips to escape.

For grinding tasks, spindle speeds should be high, between 8,000 and 15,000 RPM, and feed rates should stay modest. This mix makes fine chips instead of stringy debris, which improves the finish on the surface and stops material from pulling away. When you use climb milling instead of regular milling, the edges of sheets don't break as easily. Coolant systems that use air blast or mist lubrication stop heat from building up without adding water, which could change the safety of the dimensions.

Post-Machining Finishing and Quality Verification

Deburring is helpful for parts that have already been machined well. Fine abrasives are used for manual deburring, which gets rid of any tiny roughness. Tumbling methods can round off sharp edges to make them safer to handle. Surface treatments are kept to a minimum because phenolic laminates don't usually need to be painted or coated. However, in some cases, sealer is applied to the cut edges to make them more resistant to wetness.

Coordinate measuring machines (CMM) are used for complicated parts, and standard metrology tools are used for simpler shapes for dimension checking. Electrical testing shows that the machining stresses have not decreased the dielectric strength. Under a microscope, microcracks or damage below the surface that can't be seen with the naked eye can be found. This quality method with multiple levels makes sure that made parts meet the strict needs of electrical and mechanical uses.

Selecting and Procuring Phenolic Sheets: Key Considerations for B2B Buyers

Evaluating Supplier Capabilities and Certifications

Comparing unit prices isn't the only way to make decisions about purchases. The production skills of a supplier have a direct effect on the consistency of the product and the trustworthiness of delivery. Manufacturers with a lot of experience keep their production areas under control. Temperature and humidity affect both the hardening of glue and its ability to stay in place. Statistical process control (SPC) methods find trends before they make non-conforming material, and automated process controls cut down on mistakes made by people.

There is clear proof of skill in the form of certifications. Getting registered with ISO 9001 shows that you handle quality in an organised way. UL recognition for electrical uses means that flame resistance and dielectric properties have been checked by a third party. RoHS and REACH compliance make sure that goods meet global market environmental rules. Suppliers that have been around for a long time and have made products for many years offer knowledge bases that help customers choose the best materials and create the best applications.

Total cost and supply chain stability are affected by geography. Local sourcing cuts down on freight costs and wait times while making contact easier. However, well-known overseas manufacturers can often offer competitive prices for large orders, especially when logistics are handled by professionals. The important thing is to look at the total delivered cost instead of just the FOB price.

Sourcing Strategies and Cost Determinants

Standard sheet sizes cut down on waste and costs. Standard sizes, like 1000x2000mm or 4x8 feet, make the most of material output for most component setups. Custom sizes cost more to set up, but they may save money in the long run because they get rid of the need for extra cuts. Picking the right thickness has an irregular effect on prices, since thicker sheets need longer curing times and more raw materials, which makes the effects on costs even bigger.

By signing a volume purchasing agreement, you can get better prices and be sure that your capacity will be used during times of high demand. Blanket orders with planned drops keep the cost of stocking up with bulk savings in check. Specification mismatches can be avoided by checking samples before buying in bulk. By asking for test certificates that list the material's electrical properties, mechanical strength, and thermal performance, you can be sure that it meets the needs of your application.

Lead times depend on how busy the provider is and how complicated the order is. Standard grades can be shipped quickly from stock, but special formulas or sizes that aren't standard need to be planned for production. Knowing these dates helps buying teams plan when materials will be available so that they don't clash with production schedules and cause delays or expensive processing fees.

Compliance and Technical Support Considerations

Environmental laws are having a bigger effect on the choices of materials. In Europe, REACH limits some chemical ingredients, and in California, Proposition 65 says that certain drugs must be made public. Expert providers know how to meet these needs and offer formulations and paperwork that are in line with regulations and can withstand checks.

Technical support is what sets strategic partners apart from commodity suppliers. Application engineers who know how your products are made can suggest the best grades, suggest changes to the design that will make it work better or cost less, and help you figure out machining problems. This knowledge is very helpful when making new products, because the qualities of the materials have a big effect on how well the plan will work.

Conclusion

The process of turning raw phenolic resin into precision-machined parts shows why this material, which is over a hundred years old, is still useful in modern manufacturing. Compression moulding makes sheets that are perfectly flat and consistent in their properties. CNC cutting then takes those sheets and turns them into complicated shapes that meet exact specifications. If engineering managers and procurement specialists know about both stages of production, they can make smart choices that improve performance, cut costs, and make sure the supply chain works reliably. Bakelite sheets will continue to provide the electrical insulation, mechanical strength, and thermal stability that critical applications need as long as suppliers have a track record of producing high-quality products, full certifications, and quick response times for technical support. Because it has a special mix of properties and can be made with modern precision, the material is an essential solution in the mechanical, electrical, automotive, and industrial fields.

FAQ

What temperature range can phenolic laminates withstand continuously?

Standard phenolic paper laminates can be used continuously at temperatures up to 120°C without any problems. Short-term exposure to 150°C is usually fine, but long-term exposure to high temperatures causes slow hardening and some property loss. For uses that need better thermal performance, you might want to look at specialised types with heat-resistant chemicals or other thermoset materials like polyimide laminates, which are much more expensive.

How do phenolic sheets compare to epoxy glass (FR4) for electrical insulation?

For general industrial uses, phenolic paper laminates are the most cost-effective option because they have great electrical qualities. FR4 epoxy glass is better at resisting moisture and keeping its electrical properties in damp places, which is why it is used more often in outdoor equipment and on boats. Bakelite sheets are easier to work with and wear down tools less quickly. The choice is not based on which material is better in general, but on the specific conditions and performance needs.

Can I source custom-thickness sheets for specialized applications?

Reliable manufacturers can accommodate requests for custom thicknesses, which are usually between 0.5mm and 100mm. For custom specs, the minimum order quantity needed to support setting up production is usually a few hundred kilograms. Lead times are longer than 3 to 6 weeks for things that are normally in stock. By telling makers about your application details, dimensional tolerances, and desired surface finishes, you can help them set the best production settings for your needs.

Partner with J&Q for Reliable Phenolic Laminate Solutions

With more than 20 years of experience, J&Q has been making high-performance insulation materials, such as premium Bakelite sheets designed for tough industrial uses. Our fully integrated factory manages all steps of the production process, from mixing the resin to using precise CNC machines. This makes sure that the quality always meets UL and RoHS standards. We keep a large stock of regular types and can also make custom formulations that are exactly what you need. Our in-house logistics make shipping easier and more reliable, so you can plan for deliveries that keep your production on track. Our technical support team's application knowledge helps engineering managers and procurement specialists who have to deal with difficult electrical shielding needs. Email us at info@jhd-material.com to get samples of our materials, talk about your unique needs, or get full quotes. As a well-known supplier of Bakelite sheets to manufacturers around the world, we're dedicated to giving your operations the material performance and supply chain reliability they need.

References

1. Knop, A., & Pilato, L. A. (1985). Phenolic Resins: Chemistry, Applications, and Performance. Berlin: Springer-Verlag.

2. Gardziella, A., Pilato, L. A., & Knop, A. (2000). Phenolic Resins: Chemistry, Applications, Standardization, Safety and Ecology (2nd ed.). Berlin: Springer.

3. Biron, M. (2018). Thermosets and Composites: Material Selection, Applications, Manufacturing and Cost Analysis (2nd ed.). Oxford: Elsevier.

4. Mallick, P. K. (2007). Fiber-Reinforced Composites: Materials, Manufacturing, and Design (3rd ed.). Boca Raton: CRC Press.

5. American Society for Testing and Materials. (2019). ASTM D229-19: Standard Specification for Rigid Sheet and Plate Materials Used for Electrical Insulation. West Conshohocken: ASTM International.

6. Campbell, F. C. (2010). Structural Composite Materials. Materials Park: ASM International.
