3240 Epoxy Sheet Manufacturing: Resin System and Thermal Stability

When engineering managers and procurement teams evaluate insulation materials for high-temperature electrical applications, the 3240 epoxy sheet consistently emerges as a trusted solution. This glass-reinforced laminate combines superior dielectric strength with remarkable thermal endurance, making it indispensable across power distribution systems, motor assemblies, and precision electronic devices. Understanding how its resin chemistry and manufacturing rigor contribute to long-term reliability can transform your component selection process and operational outcomes.

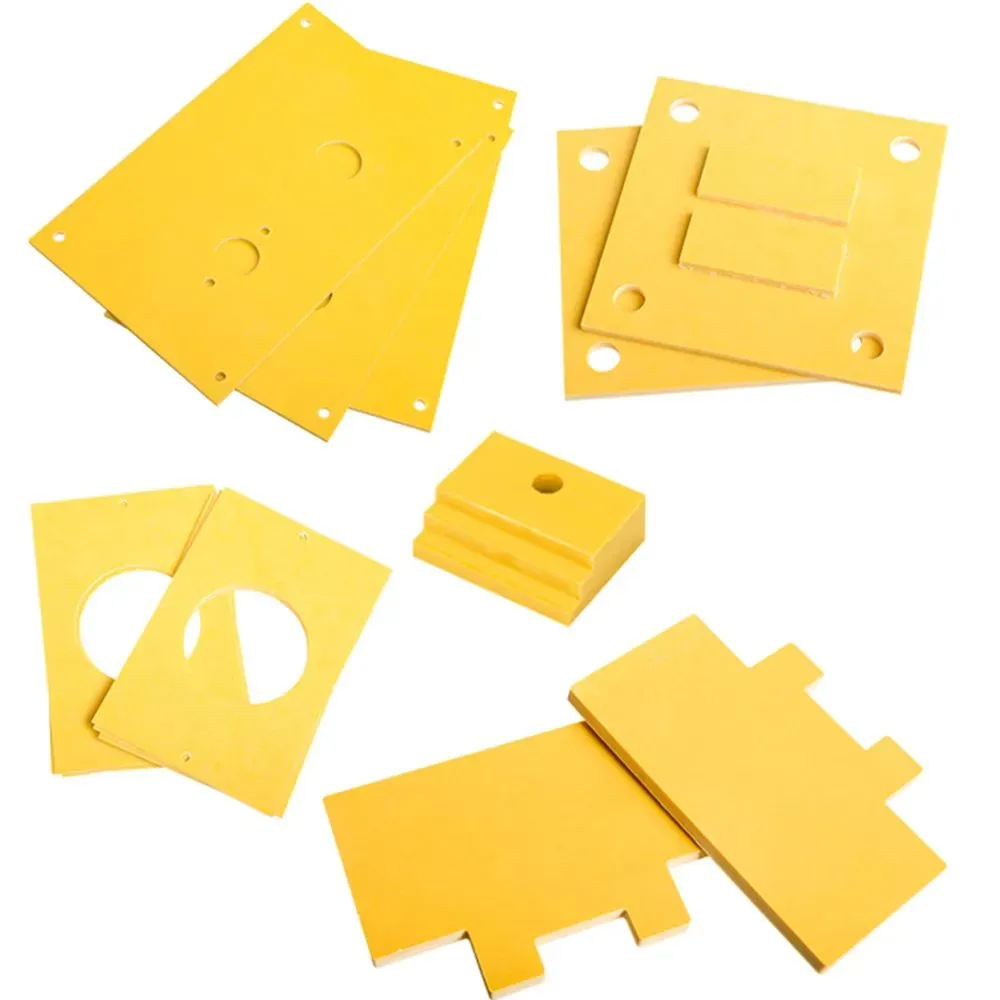

Understanding 3240 Epoxy Sheet: Resin System and Key Properties

Composition and Resin Matrix Fundamentals

A well-designed resin system is what holds every high-quality 3240 epoxy sheet together. We use electrical-grade woven glass fiber cloth along with advanced epoxy glue formulas to make a composite that is both strong and safe for electrical connections. During impregnation, the resin matrix goes through each fiber strand and forms a molecular link that keeps the fibers from coming apart even when they are under mechanical stress or changing temperatures.

Epoxy resin systems are better at resisting wetness and keeping their shape than phenolic options. When the epoxy network hardens, it makes cross-linked polymer chains that keep their shape even when the temperature changes. This is a big benefit for transformer parts and switchgear uses.

Thermal Classification and Temperature Endurance

This 3240 epoxy sheet is a Class B insulation material that works reliably at temperatures up to 130°C when used continuously and up to 155°C for short periods of time without breaking down. Because of this thermal classification, 3240 epoxy sheet materials can be used in motor slot fillers, coil separators, and arc chutes, which are all places where normal materials have trouble getting rid of heat. The heat resistance and electrical insulation performance of 3240 epoxy sheet make it suitable for demanding applications in motors, transformers, switchgear, and industrial electrical equipment.

The glass transition temperature of the plastic system used in 3240 epoxy sheet manufacturing has a direct effect on its heat performance. Premium formulations of 3240 epoxy sheet do not soften easily and maintain their dielectric properties even when temperatures get close to the maximum operating range. This thermal stability helps prevent electrical enclosures and insulation components from failing too soon. With excellent mechanical strength, dimensional stability, and reliable dielectric performance, 3240 epoxy sheet products provide long-term protection for high-temperature electrical applications and precision industrial systems.

Dielectric Strength and Electrical Insulation

The fact that the material can withstand breakdown voltages higher than 30 kV when tested in transformer oil shows how well it can insulate. The low dielectric constant and low dissipation factor protect the purity of signals in high-frequency settings. This makes these sheets useful for test tools and jig parts in places where electronics are made.

Performance Analysis: Durability, Chemical Resistance, and Mechanical Strength

Mechanical Properties Across Thickness Ranges

When a material's flexural strength is higher than 340 MPa, it can handle large bending forces without breaking. This makes it useful for making structural spacers and mechanical support braces. Tensile strength greater than 300 MPa lets thin sections carry loads in motor systems and gear parts where weight reduction is important.

The mass of the material, which is about 1.9 g/cm³, is just right for both strength and ease of use. For tight radius bending, thinner sheets are more flexible, while thicker laminates can support heavy electrical busbars and mounting plates.

Chemical Stability in Industrial Environments

Components that are resistant to transformer oils, hydraulic fluids, and common industrial solvents stay safe in dirty places. When exposed to petroleum-based lubricants, alkaline cleaning agents, and weak acids that are common in production sites, we've seen little swelling or surface wear.

Because it is chemically harmless, it lasts longer in outdoor electrical systems where rain and airborne pollutants would damage less durable materials. Corrosive substances can't get to the glass fiber support because of the epoxy matrix, which acts as a shield.

Long-Term Aging and Thermal Cycling Impact

Accelerated aging tests show that the material's mechanical properties stay the same after being exposed to high temperatures for a long time. Heat shock cycles between room temperature and 155°C show that the material is resistant to differences in thermal expansion, which is important for uses in the engine bay of cars and in device motor housings.

Electrical insulation resistance stays the same over years of use, as long as proper fitting methods are used to avoid damage and water entry. This means that OEM equipment makers can cut down on repair times and lower the total cost of ownership.

Manufacturing Process and Quality Control of 3240 Epoxy Sheet

Raw Material Selection and Resin Preparation

Finding alkali-free glass fiber fabrics with regular weave density and filament thickness is the first step in producing high-quality 3240 epoxy sheet. The density of the epoxy glue mixture used for 3240 epoxy sheet manufacturing is adjusted to make sure that all the fibers are saturated during impregnation. This eliminates any dry spots that could affect the electrical performance, mechanical strength, and long-term reliability of 3240 epoxy sheet materials.

To balance the resin's chemistry, you need to use the right amounts of base resin, hardener, and accelerator during the production of 3240 epoxy sheet. This control over the formulation has a direct effect on how fast the material cures, how dense the cross-links are, and how stable the 3240 epoxy sheet remains at high temperatures when it is under stress. Through precise material selection, controlled resin impregnation, and strict manufacturing processes, 3240 epoxy sheet products achieve excellent dielectric properties, dimensional stability, and mechanical durability for applications in electrical insulation, transformers, switchgear, and industrial equipment.

Impregnation and Curing Techniques

Several layers of glass fabric are put through resin baths with controlled viscosity and dwell time to make sure they are fully absorbed. The layers that have been impregnated are stacked based on the required thickness before going into heated press platens that apply even pressure during the curing cycle.

Cure temperature curves are based on designed ramp rates that help the resin polymerize completely without putting stress on the inside. Exothermic reaction temperatures are watched to avoid localized warming that could weaken the bond between fibers and matrix.

Dimensional Accuracy and Electrical Testing

During the post-cure checking, thickness tolerances are checked to make sure they stay within ±0.1 to ±0.4 mm, based on the nominal thickness. Measuring the flatness of sheets keeps them from twisting, which makes CNC cutting of precision parts more difficult.

Breakdown voltage tests on production samples proves that each batch is the same. Measurements of volume resistivity prove the stability of the insulation, while controlled lighting on the surface finds any bubbles, holes, or resin-rich areas that could cause electrical tracking.

Customization Capabilities and Lead Time Planning

Customized sizes, color changes, and resin modifications can be made to fit the needs of a specific project. Different technical needs can be met by custom thickness ranges from 0.5 mm for flexible insulators to 150 mm for heavy structural components.

Transparency in production planning helps procurement teams match delivery times with the needs of the assembly line. Minimum order quantities allow for both prototype runs and large-scale production commitments, balancing the need for efficient production with the need to meet customer inventory needs.

Comparison and Procurement Considerations for 3240 Epoxy Sheet

Material Performance Benchmarking

Epoxy-based sheets are better at keeping their mechanical strength and resistance to moisture than phenolic laminates in damp places. Phenolic materials are cheaper, but they are more likely to break and soak up water, which makes them less useful for outdoor electrical gear.

Glass-reinforced epoxy laminates are easier to work with and come in more thicknesses than mica sheets. Mica has great thermal protection, but it needs special tools to be cut and makes more trash when it is made.

Cost-Effectiveness and Value Analysis

Total fixed cost includes not only the price of the materials, but also how well they are machined, how often they are rejected, and how long they last in the field. When you buy quality sheets up front, they usually cost less in the long run because they don't break as often and need less upkeep.

When you make bulk purchases for recurring production programs, you can get volume discounts and make sure you always have a supply. Forecasting together with suppliers keeps shipping costs from going up and output from being held up.

Supplier Selection Criteria

Certification to well-known quality systems gives people faith in the control and tracking of processes. Technical datasheets should have detailed property tables with test method references so that they can be directly compared to design requirements.

Quick technical support helps with choosing the right materials and fixing problems with fabrication. After-sales support, such as replacing faulty batches of materials, helps keep project schedules and budgets on track.

Application Areas and Best Practices in Using 3240 Epoxy Sheets

Electrical and Electronics Industry Applications

The 3240 epoxy sheet is good for supporting circuit boards because it maintains dimensional stability and does not conduct electricity. Test fixtures and wave solder boards made from 3240 epoxy sheet materials can handle being heated and cooled many times without warping, which keeps automatic production equipment in precise alignment. The high dielectric strength of 3240 epoxy sheet is used by switchgear arc barriers and transformer coil separators to stop phase-to-phase faults in small assemblies. Terminal blocks and bus supports manufactured from 3240 epoxy sheet components offer both mechanical strength and reliable electrical separation. With excellent insulation performance, heat resistance, and structural durability, 3240 epoxy sheet provides a dependable solution for PCB supports, electrical insulation parts, industrial equipment, and high-performance electronic applications. Strict quality control during 3240 epoxy sheet manufacturing ensures consistent thickness, stable performance, and long service life in demanding operating environments.

Industrial Machinery Component Manufacturing

Gears and bearing supports that don't wear out take advantage of the material's hardness and low friction. Custom-machined spacers keep exact gaps between parts in hydraulic systems, where stable dimensions under load keep operations running smoothly.

Fabrication Techniques and Machining Practices

When routing complicated forms, cutting tools with carbide tips keep the edges from fraying. Sharp twist bits and controlled feed rates help drill operations because they keep the material around the holes from coming apart. Using coolant during machining gets rid of heat and makes tools last longer. Storage of sheets in climate-controlled areas keeps the surfaces from collecting dust and water. When working in wet conditions, like when installing electricity outside, closing the edges after cutting keeps water out.

Safety Considerations During Processing

Dust extraction systems collect the particles in the air that are released when sanding and routing are done. During manufacturing tasks, respirators and safety glasses are examples of personal protective equipment that keep workers from getting hurt by breathing in or seeing things. When materials are properly grounded during cutting, static electricity doesn't build up and damage nearby electrical parts that are more sensitive. When working with large sheets, fire-resistant work surfaces add an extra layer of safety.

Conclusion

The performance of 3240 epoxy sheet in tough electrical and mechanical applications is determined by how resin chemistry and thermal engineering work together. It has a track record of success in power distribution, motor assemblies, and precision electronics. This is due to its background in manufacturing and material science. When people who work in procurement understand these technical basics, they can make choices that balance short-term cost concerns with long-term dependability needs. Because the material can be made to fit specific needs and has well-known quality control procedures, it is a reliable choice for engineering problems that need to be resistant to heat and electricity.

FAQ

What thickness options are available for 3240 epoxy sheets?

Standard production ranges are from 0.5 mm to 50 mm, which can be used for a wide range of tasks, from making thin, flexible insulation to strong structural supports. Custom thicknesses of up to 150 mm can be made to fit the specific heavy-duty needs of transformer building and big motor assemblies. When placing an order, procurement teams should be clear about the size tolerances so that the goods can be used with existing assembly fixtures and machining processes.

How does thermal stability compare to other insulation materials?

The Class B temperature rating allows constant operation at 130°C with intermittent peaks to 155°C. This is higher than the thermal durability of phenolic laminates and the same as some grades of polyimide materials. This level of performance works well for motor slot guards, coil separators, and arc barriers that need to get rid of heat quickly. The epoxy resin solution is better than thermoplastic options at keeping its dielectric qualities over this temperature range.

Can these sheets be machined using standard fabrication equipment?

The material can be easily worked with on standard milling machines, cutters, and drill presses that have carbide tools. When compared to metal grinding, feed rates and cutting speeds need to be changed to keep edges from chipping and delaminating. CNC programming lets you work with complicated shapes and keep the exact measurements that are needed for electrical parts and mechanical systems.

What quality certifications should I expect from suppliers?

Manufacturers with a good reputation give full test results that include information on the breakdown voltage, flexural strength, water absorption, and correctness of measurements according to industry standards. Environmental and safety rules are confirmed by compliance certificates for UL recognition and ROHS restrictions. Traceability documentation connects finished sheets to batches of raw materials, which lets you figure out what went wrong if there are performance issues.
