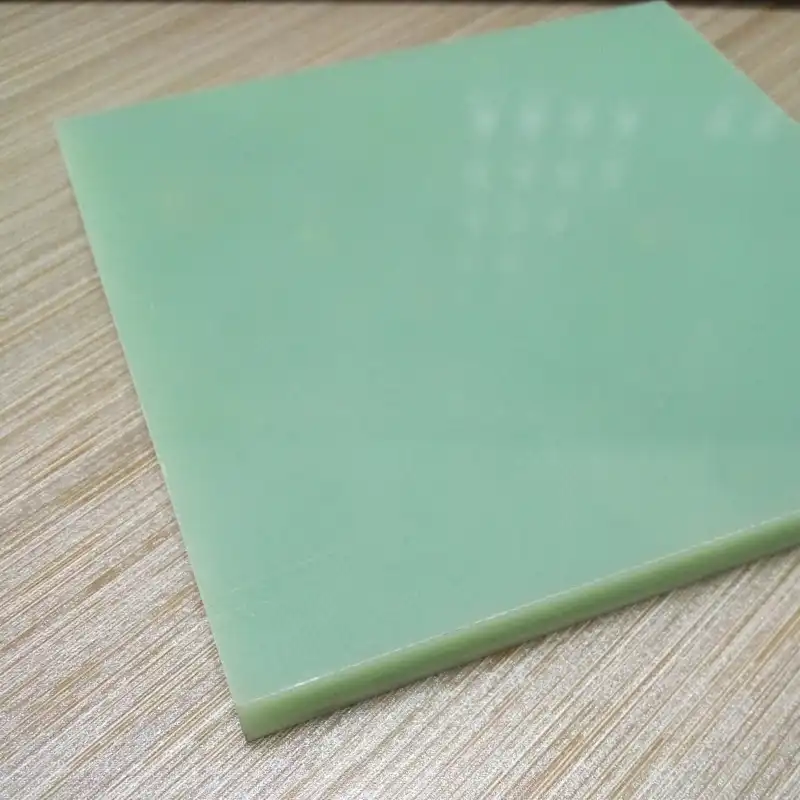

How to CNC Machine G10 Epoxy Sheet Without Delamination?

Machining G10 epoxy sheet successfully without delamination requires a strategic approach that balances tooling selection, parameter optimization, and material handling. This glass-fiber reinforced composite material demands carbide or diamond-tipped cutting tools, moderate spindle speeds (typically 12,000-18,000 RPM), controlled feed rates, and effective dust extraction systems. Understanding the woven fiberglass and epoxy resin structure helps prevent layer separation during drilling, routing, or milling operations. When engineering managers and procurement teams master these techniques, they achieve clean edges, dimensional accuracy, and extended tool life across electrical insulation, PCB support structures, and precision mechanical components.

Understanding Delamination in CNC Machining of G10 Epoxy Sheet

When working with layered composite materials, delamination is one of the most annoying problems that can come up. This problem happens when the layers of weaving fibreglass and epoxy resin that are bound together come apart during or after machining, which weakens both the structure and its ability to do its job.

What Causes Layer Separation in Composite Materials?

Because glass epoxy laminates are layered, they are naturally weak to shear forces that are not parallel to the fibre plane. When cutting tools put pressure on something without supporting it properly, mechanical forces build up at the point where the fibres and glue meet. Even though the epoxy binder has great electrical properties and chemical resistance, it can break if it is loaded incorrectly. Changing temperatures during cutting make this risk even higher because the resin has a different coefficient of thermal expansion than the glass reinforcement. This creates stress points inside the material that lead to noticeable delamination.

Material Properties That Influence Machinability

Knowing the technical details helps you guess how the process will work. The tensile strength of standard grade material is about 40,000 psi, the compressive strength is up to 65,000 psi, and the flexural strength is close to 75,000 psi. The fact that standard high-speed steel tools wear out quickly is due to their hardness rating of 110 on the M scale. Dimensional stability is ensured by water absorption below 0.1% over 24 hours. However, this low porosity also makes it hard for the material to receive cutting fluids. A thermal window for machining processes is around 130°C (266°F), which is the highest temperature that can be used continuously. However, localised heating at the cutting edge can briefly go above this level.

Fiber Orientation and Its Impact on Cut Quality

The woven fibreglass structure gives it directional qualities that change how well it machines. Cutting across the grain isn't always better for getting clean edges than cutting parallel to the weave pattern. Through-thickness drilling has the biggest risk of delamination because the side where the tool comes out has fibre layers that are not supported and can peel off. When operators are aware of these orientation effects, they can plan tool paths that minimise cutting angles that could be damaged. This is especially helpful when making complicated shapes for switchgear parts or motor insulation mounts.

Common Causes of Delamination When CNC Machining G10 Epoxy Sheet

Targeted prevention techniques can be used once failure places in the machining process have been found. Layer separation is caused by a number of different things, which often work together to lower the quality of the part.

Improper Tooling Selection and Wear

One of the main reasons for delamination is using the wrong cutting tools. When standard steel bits rub against the rough glass fibres, they wear down quickly, leaving behind jagged edges and too much heat. When tools are worn out, they need more cutting force, which sends harmful noises through the laminate structure. Geometry of the tool is very important. Bits made for wood or soft metals have rake angles that grab and tear the fibre bundles instead of cutting them neatly. Electrical companies that make a lot of PCB support pieces need carbide or polycrystalline diamond (PCD) tools to keep the cutting edges sharp during production runs.

Suboptimal Machining Parameters

Choosing the right speed and feed rate has a direct effect on the risk of delamination. When the wheel goes too fast, it creates frictional heat that softens the epoxy matrix. This makes it less strong when fibres need support the most. On the other hand, when feed rates are fast and RPM is low, there is a lot of mechanical loading, which makes the tool edges wedge between layers instead of cutting through them. If you don't set the depth of cut correctly, it will rub instead of shear, which will create heat without removing material effectively. Builders of industrial machines that make structural spacers and wear-resistant parts have to make sure that these factors are balanced based on the thickness of the material and the diameter of the tool.

Environmental and Storage Factors

Conditions before cutting have a big effect on the stability of the laminate, especially when processing materials such as G10 epoxy sheet. Even though G10 epoxy sheet materials are waterproof, moisture can still get into cut edges or sheet edges that aren't properly covered after long periods of storage. Temperature cycling makes the glass and resin phases expand at different rates, which could lead to tiny cracks that spread during G10 epoxy sheet machining. Damage from handling, like hits on the edges or bad clamping, creates stress clusters that act as delamination starting points in G10 epoxy sheet components. People in the power sector who buy G10 epoxy sheet materials for arc barriers, transformer coil insulation, and electrical protection applications should keep them in climate-controlled spaces and check the sheets before they are machined. Proper storage conditions, moisture protection, and pre-machining inspections help maintain the dimensional stability, mechanical strength, and dielectric performance of G10 epoxy sheet products throughout their service life.

Best Practices and Techniques to Prevent Delamination in CNC Machining

Using tried-and-true methods turns difficult machine tasks into dependable production processes. These methods get to the root of problems while also making the whole process more efficient.

Optimized Speed and Feed Rate Selection

To get clean cuts without separating layers, you need to carefully set the parameters. For slicing and shaping tasks, spindle speeds between 12,000 and 18,000 RPM usually work well because they provide enough cutting speed without making too much heat. Feed rates should match the number of flutes and the diameter of the cutting tool. For end mills with a 1/4-inch diameter and material up to 1/8-inch thick, the feed rates should be between 60 and 120 inches per minute. For deeper solids, slower feed rates that let chips form and escape properly are helpful. When slotting or pocketing, the depth of cut should not be more than 0.060 inches per pass. This is because conservative step-downs lower mechanical loading. Suppliers of automotive parts that machine battery pack barriers get the best results by trying parameters on scrap pieces before starting production runs.

Strategic Tool Selection and Geometry

Using the right cutting tool specifications can mean the difference between finished parts and ones that have to be thrown away. Carbide tools are the industry standard. There are bare versions that can be used for dry cutting and treated versions that can be used with coolants when lubrication is needed. Polycrystalline diamond casting makes tools last a lot longer, which makes the investment worth it for high-volume output. Compression spiral bits work really well because the way they are shaped creates opposing forces that keep the top and bottom surfaces stable while cutting through. Up-cut spirals get rid of chips quickly, but they may tear out the top surface. Down-cut spirals, on the other hand, make clean top edges, but they may lift material off the work surface. Too much emphasis should be put on how sharp a tool's edge is; even a little dulling greatly increases cutting forces. Instead of waiting for obvious performance degradation, companies that make insulation frames and motor brackets for home appliances should set tool replacement schedules based on the amount of linear footage machined.

Effective Workholding and Support Strategies

Securing the piece of work correctly stops it from moving and gives it important backing support when machining materials such as G10 epoxy sheet. While vacuum tables need a large enough surface contact area, they fairly spread clamping force without creating stress concentrations on G10 epoxy sheet materials. When placed outside the cutting path and pulled evenly, mechanical clamps work well to keep thin G10 epoxy sheet laminates from twisting during CNC operations. Backing boards or sacrificial layers placed under the workpiece stop fibres from blowing out on the exit side during through-cutting operations. For G10 epoxy sheet machining, the backing material should be stiff but softer than the laminate to protect the surface finish and prevent damage. PVC sheet or medium-density fibreboard works well. Small parts made from G10 epoxy sheet components can be held in place with double-sided tape, but the residue needs to be removed with solvents that won't hurt the epoxy matrix. Leaving tabs that connect the finished part to the surrounding material until the final release reduces vibrations while the G10 epoxy sheet is being machined. Proper workholding methods, accurate CNC parameters, and careful handling help maintain the dimensional accuracy, mechanical strength, and electrical insulation performance of G10 epoxy sheet products in demanding industrial applications.

Cooling and Chip Management Systems

Keeping an eye on the heat and the debris protects both the material and the machine. The glass fibre dust that is made during machining can be harmful to your lungs and can also contaminate nearby equipment, so you need good extraction systems. High-efficiency particulate air (HEPA) filtration gets rid of tiny particles that regular dust collectors don't pick up. When air blast cooling is aimed at the cutting zone, it gets rid of heat without adding moisture, but too much pressure can lift thin sheets. For some tasks, using little to no alcohol-based coolant is better because it lowers friction without making things grow like water-based fluids might. Chip removal is very important when making deep holes or cutting pockets that are close together. Getting rid of the debris stops the need to cut again, which builds up heat. Setting the right extraction rate makes sure that the cutting area stays clean during all production processes.

Case Studies: Successful CNC Machining of G10 Epoxy Sheet Without Delamination

Integrated approaches can solve problems with delamination and improve production metrics, as shown by real-world examples. These examples come from a wide range of businesses, each with its own specific performance needs.

Electronics Industry: Precision PCB Component Production

When making insulation standoffs for power supply units, a medium-sized electronics company had trouble with 18% rejection rates. The dielectric strength was lowered at mounting holes, which led to potential arc paths in high-voltage circuits. The business started a three-step scheme to make things better. By upgrading tools to compression spiral carbide bits with runout limits of 0.001 inches, mechanical stress was lowered. By optimising the parameters, the spindle speed was dropped from 24,000 RPM to 15,000 RPM, and feed rates were changed to keep the chip load constant. This stopped breakdowns caused by heat. Adding phenolic backing boards stopped the blowout on the exit side. With fewer tool changes and less downtime, rejection rates dropped to 2.3% and output flow went up by 14%. The buying team said that getting material from experienced sources with consistent thickness tolerances made things even more stable.

Automotive Sector: Battery Insulation Barrier Manufacturing

An automotive tier-one supplier that made battery separators for electric vehicles had problems with delamination that put the integrity of the thermal barrier at risk. When cooling channels were drilled through the material all the way to the surface, fibres pulled out, which lower the flame resistance ratings. The engineering team changed the order of the operations so that test holes were used at slower feed rates followed by reaming operations that used circular forces more than axial forces. Using peck drilling cycles with 0.125-inch retraction intervals got rid of chips and gave the drill a chance to cool down between advances. Material checking methods found sheets that had been exposed to moisture or had been damaged during storage before they were machined. This kept stock that was not safe from going into production. These improvements to the process got rid of delamination while keeping the tight size limits needed for automatic battery building systems. The R&D engineering group worked with material suppliers to set quality standards for incoming materials that were in line with what could be machined.

Industrial Equipment: High-Load Mechanical Components

A machine builder who used G10 epoxy sheet to make gear blanks and bearing spacers ran into sporadic delamination that showed up only after the parts were put to use and placed under mechanical load. An investigation showed that poor machining quality of G10 epoxy sheet components caused tiny cracks that couldn't be seen but were big enough to spread when the part was stressed. The answer included both better tools and better quality checks for G10 epoxy sheet machining. During multi-part production runs, diamond-coated bits kept the edges sharp, and a reduced depth of cut stopped the chatter that caused damage. Ultrasonic inspection of G10 epoxy sheet parts found subsurface delamination before the components were shipped. This kept the company's reputation safe and helped engineers identify what changes needed to be made to machining parameters to eliminate the root causes. Working with the material source proved that producing G10 epoxy sheet materials with tighter resin distribution tolerances made the laminates even less likely to be damaged during machining. With excellent mechanical strength, dimensional stability, and electrical insulation performance, G10 epoxy sheet provides a reliable solution for precision industrial applications such as electrical components, mechanical supports, and high-performance insulation systems.

Procuring High-Quality G10 Epoxy Sheet for CNC Machining Success

How well machining works depends on the quality of the materials used. Strategic buying choices affect everything about a part, from how easy it is to machine at first to how well it works in the long run.

Supplier Evaluation and Selection Criteria

In addition to price, there are other capabilities that need to be looked at when choosing the right material partner. Controlling the manufacturing process is what makes the sheets consistent. Suppliers who use automatic resin impregnation and temperature-controlled curing make sheets with the same traits in every batch and across production runs. Quality certifications like ISO 9001 show that a process is being managed in a planned way, and material-specific certifications like UL recognition for electrical uses show that performance claims have been checked by a third party. Technical support is very important, and suppliers who know how hard CNC machining can be can suggest the best grades and thicknesses for different uses. Custom sizing services cut down on wasteful cutting and extra work that needs to be done, which is especially helpful for large-scale production. Long-term sellers keep enough stock in their warehouses to support both small amounts for prototypes and large amounts for production, all without having to wait longer for deliveries.

Understanding Grade Specifications and Variations

Standard offerings meet many needs, but knowing what versions are offered lets you choose the best material. The difference between base material and flame-retardant forms affects both regulatory compliance and how the material behaves when it is machined. Self-extinguishing bromine additives change the resin chemistry and glass transition temperature in a small way. Tolerances in sheet thickness affect the design of fixtures and the sizes of final parts. Premium grades keep thickness control tighter across large sheets. Hardness and machinability are affected by changes in resin content. For example, a higher glass content makes the material stronger but also wears tools down faster. Continuous working temperature rates show if something can be used in places where it will be exposed to heat for a long time. Instead of defaulting to general-purpose grades, procurement specialists should match material specifications to application needs. This is because optimised selection often lowers total cost, even if material unit prices are higher.

Logistics and Quality Assurance Considerations

The state of the material when it arrives directly affects how well it can be machined. When you ship something, the right packaging keeps the edges from getting damaged, and moisture barriers keep the dimensions stable. Lead time dependability allows for just-in-time inventory practices that cut down on the time needed for keeping and the handling that goes along with it. Minimum order amounts should match how much is actually used. Having too much goods can break down over time, and placing a lot of small orders makes it harder to keep track of everything and costs more to ship. For regulated industries, a certificate of compliance document proves that the material meets certain standards and can be tracked. Sample approval programs let you test production tools before you make big purchases. This is especially helpful when you're looking at new suppliers or grades. By working with suppliers who can help with machining and expert advice, you can form ties that go beyond just buying materials.

Conclusion

To get rid of delamination when CNC machining G10 epoxy sheet, you need to know about the material, use the right tools, make sure the parameters are set correctly, and make sure you get the materials you need. To be successful, you need to know how the woven fibreglass and epoxy resin structure reacts to cutting forces, choose the right carbide or diamond tooling for the job, set the speeds and feeds so that productivity and heat management are balanced, and use support strategies to keep fibres from getting damaged when they are not supported. When companies in the electrical manufacturing, industrial machinery, power distribution, automobile, and gadget sectors treat machining as a system instead of a series of separate tasks, they get better results. The answer is to work with experienced material sources who can provide consistent quality and technical know-how. This makes it possible to make accurate parts that meet strict performance requirements.

FAQ

What distinguishes glass epoxy laminates from flame-retardant composite boards?

The main difference is that some contain bromine-based additives that make the fire go out on its own. The standard cloth doesn't have these flame retardants, but it is stronger and won't get wet as easily. Versions that don't catch fire meet the UL 94 V-0 fire safety standards needed in many electrical uses. These days, most suppliers offer dual-rated material that meets both requirements.

Can these composite sheets withstand outdoor exposure?

The epoxy resin is physically stable and doesn't absorb water, but it doesn't naturally fight UV light. Long-term exposure to sunlight makes things turn yellow and the fibres on the surface bloom. The material's excellent electrical protection and physical stability make it useful for indoor uses. For outdoor use, UV-resistant paints or coatings are needed to keep the surface looking good.

What thickness ranges work best for precision machining?

Standard CNC tools can easily cut sheets with a width of 0.031 inches to 0.250 inches. Thinner materials need to be carefully supported so they don't bend, while thicker stock needs slower feed rates and more than one depth pass. The range from 0.062 inches to 0.125 inches is the best balance between structural strength and ease of machining for a wide range of uses.

How does moisture resistance affect machining and handling?

These laminates don't absorb more than 0.1% of their weight in water over 24 hours, so they stay stable in wet places much better than phenolic paper composites, which may take 0.5% to 2.0%. This stability makes sure that the results of cutting are always the same and gets rid of accuracy problems caused by swelling. Because it is hydrophobic, water-based coolants don't do much to help. Alcohol- or airblast-based coolants work better.

Partner with J&Q for Superior G10 Epoxy Sheet and Machining Success

Precision-grade G10 epoxy sheet is available at J&Q. It was made to meet the needs of demanding CNC uses in the power, automobile, industrial, and electrical fields. Because we've been making things for 20 years, we can guarantee consistent thickness limits, even resin distribution, and reliable mechanical qualities that keep the layers from coming apart during machining. We know how hard it is for engineering managers and procurement teams, that's why we offer full technical support, custom sizing options, and UL/RoHS-compliant certifications that make the specification process easier. We can handle everything from choosing the materials to delivering them because we have been involved in foreign trade for more than ten years and have combined our logistics. Our team has the material quality and application knowledge to turn machining difficulties into production benefits, whether you're making mechanical spacers, transformer insulation, PCB supports, or battery barriers. Get in touch with us at info@jhd-material.com to talk about your unique needs and find out how working with an experienced G10 epoxy sheet supplier can improve the quality of your products through better materials and focused support.
