How to Control Chipping in CNC Machining Phenolic Cotton Cloth Tubes

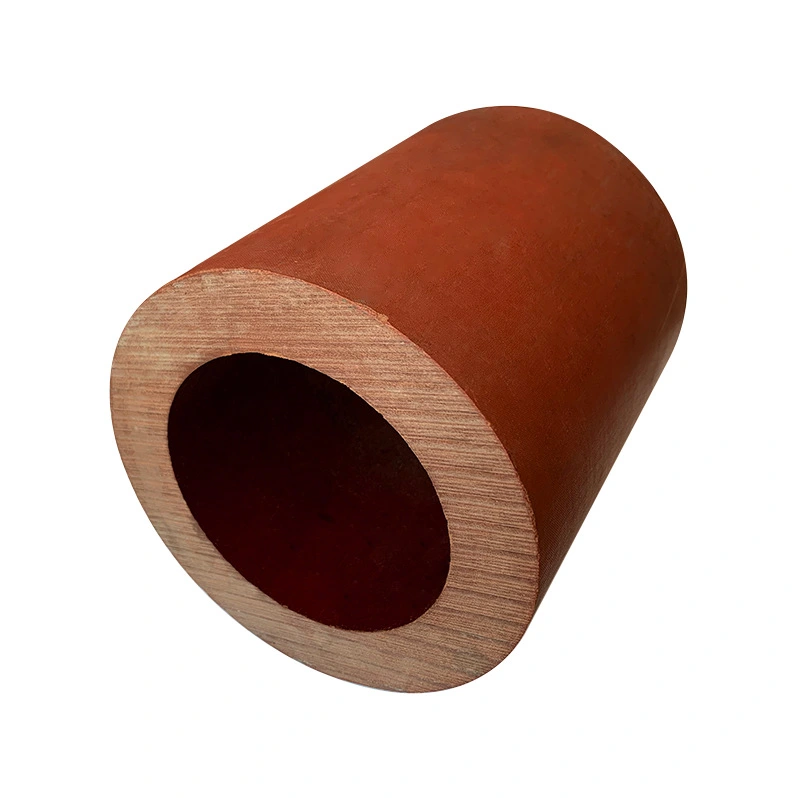

Controlling chipping when machining phenolic cotton cloth laminated tube starts with understanding the material itself. This composite — cotton fabric saturated with phenolic resin, then hot-rolled and cured — delivers density ≥ 1.2 g/cm³, radial tensile strength ≥ 50 MPa, and a Class E heat rating of 120 °C. Those same properties that make it ideal for bearing cages, sealing gaskets, and electrical insulation also make it prone to edge fracture if the wrong tool or speed is used. The good news: with the right approach, chipping is entirely manageable.

Understanding Chipping Issues in CNC Machining Phenolic Cotton Cloth Tubes

Chipping doesn't happen by accident. You can tell what the trends are once you know how the material is made.

What Chipping Actually Looks Like?

When something is chipped, small cracks or pieces that come loose appear along a cut edge or drilled hole. It tends to gather where resin-bonded laminates enter and leave the cutting area, because that's where the cutting force changes the fastest. If a chip gets into an insulation tube in a transformer or motor housing, it can damage the dielectric stability. This can cause costs for repair or rejection.

How the Layered Structure Creates Risk?

To make a laminate, phenolic resin is heated and pushed between layers of cotton cloth. The resin matrix is pretty weak, while the woven cotton reinforcement is tough and fibrous. As a cutting edge moves across the edges of each ply, it faces different types of resistance because of this. It's because of the mismatch that the top layer comes off when the cutting settings aren't right for the uneven composite.

Environmental and Handling Factors

These phenolic cloth tubes can easily soak up water after being processed. The GB/T 5132 test shows that the 9371 grade can soak up 1.5% of its weight in water. The resin on the surface of a tube will be a little softer before you machine it if you store it somewhere damp. This changes how chips form. Always work with clean, dry stock, and keep the surface sealed with oil after cutting.

Analyzing Root Causes: Why Does Chipping Happen?

Getting to the bottom of things saves time and money. It is possible to chip phenolic laminate in three main ways when it is machined.

Fiber Orientation and Ply Bonding

The direction of the cotton weave in connection to the cutting line has a direct effect on the shape of the chip. If the tool leaves perpendicular to the edge of a ply, the layer on the outside that isn't supported could break before the cut is done. At least 250 MPa of bending strength is in the 9371 grade, but that strength only works in one direction, so cutting against the laminate orientation hurts the surface.

Machining Parameter Mismatches

The phenolic resin in Phenolic Cotton Cloth Laminated Tube gets softer when the spinning speeds are high. When the resin gets less stiff, the cotton support pulls off the edge instead of cutting neatly. Too fast of a feed rate makes the shock load stronger at each tooth contact, which makes it more likely for edges to break. If you look at thermoset composites, you can see that the cutting speed and feed rate have the biggest impacts on the delamination index.

Tool Wear and Vibration

It takes more force to cut through something when the cutting edge is dull. That extra force causes vibrations, which are worse at the tube wall because phenolic resin doesn't do a good job of damping them down. We use walls that are as thin as 0.5 mm for our tubes, so even small movements can chip off parts with thin walls that can be seen.

Proven Strategies and Best Practices to Control Chipping

If you've worked with thermoset laminates before, these tips will help you make phenolic cotton cloth resin tubes the right way.

Tool Selection and Geometry

When it comes to laminates, tools made of high-speed steel don't work as well as tools treated with carbide or diamond. With a rake angle of +5° to +10°, the cutting force at the edge is less. Always use a brand-new tool that is sharp. Tools that aren't sharp enough split instead of cut. For holes with inner diameters between φ5 mm and φ1,500 mm, pick a tool diameter that is the same size as the hole to keep it rigid and cut down on deflection as much as possible.

These are the main things you should be able to change at the tool level:

• Tool material: Solid carbide or PCD-tipped preferred; replace at first sign of dulling
• Rake angle: Positive (+5° to +10°) to reduce edge load
• Point angle for drilling: 90°–118° reduces thrust force at entry and exit
• Edge preparation: Lightly honed edge reduces micro-chipping on brittle resin surfaces

If the shape of the tool fits the shape of the material, it's better for the whole batch.

Spindle Speed, Feed Rate, and Depth of Cut

When the spindle speed is low, the heat at the cut zone is low, too. This keeps the resin matrix stiff. A feed rate of 0.05 to 0.15 mm/rev and a surface speed of 200 to 400 m/min are good places to start when spinning. When cutting, don't go too deep. A few light passes will protect the top layer better than one heavy pass. The 9372 grade has a tensile strength of at least 220 MPa perpendicular to the cloth layer. To keep the plies from coming apart, keep the axial depth small.

Fixturing, Cooling, and Post-Machining Inspection

It's just as important to hold the Phenolic Cotton Cloth Laminated Tube properly as it is to choose the right tool. A tube with an outside diameter of up to φ2,000 mm and a length of up to 2 m needs to be clamped in many places so that it doesn't bend while it's being cut. Do not use enough tightening force to bend the tube wall. Cooling with a dry air blast or light mist can get rid of chips without getting the area wet. Remember that these tubes soak up water, so don't flood-cool them with fluids that contain water. After the metal has been machined, it should be looked at in good lighting for microchips along all of its edges before an insulating varnish is put on it to keep water out.

Case Studies: Successful Chipping Control in Practice

Real machining scenarios illustrate how these strategies translate into measurable quality gains.

Case Study 1 — Electrical Insulation Tubes for Power Equipment

An electrical equipment manufacturer was experiencing consistent chipping on bore exits when machining cotton cloth insulation tubes for coil formers. The team switched from HSS drills to solid carbide at a reduced spindle speed and introduced a backing plate at the tube exit. Edge chipping dropped by over 60 % in the first production run, and the rejection rate fell to under 2 %.

Case Study 2 — Custom OEM Tubing for Pump Sealing Components

A pump manufacturer sourcing custom-diameter sealing tubes (matching the 9371 grade specifications for diesel and water pump gaskets) required tight dimensional tolerance across batches. By redesigning the collet fixture to distribute clamping over a longer axial span and switching to a dry air cooling method, the supplier eliminated delamination at the outer diameter surface. The client reported zero field returns related to edge integrity over a 12-month supply period.

Key Lessons from Both Cases

Both cases confirm that tool condition, fixture design, and cooling method are the three variables that most directly affect chipping outcomes in production environments. Supplier collaboration — sharing machining recommendations alongside product datasheets — shortened the trial period in both cases.

Conclusion

Chipping in phenolic cotton cloth tube machining is predictable and preventable. The primary causes are tool wear, mismatched cutting parameters, and inadequate workpiece support. Control measures — carbide tooling with positive rake, conservative feed rates, distributed fixturing, and dry or mist cooling — address each cause directly.

For procurement teams, the sourcing decision for Phenolic Cotton Cloth Laminated Tube matters. A supplier that provides consistent density (≥ 1.2 g/cm³), verified bending strength (≥ 250 MPa for 9371 grade), and dimensional accuracy across inner diameters φ5 mm–φ1,500 mm gives your machining team a stable baseline. Batch-to-batch resin quality variation is one of the hidden contributors to chipping — standardized raw material is a procurement lever, not just an engineering one. Looking ahead, PCD tooling and real-time vibration monitoring are gaining traction in composite machining and will further tighten chipping control in high-volume production.

FAQ

What temperature can phenolic cotton cloth tubes handle during CNC machining?

Since 120 °C is used as a standard, the heat in these tubes is rated as Class E. During the cutting process, the frictional heat in the cut zone should stay well below this level. It is possible to slow down the spindle and use air blast cooling to keep the surface safe. Heat testing at 105 °C for 24 hours shows that when heated for a long time, there is no swelling, cracking, or loss of resin.

How does machinability compare to fiberglass laminates?

To strengthen with cotton cloth, it is much easier to use a machine than glue and glass epoxy. The cotton fibers cut through better, so there is less rough dust and tool wear. Chipping is less likely than with glass-based laminates when the right parameters are used. Also, fine-pitch features like gear teeth can be made without the rough tool wear that happens with FR4 or G10.

Can I order custom-sized tubes with supplier-recommended machining parameters?

Yes, you can buy tubes with inner diameters between ±5 mm and ±1,500 mm and outer diameters between ±5 mm and ³2,000 mm. They can be up to 2 m long and up to 0.5 mm thick. It saves you time because reliable suppliers give you technical datasheets with tips on how to make each grade. This means you don't have to try things on the production floor as often.

Get Your Phenolic Cotton Cloth Laminated Tube Supplier Quote from J&Q

For more than 20 years, J&Q has been making insulation goods. For more than 10 years, they have also been dealing with other countries. The inside diameters of the Phenolic Cotton Cloth Laminated Tubes we make can be between φ5 mm and φ1,500 mm. The technical data we have is correct; we can produce 100 tons a year, and we have our own shipping network for land, sea, and air. To get a quote, talk to an engineer, or get product datasheets, you can email our technical team at info@jhd-material.com or go to blog.jhd-material.com.

References

1. Davim, J. P. (Ed.). Machining Composite Materials. ISTE/Wiley, 2010.

2. Hocheng, H., & Tsao, C. C. "The path towards delamination-free drilling of composite materials." Journal of Materials Processing Technology, 2005.

3.GB/T 5132. Test Methods for Laminated Thermosetting Sheets and Tubes. Standardization Administration of China, 2014.

4. IEC 60893. Specification for Industrial Rigid Laminated Sheets Based on Thermosetting Resins for Electrical Purposes. International Electrotechnical Commission, 2003.

5. Kalpakjian, S., & Schmid, S. R. Manufacturing Engineering and Technology, 7th ed. Pearson, 2014.

6. Sheikh-Ahmad, J. Y. Machining of Polymer Composites. Springer, 2009.
