How to Avoid Common Sourcing Mistakes When Buying FR4 Laminate Sheets

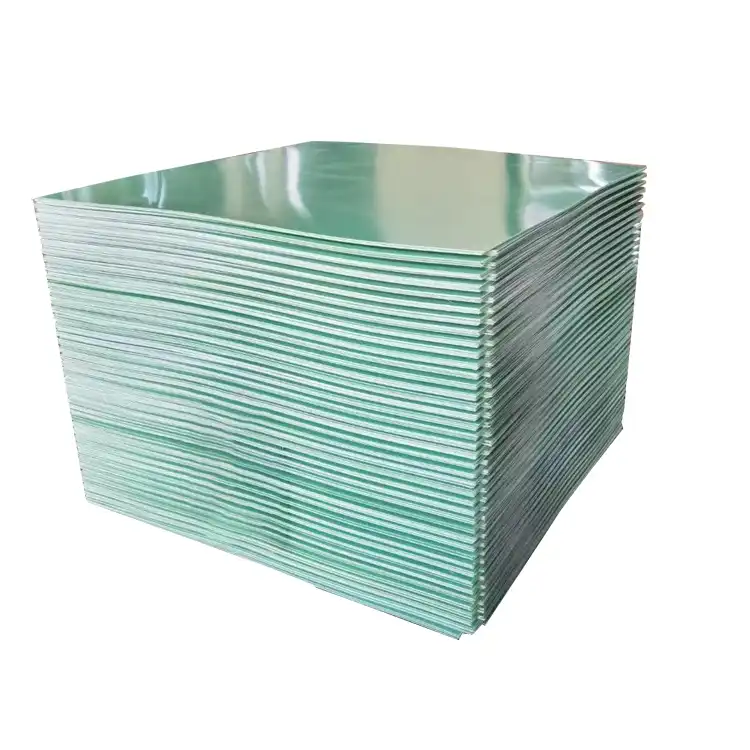

You should know what you want to do with FR4 laminate sheets before you go shopping for them. After that, you should check the test results that support each claim. Lastly, you shouldn't just compare prices between suppliers; you should also look at how skilled they are. A Flame Resistance FR4 Fibre Glass Laminate Sheet should include written results for how easily it can catch fire, in addition to dielectric values, scientific data, thickness limits, and information on how it was packed. If you check these things before you make your order, the machine, the power, or the package will be less likely to break down or be late. This article tells people what to look for when they buy insulation sheets. They've been sold by J&Q for over 20 years.

Why FR4 Laminate Sourcing Mistakes Cost So Much?

What FR4 Actually Is?

FR4 is a laminate that is stronger because it is made of epoxy and glass fibres. It is made by mixing woven fibreglass cloth with epoxy glue. Engineers use it to protect against electricity, support structures, make parts for switches and transformers, motor parts, test stands, and tools that are connected to PCBs. The grade "FR" stands for "fire resistant," and it has mostly taken the place of "flammable G-10" in places where fire safety is important. It is up to NEMA to mark the grade in this case. This is how we describe our Hongda sheet: it's a light green colour and made of epoxy resin. It is used by people who buy electronics, power tools, cars, machinery, and home appliances. A lot of mistakes are made when sourcing because different groups have different ways of reading datasheets.

Why Labels Do Not Guarantee Performance?

There are a lot of quotes that use "FR4", "FR-4," "glass epoxy sheet," and "epoxy glass laminate," but they don't all mean the same thing. Different sheets are made depending on the type of cloth used, the glue method, how it was pressed, and how it was stuck together. Two things that have the same name might have different ratings for things like how flat they are, how much water they can hold, or how easily they catch fire. I tell people who buy something that the name is just the beginning. All at once, look at the papers that say it can't catch fire, is strong electrically and mechanically, and can handle a certain range of temperatures. A sheet can fail in the field even if it does well in one area but not in another.

The Financial Impact of a Poor Decision

Orders for bad things almost never come through. It shows up as an electrical problem in a circuit barrier, a delamination during drilling, flaws in the cutting that cause more waste, or a compliance gap that a customer finds in the end. Every event has the power to stop a production line, make more work need to be done, or quickly bring in air. There were extra costs that came up when the goods arrived if the freight terms, packaging, or customs paperwork weren't confirmed ahead of time. This made the damage even worse. In most quotes, the line that costs the least is also the one that costs the most, as I've seen. Compare the total cost, not the price of each item.

Define the Application Before Requesting an FR4 Laminate Sheet Quote

Describe the Operating Environment

Write down where the FR4 laminate sheet will be used before you call a business. Write down the voltage in the system, the dielectric stress that you expect to see, the humidity, the chemical exposure, the shaking, and the mechanical load. Keep track of the steady temperature and the hottest temperature. A PCB test jig, a battery pack separator, and a transformer barrier all do very different things. It is possible to use most common types of FR4 nonstop at temperatures close to 130°C. To make sure you get the right grade, be clear on what temperature you need to work at and have the seller confirm the grade in writing. As long as the environmental statement is clear, the provider doesn't have to guess what will work.

Identify the Functional Role of the Part

Then say what the Flame Resistance FR4 Fiber Glass Laminate Sheet does. A gap, an insulation plate, a terminal board, a spark blocker, a structural support, and a part that was made just for it are some of the parts that each stress different qualities. When you make a switch insulation plate, you need to make sure it is strong against heat and dielectric loss. Things that matter more when looking at a polish gear or fixture plate are how easy it is to machine and how strong it is when bent. You can do many things with these Hongda sheets. They make test jigs, polish gears, lithium battery packs, and electrical plates, among other things. By explaining what the part does, you can help the seller figure out if there is a quality that is more important than you thought.

Build a Complete RFQ

You won't get as many emails and price shocks if you send a full RFQ. Give the sheet size or cut-to-size plans, the amount, the colour, the need for flammability, the need to cut, the way the goods will be packed, the port where they will arrive, and the date you want them to arrive. It could be anywhere from 0.3 mm to 100 mm thick. The standard size is 1030 mm x 1230 mm. It comes in different sizes, like 1030 mm × 2030 mm, 1220 mm × 2440 mm, 1030 mm × 1030 mm, or 1030 mm × 2070 mm. To save paper, make sure your part plan is the same size as a sheet of white paper. We need at least 500 kg for your order, so let us know how much you want to buy.

Verify Flame Resistance, Electrical, and Mechanical Data

Request Flammability Results, Not Only a Claim

A lot of people buy FR4 because it doesn't catch fire easily. Check the test data to be sure the claim is true. UL 94 sorts plastics into three groups based on how well they burn. The best class is V-0. According to GB/T 2408-2008, the V-0 grade is for our Hongda Flame Resistance FR4 Fibre Glass Laminate Sheet. UL 94 is used by many people in the US. Once you tell us what you need, we'll let you know what style of paper your project needs. Remember that a key and a sticker are not the same thing. Make sure that the audit for your company meets the needs of the report, the test method, and the sample thickness.

Compare Dielectric Values at the Test Conditions

It's not very useful to know about the test method if you don't know the dielectric numbers. The voltage that breaks down the laminate is 16.7 kV/mm, and the voltage that breaks down the layers that are next to each other is more than 100 kV. Both were tested in 25# transformer oil at 90°C ± 2°C. It has a dielectric dissipation factor of 7.2 × 10⁻³, a relative permittivity of 5.40 at 50 Hz, and an insulation resistance of 2.2 × 10²³ Ω when it's wet. In the US, ASTM D149 tells you how to check for dielectric breakdown. It's not possible to compare two quotes that only give you the voltage. This is because the voltage alone doesn't tell you anything else. Find out everything.

Check Mechanical Strength and Moisture Behavior

It's not very useful to know about the test method if you don't know the dielectric numbers. The voltage that breaks down the laminate is 16.7 kV/mm, and the voltage that breaks down the layers that are next to each other is more than 100 kV. Both were tested in 25# transformer oil at 90°C ± 2°C. It has a dielectric dissipation factor of 7.2 × 10⁻³, a relative permittivity of 5.40 at 50 Hz, and an insulation resistance of 2.2 × 10²³ Ω when it's wet. In the US, ASTM D149 tells you how to check for dielectric breakdown. It's not possible to compare two quotes that only give you the voltage. This is because the voltage alone doesn't tell you anything else. Find out everything.

Evaluate the Supplier, Tolerances, and Custom Capability

Look at Production Scale and Experience

The business that makes a Flame Resistance FR4 Fiber Glass Laminate Sheet should be able to talk about their background, how much they can make, and how they keep track of the process. Every year, this line moves 13,000 tonnes of stuff. In its old and new plants, our main company, Hebei JingHong Electronic Technology Co., Ltd., makes 43,000 tonnes of insulation board every year. The company is now one of the biggest in China that makes insulation boards. Being fully automatic, the quality doesn't change from one batch to the next. Our company has made and sold insulation sheets for over 20 years. We've done business with other countries for more than 10 years. Ask each source for the same information. It takes longer to fill a lot of copies of the same order.

Confirm Thickness Tolerance and Flatness

A lot of people have different ideas about how thick something should be. This is very important for wear parts like gears, spacers, and spacers, where stack-up is key. You should ask for a range of thicknesses instead of just one word for all sheets. When pressed and cut, a 0.3 mm sheet and a 100 mm block behave in very different ways, so a single blanket figure needs an extra question. Get a piece and use callipers to measure it several times across the sheet. Put the results in the record so that they can be checked again later. This easy method finds differences quickly and gives you correct data if a batch needs to make a claim.

Ask About Custom FR4 Laminate Sheet Options and Machinability

An FR4 laminate sheet made to order might not always be the standard size, thickness, or shape. There may also be cut-out parts of it. Make sure the seller can send you something of a certain size and thickness before you buy. FR4 is rough because it has glass in it. Most CNC shops use tungsten carbide or diamond-tipped tools and a dust collection system to keep workers safe and tools in good shape. Run a sample through your own machine to make sure the edges are smooth, there are no burrs, and the measurements are right before you send out the whole order. A lot of people who want to buy technology, cars, or appliances do this step first. It lets them see how the item will really work.

Compare Price, Logistics, and Total Landed Cost

Read an FR4 Laminate Sheet Price in Context

Before you look at the price, make sure that the FR4 laminate sheet's specs are the same. Pay close attention to all of the lines that say how much, how thick, how big, how you can order, test reports, packing, and how to pay. It's possible that the lower price is because the material, tolerances, or paperwork are not the same. Write down whether the price is "ex-works," "FOB," or "CIF" as you look at it. This will tell you who covers the shipping and security. You can pay with T/T, and the least you can buy is 500 kg. The quotes should all be put on one sheet next to each other that has the same fields. This helps the comparison be fair and shows where a low price might hide extra costs.

Plan Packaging and Transportation

If you don't pack rigid sheets well, they can break or bend, so packaging should be in your RFQ. One way we pack is by putting sheets on boxes to keep them safe and help them arrive flat. You can send things by land, sea, or air. The ocean is the best way to send a lot of things quickly. There is a company that moves things for J&Q. In other words, the same group of people makes and delivers the goods. Talk to each one about who will be in charge of the goods, how it should be packed, and how to make a damage claim.

Check Lead Time, Order Priority, and Communication

If you need to get things quickly, like appliances and cars, delivery times are very important. Orders made directly with J&Q are filled first, and our foreign trade team helps buyers by giving them prices, paperwork, and information on how to track their shipments. Call each seller and ask how many days you will have to wait based on the size of the order. Also, ask how you can find out when the shipment is due. Write down what you agreed to do. It's hard to know what to do when you don't have a clear schedule and a known contact. This can cause deliveries to be late and production windows to be missed.

Conclusion

To avoid making mistakes when looking for a Flame Resistance FR4 Fiber Glass Laminate Sheet, you should start with a clear application brief and use the same information for both the application brief and the landed-cost comparison. When it comes to how well they work, "FR4" and "glass epoxy sheet" don't always mean the same thing. If someone wants to buy something, they need to see proof that it has been tested for flammability, dielectric values with test conditions, mechanical properties, and moisture. How much it really costs to ship depends on what the seller can do, how well they can track standards, how simple the product is to machine, and how many ways there are to make it unique. How often people order again can depend on price, packaging, shipping method, and wait time. The Hongda data that this article talks about has a V-0 flammability grade, a 16.7 kV/mm breakdown voltage, and a 571 MPa bending strength. Anyone who wants to buy something can ask for this kind of proof. Treat each check as a must. This way, you'll be less likely to lose power, waste time, or be late.

FAQ

What does "FR" mean in FR4?

This time, it means "fire resistant." A V-0 flammability grade means that the sheet can put out test fires on its own. FR4 mostly took the place of the dangerous G-10.

What are the MOQ and payment terms for Hongda FR4 sheets?

You can use T/T to pay, and the least you can order is 500 kg. Get in touch with us to find out more about how big your order is.

Which sizes and thicknesses are available?

It could be anywhere from 0.3 mm to 100 mm thick. The standard size is 1030 mm x 1230 mm. It comes in different sizes, like 1030 mm × 2030 mm, 1220 mm × 2440 mm, 1030 mm × 1030 mm, or 1030 mm × 2070 mm.

Can FR4 be machined with CNC equipment?

Yes. Because it has glass in it, it is rough. To get rid of the dust, use tools with tungsten carbide or diamond tips.

Contact J&Q for Flame Resistance FR4 Fiber Glass Laminate Sheet Quotes

Send your drawings, thickness, and quantity to info@jhd-material.com, and J&Q will reply with a clear quotation. As a Flame Resistance FR4 Fiber Glass Laminate Sheet supplier with more than 20 years of insulating sheet experience, a 13,000-ton Hongda FR4 line, and our own logistics company, we offer one-stop service from production to delivery. More guides are available at blog.jhd-material.com.

References

1. NEMA LI 1, Industrial Laminated Thermosetting Products, 1998

2. UL 94, Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances, 2013

3. IPC-4101E, Specification for Base Materials for Rigid and Multilayer Printed Boards, 2021

4. ASTM D149, Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies, 2020

5. ASTM D229, Standard Test Methods for Rigid Sheet and Plate Materials Used for Electrical Insulation, 2019

6. IEC 60893-3-2, Insulating Materials: Industrial Rigid Laminated Sheets Based on Thermosetting Resins for Electrical Purposes, Requirements for Rigid Laminated Sheets Based on Epoxy Resins, 2011
