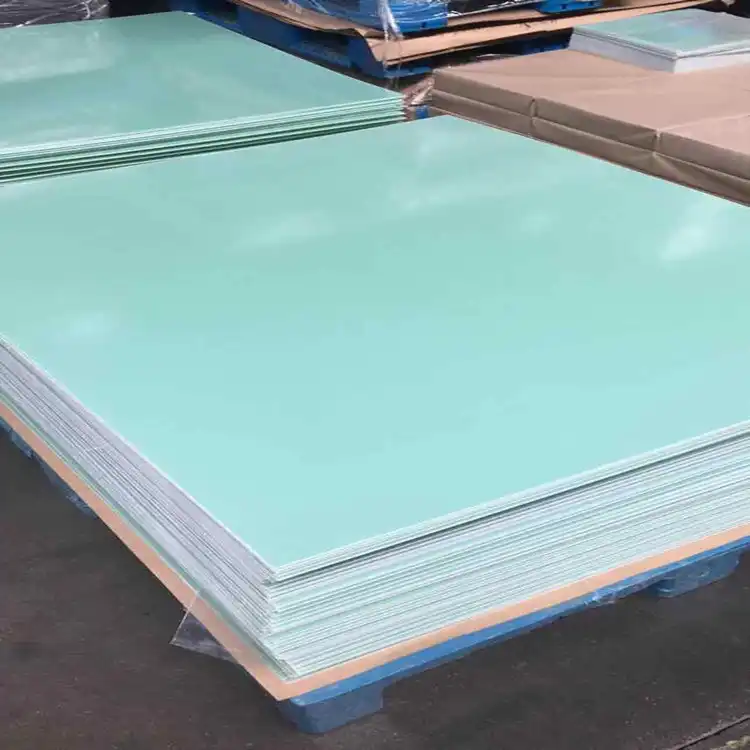

How Thickness Tolerances are Controlled in G10 Sheet Production?

Thickness tolerance control in G10 Sheet production involves a comprehensive approach combining precise raw material selection, controlled lamination processes, and continuous monitoring systems. Manufacturers achieve consistent thickness by regulating resin-to-glass ratios, maintaining optimal temperature and pressure during curing, and implementing real-time measurement technologies. Statistical process control methods ensure each batch meets specified tolerance ranges, typically 卤0.002 to 卤0.010 inches depending on sheet thickness and application requirements.

Understanding Thickness Tolerances in G10 Sheet Production

The thickness tolerance shows the range of differences in the end sizes of fiberglass epoxy laminates that are allowed. These factors are set by international standards like IPC-4101 and ASTM D709 to make sure that they work the same way in both electrical and mechanical uses.

The Role of International Standards

Tolerance levels are set by standards groups based on how they will be used. Class L materials can usually have width differences of up to 10%, but Class H materials need to be controlled more closely, to within 5%. These requirements have a direct relationship with the mechanical strength and electricity insulation qualities that buying teams value.

Impact on Product Performance

Dimensional uniformity changes many parts of effectiveness. For accurate insulation resistance and breakdown voltage, electrical uses need a dielectric layer that is the same all over. For perfect fit and load distribution, mechanical parts need to be made with very tight tolerances. When material measurements fall within certain ranges, assembly methods work better and waste less material, which saves money on rework and waste.

Understanding these basics helps engineering managers and procurement experts do a good job of judging the skills of suppliers. Because margin control affects the dependability of the final product, this information is necessary to keep quality standards high in tough industry settings.

Key Factors Affecting Thickness Tolerances in G10 Sheet Manufacturing

Controlling the thickness consistently starts with making sure the raw materials are good. The finished sheet size is directly affected by how regular the weave patterns of the glass cloth are and how thick the resin is. To get uniform results, manufacturers must carefully choose fiberglass support with the right yarn tension and weave density.

Production Process Variables

During the whole production process of G10 sheet, lamination factors need to be carefully monitored. During hardening, temperature patterns change the flow of the resin and the cross-linking density. Pressure distribution makes sure that the material solidifies evenly. The time of the press cycle affects both the end of the chemical reaction and the security of the dimensions.

The following process variables critically impact thickness consistency:

• Temperature Control: Making sure the temperature stays within ￩2°C while the glue cures stops it from flowing unevenly and makes sure that the cross-linking is complete across the whole sheet surface.
• Pressure Distribution: Applying uniform pressure through regulated hydraulic systems gets rid of differences in thickness that are caused by uneven forces that hold the material together.
• Cycle Timing: Accurately regulating the rates of heating and cooling stops the buildup of internal stress that could cause the material to become unstable in its dimensions.

The results are always the same because these factors work together. Automated tracking systems keep an eye on these factors all the time in modern factories. This lets them make changes right away when things go off track.

Equipment Calibration and Maintenance

Laminating presses and measuring tools stay accurate over time with regular testing plans. Periodically checking the pressure in hydraulic systems is important, and trying the regularity of temperature in heating elements is also important. To make sure that the data collected is accurate, measurement devices are regularly calibrated against approved standards.

Digital tracking systems are replacing hand control more and more, which lowers the variability of people and speeds up the time it takes to respond to changes in the process. These investments in making tools more reliable directly lead to better stability for end users.

Methods to Control and Ensure Thickness Tolerance in G10 Sheets

Tolerance control that works well uses both preventative steps during production and proof tests afterward. Real-time tracking gives quick feedback, and inspection after production makes sure that the specifications were met.

Real-Time Monitoring Technologies

Laser micrometers and ultrasound thickness gauges for G10 sheet make it possible to measure continuously while the product is being made. With these non-contact testing devices, you can get feedback right away without stopping the production process. By collecting data at several points on the sides of sheets, possible uniformity problems can be found before they affect whole production runs.

Statistical Process Control (SPC) methods look at test data to find patterns and stop products from not meeting requirements. Control charts show how thickness changes over time, so tweaks can be made ahead of time to keep output uniform. These scientific tools help companies reach Six Sigma levels of quality in the things they make.

Post-Production Verification

Systematic sampling methods make sure that the quality of all production runs is evaluated in the same way. Coordinate measuring machines (CMMs) measure width accurately at grid patterns that have already been set. These steps of proof show that the rules used in manufacturing worked as planned.

Quality Assurance Integration

Inspection input is used in continuous improvement methods to plan production. When measurement data shows that a process is drifting, steps to fix it should go after the root causes instead of just the signs. Audits of suppliers make sure that quality systems keep working over time. This gives buying teams trust in the supply chain's long-term dependability.

Documentation systems keep track of test results and correction actions. This makes records that can be tracked and helps with quality standards. These records become useful tools for fixing problems and making processes run more smoothly.

Case Studies: Successful Thickness Tolerance Control in G10 Sheet Production

The usefulness of strict tolerance control can be seen in real-life situations. A big company that makes electrical equipment was able to keep tolerances of 0.003 inches by putting in place advanced process tracking and supplier partnership programs.

Automotive Component Success Story

By better controlling thickness, a car tier-one seller cut the amount of scrap by 40%. The business bought automatic measuring tools and set up statistical process controls that found changes in the way things were done before they affected the quality of the products. Because of this effort, big money was saved and customer happiness went up.

Laser micrometers and ultrasound thickness gauges for G10 sheet make it possible to measure continuously while the product is being made. With these non-contact testing devices, you can get feedback right away without stopping the production process. By collecting data at several points on the sides of sheets, possible uniformity problems can be found before they affect whole production runs.

Industrial Machinery Application

A company that makes machines that work with high-voltage equipment needed insulation parts to have very tight specs. They got error ranges that were better than industry standards by improving measurement systems and making processes more efficient. The better regularity got rid of failures in the field and cut insurance costs by a large amount.

These examples illustrate how investing in tolerance control technology and processes creates competitive advantages. Companies that prioritize dimensional consistency often experience improved customer retention and enhanced market positioning.

Choosing the Right G10 Sheet Supplier for Thickness Tolerance Reliability

When choosing a supplier, you need to carefully look at their quality systems, output skills, and technical know-how. Leading producers have quality management systems that are written down and follow ISO 9001 and other standards that are specific to their business.

Quality Assurance Framework Evaluation

Effective suppliers show their dedication to quality by keeping detailed records and allowing third-party checks on a frequent basis. Having a certificate that says something meets UL standards and RoHS rules shows that it meets international quality standards. Traceability systems that keep track of materials from raw materials to finished goods give people even more faith in the trustworthiness of the supply chain.

Production openness lets users know how things are made and how quality is controlled. Procurement teams can personally check a supplier's skills through site visits and process audits. Technical support is available to make sure that you can always get help with application-specific needs.

Partnership Benefits and Customization Capabilities

Suppliers with a lot of experience offer more than just products; they also offer useful professional advice. With engineering input, material standards can be made better for certain uses. Custom width choices and tolerance ranges can be made to fit the needs of each job without lowering quality standards.

Manufacturing flexibility lets sellers change production plans and amounts based on how often customers want them. Long-term supply deals keep prices stable and make sure that important applications can always get what they need. As projects get bigger and more complicated, these benefits of working together become more important.

Conclusion

Controlling the thickness tolerance in the production of G10 Sheet relies on a combination of exact process control, advanced tracking technologies, and strict quality assurance procedures. Consistently high-quality raw materials, well-tuned lamination settings, and thorough measurement methods that make sure specifications are met are all important for manufacturing success. When you engage in tolerance control technology, you get a lot back in the form of lower scrap rates, happier customers, and more reliable products. When procurement workers understand these control methods, they can choose suppliers in a way that supports the long-term success of projects and the speed of operations.

FAQ

What tolerance ranges are achievable in G10 sheet production?

Sheets less than 0.5 inches thick can usually be made with 0.005 to 0.010 inches of accuracy. Because of how they are processed, thicker materials may have slightly wider error ranges. Through specialized manufacturing methods, tighter tolerances can be reached for custom uses.

How do thickness variations affect electrical performance?

Changes in thickness have a direct effect on the dielectric strength and insulator resistance. Under high voltage situations, thinner parts may break down before they should. Electrical qualities are always the same across the whole sheet surface when the width stays the same.

What measurement methods verify thickness tolerance compliance?

Accurate thickness measures can be made with coordinate measuring tools, laser micrometers, and mechanical dial indicators. There are many measuring places on the surfaces of the sheets to make sure that they are correct. Statistical selection methods prove that one batch is the same as another.

Partner with J&Q for Superior G10 Sheet Manufacturing Excellence

J&Q can help you with your buying needs because they have more than 20 years of experience making insulation sheets and more than 10 years of experience dealing internationally. Our complete quality control systems make sure that the thickness limits are always the same and meet the strictest requirements. Because we have advanced manufacturing skills and a specialized logistics company, we can meet all of your G10 Sheet needs in one place. Our scientific know-how, customizable choices, and reliable supply chain management help engineering managers and procurement teams. Get in touch with us at info@jhd-material.com to talk about your specific thickness tolerance needs and find out how our G10 Sheet supply services can help your product work better and make your manufacturing process more efficient.
