How Does FR4 Epoxy Fiberglass Rod Perform Under Stress?

FR4 epoxy fiberglass rod delivers exceptional performance under mechanical and thermal stress, making it a trusted choice across electrical, industrial, and power applications. Composed of woven fiberglass cloth bonded with flame-retardant epoxy resin, this composite rod maintains structural integrity under tensile loads exceeding 1200 MPa and compressive forces up to 950 MPa. Its low moisture absorption, volume resistivity above 10¹⁰ Ω·m, and UL94 V-0 flame rating make it genuinely reliable in demanding environments. Whether you're specifying insulation components for switchgear or structural spacers for heavy machinery, understanding how this material behaves under real stress conditions helps you procure with confidence.

Understanding FR4 Epoxy Fiberglass Rod: Composition and Key Properties

What Makes This Material Structurally Exceptional?

The structure of the rod starts with a continuous woven fiberglass fabric that has at least 80% fiber content and is fully saturated with a thermoset epoxy binder. This mix makes a substance that has a density of 2.2 g/cm³ or more. It has a high strength-to-weight ratio and works better than many metals in non-conductive situations. The cross-linked epoxy matrix holds the glass fibers in place and doesn't let them bend under steady or moving loads.

Electrical and Thermal Profile

The dielectric profile is just as interesting as the mechanical profile. Power frequency voltage tolerance goes up to ≥50 kV, and full-wave impulse voltage tolerance goes up to ≥100 kV. These are very important numbers for transformer coil shielding and arc barriers. Some grades have a glass transition temperature (Tg) between 130°C and 140°C, while high-Tg types can keep working at temperatures above 170°C. This material doesn't just handle stress; it takes it without breaking. Its stress corrosion protection has been tested and proven to last at least 96 hours.

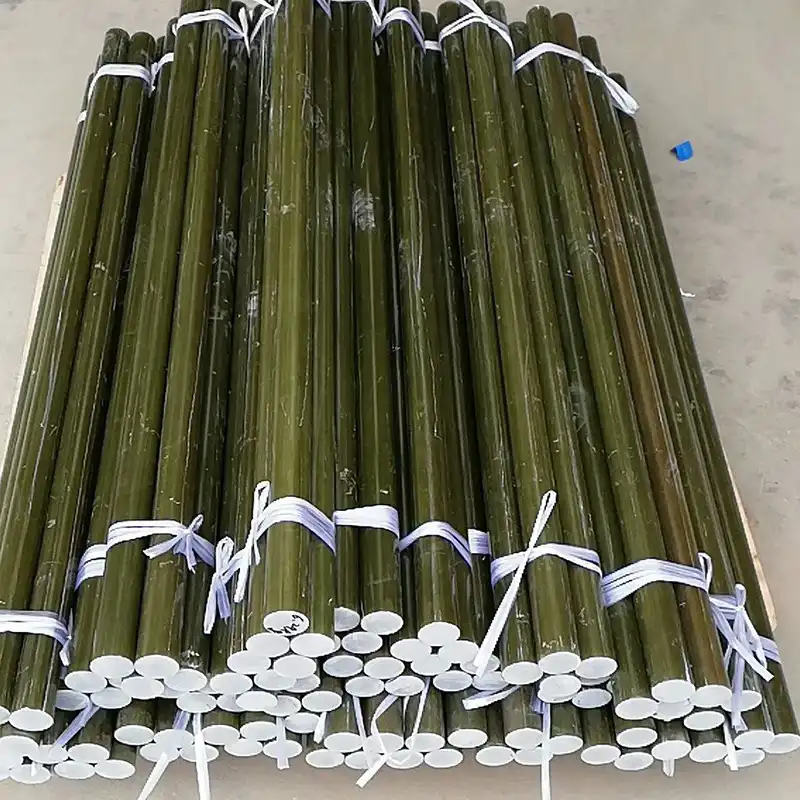

Jinghong's green epoxy fiberglass rods come in standard 1-meter lengths and have outer diameters ranging from φ5mm to φ2000mm. The company can make 100 tons of them every year. Years of disciplined manufacturing have led to that level of scale and consistency.

Mechanical Performance of FR4 Epoxy Fiberglass Rod Under Stress

How It Behaves Across Load Types

The numbers make it clear to experts how well this material holds up under real industry stress. Here are the technical standards that have been checked:

Tensile strength of at least 1200 MPa: When axial forces are applied, the woven fiberglass structure of FR4 Epoxy Fiberglass Rod spreads the load across the fiber bundles, which stops cracks from forming in one place. Because of this, the rod works really well for lightning arrester core rods and insulator pull rods in power distribution systems.

Stretching strength of at least 900 MPa and thermal stretching strength of at least 300 MPa: Even when heated up, the stick doesn't break or change shape. This is very important for motor spacers and switchgear brackets that have to deal with both thermal and mechanical loading over and over again.

The compressive strength is 950 MPa. This compressive resistance is what keeps structural insulation parts in heavy machinery, like mechanical spacers and press fixings, stable even when they are loaded and unloaded many times.

• Tensile Strength ≥1200 MPa: Under axial pulling forces, the woven fiberglass architecture distributes load across fiber bundles, preventing localized fracture. This makes the rod highly suitable for lightning arrester core rods and insulator pull rods in power distribution systems.
• Flexural Strength ≥900 MPa / Thermal Flexural Strength ≥300 MPa: Even at elevated temperatures, the rod resists bending deformation. This is critical for motor spacers and switchgear brackets that experience cyclic thermal and mechanical loading simultaneously.
• Compressive Strength 950 MPa: Structural insulation components in heavy machinery — such as mechanical spacers and press fixtures — rely on this compressive resilience to maintain dimensional stability under high-load cycles.

These numbers are in line with NEMA FR-4, MIL-I-24768/27 Type GEE-F, and ASTM D709 standards, which gives us more faith in the material's proven performance level.

In real life, machinery builders and OEM sourcing managers say that epoxy fiberglass rods keep the same size tolerances from batch to batch, which lowers the number of times that CNC-machined insulation assemblies need to be fixed. This consistency means that buyers who buy a lot of things have less risk when they buy things.

Comparing FR4 Epoxy Fiberglass Rod with Alternative Materials

FR4 vs. G10, FR5, and Phenolic Alternatives

When making purchases, people often have to choose between efficiency and application fit. G10 has a mechanical structure that is very similar to FR4 Epoxy Fiberglass Rod, but it is very important to note that it does not have any flame-retardant qualities, so it will continue to burn when lit. In places where UL94 V-0 rules apply, G10 is not an acceptable alternative.

FR5 has a higher Tg (usually 170°C+), which makes it better for long-term high-temperature exposure, but it costs more to make. Phenolic cotton rods have good compressive strength and can be easily machined, but they absorb more water, which makes them less dielectric over time. This is a big problem in humid industrial settings.

Carbon fiber bars have a higher tensile strength, but they also carry electricity, which means they can't be used as insulation in most situations. Additionally, they cost a lot more per unit length.

FR4 Epoxy Fiberglass Rod is the best of both worlds: it doesn't catch fire, is strong, doesn't conduct electricity, can be machined with a CNC, and is cheap enough for mass production. For research and development engineers at companies that make parts for cars or engineering managers at companies that make electronics, this balance makes it the most useful commercially available structural insulation material.

Best Practices for Handling and Machining FR4 Epoxy Fiberglass Rod

Machining Guidance to Preserve Rod Integrity

Because it has more than 80% fiberglass, this material is very rough when it comes to cutting. Standard high-speed steel tooling wears out quickly and makes too much heat, which can cause tiny cracks to appear near the edges of cuts. For tasks like cutting, turning, and grinding, the right tools have carbide tips or diamond coatings.

Both the tools and the person using them are kept safe by wet machining or special dust disposal systems. Fiberglass dust that contains silica is bad for your lungs; OSHA rules say that industrial machining settings must have good ventilation.

When FR4 Epoxy Fiberglass Rod is not in use, it should be stored somewhere dry, at room temperature, and out of direct sunlight. Long-term UV contact makes the epoxy matrix's surface chalky without changing its core mechanical properties, but it could change the surface finish limits for precision parts. Larger diameter rods don't bend when they are stored vertically or horizontally on flat racks.

By following these steps, you can protect the integrity of the materials from the warehouse to the final assembly line. This makes sure that the performance listed on the datasheet is the same performance that is delivered in service.

Procurement Insights: Sourcing High-Quality FR4 Epoxy Fiberglass Rod

What to Evaluate Before Placing an Order?

More than just low prices are needed to find a reliable source for epoxy fiberglass bars. Buyers should make sure that providers can show proof of traceability, certifications of dimensions according to ISO h8/h9 tolerance standards, and proof of meeting UL94 V-0 and RoHS requirements. Nondestructive testing records that show there are no internal holes or delamination are a good way to tell if something is of good quality, especially for high-voltage insulation uses.

Total procurement value is based on minimum order quantities, lead times, customization options (diameter range, length, surface finish), and the ability to support multiple modes of transportation. When suppliers have their own transportation infrastructure, they lower the risk of damage during transit and cut delivery times by a large amount.

Jinghong has been making insulation materials for more than 20 years and has been trading internationally for more than 10 years. The supply chain is handled from the plant to the destination. They can make 100 tons of goods a year and can handle freight by sea, land, and air. They also have their own shipping operation.

Conclusion

FR4 Epoxy Fiberglass Rod is a standard insulator material because it has been tested and proven to work well in tensile, compressive, and heat stress situations. It can be used in electrical, industrial, power, and automobile uses because it is flame-retardant, has a high dielectric strength, and can be machined precisely. It gives the same value throughout every production cycle if it comes from a manufacturer with strict quality controls and a track record of good logistics. When procurement teams and engineers know about these properties ahead of time, they can make decisions based on technical facts instead of guesses.

FAQ

What is the maximum operating temperature of this rod?

Based on the epoxy resin's glass transition temperature, standard grades work continuously at 130°C to 140°C. High-Tg versions can keep working at temperatures above 170°C, which makes them good for transformer uses that need to handle high temperatures.

Can the rod be used in humid or submerged environments?

Yes. The epoxy matrix and fibers that have been treated with silane stop water from getting in below 0.2% (ASTM D570). The material keeps a lot of its dielectric strength after being submerged in oil, which means it can be used in transformer oil environments and humid industrial settings.

What distinguishes FR4 from G10 in practice?

The most important difference is flame retardancy. UL94 V-0 self-extinguishing properties are created by bromine-based chemicals that are used in FR4. G10 doesn't have this trait at all, so it shouldn't be used in places where fire safety rules must be followed.

How should I verify rod quality before bulk procurement?

Before you place a large order, make sure that your seller gives you dimensional tolerance certifications (ISO h8/h9), dielectric breakdown test results (ASTM D149), moisture absorption data (ASTM D570), and UL94 V-0 flammability compliance paperwork.

Is customization available for non-standard diameters?

Jinghong makes rods with outer diameters ranging from φ5mm to φ2000mm, so they can be used in a lot of different ways. You can talk to the engineering team directly about custom specs.

Get Reliable FR4 Epoxy Fiberglass Rod from J&Q — Request a Quote Today

With certified quality, full traceability, and customizable transportation for ocean, land, and air freight, J&Q sells premium FR4 Epoxy Fiberglass Rod backed by Jinghong's more than 20 years of production experience. From production to shipping, we can handle everything in one place. This means that your buying cycle will be more reliable and there will be fewer middlemen. You can talk to our team about specs and wait times by emailing info@jhd-material.com or going to blog.jhd-material.com.

References

1. NEMA. NEMA LI 1-1998: Industrial Laminated Thermosetting Products. National Electrical Manufacturers Association, 1998.

2. ASTM International. ASTM D709: Standard Specification for Laminated Thermosetting Materials. ASTM International, 2017.

3. UL Standards & Engagement. UL 94: Tests for Flammability of Plastic Materials for Parts in Devices and Appliances. Underwriters Laboratories, 2013.

4. ASTM International. ASTM D149: Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials. ASTM International, 2020.

5. ASTM International. ASTM D570: Standard Test Method for Water Absorption of Plastics. ASTM International, 2018.

6. Mazumdar, S.K. Composites Manufacturing: Materials, Product, and Process Engineering. CRC Press, 2001.
