How Does 3021 Phenolic Paper Sheet Support Precision Machining?

When engineers and procurement specialists search for a reliable insulating laminate that machines cleanly and holds tight tolerances, the 3021 Phenolic Paper Sheet consistently rises to the top of the shortlist. Made from insulating kraft paper impregnated with phenolic resin and consolidated through heat and pressure, this laminated sheet delivers a rare combination of dimensional stability, dielectric reliability, and workshop-friendly machinability. Whether you are producing switchgear components, motor insulation parts, or OEM mechanical spacers, this material gives your team a consistent, cost-effective foundation to build from.

Understanding 3021 Phenolic Paper Sheet: Composition and Properties

What Makes This Laminate Structurally Reliable?

It is easy to understand and follow the steps for making phenolic paper laminate. Liquid phenolic glue is mixed with layers of insulated cellulose paper, which is then stacked under controlled pressure and hardened at high temperatures. The hot-pressing operation gets rid of any remaining moisture, cross-links the resin matrix, and makes a hard, uniform board with almost no holes inside it. This makes a Class E insulation-rated sheet that can be used continuously at temperatures up to 120°C.

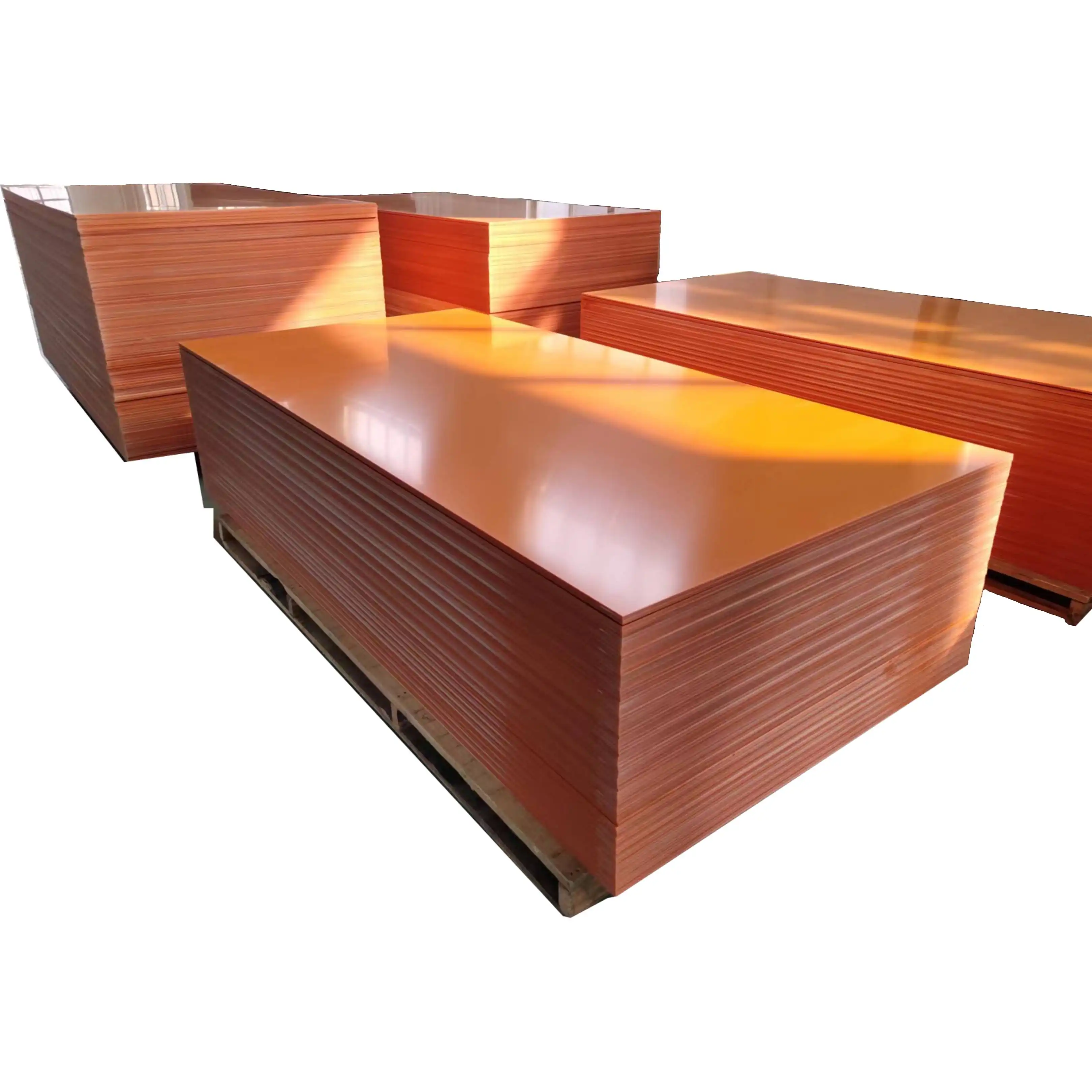

The version made by JingHong has a density of 1.33 g/cm³ and a bending strength perpendicular to the laminations of 168 MPa. These are real numbers that show how rigid the structure is, not just marketing speak. The sheet comes in natural orange or black and thicknesses from 2 mm to 100 mm. The standard sheet size is 1040 mm × 2080 mm, but custom sizes up to 1220 mm × 2440 mm can be made to fit large-format cutting programs.

Some important qualities that have been checked by JingHong's technology data are:

• Water absorption: 115 mg (GB/T 1303.2-2009) — indicating low moisture uptake that protects dimensional consistency in humid shop environments.
• Insulation resistance after soaking: 2.1 × 10⁸ Ω — confirming dependable dielectric performance even after prolonged exposure to moisture.
• Vertical layer breakdown voltage: 2.7 kV/mm (tested in 90°C transformer oil) — meeting switchgear and transformer application demands.
• Tensile strength: 119 MPa — sufficient to resist pull-out forces during high-speed drilling and milling operations.
• Adhesive strength: 3,438 N (GB/T 1303.6-2009) — demonstrating excellent interlaminar cohesion that prevents delamination under tool pressure.

The numbers for 3021 Phenolic Paper Sheet here are not guesses. They come from standard GB/T test protocols on measured sample coupons. This gives procurement engineers a baseline that they can use to match specifications.

The Role of 3021 Phenolic Paper Sheet in Precision Machining Processes

Why Does Machinability Matter So Much in Industrial Settings?

For precision machining to work, the material must behave consistently during all steps, including cutting, routing, drilling, milling, and punching. Materials that chip randomly, make too much heat, or change shape when clamped create waste, slow down cycle times, and make tool wear happen faster. Most of these issues don't happen with phenolic paper laminate because its resin-paper hybrid structure breaks neatly instead of cracking.

This sheet is a shop-floor favorite because it is easy to machine in the following ways:

• Clean cutting with standard tooling: The laminate shears without the fiber fraying that plagues woven glass composites, which means standard carbide or HSS tooling handles it effectively without specialist coatings.
• Tight tolerance retention: With a modulus of elasticity in flexure of 3.98 × 10³ MPa at 155°C, the board resists thermal creep during extended machining runs, holding programmed dimensions reliably.
• Low moisture absorption: Minimal hygroscopic movement means a part machined on Monday measures the same on Friday, which matters enormously for insulating washers, bushings, and spacers assembled in switchgear cabinets.
• Reduced tool degradation: Because the matrix is uniform and relatively low in abrasive silica content compared to glass-filled laminates, cutting edges retain their geometry longer, lowering per-part tooling cost.

Clean cutting with common tools: The laminate can be sheared without the fibers breaking as they do with woven glass composites. This means that normal carbide or HSS tools can be used to cut it without the need for special coatings.

Comparative Analysis: 3021 Phenolic Paper Sheet vs Other Insulating Sheets

How Does It Stack Up Against Common Alternatives?

There are a lot of different base types on the market for insulation sheets. Knowing where 3021 Phenolic Paper Sheet fits in helps buyers make smart choices without overthinking their material choice.

The paper-based phenolic laminate is easier to work with, causes less tool wear, and costs less per kilogram than FR4 fiberglass epoxy boards. This makes it the practical choice for lower-voltage insulation jobs where glass fiber support is not needed. It is still better to use FR4 in high-frequency PCB environments, but phenolic paper is cheaper and better for making motor brackets, switchboard panels, and insulating washers.

Standard epoxy laminates, like 3240 epoxy glass cloth boards, are less resistant to wetness than the 3021 grade. However, it is easier to work with and costs less. The oil-tested breakdown voltage numbers show that the trade-off is fine when the working setting is transformer oil instead of open humidity.

Within the phenolic family, the 3021 grade is more stable in terms of dimensions than the 3020 variant. This makes it the best choice when tight lamination tolerances are required by the standard rather than just a desire. The paper-based grade is better at insulating electricity than phenolic cotton cloth laminates, but cotton variants are still better at withstanding impact on heavily loaded mechanical gears.

Procurement Insights for 3021 Phenolic Paper Sheet in Global B2B Markets

What Should B2B Buyers Evaluate Before Placing an Order?

When you buy insulation laminates from other countries, you have to deal with more than just the price of the raw materials. Total landed cost is affected by lead time, batch uniformity, certification alignment, and the ability to change operations. With a production capacity of 13,000 tons per year, JingHong can make sure there is always a supply, even for long-term contracts or OEM projects that need a lot of parts.

Standard packaging uses pallet protection to keep the edges and surface integrity of 3021 Phenolic Paper Sheet safe while it is being shipped by sea, air, or land. You can pay with T/T, and the minimum order quantity (MOQ) is set at 500K units. This is a good amount for buyers in the electrical manufacturing, transformer production, and car insulation supply chains. Before committing to large orders, buyers should ask for samples to make sure that the specific thickness and color variant works for their needs.

Compliance paperwork is important for U.S. buyers in particular. Making sure your seller can give you GB/T test records, material safety data, and the right export paperwork cuts down on delays at customs and keeps supply chain audits clean.

Building Trust: Why Choose Our 3021 Phenolic Paper Sheet Solutions?

JingHong has been making insulating laminates for more than 20 years and has been trading with other countries for more than ten years. They have built ties with electrical manufacturers, transformer makers, and machinery OEMs in North America, Europe, and Asia. Our own transportation company coordinates across ocean, air, and land channels. This means that we are the only company you need to talk to from the production floor to the port of destination—this is not just a marketing claim; it's a real service.

Every lot of output goes through quality control, and test results can be traced back to GB/T 1303 standards. For customers whose needs don't fit within standard parameters, we can make sheets with specific sizes, thicknesses, and colors. Consulting with a technical expert before placing an order helps engineering teams be sure that the material will work without having to guess.

Conclusion

The 3021 Phenolic Paper Sheet is a standard in precision cutting because it is structurally reliable, has been tested for electrical performance, and is really useful in the workshop. Its uniform resin-paper matrix is easy to work with, stays within tight specs even when the humidity changes, and has dielectric qualities that make it good for motor parts, switchgear, and transformer insulation. When procurement teams compare price to performance for low- to medium-voltage uses, this insulating laminate is one of the few that comes close in terms of price and features. Because of its wide range of production options and strong operations, JingHong is a reliable long-term seller partner for U.S. companies that need to buy in large quantities on a regular basis.

FAQ

Is this phenolic paper laminate suitable for CNC routing and drilling?

Yes. When the CNC router or drills through the uniformly saturated paper grid, it cuts neatly. It can be used with standard carbide tools without special coatings, and because it doesn't have much abrasive in it, the cutting edges stay sharp longer than with glass-filled tools.

What temperature rating does this insulating sheet carry?

It has a Class E insulation rating and can work continuously at temperatures up to 120°C. Its vertical layer modulus of elasticity in flexure is 3.98 × 10³ MPa at 155°C, showing that it keeps its shape well above normal service temperatures.

Can custom thicknesses and sheet sizes be ordered?

JingHong sells sheets that are 2 mm to 100 mm thick. The standard size is 1040 mm × 2080 mm, but you can get sheets in any size you want, up to 1220 mm × 2440 mm. You can get custom specs if you ask for them.

Is it chemically resistant to transformer oil?

Yes. The breakdown voltage tests are done in 25# transformer oil at 90°C, which shows that it can be used in electrical settings with oil in them. It is also much more resistant to acids and common chemical solvents.

Get a Quote from J&Q — Trusted 3021 Phenolic Paper Sheet Manufacturer

We offer tried-and-true 3021 Phenolic Paper Sheet phenolic paper laminate options at J&Q, backed by more than 20 years of production experience and a dedicated transportation network. Our team is ready to help you with your next precision machining project, whether you need standard sheets or insulating boards made to your exact measurements. Get in touch with our buyers at info@jhd-material.com or go to blog.jhd-material.com to learn more about our full line of products and ask for a sample right away.

References

1. IEC 60893-3-4: Insulating Materials — Industrial Rigid Laminated Sheets Based on Thermosetting Resins for Electrical Purposes, International Electrotechnical Commission, 2003.

2. GB/T 1303.2-2009: Laminated Plates Based on Thermosetting Resins — Methods of Test, Standardization Administration of China, 2009.

3. Harper, C.A. (Ed.), Handbook of Plastics Technologies, McGraw-Hill, 2006.

4. Mohanty, A.K., Misra, M., & Drzal, L.T., Natural Fibers, Biopolymers, and Biocomposites, CRC Press, 2005.

5. Brydson, J.A., Plastics Materials, 7th ed., Butterworth-Heinemann, 1999.

6. NEMA LI 1-1998: Industrial Laminating Thermosetting Products, National Electrical Manufacturers Association, 1998.
