How Can G10 Epoxy Sheet CNC Machining Meet Tight Tolerance Requirements?

Achieving tight tolerances during CNC machining of G10 epoxy sheet depends on understanding its unique composition—woven fiberglass embedded in epoxy resin. This glass-reinforced laminate exhibits exceptional dimensional stability and low thermal expansion, allowing precision machining when proper tooling, fixturing, and environmental controls are applied. The material's low moisture absorption (less than 0.1%) prevents dimensional changes during processing, while its uniform density ensures consistent cutting behavior. Carbide or diamond tooling, combined with optimized feed rates and rigorous quality control systems, enables manufacturers to consistently achieve tolerances within ±0.001 inches, meeting the demanding requirements of electrical, automotive, and industrial machinery applications.

Understanding the Challenges of CNC Machining G10 Epoxy Sheets

When working with glass epoxy laminates, there are specific problems that need to be solved in a certain way. The hardness of the fiberglass layers causes a lot of tool wear, which shortens the life of the cutting edge and could make it harder to get accurate measurements as the tools break down. There is a chance of delamination because the structure is stacked, especially at the entry and exit points during drilling or routing operations. When cutting speeds are too slow, or tools are too dull, chipping along the edges can be a problem. This can cause cosmetic flaws and problems with the way things are measured.

Material Brittleness and Its Impact on Precision

Because this material is made up of different parts, brittle failure modes are more common than plastic deformation modes. Glass epoxy composites break quickly when stress levels are passed, unlike metals that give in a predictable way. Because of this, holding the work in place is very important. Too much clamping force can cause microcracks, and not enough fixturing lets vibration happen, which hurts the surface finish and dimensional control. Keeping an eye on the temperature while cutting is also very important. Friction can cause localized heating that can soften the resin or cause the fiber and matrix to expand at different rates, causing warping that lasts after the material cools.

Consequences of Poor Tolerance Control

Machined epoxy laminates can't do what they're supposed to do if their dimensions are off. In electrical applications, the performance of the dielectric and the alignment of the assembly with PCBs or bus bars are affected by the wrong spacing or placement of holes. For mechanical parts like spacers and gears to keep distributing load and avoid premature wear, they need to be made to exact measurements. Abrasive dust made during machining can be harmful to health and cause damage to equipment, so it's important to have the right extraction systems in place. These problems are linked, which is why it takes more advanced process control to work with glass-reinforced epoxy than with other industrial plastics.

Core Factors Influencing CNC Machining Precision of G10 Epoxy Sheets

The range of tolerances that can be used is determined by how the material is made and its qualities. The ratio of fibers to epoxy affects both how easy it is to work with and how stable its dimensions are. More glass content makes the material stronger, but it also makes it more brittle and scratchy. Even though they don't absorb as much water as phenolic paper laminates, they can still change the consistency of dimensions in places with a lot of moisture. Temperature resistance tells you how the material will react to the heat-generating grinding process. Standard grades keep their structure until about 130°C.

Selecting Appropriate CNC Equipment and Tooling

Precision work is based on how hard a machine tool is. Cutting forces must cause as little deflection as possible. This can be done by building something strong and keeping it in good shape. Spindle runout specifications have a direct effect on the level of concentricity and surface finish that can be achieved. Choosing the right tooling material is very important. Bits covered in diamond or types of carbide that are more resistant to wear greatly extend the life of tools while keeping their sharp cutting edges. The geometry of the tool is also important. For example, positive rake angles lower cutting forces and keep materials from breaking, and the right relief angles stop rubbing that causes too much heat.

Environmental and Coolant Considerations

Temperature and humidity in the workshop affect both the size and behavior of G10 epoxy sheet when being machined. When working with standards of less than a thousandth of an inch, thermal expansion rates are still important, even though they are low compared to thermoplastics. Before processing, the material should get used to the temperature of the work area. It can be hard to choose the right coolant because water-based fluids might affect the epoxy glue. On the other hand, air blast cooling works well for getting rid of dust and controlling temperature without adding moisture. The quality of the compressed air is important; oil or water from compressors can leave residues that make it harder to bond or coat later.

Proven CNC Machining Techniques to Achieve Tight Tolerances on G10 Epoxy Sheets

Precision starts with setting up the machine carefully. Custom fixturing made for specific part geometries evenly distributes clamping forces, keeping materials from warping and cutting them straight. For flat sheets, vacuum supports work well because they hold them evenly without putting too much weight on one spot. Alignment steps need to be very thorough. Using touch-off probes or edge finders to set up accurate work coordinate systems makes sure that programmed measurements match up with real part features. Using precision standards to check the machine's calibration makes sure that the movements that are ordered match the actual axis travel.

Advanced Machining Strategies

When the cutter rotates in the same direction as the feed, this is called "climb milling." It makes edges in composite materials better by pushing fibers downward instead of lifting them. Delamination and burr formation are kept to a minimum with this method. Adaptive clearing methods that keep the chip load constant make tools last longer and give better surface finish. When cutting slots, trochoidal milling designs lower the engagement of the radial tool. This lowers the cutting forces and improves chip removal from deep features.

For features with tight tolerances, micromachining and multi-pass finishing are necessary. Rough passes get rid of a lot of material quickly, and then semi-finishing operations set almost-final dimensions. To get the desired specs and surface finishes, the last few passes should use sharp tools at slower run rates. Rest machining strategies make sure that corners and complicated shapes get enough attention, getting rid of places where the previous tool paths couldn't reach.

Quality Control Integration

Coordinate measuring machines (CMMs) check dimensions for accuracy down to the nano level. This lets statistical process control find trends before parts go outside of tolerance bands. Laser scanning systems can quickly look at the whole surface and find distortions or warpage that point measurements might miss. Using touch probes for in-process measurement lets you check things in the middle of an activity and make adjustments that account for tool wear or temperature drift.

Monitoring systems that work in real time keep an eye on the spindle load, vibration patterns, and sound emissions to find signs of tool wear or strange cutting conditions before they cause problems with the dimensions. Statistical process control charts show capability scores and provide quality-conscious buying teams with constant process performance. Precision machining goes from being an art to a repeatable science with these built-in quality measures. This gives engineering managers and expert buyers more trust.

Comparison: G10 Epoxy Sheet vs Other Materials in CNC Machining for Tight Tolerances

When it comes to building composites, glass epoxy laminates are in a class by themselves. Compared to materials made from phenolic paper, they absorb much less water—often only a tenth as much—which means they stay more stable in their shape in damp places. This quality is very important for precise electrical parts because changes in size can affect how the parts fit together and how much space there is for the wires. The glass fiber reinforcement is stronger than paper-based options, so it can support structural uses that are loaded over time.

Performance Against Alternative Grades

FR4 material has similar mechanical properties, but it also has flame-retardant additives that make it self-extinguishing. This makes it meet the UL 94 V-0 ratings that are needed in many electrical applications. Because FR4's brominated compounds make it a little harder to work with and cost more, normal G10 epoxy sheet grades are better when flame protection isn't needed. The continuous operating temperature for G11 variants is about 180°C, compared to 130°C for standard grades. This is because they use higher-temperature epoxy resins. This better temperature performance comes at a higher cost of materials, so the G11 option is only better in certain situations and not always.

Standard fiberglass sheets that don't have epoxy bonds don't have the mechanical qualities and accuracy needed for tight-tolerance machining. They are good for general-purpose insulation but not for precise mechanical parts because they are less dense and the fibers are not evenly distributed. The epoxy resin matrix in G10 epoxy sheet materials gives them the consistency and steadiness in size that CNC machines need.

Cost-Performance Balance

The total system economics must be taken into account in material cost analysis, not just the sheet price. Premium types cost more at first, but they are easier to machine, which cuts down on processing time and tool wear. Better dimensional consistency leads to lower rejection rates, which lowers the cost of scrap. Longer service lives in demanding applications cut down on the number of replacements needed and the downtime that comes with them. Because of these lifecycle factors, glass epoxy laminates are often better than cheaper alternatives when the needs of the application call for precision machining.

Material choice is also affected by the abundance of suppliers and the help they offer with approval. Established glass epoxy types have many qualified suppliers and a lot of information about their properties, which lowers the risk of buying them. UL recognition, RoHS compliance paperwork, and ISO-certified manufacturing give buyers in the car and electrical sectors peace of mind.

Procurement Tips: Sourcing High-Quality G10 Epoxy Sheets for CNC Machining

Certification of materials is the basis of quality security. UL certification makes sure that the electrical qualities and flame performance are always the same, and RoHS compliance paperwork handles the needs for banned substances in electronics. Manufacturing facilities that are ISO 9001 certified have structured quality management, which lowers batch-to-batch variation that makes developing machine processes harder. By asking for test reports on the material's mechanical properties, dielectric strength, and water absorption, you can be sure that it meets the published specifications.

Sheet Specifications and Customization Options

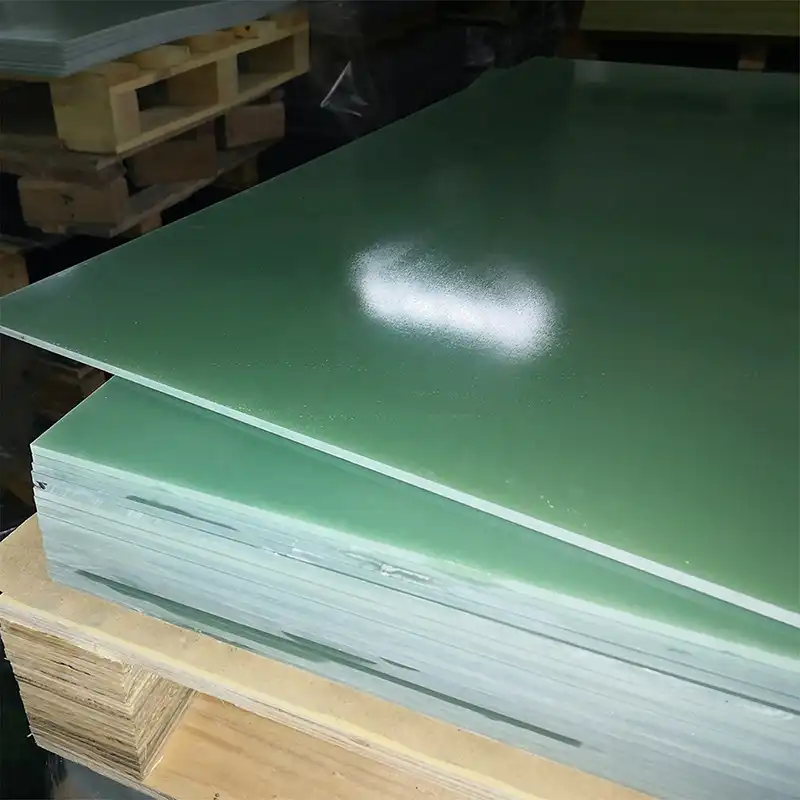

Standard sheet sizes are 1000mm x 1000mm and up to bigger production sizes. Thicknesses run from 0.5mm to over 50mm. Knowing the sizes that are available helps you get the most out of your materials and waste as little as possible. Custom cutting services from providers can cut down on the work that needs to be done in-house, but checking the dimensions is still very important. Specifications for sheet thickness tolerances have a direct effect on machining processes. Tighter thickness control lowers the number of Z-axis programming changes needed and raises the regularity of each batch.

Color coding makes it easy to tell them apart: natural tan means standard epoxy, while black means mineral-filled versions or phenolic mixes. FR4 grades are often shown by sheets that are clear and green. The type of surface finish affects the steps that follow. Sanded surfaces make bonding easier, while polished finishes are better for decorative purposes or when exact flatness is needed.

Supplier Partnership Considerations

Suppliers with a lot of experience can help with technical issues that speed up the growth of machining processes. Having access to information about the properties of materials, suggested cutting parameters, and troubleshooting tips cuts down on development time and material waste. Sample programs let you test the process before committing to large amounts of production. This lowers the financial risk when looking into new uses or tighter tolerance requirements.

Lead time flexibility helps just-in-time manufacturing methods work better by lowering the costs of keeping stockpiles and making sure materials are always available. Minimum order number rules affect smaller production runs. Suppliers that can handle small batch sizes make it possible to make prototypes and use their products in low-volume specialty uses. Domestic production options cut down on shipping times and costs, and they also help make supply chains more resilient, which is becoming an increasingly important part of procurement strategies.

Sustainable buying takes into account more and more environmental concerns. Some makers offer recycled content choices or environmentally friendly epoxy formulas that keep up performance while leaving less of an impact on the environment. Corporate sustainability reporting requirements support being open about where raw materials come from and how they are made.

Conclusion

To get close tolerances when CNC-machining glass epoxy laminates, you have to pay close attention to the features of the material, the choice of tools, the cutting settings, and how quality control is integrated, and G10 epoxy sheet exemplifies this requirement. When the right techniques are used, this composite material's unique properties—extreme dimensional stability, low moisture absorption, and strong mechanical properties—allow for precise applications. Figuring out how the fiberglass support and epoxy matrix work together helps you use the right cutting techniques to keep delamination and changes in size to a minimum. When you use adaptive machining methods and real-time process tracking along with carbide or diamond tools, you can turn these difficult materials into reliable precision parts. When procurement professionals work with experienced suppliers, they can get certified materials, expert support, and flexible supply plans that help manufacturers make the best products while keeping overall system costs low.

FAQ

Can Glass Epoxy Laminates Be Machined for Outdoor Applications?

These materials are very good at keeping water out and protecting against corrosion. Even in wet settings, they only absorb about 0.1% of moisture. Because of this, they can be used for outdoor parts as long as the edges are sealed properly and UV-protective coats are applied. The epoxy resin doesn't naturally resist UV light, so long-term exposure to the sun makes the surface chalky and yellow. Protective finishes or pigmented coatings keep the mechanical and dimensional stability of things while they are used outside for longer.

What Thickness Options Support CNC Machining Requirements?

Standard sheet thicknesses range from 0.5 mm to over 50 mm, and unique sizes can be made through specialized sources. Fixturing thin sheets (less than 3 mm) carefully is needed to keep them from deflecting during machining. On the other hand, thick plates (more than 25 mm) need extra care for relieving internal stress and preventing warping after material is removed. Most precision mechanical applications use thicknesses between 3 mm and 12 mm, which are a good balance between structural needs and machining efficiency.

How Does Temperature Affect Dimensional Accuracy During Processing?

Tolerance maintenance is directly affected by thermal expansion qualities. For glass epoxy laminates, the rate of thermal expansion is about 16 ppm/°C in the XY plane. Creating heat during cutting can cause short-term changes in dimensions that last until thermal balance is reached. To keep margins of less than a thousandth of an inch, it is important to control cutting temperatures by using the right feeds, speeds, and amounts of cooling. By letting the material get used to the workshop temperature before it is machined, any differences in expansion that could affect the desired dimensions are eliminated.

Partner With J&Q for Precision Glass Epoxy Laminate Solutions

J&Q can help you with your precision machining needs because they have been in business for more than twenty years and have knowledge of both manufacturing and foreign trade. Because we know a lot about glass epoxy laminates, we can provide approved materials that are best for CNC uses with tight tolerances. We have long-term relationships with the best material producers in both the United States and other countries. This guarantees consistent quality and dependable supply lines. Our integrated logistics services make delivery easier, cut down on lead times, and make it easier to buy what you need from G10 epoxy sheet suppliers.

Our technical team's engineering support speeds up the development of your process. We give you advice on materials, cutting parameters, and fixing problems that are specific to your tolerance needs. Sample programs let you test the process before committing to full production, and flexible batch sizes let you make both prototypes and a lot of them. Email our experts at info@jhd-material.com to talk about your needs and find out how our certified materials and quick service can improve the accuracy and efficiency of your manufacturing.
