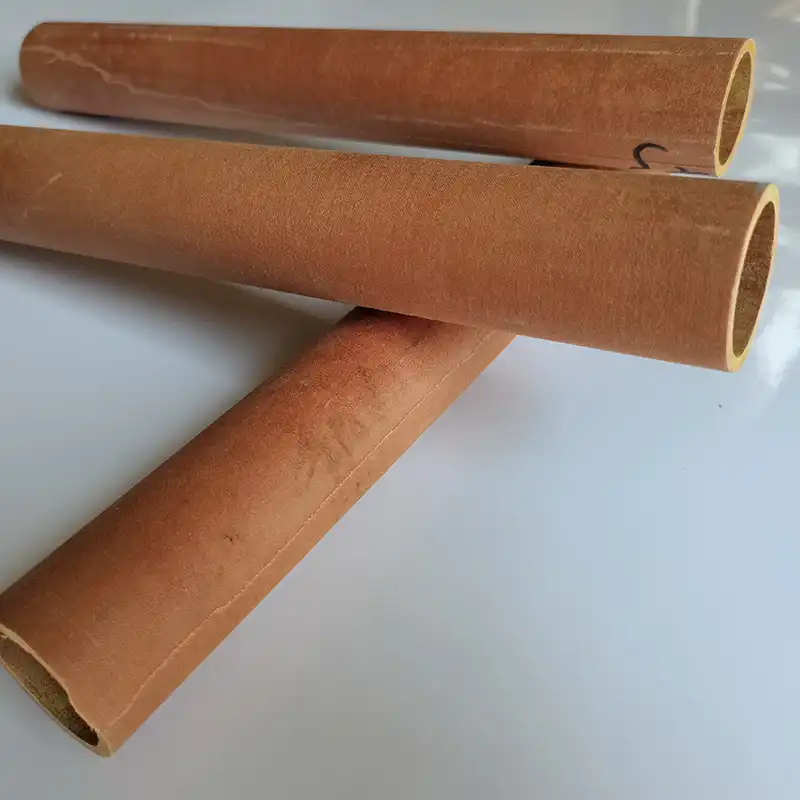

Can 3526 Phenolic Cloth Laminated Tube Support Reliable Insulation in High-Voltage Equipment?

Yes — the 3526 phenolic cloth laminated tube can support reliable insulation in high-voltage equipment. This phenolic resin-based tube delivers a vertical layer-direction electric strength of ≥3.5 MV/m (tested at 50Hz in transformer oil), a surface resistivity of ≥1.0×10⁸ Ω under normal conditions, and thermal stability at ≥130°C. These figures meet the baseline requirements of switchgear, power transformers, and motor insulation systems. For engineering managers and procurement teams sourcing qualified insulating structural components, this material offers a measurable, data-backed answer.

Understanding 3526 Phenolic Cloth Laminated Tube: Composition and Properties

What Is It Made From?

The tube starts with cotton cloth that is scourged and dessized to get rid of sizing agents and other impurities. Once the cloth is clean, phenolic resin is poured into it. It is then rolled under heat and pressure, and it is baked until it is completely dry. This several-step process makes a dense, stacked compound whose mechanical and electrical properties stay the same across the whole wall thickness. This meets the quality standard set by GB/T 5132.

Key Electrical and Mechanical Specs

The performance profile of the material is clear. It is about 1.04 to 1.20 g/cm³. The bending strength is at least 80 MPa, and the compressive strength is at least 45 MPa. These are real-world structural capacities, not just nominal ratings. Water absorption stays at ≤4%, which is important for keeping the dielectric working well in damp places. Even when there is moisture in the air, the volume resistivity stays at ≥1.0×10⁵ ©·m, so the insulation stays strong.

Dimensional Range and Customization

J&Q has this tube in a lot of different sizes. The inner diameter ranges from ±5mm to †1500mm, and the outer diameter ranges from †6mm to †2000mm. The longest tube they have is 2 meters. The walls are 0.5 mm thick at first. For inner diameters between 10mm and 80mm, the wall must be at least 1.5mm thick. For sizes greater than or equal to 85mm, it must be at least 2mm thick. You can directly negotiate for sizes that aren't standard, which is a useful option for OEM sourcing managers who need to meet specific design needs.

Performance Comparison: Phenolic Cloth Laminated Tube vs Alternative Insulation Materials

How Does It Compare to Fiberglass Tubes?

Fiberglass resin tubes, like G10/FR4, work better with electricity and are recommended when you need a dielectric strength of more than 10 MV/mm. But they are much more expensive and can be harder to work with without special tools. The phenolic cloth tube gives up some dielectric ceiling in exchange for being cheaper, easier to machine with a CNC machine, and working well enough in Class E (120°C) situations. This trade-off makes phenolic cloth a better choice for many medium-voltage structure tasks.

Versus Mica and Polyester Insulation

Mica-based materials can withstand temperatures above 500°C and work well in arc-flash conditions, but they are fragile and hard to shape into large tubes. Although polyester tubes are flexible, they are not strong enough to be used for gear bushings or mechanical spacers because they can't be compressed. The 3526 Phenolic Cloth Laminated Tube has a compression strength of at least 45 MPa and can still be machined. Mica and polyester, on the other hand, can't always match this mix when used as structural insulation.

Cost and Sourcing Efficiency

When it comes to buying things, phenolic cloth tubes have more stable prices than epoxy glass or mica alternatives. With the ability to make 100 tons per year and ship by ocean, land, and air freight, foreign buyers can handle the wait times. This is important for tier-1 supply chain managers who need materials that are uniform across batches on a regular basis, not just samples once in a while.

How to Choose the Right Phenolic Cloth Laminated Tube for High-Voltage Equipment?

Match Specs to Your Operating Environment

First, look at the thermal class. This tube is good enough if your equipment stays at or below 130°C all the time. If you need something stronger than that, like dry-type transformers that run at Class F (155°C) or higher, you should use an epoxy glass cloth tube instead. By matching the material's thermal ceiling to its actual working conditions, you can keep it from breaking down too quickly.

Verify Dimensional Tolerances Before Ordering

The most that can be off is ±0.5mm for inner sizes between 10mm and 80mm. It's also ±0.5mm for walls that are less than or equal to 10mm thick. For walls that are thicker than 10mm, it's ±1.0mm. When it comes to press-fit uses and precision-machined parts, these limits are important. When making B2B orders, especially for first-run runs, you should always ask for a material certificate and a dimensional inspection report.

Understand Post-Machining Requirements

The surfaces that were cut by CNC machines are more likely to absorb water afterward. As a moisture-proofing step, the maker suggests putting insulation varnish on all polished areas. Wet coolant can change the dielectric properties, so dry cutting is highly recommended. When engineers specify this material for the first time, they should keep in mind that it works differently than metals and should follow the rules in JB/Z 141.

Procurement Insights: Buying Phenolic Cloth Laminated Tube for Industrial Applications

Supplier Evaluation Criteria

Ask for GB/T 5132 test reports that cover all eight performance indicators when looking for phenolic cloth laminated tubes as a 3526 Phenolic Cloth Laminated Tube supplier or manufacturer. These are density, water absorption, thermal stability, bending strength, compressive strength, surface resistivity, volume resistivity, and electric strength. Make sure that the provider keeps records that can be used to track batches. Standard shelf life is 12 months from the date of manufacture; check production dates before accepting large shipments.

Before choosing a seller, every buying team should make sure of these main points:

• Certification documentation: Request GB/T 5132 or equivalent test reports for each production batch. Confirm traceability from raw material to finished tube, especially for switchgear and transformer applications where audit trails matter.
• Customization capability: Confirm the supplier can produce non-standard inner and outer diameters. For OEM applications, request sample tubes at your target dimensions before committing to full production quantities.
• Logistics flexibility: Verify that the supplier supports multiple transport modes — ocean, land, and air. International buyers benefit from suppliers who can coordinate freight directly, reducing third-party logistics risk.

These checks make it less likely that you will get off-spec 3526 Phenolic Cloth Laminated Tube material that gets through without being seen until it breaks down in the field.

Trial Orders and Sample Evaluation

Before you commit to buying in bulk, ask for a trial batch in the size you want. Check cut ends for boils, dry spots, or delamination, which are all signs that the glue isn't drying properly. Press a sample to the torque specs you gave it and look for cracks on the surface. This small step saves a lot of money in the long run by preventing expensive machine failure.

Real-World Applications and Case Studies

Use in Power Transformer Coil Insulation

Phenolic cloth tubes are used by transformer makers as spark shields and coil formers between layers of winding. The material can be used in oil-filled transformers because it doesn't absorb much water (≤4%) and keeps its volume resistivity even when it's wet. When material specifications are kept to GB/T 5132 standards, field data from transformer OEMs show that insulation performance stays the same across multiple production cycles.

Switchgear and Motor Component Applications

Phenolic cloth tubes are used as insulating bushings and spacers between live parts in switchgear assemblies. Because they have a compression strength of at least 45 MPa, they can handle the clamping forces in busbar systems without breaking. Electrical motor makers use them for shaft insulation covers and bearing housings, which need to be dielectrically sound and stable in size when heated up at the same time.

Mechanical Structural Parts in Industrial Machinery

Gear blanks, wear-resistant bushings, and mechanical spacers are all made from phenolic cloth-bonded tubes that are bought by OEM machinery makers. When the right dry-cutting settings are used, the material cuts smoothly; threads, bores, and slots stay within tight tolerances. These parts are lighter than metal alternatives, and they eliminate the risk of galvanic corrosion in mixed-material assemblies.

Conclusion

There is measured performance data to back up the claim that the 3526 Phenolic Cloth Laminated Tube is a good insulating structural material for high-voltage machinery. It can withstand electric fields of up to 3.5 MV/m, bends up to 80 MPa, and stays stable at temperatures up to 130°C, so it can be used as Class E insulation in the power, industrial, and automotive sectors. To pick the right one, you need to make sure that the specs match the operating conditions, check the dimensional tolerances, and buy it from a supplier that keeps full batch traceability. When used within the limits that were specified for it, this material provides uniform, long-lasting protection.

FAQ

What is the maximum operating temperature for this tube?

It is in Class E for thermal stability, which means it can handle temperatures of up to 130°C. In continued use at or below this temperature, it is fine. Epoxy glass cloth tubes should be used instead for applications that need Class F (155°C or higher).

How does it perform in humid environments?

GB/T 5132 tests show that it absorbs about 4% water. When the material is damp, the volume resistivity stays at ≥1.0×10⁵ Ω·m, and the surface resistivity stays at ≥1.0×10⁷ Ω. These numbers show that the insulation still worked well after being exposed to water, but a varnish treatment after cutting is still suggested.

Can it be custom-sized for OEM projects?

Yes, the tube can be up to 2 meters long and have an inner diameter of φ5mm to φ1500mm or an outer diameter of φ6mm to φ2000mm. You can negotiate directly with the supplier to get sizes that aren't listed in the nominal tables.

Is dry or wet machining recommended?

Machining should be done dry. Using water to cool something can change its dielectric properties. Cut at high speeds and feed slowly. After processing, cover all machined surfaces with an insulating varnish.

What certifications should I request from a supplier?

Ask for test results on GB/T 5132 that cover all eight performance factors. Before you place big orders, make sure you have the ISO 9001 quality control paperwork and batch-level traceability records.

Partner with J&Q for Your 3526 Phenolic Cloth Laminated Tube Requirements

J&Q has been making insulation materials for more than 20 years and trading with other countries for more than 10 years. We are a reliable 3526 Phenolic Cloth Laminated Tube maker that can offer custom sizes, full GB/T 5132 certification, and direct shipping support via ocean, land, and air freight. You can get all of these things from a single source. To get samples or a custom quote, email our technical team at info@jhd-material.com or visit our blog at blog.jhd-material.com.
