Antistatic Durostone Sheet for Wave Soldering Pallets and Precision SMT Tooling

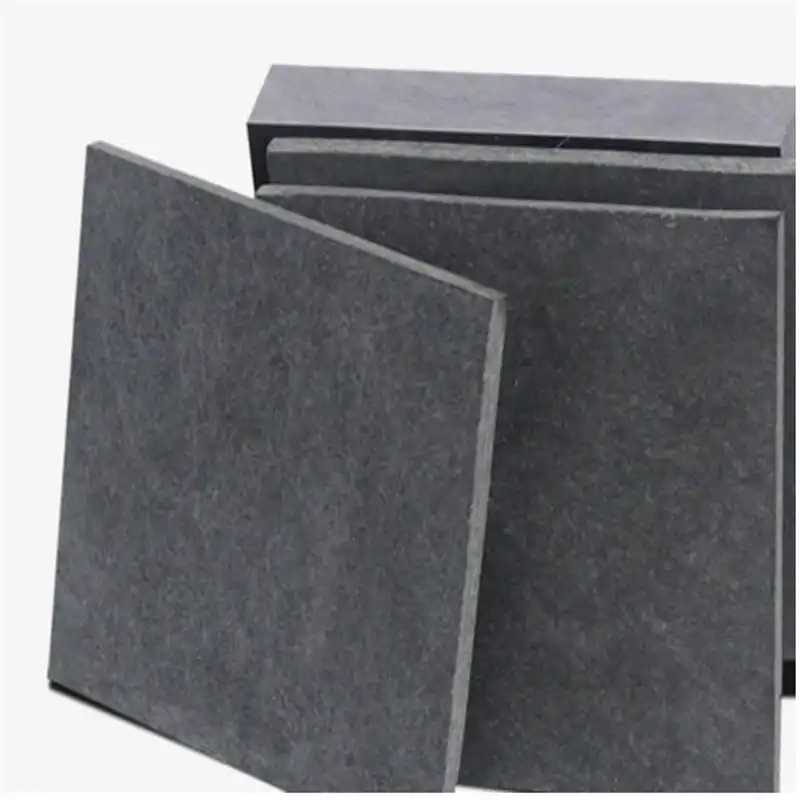

When your PCB assembly line runs thousands of cycles daily, the materials holding your boards matter more than most people realize. An antistatic durostone sheet is a glass fiber-reinforced composite engineered to dissipate static electricity while enduring the intense thermal and chemical stress of wave soldering and SMT reflow processes. At J&Q New Composite Materials, we supply the JingHong brand ESD-dissipative durostone sheet in thicknesses from 3 mm to 50 mm, available in black, grey, and blue, built for precision electronics manufacturing where failure is not an option.

Understanding Antistatic Durostone Sheets: Composition, Properties, and Benefits

What Makes This Material Different

Dielectric strength is controlled by standard glass epoxy laminates, but static charge is not controlled by them. A Durostone ESD sheet has antistatic additives built right into the glass fiber-reinforced epoxy matrix. This makes the surface resistivity 10⁶ to 10⁳ ohms/square. This managed dissipation range is just right for IEC 61340 ESD protection standards—it's fast enough to remove the charge but slow enough to keep spark discharge away from sensitive ICs.

Core Material Properties

The JingHong Antistatic Durostone Sheet has a wide range of qualities that meet the real needs of SMT and wave solder settings. These are the main things that make it different:

• High temperature resistance: Heat deflection temperature exceeds 200°C, with short-term tolerance up to 300°C, keeping pallet geometry stable through continuous solder dips.
• Mechanical strength: Tensile strength above 300 MPa and flexural strength above 400 MPa allow thin-wall pallet features to survive mechanical handling without cracking.
• Tight machining tolerance: The homogeneous fiber structure supports CNC routing with Tungsten Carbide or PCD tooling, holding dimensional tolerances required by automated SMT conveyor systems.
• Chemical resistance: The epoxy matrix resists modern no-clean and water-soluble solder fluxes, saponifiers, and IPA-based cleaning agents, maintaining surface integrity across thousands of cleaning cycles.
• Long service life: Well-maintained pallets typically last 10,000 to 20,000 production cycles, which directly reduces tooling cost per board.

The most common places where wave solder fixtures break are when they warp, when they get damaged by ESD, or when they break down chemically. Since it doesn't absorb more than 0.1% of water, the dimensions stay the same even on humid factory floors.

Why ESD Control Matters in PCB Manufacturing?

One electrostatic discharge event can damage MOSFET gates, CMOS logic, or fine-pitch BGA packages in a way that can't be seen during the assembly stage. Both the IPC-A-610 acceptance standard and ANSI/ESD S20.20 say that handling and soldering must take place in controlled ESD settings. A low-cost, high-impact way to stay in compliance and protect valuable parts is to use a fixture material that dissipates static electricity.

Applications in Wave Soldering Pallets and Precision SMT Tooling

Wave Soldering Pallets

CNC-machined wave solder stacks are the main use for Antistatic Durostone Sheet (Durostone ESD sheet. The pallet holds up the bare PCB, hides the SMT parts that are already on the bottom, and moves the board across the molten solder wave, which is around 260°C. Because the Durostone sheet has a low thermal mass, the pallet receives less heat. This lets the solder joint reach the right wetting temperature without putting too much stress on heat-sensitive parts nearby.

SMT Reflow and Depaneling Fixtures

When using reflow processes, PCBs with odd shapes or that bend need rigid carriers to keep them from sagging in the oven. ESD-safe Durostone holders keep the shape of the board within the acceptable range and keep charged parts from building up on the fastener surface. The same material is then machined into depaneling tools and inspection boxes that are used in automated optical inspection (AOI) lines. These surfaces must be flat, stable, and safe from ESD.

Conformal Coating and Handling Trays

Automated conformal coating systems need frames that hold boards in the right place in terms of X and Y using spray or selective coating heads. Misregistration and coating flaws are avoided by the physical stability of Durostone sheet, especially its warp tolerance, which should stay below 0.5% over the diagonal according to normal practice in the industry. This means that electronics companies with high-mix, high-volume lines will have fewer rework rounds and better process output.

Comparing Antistatic Durostone Sheets with Alternative Materials

Durostone vs. Standard Epoxy Laminates

While standard FR4 or G10 epoxy sheets are strong and insulating, they are also insulators because their surface resistance is usually higher than 10³² ohms/square. In SMT applications that are sensitive to ESD, an insulating fixture can store charge and send it directly to board components. Durostone ESD sheet solves this issue without giving up the strength and ease of machining that epoxy laminates are known for.

Durostone vs. Melamine Composite Sheets

Melamine-based boards are cheaper up front, but they are better at absorbing flux residues and losing size after being heated and cooled over 180°C many times. In wave solder settings, where pallets go back and forth between 260°C solder pots, this drift makes PCBs out of alignment and raises the risk of bridge flaws. Longer service life means that Durostone stays flatter, which lowers the total cost of ownership even though it costs more per sheet.

Customization Advantages

The JingHong Antistatic Durostone Sheet comes in three colors: black, gray, and blue. Its thicknesses range from 3 mm to 50 mm, so engineers can choose the right pallet thickness for the conveyor finger width and component clearance needs. Color coding also helps production teams keep track of pallets and keep different product groups from getting mixed up on an SMT line that is shared.

Procurement Guide: How to Select, Buy, and Source Antistatic Durostone Sheets?

Specifications to Verify Before Purchase

Before putting in an order, buying teams should check the flatness tolerance data, surface resistance test reports (10⁩ to 10⁲ Ω/sq), and thermal shock test results. Ask for material certificates that show they follow the RoHS and REACH rules. US OEM customers in the consumer goods and car sectors are asking for these more and more.

Lead Times and Order Planning

Wait times for CNC-machined box orders are usually longer than wait times for raw sheet orders. When tooling designs change often, it can be faster to respond if you order raw Durostone sheet stock in standard thicknesses and have it machined in-house or nearby. For patterns that stay the same, buying finished pallets in bulk lowers the cost per unit and keeps extras on hand.

Supplier Evaluation Criteria

Don't just look at the price per kilogram when choosing an Antistatic Durostone Sheet provider. Make sure that the resistivity records, dimensional tolerances, and technical support after the sale are all the same from batch to batch. If a supplier has their own transportation infrastructure, they can cut down on shipping times and make customs paperwork easier for orders going across borders.

Trusted Suppliers and Brands of Antistatic Durostone Sheets

JingHong by J&Q New Composite Materials

J&Q has been making and selling insulating composite sheets for more than 20 years, and for more than 10 of those years, they have sent them directly to markets in North America and Europe. The quality of the JingHong Antistatic Durostone Sheet line is always checked, and each batch is checked to make sure that the surface resistance is the same across the whole sheet. J&Q also has its own transportation company, which lets them handle orders from the plant floor to the customer warehouse. This is great for US buyers who need to be sure of when their orders will arrive.

What to Look for in Any Supplier

Durostone ESD sheet makers you can trust will give you test results from a third party, not just their own certificates. Check that the company has ISO 9001 quality management certification, written protocols for thermal shock tests, and a clear returns policy for material that doesn't meet the standards. Long-term buying partnerships work best when the provider can do more than just fill orders. They should also be able to help with design advice.

Conclusion

Electronics companies can rely on Antistatic Durostone Sheet for wave solder stacks, SMT clamps, and AOI carriers that need to be both ESD-protected and thermally stable. The JingHong line from J&Q comes in black, gray, and blue thicknesses ranging from 3 mm to 50 mm, and is made to meet IPC and ESD S20.20 production standards. The long service life and consistent mechanical performance of this material mean that teams that are in charge of PCB assembly quality will have lower defect rates and lower costs for replacing tools.

FAQ

How long do wave solder pallets made from Durostone ESD sheet typically last?

Under normal operating conditions with proper cleaning after each run, high-quality pallets typically last 10,000 to 20,000 production cycles. Aggressive flux chemistry or skipped cleaning steps can reduce this significantly.

What cleaning agents are safe to use on antistatic durostone sheet?

Neutral saponifiers and dedicated flux cleaning agents work well. Avoid highly alkaline cleaners or abrasive scrubbing pads, which can degrade the ESD surface layer and reduce chemical resistance over time.

What CNC tooling is recommended for machining this material?

Tungsten Carbide or Polycrystalline Diamond (PCD) tooling is required due to the abrasive nature of the glass fiber reinforcement. High-speed steel tools wear out rapidly and are not suitable.

Can Durostone ESD sheet handle lead-free solder temperatures?

Yes. The material maintains dimensional stability at continuous operating temperatures around 280°C, which covers the peak temperatures used in lead-free wave soldering processes.

Why is surface color sometimes different between batches?

Minor color variation between production batches is normal for composite laminates. It does not affect ESD or mechanical performance. Consistent resistivity values matter more than color matching between batches.
