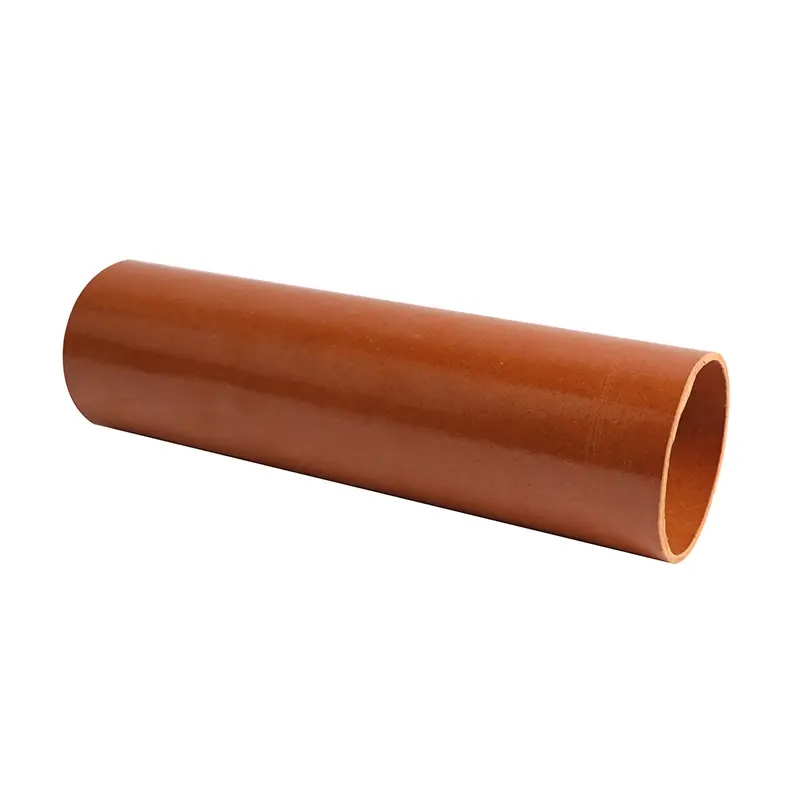

3526 Phenolic Cloth Laminated Tube for High-Voltage Transformer and Switchgear Insulation

When engineers specify insulation materials for high-voltage transformers and switchgear, the 3526 phenolic cloth laminated tube consistently appears on the shortlist. Made from cotton cloth impregnated with phenolic resin and cured under heat and pressure, this red-toned tubular laminate delivers high radial tensile strength, low water absorption, and reliable dielectric performance. Tested under GB/T 5132, it achieves a vertical electric strength of ≥3.5 MV/m in transformer oil, making it a dependable choice for coil insulation, arc barriers, and structural insulation components in demanding electrical environments.

Understanding 3526 Phenolic Cloth Laminated Tube: Characteristics and Technical Specifications

Engineering teams need to know exactly what they are asking for before they place a purchase order. This part breaks down the material's make-up, size, and tested performance information.

Composition and Manufacturing Process

The tube starts out as cotton cloth that has been scrubbed and shrunk. It is then filled with phenolic resin. Under controlled heat and pressure, the layers are rolled, pressed, and baked. This process tightly bonds the cotton weave into the resin matrix, making a thick, stable tube that doesn't separate during CNC cutting. On the work floor, the natural color of red helps set it apart from options made of epoxy or paper.

Dimensions and Size Range

J&Q makes this material in a lot of different sizes to meet different technical needs:

• Inner diameter: φ5 mm to φ1,500 mm
• Outer diameter: φ6 mm to φ2,000 mm
• Minimum wall thickness: 1.5 mm (inner diameter 10–80 mm); 2.0 mm (inner diameter ≥85 mm)
• Maximum tube length: 2 meters
• Wall thickness tolerance: ±0.5 mm (≤10 mm wall); ±1.0 mm (>10 mm wall)

The inside width ranges from ±5 mm to ±1,500 mm.

Key Technical Performance Data

Direct negotiation can be used to set non-standard specifications, which gives procurement teams the freedom to work on custom projects.

• Density: 1.04–1.20 g/cm³
• Water absorption: ≤4%
• Thermal stability: ≥130°C
• Bending strength: ≥80 MPa
• Compressive strength: ≥45 MPa
• Surface resistivity (normal): ≥1.0×10⁸ Ω
• Volume resistivity (normal): ≥1.0×10⁷ Ω·m
• Electric strength (transformer oil, 50 Hz): ≥3.5 MV/m

The information that was made public under GB/T 5132 confirms the following:

Applications and Advantages of 3526 Phenolic Cloth Laminated Tubes in High-Voltage Equipment

Understanding where and why the 3526 Phenolic Cloth Laminated Tube material performs well helps procurement teams justify their specification decisions to both engineering and finance stakeholders.

Where It Is Used in Practice?

In high-voltage transformers, the phenolic cloth tube serves as coil formers, winding supports, and oil-immersed insulation barriers. In switchgear assemblies, it functions as arc barriers, busbar supports, and insulating sleeves between live conductors. Power distribution companies also rely on it for thermal protection between conductive layers. Its low water absorption (≤4%) makes it suitable for oil-immersed environments where moisture ingress would compromise other laminates.

Core Performance Advantages

Phenolic cloth laminated tubing offers a distinct combination of properties that few single materials match at the same price point. Here are the characteristics that matter most to B2B buyers:

• High radial tensile strength: The woven cotton reinforcement distributes mechanical loads evenly, preventing cracking under press-fit assembly or coil winding tension.
• Thermal stability at 130°C: Continuous operating temperature suits Class E transformer insulation systems without requiring premium high-temperature grades.
• Machinability: The material responds well to CNC turning, milling, and drilling when dry-processed at high cutting speeds with low feed rates, per JB/Z 141 guidelines.
• Chemical resistance: Resistance to transformer oils and common industrial solvents extends service life in oil-immersed assemblies.

These characteristics translate directly into reduced rework rates, fewer field failures, and predictable maintenance schedules—factors that matter to both engineering managers and procurement teams managing lifecycle costs.

Real-World Procurement Feedback

Transformer manufacturers sourcing this material for medium-voltage coil supports have reported consistent dimensional tolerances across bulk shipments, which simplifies assembly-line integration. OEM sourcing managers in the switchgear sector have noted that the machinability reduces secondary processing time compared to some epoxy alternatives, lowering total part cost even when the raw material price is similar.

Comparing 3526 Phenolic Cloth Laminated Tubes with Alternative Solutions

Before committing to a standard, procurement workers often look at more than one material. The table below shows how phenolic cloth laminated tubing stacks up against three common options.

Property	Phenolic Cloth Tube	Epoxy Glass Tube	Mica Tube	Rigid PVC
Thermal stability	≥130°C	≥155°C (Class F)	>500°C	~60°C
Bending strength	≥80 MPa	≥100 MPa	Brittle	Low
Machinability	Excellent	Good	Poor	Moderate
Water absorption	≤4%	≤0.5%	Very low	Low
Cost index	Lower	Moderate	High	Lowest
Oil resistance	Good	Excellent	Good	Poor

The properties of phenolic cloth tubes, epoxy glass tubes, mica tubes, and rigid PVC are as follows: thermal stability at ≥130°C, ≥155°C (Class F), >500°C, and ~60°C; bending strength at ≥80 MPa, ≥100 MPa, and brittle; machinability at Excellent, Good, Poor, and Moderate; water absorption at ≤4%, ≤0.5%, very low; low; moderate; high; lowest; lowest;

How to Procure 3526 Phenolic Cloth Laminated Tubes Efficiently for B2B Needs?

When buying 3526 Phenolic Cloth Laminated Tube insulation tubing from other countries, you need to make sure that the specifications are correct, that the supplier is reliable, and that you plan your logistics well. The tips below can help buying teams avoid common delays.

Ordering Options and Lead Times

J&Q can handle both large sales and manufacturing to specific sizes. When standard lengths are shipped, they are 800 mm or 900 mm, with +25 mm and ±25 mm of error allowed. You can get it in any length you want, up to 2 meters. With a production capacity of 100 tons per year, it's possible for medium to large OEMs to buy in bulk without having to wait longer for their orders to arrive. Ocean freight, land, and air are all options for transportation, giving buyers choices based on need and price.

Supplier Qualification Criteria

When looking for a long-term phenolic laminated tube provider, these things should be on your list:

• Documented quality testing against GB/T 5132 or equivalent international standards
• Capacity to provide dimensional inspection reports (inner diameter, outer diameter, wall thickness concentricity)
• Evidence of oil-immersion resistance testing for transformer-grade applications
• Clear storage and shelf-life documentation (12 months from factory departure in original packaging)

J&Q has been making insulation materials for more than 20 years and trading with other countries for more than 10 years, helping customers in the US and around the world. The company runs its own logistics network, which gives it better control over delivery times and the quality of the packaging.

Post-Processing and Storage Requirements

Insulating paint should be used on phenolic cloth laminated tubes after they have been machined to keep them from absorbing water. Keep things away from open flames and other heat sources in a dry, cool, well-ventilated place. These easy steps make sure that the finished parts keep their shape and work well as dielectrics during the whole fitting process.

Best Practices and Maintenance Tips for Optimal Performance

Installation Guidelines

Be careful when you handle tubes so that you don't chip the edges, which can cause cracks when the coil winding pressure builds up. Follow the steps in JB/Z 141 for dry machining: use fast cutting speeds and slow feed rates. When you are machining, don't use water cooling because the dielectric properties change when water gets in. Before putting it together, make sure the cut surfaces are clean and free of any debris.

Periodic Inspection Framework

Plan regular maintenance checks to include visual checks of phenolic insulation parts. To find electrical stress, look for surface darkening, edge delamination, or any surface tracking marks. Checking the size of the bore diameter can help find creep in high-load-bearing situations before they fail.

Replacement Timing and ROI

If you replace phenolic insulation parts before they start to fail, you can avoid unplanned downtime, which costs a lot more than the parts themselves. A proactive replacement cycle based on thermal cycling hours instead of just looking at the state of the transformer increases its general service life and helps the business get a better return on its investment.

Conclusion

The 3526 phenolic cloth laminated tube provides a proven combination of mechanical strength, thermal stability, and electrical insulation performance for transformer and switchgear applications operating at up to 130°C. Its wide dimensional range, CNC machinability, and oil resistance make it a practical and cost-effective specification for both standard and custom insulation components. For procurement teams that need consistent batch quality, flexible sizing, and reliable international logistics, this material deserves serious consideration as a long-term supply solution.

FAQ

Is the 3526 phenolic cloth laminated tube suitable for high-voltage insulation?

Yes. Tested per GB/T 5132, it achieves a vertical electric strength of ≥3.5 MV/m in transformer oil at 50 Hz. It is widely used for coil supports, arc barriers, and busbar insulation in medium- and high-voltage equipment.

Can I order custom sizes?

J&Q accepts custom inner diameters from φ5 mm to φ1,500 mm and outer diameters up to φ2,000 mm. Tube lengths reach up to 2 meters. Non-standard wall thicknesses are available through direct negotiation.

How does it compare to epoxy glass tube on temperature resistance?

Epoxy glass tubes carry a Class F rating (≥155°C), while phenolic cloth tubes are rated at ≥130°C (Class E). For applications that stay within 130°C, phenolic cloth laminated tubing offers comparable insulation at a lower material cost with better machinability.

What is the shelf life and storage requirement?

The storage period is 12 months from the factory departure date. Store in original packaging in a dry, cool, ventilated room away from fire and heat sources.

Request a Quote from J&Q — Your Trusted 3526 Phenolic Cloth Laminated Tube Supplier

J&Q has been making insulation materials for more than 20 years and has been serving customers from outside of North America for more than 10 years. When you buy our 3526 Phenolic Cloth Laminated Tube, it comes with full measurement inspection paperwork and meets GB/T 5132 standards. It can be shipped by sea, land, or air. Our team reacts quickly whether you need regular stock or something made just for you. Get in touch with us today at info@jhd-material.com or visit blog.jhd-material.com to talk about your project needs.

References

1. IEC 60893-3-2 — Insulating Materials: Industrial Rigid Laminated Sheets Based on Thermosetting Resins for Electrical Purposes, International Electrotechnical Commission, 2003.

2. GB/T 5132 — Test Methods for Laminated Tubes and Rods Made of Thermosetting Resins, Standardization Administration of China, 2014.

3. Mohanty, A.K., Misra, M., & Drzal, L.T. — Natural Fibers, Biopolymers, and Biocomposites, CRC Press, 2005.

4. IEEE Standard for Standard Techniques for High-Voltage Testing, IEEE Std 4-2013, Institute of Electrical and Electronics Engineers, 2013.

5. Dissado, L.A., & Fothergill, J.C. — Electrical Degradation and Breakdown in Polymers, Peter Peregrinus Ltd. for IEE, 1992.

6. Transformer Design Principles: With Applications to Core-Form Power Transformers, Del Vecchio, R.M. et al., CRC Press, 2010.
