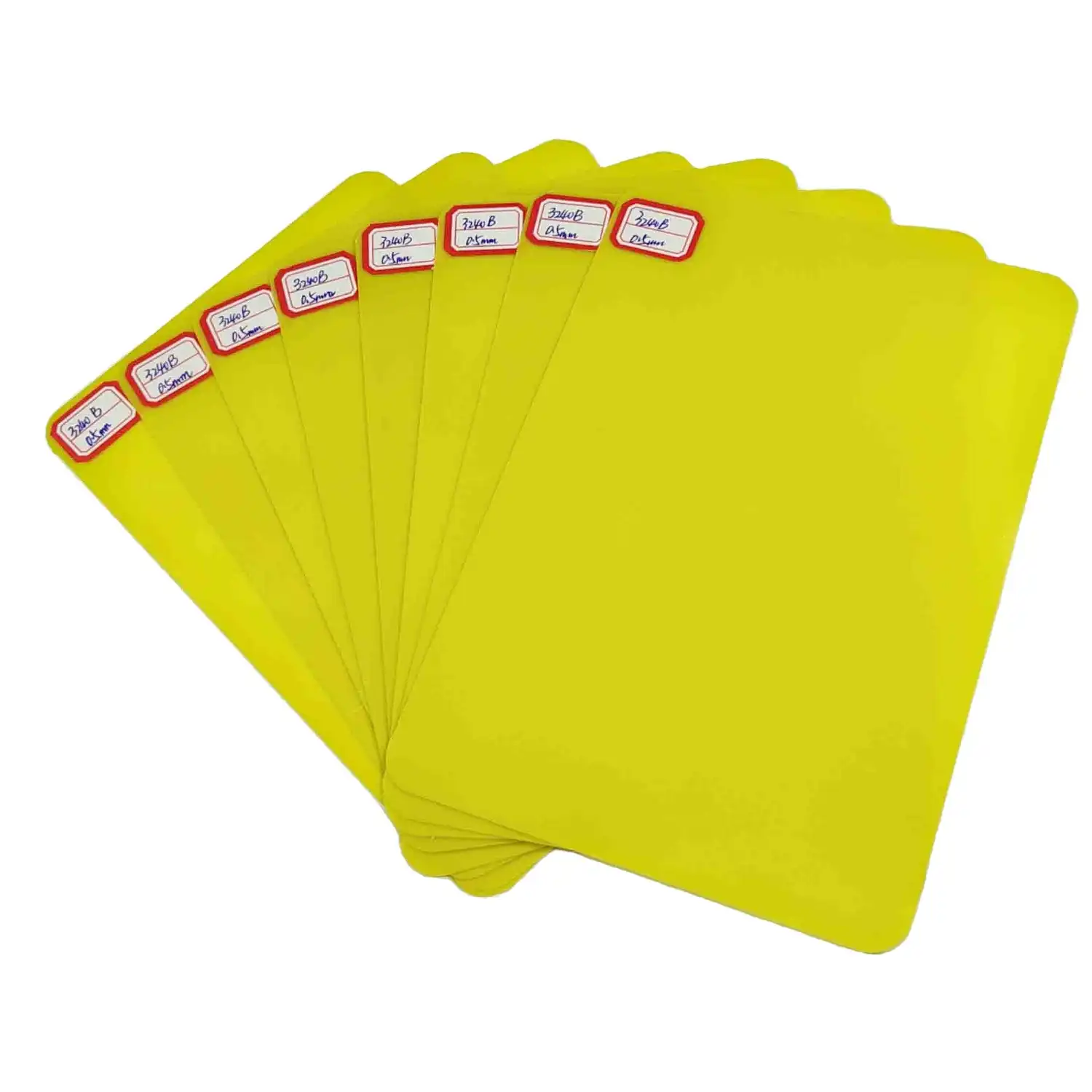

3240 Epoxy Sheet Factory Production: Equipment and Inspection Standards

Manufacturing 3240 epoxy sheet requires precision engineering and strict quality controls to deliver reliable electrical insulation materials. This specialized laminate combines electrical-grade fiberglass cloth with epoxy resin through systematic impregnation, drying, and hot-pressing processes. The production integrity depends entirely on equipment accuracy and inspection rigor, which directly determines dielectric strength, thermal stability, and mechanical durability that engineering managers and procurement teams demand for switchgear, motor components, and transformer applications.

Understanding 3240 Epoxy Sheet Production: Key Equipment and Processes

After working in the insulation materials business for 20 years, I can see how the level of manufacturing skill sets great providers apart from average ones. From raw materials to finished epoxy laminates, there are several steps that must be carefully planned and coordinated, and each one requires specialized equipment.

Resin Mixing and Impregnation Equipment

At the mixing station, formulations of epoxy resin are mixed with curing agents and performance additives to start the production process. Chemical uniformity is ensured by industrial-grade mixers that can watch temperature. This stops batch differences that affect electrical properties. The next line, the impregnation line, has precise rollers that soak fiberglass cloth in resin while keeping the tension in check. Inconsistent resin distribution makes weak spots that break during voltage stress testing. This is why the tuning of your machinery has a direct effect on the reliability of your application.

Modern impregnation systems use hot tanks to keep the viscosity of the resin constant, which lets the resin evenly soak into weaving glass cloth. The cloth goes through several cycles of dip-and-squeeze to find the best resin-to-fiber ratio, which determines its mechanical strength and dielectric performance. Using optical sensors, operators keep an eye on saturation levels all the time and change feed rates to keep things consistent between production runs.

Hot Pressing and Curing Systems

Hydraulic presses are the most important part of making laminates. Stacks of sheets coated with resin are compressed at temperatures between 140°C and 160°C and pressures greater than 10 MPa. This filling in gets rid of empty spaces, joins layers, and starts crosslinking reactions that make the final thermoset structure. Press platens with multiple heating zones keep the temperature evenly distributed, which stops warping caused by temperature differences that happens during CNC machining operations.

Curing ovens are used for thermal cleaning after the press, finishing the polymerization processes and reducing internal stresses. Multi-stage temperature tracking lets you heat and cool things slowly, which makes molecular network building better. If sheets aren't properly cured, they don't hold up as well against heat and break before they should under long-term electrical stress. This is especially true in transformer coil barriers where temperatures change often.

Finishing and Cutting Machinery

The first step in post-cure processing of the 3240 epoxy sheet is using surface grinding tools to get the width within certain ranges. Double-sided grinders with diamond-coated wheels smooth out uneven surfaces and keep them flat within 0.2 mm per meter, which is important for making precise electrical circuits. Using water to cool the grinding wheel keeps the epoxy resin from getting damaged by heat, so the mechanical properties stay the same across the whole sheet.

For special orders, computerized cutting systems with laser and water jet technologies make sure the right size is cut. Without delaminating or chipping the edges, these tools can handle the complicated shapes needed by car battery pack barriers and device insulation frames. Automated inspection cameras compare the cut dimensions to digital specifications and mark any differences before the goods are packed.

Inspection Standards and Quality Control in 3240 Epoxy Sheet Manufacturing

Quality control is more than just looking things over. Our testing labs use measurement protocols that are in line with international standards. This gives electrical engineers the proof they need to follow the rules.

Dimensional and Physical Inspections

Calibrated micrometers are used at several measurement points on each sheet for thickness verification. Standard deviations depend on the nominal measurements and run from ±0.1mm for thin sheets to ±0.4mm for thicker ones. To measure flatness, precise straight lines and feeler gauges are used to make sure that sheets sit flat while they are being installed. Inspections of the surface's structure find bubbles, places that don't have enough resin, or fibers that are showing that make the insulation less effective.

Density readings using methods that involve moving water around confirm the correct resin amount. The target density is between 1.90 and 2.0 g/cm³, which means that the material is completely impregnated without too much resin pooling. For water absorption testing, samples are submerged in boiling water for a certain amount of time. The weight gain is then measured and should stay below 0.1% to ensure that the samples' dimensions stay stable in humid places.

Electrical Performance Testing

The most important electrical validation is the breakdown voltage test. While samples are submerged in transformer oil, rising voltage stress is applied perpendicular to the laminations until the dielectric fails. According to IEC standards, good sheets can handle at least 10-15 kV/mm of voltage, and the best grades can handle more than 30 kV. This test finds flaws in the manufacturing process that can't be seen with the naked eye. This keeps end users safe from power distribution equipment problems in the field.

Using special wires and high-resistance meters, volume resistivity tests check how well insulation works. Values usually go above 10^14 Ω·cm, which shows that there is very little leakage current while the device is working. Dielectric strength analyzers check the performance of insulation over a wide range of frequencies, making sure it can be used for both 50/60 Hz power applications and higher-frequency electronic circuits.

Mechanical and Thermal Verification

For measuring flexural strength, three-point bending clamps are used to apply controlled loads until the specimen breaks. Good laminates are stronger than 340 MPa, which makes sure that the structure stays strong in gear and mechanical gaps. Measurements of tensile strength, which usually go above 300 MPa for strong performance under active loading, show that the resin and fiberglass are bonded.

Samples are put through cycles of 130°C to 155°C during heat shock testing to look for burning, delamination, or changes in size. This faster aging predicts long-term thermal stability in motor housings and power electronics that are kept at high temperatures for long periods of time. Samples that stayed intact during 500 hours of thermal aging tests show that the resin has fully cured and has reached the required crosslink density for Class B temperature ratings.

For long amounts of time, chemical resistance tests put coupons in generator oil, industrial solvents, and cleaning agents. It's important for coil insulation and arc barriers in electrical substations that the materials are compatible with service environments because their weight changes and their mechanical properties stay the same after being exposed.

Comparing 3240 Epoxy Sheet Production with Other Common Epoxy Sheet Types

Knowing the differences between materials helps procurement managers match specs to the needs of the product. Even though FR4, G10, and paper phenolic laminates are all used in similar areas, their performance varies because of how they are made.

Material Composition and Processing Differences

Brominated flame retardants are used in the epoxy that makes up FR4 sheets. This gives them better fire protection for PCB uses that need to meet UL94 standards. However, the halogen content makes corrosive combustion byproducts that aren't good for electrical equipment that is kept inside. Instead of using halogenated additives, our 3240 epoxy sheet normal epoxy laminates are resistant to flames thanks to their resin chemistry and glass reinforcement density. This makes them a better choice for transformer shielding where both fire safety and low corrosion are important.

G10 is like FR4 but isn't brominated. It's made in the same way but doesn't come in flame retardant packages. Because it's a little less expensive, machinery builders who need structure insulation without fire rating requirements are drawn to it. Paper bases are used in phenolic cotton laminates instead of fiberglass. These laminates are great for punching out parts, but they aren't as good at resisting wetness and temperature changes as glass-epoxy constructions.

Epoxy glass laminate production equipment needs to be more precise than phenolic options. Controlling the tension of glass fiber is important to keep it from warping, and working with epoxy resin has more complicated temperature curves than working with phenolic formulas. This investment in equipment leads to tighter tolerances and more consistent electrical properties from batch to batch, which is why the price is higher for critical applications.

Performance Trade-offs and Application Matching

Changes in the dielectric constant affect how well something works at high frequencies. At 1 MHz, standard epoxy laminates have values between 4.5 and 5.0, which is a little higher than low-loss FR4 types that are specifically made for RF use. In 50/60 Hz power systems, this difference doesn't matter much, but it does in electronic signal integrity applications, where it's important to choose the right material for the job.

Different levels of machinability affect how efficiently component fabricators can make things. When the right speeds and feeds are used, glass-epoxy laminates can be machined smoothly with carbide tools, leaving holes and sides that are smooth and delamination-free. When drilling phenolic materials, the tools need to be changed often because they tend to char. When OEM sourcing managers compare supplier quotes, knowing these processing characteristics helps them figure out how much secondary fabrication will cost.

How to Source Reliable 3240 Epoxy Sheets: Supplier and Factory Selection Guide

To choose the right supplier, you have to look at more than just the published specifications. Over the years I've managed foreign partnerships, I've learned that production openness and the maturity of the quality system are good indicators of long-term supply chain trustworthiness.

Evaluating Manufacturing Capabilities

Asking for factory reports or full capability paperwork shows how old the equipment is and how it is maintained. Modern hydraulic presses with programmable logic controls keep process windows smaller than manual systems, which means that properties don't change too much from one batch of production to the next. Ask if backup equipment is available and what the plan is for preventive repair. Downtime directly affects delivery promises during times of high demand.

Verifying a certification gives you objective quality guarantee. Registration under ISO 9001 shows that the process is being controlled in a planned way, and proof of UL recognition and RoHS compliance shows that the testing methods meet the rules in North America and Europe. When you ask for details about the certification's scope, make sure it covers the grades and thickness ranges you'll need, not just general manufacturing tasks.

Sample Evaluation and Testing Protocols

Requesting samples for independent tests before committing to large orders helps make sure that what the seller says is true. Give details about your real working conditions, like voltage stress levels, temperature cycle profiles, and mechanical loading scenarios, so that lab tests can accurately predict how well the system will work in the field. When you test samples from different sources under the same conditions, you can see small changes in quality that aren't shown in the data sheets.

Misunderstandings can be avoided by making sure everyone understands the basic standards. Instead of just asking for "standard" materials, engineering managers should give thorough details of the application, the surroundings, and the performance levels they expect. This conversation lets suppliers suggest the best grades and thicknesses, and they might even come up with alternatives that better meet your needs while staying within your budget.

Logistics and Customization Considerations

When you expect a lead time, you should think about when the product is being made and how it will be shipped internationally. Custom thicknesses or large-format sheets need dedicated press cycles, which makes delivery take longer than for stock sizes. Talking about minimum order numbers early on keeps things from coming as a surprise, since certain configurations may need economic batch sizes that are bigger than your current needs.

The rules for packaging and handling are important, especially for big sheets that are likely to get damaged along the edges while being shipped. Find out if your suppliers offer moisture-barrier wrapping for ocean packages and if the crating fits the equipment limits of your receiving dock. Our integrated logistics skills make this planning easier by allowing buyers who order more than one type of insulation material to combine their packages and save money on freight costs.

Ensuring Long-Term Value: Maintenance, Storage, and Post-Purchase Inspection

Protecting material purity is more than just the responsibility of the provider. Handling your investment correctly from shipping to installation protects it and makes sure that the design performance shows up in finished goods.

Optimal Storage Conditions

3240 epoxy sheet laminates need to be stored in a climate-controlled area. Changes in temperature cause changes in size because fabrics expand and contract at different rates than metal racks. This can cause big sheets to warp. Keeping storage temperatures between 15°C and 25°C and the relative humidity below 60% stops moisture from absorbing and weakening electrical qualities and bonds.

Stacking methods affect how well flatness is kept. Avoid point loads that permanently deform sheets by storing them horizontally on level pallets with full-surface support. When stacking sheets, put protection paper between them to keep the surface from getting scratched. First-in, first-out inventory rotation is important because long-term storage can cause moisture to slowly build up, even in controlled environments.

Incoming Quality Verification

Before accepting packages after they've been delivered, do eye checks. Check for shipping damage like edge chips, corner cracks or water stains on the box that show it was exposed to water. Take pictures of any problems right away to record them. This will make it easier to settle claims if performance problems come up later.

Using calibrated measuring tools for basic size checking makes sure that specs match buy orders. Check the thickness in several places, measure the overall size, and compare the amounts to the packing lists. This receiving check finds mistakes while the carriers are still responsible, so there are no arguments once the materials are in your inventory system.

Troubleshooting Common Issues

If you find surface flaws like resin bloom or fiber pattern irregularities, you should call the provider right away. These conditions could mean that there were problems with drying or contamination during production. Giving technical teams detailed descriptions and photos helps them figure out what the problems are and whether the materials can still be used in less important situations or need to be replaced.

Inconsistencies in dimensions that are bigger than the allowed range affect the processing that comes after. Sheets that won't stay flat during CNC machining lose time and money on tools and construction. Taking care of these problems quickly with suppliers by giving them machining specs and problem paperwork lets you fix them for future orders and fix current shortages by returning items or changing the price.

Any problems with electrical testing that you find during quality control need to be looked into carefully. Check the calibration of the test tools before saying that failures were caused by material flaws. By comparing suspect lots to samples that were kept from previous shipments that went well, you can tell if the differences are due to changes in the supplier's process or changes in the way you test. This way of thinking about things helps expert conversations go in the right direction instead of making baseless rejection claims.

Conclusion

Before you choose a 3240 epoxy sheet manufacturer, you need to know how the production tools and testing standards affect the reliability of the material in your important uses. The many steps in the manufacturing process—from making the resin to drying and finishing—need high-tech equipment and strict quality controls that set professional suppliers apart. Comprehensive testing protocols that are in line with IEC and UL standards give electrical engineers the confidence they need in the performance of motor assemblies, transformer insulation, and switchgear components. Using certifications, sample testing, and open production to judge a supplier's skills helps sourcing teams build partnerships that offer consistent quality and quick support over long-term supply relationships.

FAQ

What thickness tolerances should I expect from quality manufacturers?

Standard thickness tolerances change based on the stated measurements. Sheets thinner than 3mm usually hold ±0.1mm, materials 3mm to 10mm hold ±0.2mm, and thicker sheets hold ±0.4mm. For precise applications that need better flatness, premium suppliers offer tighter tolerances. Make sure that the tolerances promised in the buy specs are accurate, and check the dimensions of incoming materials to make sure they are in line before turning them into finished parts.

How do I verify electrical performance without specialized testing equipment?

Comprehensive dielectric testing needs lab equipment, but visual checks show signs of quality in production. Smooth surfaces that don't show any fibers, cross-sections that don't have bubbles when looking at the cut edges, and color that stays the same throughout the thickness are all signs of good resin impregnation and curing. If you ask providers for certified test results, you can get written information about the electrical performance that can be linked to specific production lots. This gives you peace of mind when you can't do your own testing.

What distinguishes premium suppliers in the epoxy laminate market?

Manufacturing openness tells the difference between great partners and average suppliers. Quality providers keep thorough records of the whole process, are open to expert conversations about what the application needs, and keep full records of quality that can be traced back to batches of raw materials. Commitment to long-term relationships can be seen in things like established certification programs, spending money on new equipment, and helpful customer service. Suppliers who give sample review programs and the ability to make changes show that they care about their customers and can meet more complicated procurement needs than just price competition.

Partner with J&Q for Premium Quality Epoxy Laminates

Every order for 3240 epoxy sheet comes from J&Q, which has been making things for over 20 years and trading with other countries for ten years. Our state-of-the-art production facilities and thorough testing labs make sure that the materials we use meet the high standards that electrical engineers and buying specialists expect. We've built long-lasting relationships with electronics, machinery, and power equipment companies in North America by providing consistent quality and quick technical support. Our combined transportation operations make it easier to coordinate shipping, which makes your supply chain simpler. Get in touch with us at info@jhd-material.com to talk about the insulation materials you need. Our engineering staff works closely with buyers to make sure that specifications are met exactly, whether you need standard sizes or unique thicknesses. As a provider of 3240 epoxy sheet with a lot of experience, we can help you make smart choices about where to get the material for your important projects by giving you sample evaluation programs and technical documentation.
