What Makes FR4 a Preferred Material in Electronics?
Superior Electrical Insulation Properties
FR4 epoxy glass sheets boast exceptional electrical insulation characteristics, making them a top choice for electronics applications. Their high dielectric strength allows them to withstand substantial voltage differentials without breakdown, ensuring the integrity of electrical circuits. The material's low dielectric constant and dissipation factor contribute to minimal signal loss and distortion, critical for high-frequency applications. These properties enable FR4 to maintain consistent performance across a wide range of operating conditions, enhancing the reliability of electronic devices.
Flame Retardant Capabilities
The "FR" in FR4 stands for flame retardant, a crucial feature in electronics where fire safety is paramount. FR4 sheets are engineered to self-extinguish when exposed to flames, significantly reducing the risk of fire spread in electronic equipment. This inherent flame-retardant property is achieved through the incorporation of specific additives in the epoxy resin, without compromising the material's other desirable characteristics. The flame-retardant nature of FR4 not only enhances safety but also helps manufacturers comply with stringent industry standards and regulations.
Cost-Effective Performance
Despite its advanced properties, FR4 epoxy glass sheet remains a cost-effective option for many applications. Its widespread use in the electronics industry has led to efficient manufacturing processes and economies of scale, making it more affordable compared to some alternative materials with similar performance characteristics. The material's longevity and reliability further enhance its cost-effectiveness by reducing the need for frequent replacements or maintenance. This balance of performance and affordability makes FR4 an attractive option for both large-scale production and specialized applications.
Electrical, Mechanical, and Thermal Properties Explained
Electrical Characteristics
FR4 epoxy glass sheets exhibit remarkable electrical properties that make them indispensable in electronic applications. Their high volume resistivity ensures minimal current leakage, while their excellent dielectric strength allows them to withstand high voltages without breakdown. The material's low dielectric constant contributes to faster signal propagation, crucial in high-speed digital circuits. Moreover, FR4's low dissipation factor minimizes energy loss in alternating current applications, enhancing overall circuit efficiency. These electrical characteristics remain stable across a wide range of frequencies and environmental conditions, ensuring consistent performance in diverse electronic systems.
Mechanical Strength and Durability
The mechanical properties of FR4 epoxy glass sheets are equally impressive, contributing to their versatility and reliability. The combination of woven fiberglass and epoxy resin results in a composite material with high tensile and flexural strength. This allows FR4 sheets to withstand significant mechanical stress without deformation or failure. The material also exhibits excellent dimensional stability, maintaining its shape and size even under varying temperature and humidity conditions. FR4's resistance to warping and twisting is particularly beneficial in applications requiring precise component placement and alignment, such as in multi-layer PCBs.
Thermal Resistance and Stability
FR4 epoxy glass sheets demonstrate commendable thermal properties, making them suitable for applications involving elevated temperatures. The material can withstand continuous operating temperatures up to 130°C without significant degradation of its mechanical or electrical properties. FR4's low coefficient of thermal expansion helps minimize stress on components and solder joints during thermal cycling. Additionally, its relatively low thermal conductivity makes it an effective insulator against heat transfer. These thermal characteristics contribute to the reliability and longevity of electronic devices, especially in challenging environmental conditions.
Common Industrial Applications of FR4 Epoxy Glass Sheet
Printed Circuit Board Manufacturing
The primary application of FR4 epoxy glass sheet is in the production of printed circuit boards (PCBs). Its combination of electrical insulation, mechanical strength, and thermal stability makes it an ideal substrate material for PCBs. FR4 sheets serve as the foundation upon which conductive copper traces are etched or printed, creating the intricate pathways necessary for electronic circuits. The material's dimensional stability ensures precise component placement and reliable connections, while its flame-retardant properties enhance the safety of electronic devices. FR4's versatility allows for the creation of single-layer, double-layer, and complex multi-layer PCBs, catering to a wide range of electronic applications from consumer electronics to aerospace systems.
Electrical Insulation Components

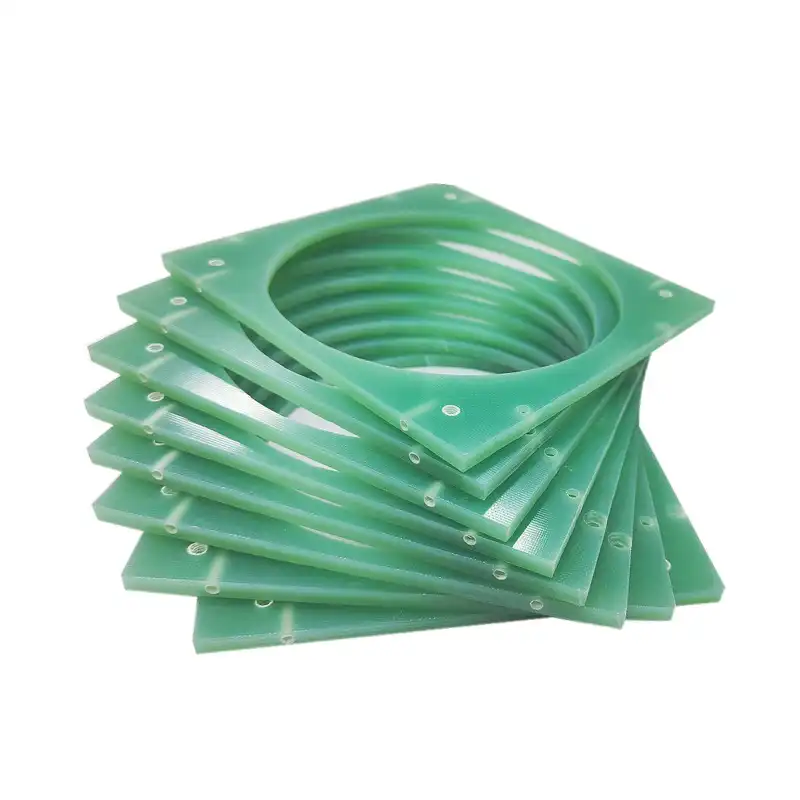

Beyond PCBs, FR4 epoxy glass sheets find extensive use in various electrical insulation applications. The material is often machined or cut into custom shapes to create insulating barriers, spacers, and supports in electrical and electronic equipment. Its high dielectric strength and low moisture absorption make it suitable for insulating high-voltage components in transformers, motors, and generators. FR4 sheets are also used to fabricate terminal boards, switch plates, and arc shields in electrical enclosures. The material's ability to maintain its insulating properties under diverse environmental conditions ensures reliable performance in both indoor and outdoor applications.
Structural and Mechanical Applications
The exceptional mechanical properties of FR4 epoxy glass sheets extend their utility beyond electrical applications. The material's high strength-to-weight ratio makes it valuable in aerospace and automotive industries for creating lightweight yet durable structural components. FR4 is used in the fabrication of panels, brackets, and supports where a combination of strength, rigidity, and electrical insulation is required. In the realm of precision engineering, FR4 sheets are employed in the construction of jigs, fixtures, and tooling plates. The material's machinability allows for the creation of complex shapes and features, while its dimensional stability ensures consistent performance in manufacturing processes.
Conclusion
FR4 epoxy glass sheet stands as a cornerstone material in the electronics industry and beyond, offering a unique blend of electrical, mechanical, and thermal properties. Its versatility, reliability, and cost-effectiveness make it an indispensable choice for PCB manufacturing, electrical insulation, and various structural applications. As technology continues to advance, FR4 remains adaptable, meeting the evolving demands of modern electronics and industrial processes. Understanding the characteristics and applications of FR4 epoxy glass sheets empowers engineers and manufacturers to leverage its benefits effectively, driving innovation and efficiency across multiple sectors.
