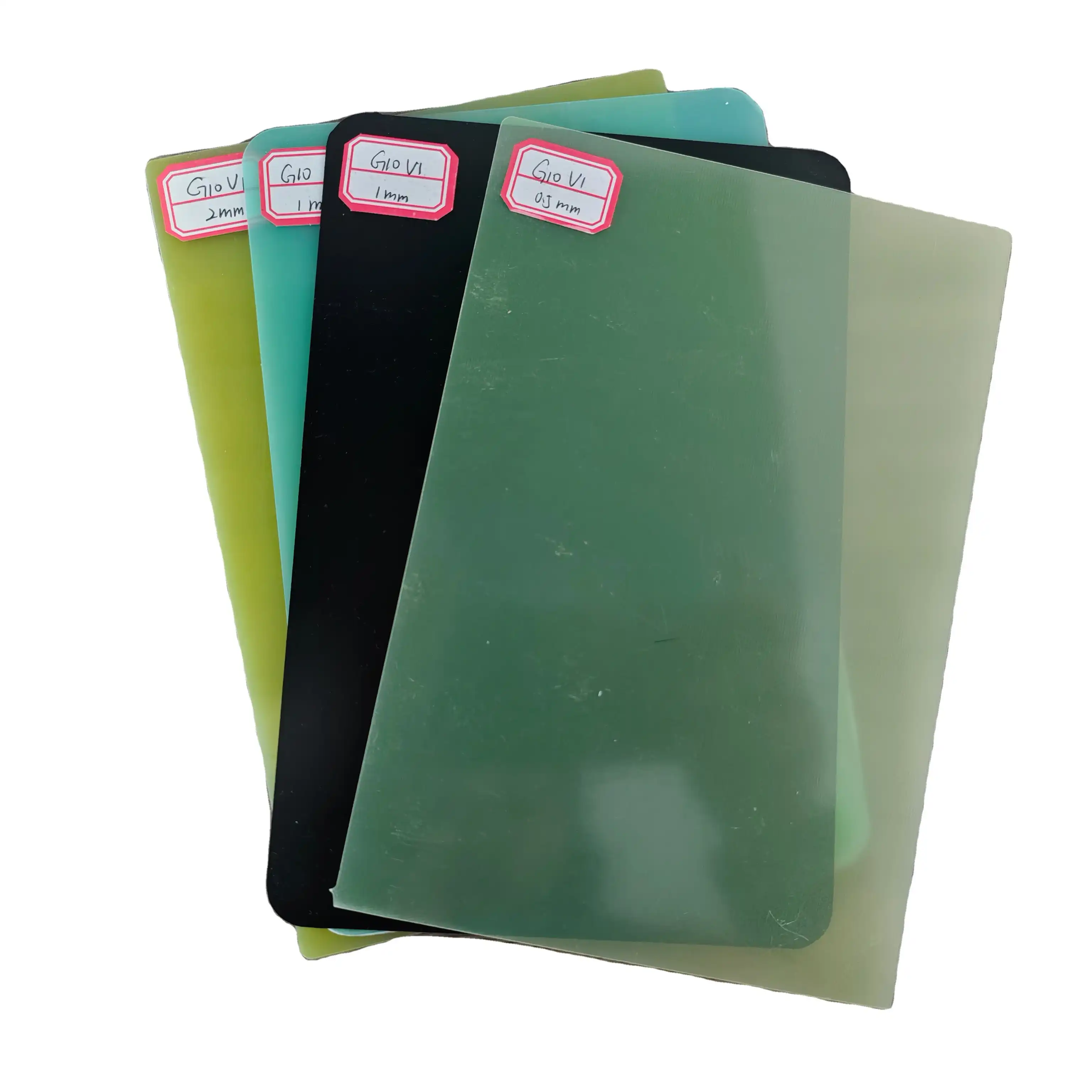

What Are the Key Features of G10 Fiberglass Plate?
Exceptional Mechanical Properties
G10 fiberglass plate is renowned for its outstanding mechanical strength, making it a preferred material in load-bearing and structural applications. The tightly woven glass fibers embedded within the epoxy resin matrix provide both high tensile and compressive strength. This composite structure allows G10 to endure substantial mechanical stress and resist deformation, contributing to its durability and long service life. Its robustness makes it suitable for use in demanding engineering environments where maintaining structural integrity is critical.
Superior Electrical Insulation
A key feature of G10 fiberglass plate is its excellent electrical insulation capability. It offers high dielectric strength combined with low dielectric loss, which effectively prevents electrical current leakage and interference. This makes G10 an ideal choice for various electrical and electronic components, such as printed circuit boards and insulators. Its reliable insulation properties ensure the safety and efficiency of electrical systems, particularly in applications where electrical isolation is paramount.
Dimensional Stability
G10 fiberglass plate exhibits remarkable dimensional stability, retaining its shape and size under diverse temperature ranges and environmental conditions. This stability is essential for precision engineering applications where even slight dimensional changes can compromise performance. The material’s low coefficient of thermal expansion minimizes deformation caused by temperature fluctuations, ensuring consistent reliability. This property allows G10 plates to perform predictably in environments with variable thermal and mechanical stresses, maintaining component accuracy and overall system functionality.
G10 Performance in Harsh Industrial Conditions
Chemical Resistance
G10 fiberglass plate demonstrates excellent resistance to a broad spectrum of chemicals and solvents, making it highly suitable for harsh and corrosive industrial environments. The epoxy resin matrix acts as a durable protective barrier, shielding the material from degradation caused by acids, alkalis, and various organic solvents. This resistance significantly prolongs the service life of components made from G10 and reduces the frequency and cost of maintenance in chemical processing plants, storage tanks, and other equipment exposed to aggressive substances.
Thermal Performance
The superior thermal properties of G10 fiberglass plate enhance its suitability for demanding engineering applications involving elevated temperatures. With a notably high heat deflection temperature, G10 preserves its mechanical strength and dimensional stability even under continuous heat exposure. This reliable thermal endurance enables engineers to design components for use in challenging environments such as engine compartments, industrial ovens, and manufacturing processes, ensuring that performance and safety are not compromised despite intense heat conditions.
Moisture Resistance
G10 fiberglass plate exhibits outstanding resistance to moisture absorption, an essential characteristic for maintaining consistent electrical and mechanical properties in damp or wet conditions. Its low water uptake ensures that the material does not swell, warp, or lose insulation effectiveness when exposed to humidity or direct water contact. This makes G10 an ideal choice for marine applications, outdoor electrical enclosures, and other environments where moisture exposure is frequent, ensuring longevity and reliable operation over extended periods.
Engineering Applications and Fabrication Best Practices
Aerospace and Aviation
In the aerospace industry, G10 fiberglass plate finds extensive use in structural components, insulation panels, and interior fittings. Its high strength-to-weight ratio makes it an excellent choice for aircraft parts where weight reduction is crucial. Engineers often specify G10 for radomes, antenna housings, and instrument panels due to its transparency to radio frequencies and excellent electrical insulation properties.
Electrical and Electronic Systems
G10 fiberglass plate serves as a fundamental material in the production of printed circuit boards (PCBs) and other electronic components. Its combination of electrical insulation, dimensional stability, and machinability makes it ideal for creating precise, reliable circuit substrates. Engineers also utilize G10 in the fabrication of terminal blocks, switch gear components, and transformer insulation, leveraging its dielectric strength and arc resistance.
Machining and Fabrication Techniques
While G10 fiberglass plate offers numerous advantages, proper machining techniques are essential to maximize its performance. Engineers should use sharp, carbide-tipped tools and maintain appropriate cutting speeds to prevent delamination or overheating during fabrication. Water jet cutting and laser cutting can provide clean, precise edges for complex shapes. When drilling, it's crucial to use backing materials to prevent breakout and ensure clean hole edges. Proper dust collection systems are necessary during machining to mitigate the health risks associated with fiberglass particles.
Conclusion
G10 fiberglass plate stands as a versatile and reliable material for engineers across various industries. Its unique combination of mechanical strength, electrical insulation, and chemical resistance makes it an invaluable resource in designing durable and high-performance components. By understanding the key features, performance characteristics, and fabrication best practices of G10 fiberglass plate, engineers can leverage its capabilities to create innovative solutions for challenging applications, ultimately driving advancements in their respective fields.
