What Mechanical Properties Set G11 Apart from G10?
Tensile Strength and Modulus

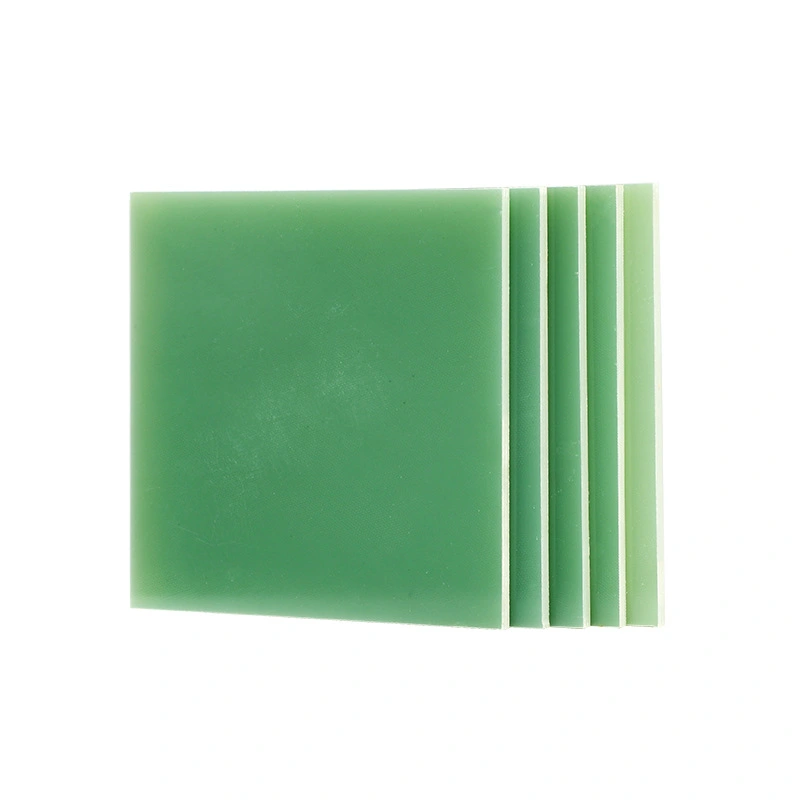

G11 sheets boast a higher tensile strength compared to G10, typically ranging from 380-400 MPa versus 300-320 MPa for G10. This enhanced tensile strength allows G11 to withstand greater pulling forces without failure. Additionally, G11's tensile modulus, which measures the material's stiffness under tension, is approximately 10-15% higher than G10. This increased stiffness translates to less deformation under load, making G11 ideal for applications where dimensional stability is crucial.
Flexural Strength and Modulus
The flexural strength of G11 sheets surpasses that of G10 by a significant margin. G11 typically exhibits flexural strength in the range of 480-520 MPa, while G10 falls in the 410-450 MPa range. This superior bending resistance makes G11 an excellent choice for components subject to bending loads. The flexural modulus of G11 is also higher, indicating better resistance to deflection under bending stress. This property is particularly valuable in structural applications where minimal deformation is desired.
Compressive Strength
G11 sheets demonstrate remarkable compressive strength, often exceeding 400 MPa in the flatwise direction. In contrast, G10 sheets typically have a compressive strength around 350-380 MPa. This enhanced ability to withstand compressive forces makes G11 an excellent choice for load-bearing applications, especially in high-stress environments where material failure could have severe consequences.
Impact Resistance and Load-Bearing Capacity
Izod Impact Strength
Impact resistance is a critical property for many applications, and G11 sheets excel in this area. The Izod impact strength of G11 is generally 15-20% higher than that of G10. This enhanced toughness means G11 can better absorb and dissipate energy from sudden impacts or shocks, reducing the risk of catastrophic failure in dynamic loading scenarios. The superior impact resistance of G11 makes it particularly suitable for applications in aerospace, defense, and heavy machinery where resistance to impact damage is paramount.
Fatigue Resistance
G11 sheets demonstrate superior fatigue resistance compared to G10, especially at elevated temperatures. This means G11 can withstand a higher number of stress cycles before failure, making it ideal for components subjected to repeated loading and unloading. The enhanced fatigue resistance of G11 is particularly beneficial in applications such as turbine blades, where materials must endure constant cyclic stresses under high-temperature conditions.
Creep Resistance
Creep, the tendency of a material to deform permanently under constant stress over time, is another area where G11 outperforms G10. G11 exhibits better creep resistance, especially at elevated temperatures. This property is crucial for long-term structural integrity in applications where components are under constant load, such as in electrical transformers or industrial machinery operating in high-temperature environments.
Choosing Between G11 and G10 for Structural Applications
Temperature Considerations
The choice between G11 and G10 sheets often hinges on the operating temperature of the application. G11 maintains its mechanical properties up to 155°C, while G10 begins to lose strength above 130°C. For applications operating near or above these temperatures, G11 is the clear choice. However, for environments with more moderate temperatures, G10 may provide sufficient performance at a lower cost. It's crucial to consider both the continuous operating temperature and any potential temperature spikes when selecting between these materials.
Load-Bearing Requirements
The specific load-bearing requirements of an application play a significant role in material selection. G11's superior strength across various mechanical properties makes it the preferred choice for high-stress applications or where safety factors demand extra mechanical integrity. G10, while not as strong as G11, still offers excellent mechanical properties that are sufficient for many standard applications. Careful analysis of the expected loads, including static, dynamic, and impact forces, is essential in determining whether the enhanced strength of G11 is necessary or if G10 will suffice.
Cost-Benefit Analysis
While G11 offers superior mechanical properties, it typically comes at a higher cost compared to G10. A thorough cost-benefit analysis should consider not only the initial material cost but also factors such as expected lifespan, maintenance requirements, and the potential consequences of material failure. In some cases, the enhanced durability and performance of G11 may justify its higher cost through extended service life and reduced maintenance. However, for applications where G10's properties are adequate, it may provide a more cost-effective solution without compromising performance.
Conclusion
The mechanical strength comparison between G11 and G10 sheets reveals G11's superior performance across various properties, particularly at elevated temperatures. G11's enhanced tensile, flexural, and compressive strengths, coupled with its superior impact and fatigue resistance, make it the ideal choice for demanding applications in aerospace, electrical, and industrial sectors. However, G10 remains a versatile and cost-effective option for many standard applications. The selection between these materials should be based on a careful analysis of specific application requirements, operating conditions, and cost considerations to ensure optimal performance and value.
