What Makes G10 Epoxy Sheet an Effective Electrical Insulator?
Composition and Structure

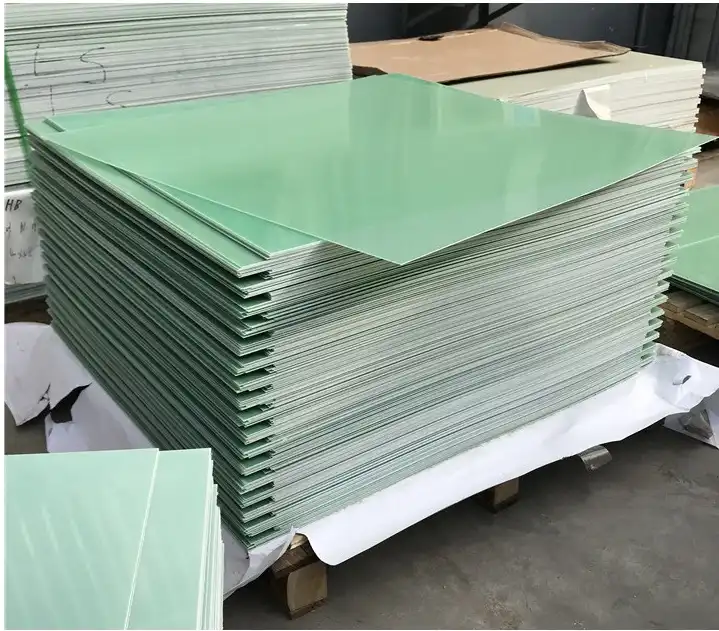

G10 epoxy sheet's effectiveness as an electrical insulator stems from its unique composition. The material consists of multiple layers of glass fabric meticulously impregnated with epoxy resin. This intricate structure creates a dense, uniform material with minimal voids or imperfections. The glass fibers provide mechanical strength and dimensional stability, while the epoxy resin acts as a binding agent and contributes significantly to the material's insulating properties.
Low Moisture Absorption
One of the key factors contributing to G10's excellent insulating properties is its remarkably low moisture absorption rate. The material's tight molecular structure and the hydrophobic nature of the epoxy resin prevent water molecules from penetrating the sheet. This characteristic is crucial in maintaining consistent dielectric properties even in humid environments, making G10 epoxy sheet a reliable choice for applications where moisture could compromise electrical insulation.
Uniform Electrical Properties
The manufacturing process of G10 epoxy sheet ensures a high degree of uniformity in its electrical properties throughout the material. This homogeneity is vital for predictable and consistent insulation performance. Unlike some other insulating materials that may have localized variations in their dielectric properties, G10 offers a dependable barrier against electrical current flow across its entire surface and thickness, enhancing its reliability in critical applications.
Dielectric Strength and Thermal Endurance Characteristics
High Dielectric Strength
G10 epoxy sheet exhibits remarkable dielectric strength, typically ranging from 800 to 1000 volts per mil (0.001 inch) of thickness. This impressive capability to withstand high voltage gradients without electrical breakdown makes it suitable for use in high-voltage applications. The material's ability to maintain its dielectric strength under varying environmental conditions further enhances its versatility and reliability in electrical systems.
Low Dielectric Loss
Another notable characteristic of G10 epoxy sheet is its low dielectric loss factor. This property indicates the material's efficiency in storing and releasing electrical energy with minimal dissipation as heat. The low dielectric loss of G10 contributes to its excellent performance in high-frequency applications, where energy conservation and signal integrity are paramount. This characteristic makes G10 an ideal choice for applications in telecommunications, aerospace, and advanced electronics.
Thermal Stability
G10 epoxy sheet demonstrates impressive thermal stability, maintaining its dielectric properties over a wide temperature range. The material's glass transition temperature typically exceeds 130°C, allowing it to retain its structural integrity and insulating capabilities even in high-temperature environments. This thermal endurance ensures that G10 remains an effective insulator in applications where heat generation or exposure to elevated temperatures is a concern, such as in power distribution systems or industrial machinery.
Applications of G10 Epoxy Sheet in High-Voltage and Electrical Systems
Power Distribution and Transmission
In the realm of power distribution and transmission, G10 epoxy sheet plays a crucial role in ensuring the safe and efficient flow of electricity. Its high dielectric strength and excellent insulating properties make it an ideal material for constructing bus bar supports, switchgear components, and insulating barriers within transformers. The material's ability to withstand high voltages while maintaining dimensional stability contributes to the overall reliability and longevity of power distribution infrastructure.
Aerospace and Aviation
The aerospace industry relies heavily on G10 epoxy sheet for various critical applications. Its combination of light weight, high strength, and superior electrical insulation properties makes it invaluable in aircraft electrical systems. G10 is commonly used in the fabrication of printed circuit boards, insulating panels, and structural components that require both mechanical strength and electrical isolation. The material's resistance to moisture and chemicals further enhances its suitability for the demanding environments encountered in aviation.
Electronics and Telecommunications
In the rapidly evolving field of electronics and telecommunications, G10 epoxy sheet finds extensive use due to its excellent dielectric properties and dimensional stability. It serves as a substrate for high-frequency circuit boards, antenna components, and insulating spacers in various electronic devices. The material's low dielectric loss factor is particularly advantageous in applications where signal integrity and minimal interference are critical, such as in radio frequency (RF) and microwave communication systems.
Conclusion
G10 epoxy sheet's exceptional dielectric properties make it a cornerstone material in modern electrical and electronic systems. Its unique combination of high dielectric strength, low moisture absorption, and thermal stability ensures reliable insulation across diverse applications. From power distribution to aerospace and telecommunications, G10 continues to play a vital role in advancing technology and ensuring the safety and efficiency of electrical systems. As industries evolve and demand ever-higher performance standards, G10 epoxy sheet remains at the forefront of insulating materials, offering unparalleled reliability and versatility.
FAQs
What is the maximum temperature G10 epoxy sheet can withstand?
G10 epoxy sheet typically has a temperature resistance grade of F, allowing it to withstand temperatures up to 155°C (311°F) while maintaining good performance.
Is G10 epoxy sheet environmentally friendly?
Yes, G10 epoxy sheet is considered environmentally friendly as it does not contain halogen elements and does not pollute the environment during production and use.
How does G10 compare to FR4 in terms of dielectric properties?
While both materials have good dielectric properties, G10 generally offers superior mechanical strength and thermal stability compared to FR4, making it more suitable for high-performance applications.
Enhance Your Electrical Systems with J&Q's Premium G10 Epoxy Sheet
J&Q, with over two decades of experience in manufacturing and supplying insulating sheets, offers top-quality G10 epoxy sheets tailored to your specific needs. Our extensive expertise in foreign trade and in-house logistics ensure seamless service from production to delivery. For unparalleled dielectric performance and reliability in your electrical systems, choose J&Q's G10 epoxy sheets. Contact us at info@jhd-material.com for more information or to place an order.
