How Does G10 Epoxy Sheet Compare to Standard Fiberglass Boards?
Composition and Manufacturing Process

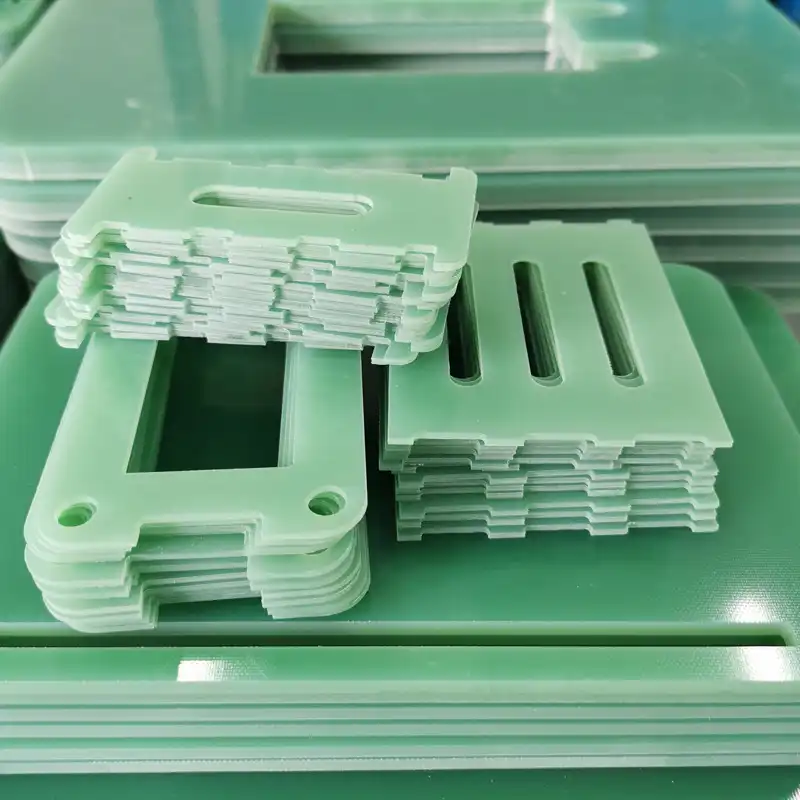

G10 epoxy sheet is crafted through a meticulous process involving multiple layers of glass cloth impregnated with epoxy resin. This composite undergoes high-pressure compression and heat curing, resulting in a dense, uniform material. In contrast, standard fiberglass boards often utilize polyester or vinyl ester resins, with varying glass fiber content and orientations. The manufacturing process for standard boards typically involves less pressure and may result in a more porous structure.
Strength and Durability
G10 epoxy sheet boasts superior strength-to-weight ratio compared to standard fiberglass boards. Its tightly woven glass fibers and epoxy matrix create a material with exceptional tensile, compressive, and flexural strength. Standard fiberglass boards, while still robust, generally exhibit lower mechanical properties and may be more prone to delamination or cracking under stress.
Environmental Resistance
One of the hallmarks of G10 epoxy sheet is its outstanding resistance to environmental factors. It maintains its properties in humid conditions and offers excellent chemical resistance. Standard fiberglass boards, depending on their resin system, may be more susceptible to moisture absorption and chemical degradation, potentially limiting their use in harsh environments.
Mechanical, Thermal, and Electrical Property Differences
Mechanical Strength Comparison
G10 epoxy sheet exhibits remarkable mechanical strength, with tensile strengths often exceeding 40,000 psi and compressive strengths around 65,000 psi. Its flexural strength can reach up to 75,000 psi, making it ideal for load-bearing applications. Standard fiberglass boards, while still strong, typically have lower mechanical properties, with tensile strengths ranging from 15,000 to 30,000 psi, depending on the specific formulation.
Thermal Performance and Stability
The thermal properties of G10 epoxy sheet are particularly noteworthy. It maintains its structural integrity and electrical properties across a wide temperature range, from cryogenic temperatures as low as -269°C up to its maximum continuous operating temperature of about 155°C. Standard fiberglass boards often have more limited temperature ranges and may experience more significant property changes with temperature fluctuations.
Electrical Insulation Capabilities
G10 epoxy sheet is renowned for its exceptional electrical insulation properties. It boasts high dielectric strength and low dielectric constant, making it an excellent choice for applications requiring reliable electrical isolation. While standard fiberglass boards can also serve as electrical insulators, their performance may vary more widely depending on the specific resin system and manufacturing process used.
Choosing Between G10 Epoxy Sheet and Other Fiberglass Materials
Application-Specific Considerations
When selecting between G10 epoxy sheet and standard fiberglass boards, it's crucial to consider the specific requirements of your application. G10 is often preferred for high-performance applications in aerospace, electronics, and industrial machinery where consistent properties and reliability are paramount. Standard fiberglass boards may be suitable for less demanding applications or where cost is a primary concern.
Cost-Benefit Analysis
While G10 epoxy sheet generally comes at a higher price point than standard fiberglass boards, its superior properties and longer lifespan can often justify the initial investment. For applications requiring frequent replacement or where failure could result in significant downtime or safety risks, the long-term cost-effectiveness of G10 becomes apparent. Standard fiberglass boards may be more economical for short-term or less critical applications.
Regulatory and Industry Standards
G10 epoxy sheet often meets or exceeds stringent industry standards, including those set by NEMA (National Electrical Manufacturers Association) and military specifications. This can be crucial for applications in regulated industries such as aerospace or defense. Standard fiberglass boards may have more varied compliance with industry standards, necessitating careful verification for specific applications.
Conclusion
In the realm of composite materials, G10 epoxy sheet stands out for its exceptional mechanical, thermal, and electrical properties. Its superior strength, stability across a wide temperature range, and excellent insulation capabilities make it a preferred choice for demanding applications. While standard fiberglass boards offer versatility and cost-effectiveness for less critical uses, G10 epoxy sheet provides the reliability and performance necessary for high-stakes industries. By understanding these key differences, engineers and designers can make informed decisions, ensuring optimal material selection for their specific needs.
FAQs
What is the main difference between G10 epoxy sheet and standard fiberglass boards?
G10 epoxy sheet offers superior strength, electrical insulation, and chemical resistance compared to standard fiberglass boards, due to its unique composition of woven glass fabric and epoxy resin.
Can G10 epoxy sheet withstand extreme temperatures?
Yes, G10 epoxy sheet maintains its properties from cryogenic temperatures as low as -269°C up to its maximum continuous operating temperature of about 155°C.
Is G10 epoxy sheet more expensive than standard fiberglass boards?
Generally, yes. However, its superior properties and longer lifespan often justify the higher initial cost in demanding applications.
Choose J&Q for Your G10 Epoxy Sheet Needs
J&Q, with over 20 years of experience in producing and selling insulating sheets, offers premium G10 epoxy sheets tailored to your specific requirements. Our in-house logistics company ensures seamless one-stop service from production to delivery. For unparalleled quality, expertise, and customer service in G10 epoxy sheets, contact J&Q at info@jhd-material.com. Trust our global experience to meet your composite material needs.
