Tool Wear Issues in Phenolic Sheet Machining and How to Fix Them

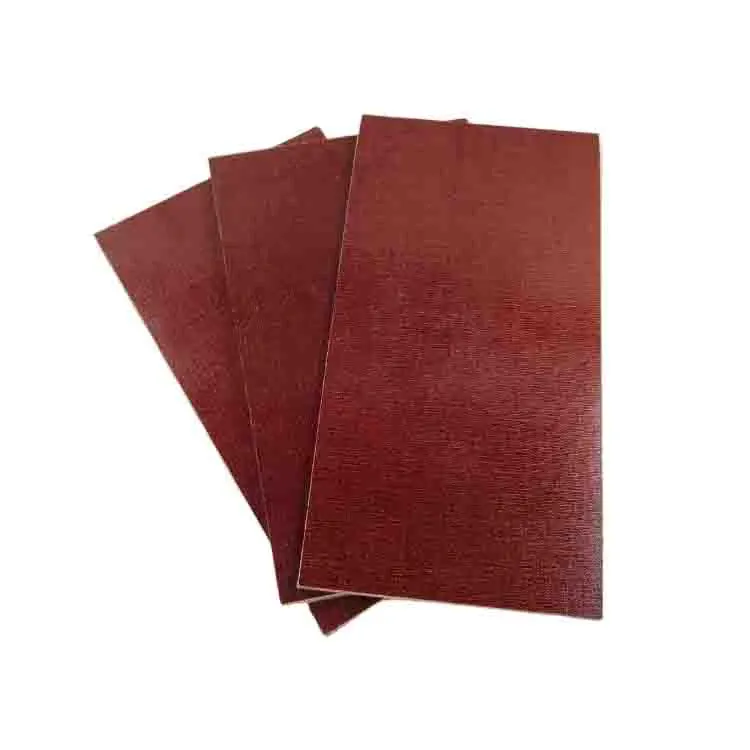

When makers try to machine phenolic sheet materials like phenolic paper sheets, phenolic cotton cloth laminates, or CE phenolic sheets, they often run into fast tool wear that delays production and raises costs. Because they are rough and heat-sensitive, these industrial laminates, which are made of cellulose or cotton materials that have been saturated with resin and sealed under heat and pressure, pose special problems. By figuring out how tools wear down and using specific fixes, you can make your work more efficient, cut down on downtime, and raise the quality of parts used in electrical insulation, mechanical parts, and structure projects.

Understanding Tool Wear in Phenolic Sheet Machining

The Four Primary Wear Mechanisms

Tool wear shows up in clear patterns that show up problems with the way the process is run. When hard resin particles and strengthening fibres rub against cutting edges like sandpaper, they eat away at the shape of the tool over time. This process is what works best when working with phenolic cotton sheets, because the canvas weave makes different areas of the sheet harder or softer. When contact heat transfers material between the workpiece and tool surface, it's called adhesive wear. This creates built-up edges that make it harder to get accurate measurements. When temperatures are high, thermal wear speeds up, making tool surfaces softer and allowing them to break down quickly. Chemical wear happens when leftovers of phenolic resin react with some tool coats during long cutting operations. This happens less often, but it does happen.

Why Phenolic Materials Challenge Tooling?

Grades of phenolic paper sheets like NEMA X, XX, and XXX have finished resins that are as hard as some metals, which makes them very hard to cut. These compounds still don't have a very high thermal conductivity, which means that heat stays where it's supposed to stay and doesn't move through the material. During cutting, temperatures at the point where the tool meets the chip can rise above 200°C, which greatly speeds up the rate of wear. The different drying states between production runs cause problems. For example, fully cured sheets machine differently than slightly cured sheets, so the parameters need to be changed all the time to keep the tool life.

Recognizing Wear Symptoms Early

Surface finish decline, such as rougher or delaminated edges on cut parts, is an early warning sign. As tools wear down, cutting forces go up in a way that can be measured. This puts more stress on machine frames and fittings. The production of heat increases, which can change the colour of the edges of the item or let out strong smells from the resin breaking down. When tool shape changes enough to change part limits, dimensional drift is clear. We've seen that these signs can be fixed before output quality goes down if they are found in the first 10-15% of a tool's projected life.

Root Causes of Tool Wear Issues in Phenolic Sheet Machining

Mechanical and Thermal Stress Factors

Cutting edges and phenolic sheet laminate surfaces rub against each other, creating a lot of heat that can't get out of the material well because it doesn't carry electricity well. This increase of heat makes carbide tools softer and speeds up the edge breaking process. The mechanical stress comes from the composites' uneven structure. For example, when cutting phenolic cotton cloth laminate sheet materials, the tool tips hit alternating layers of resin-rich areas and fibre bundles, which causes repetitive loading that wears down tool surfaces. Impact forces during delayed cuts, like grinding processes, make this effect worse by creating tiny cracks that spread over time.

Parameter Misalignment and Process Variables

Cutting speed directly affects how much heat is made—too fast of speeds cause thermal damage, while too slow of speeds cause rubbing and glue wear. The chip width and drainage effectiveness are affected by the feed rate. Too-slow feeds create too much heat per unit of material removed, while too-fast feeds put too much pressure on the cutting edges. Tool design is very important. If the clearance angles aren't right, the cutting edges will rub, and if the rake angles are too steep, they will weaken the cutting edges. Using the right amount of coolant is important, but it's often forgotten. For example, cutting CE phenolic sheets without using coolant can cut tool life by 60% compared to processes that use coolant.

Material Quality Variations Across Suppliers

Different providers' resin formulations have a big effect on how easy it is to machine. Some companies use more filler to cut costs, which makes the product more rough. Different curing cycles leave some sheets with uncured resin that sticks to tools, and materials that are cured too long become rigid and chipped. The quality of the base fabric in phenolic cotton sheet goods varies a lot. Coarser weaves with uneven fibre tension make hard spots that wear out faster than expected. Changes in the amount of moisture in the paper, especially in types of phenolic paper, change how it cuts and cause problems with its dimensions while it's being machined.

Proven Methods to Minimize Tool Wear in Phenolic Sheet Machining

Optimizing Cutting Parameters for Different Grades

By adapting speeds and feeds to different types of material, gains can be seen and measured. Cutting phenolic paper sheets for PCB boards or electrical insulation should be done at modest speeds, between 150 and 250 meters per minute. This will keep the tool sharp while still getting the job done. Feed rates should be changed based on the width of the sheet. Thinner materials can handle higher feeds, but thicker laminates need more care to keep them from delaminating. Different depths of cut techniques are important. Using multiple short passes instead of a single strong pass will extend the life of the tool, especially when making precise parts like switchgear insulators or transformer barriers.

Advanced Tool Selection Strategies

Specialised coats on phenolic sheet carbide tools make them work a lot better than ones that aren't covered. Titanium aluminium nitride (TiAlN) layers can handle the high temperatures that are usual when cutting CE phenolic sheet materials for gears, bushings, and wear pads. Even though they are more expensive at first, diamond-coated tools last 3–5 times longer in high-volume industrial settings. It's important to match the shape of the tool to the needs of the job. For example, positive rake angles lower cutting forces on thinner sheets, while negative rake angles strengthen the edges of cuts that are broken in thicker laminates. Polycrystalline diamond (PCD) tools are the best way to get high wear resistance, which makes them a good investment for automatic production lines that make thousands of parts every month.

Cooling and Lubrication Best Practices

Using the right cooling systems directly stops heat wear. Flood cooling with water-based emulsions keeps the temperatures in the cutting zone below critical levels. However, careful filtering stops the resin particles that pollute the coolant from going back into the system. Minimum quantity lubrication (MQL) systems cool precisely while using little fluid, which makes them appealing to businesses that care about the environment. When using liquid coolants could cause contamination, like when cutting insulation parts for electrical systems, air blast cooling is the best choice. The angle and flow rate of the coolant need to be optimised. Directing the coolant precisely where it needs to go between the tool and the object will make it more effective and prevent hydraulic forces that bend thin pieces of metal.

Maintenance Protocols That Extend Tool Life

Regular inspections catch wear and tear before they cause a fatal failure. When looked at closely under a microscope, edge chipping, hole formation, and covering loss can be seen. Spindle load monitoring lets you track the amount of wear on a machine, which lets you know when to change a tool before it wears out. Professional regrinding services can often restore 70–80% of the original worth of a tool, but phenolic cutting remains need to be cleaned off completely before regrinding can happen. Recording how well a tool works with different batches of material builds institutional knowledge that helps with choices about what to buy and how to improve the process.

Case Studies: Successful Solutions in Industrial Phenolic Sheet Machining

Production Efficiency Breakthrough in Motor Component Manufacturing

A company that makes home products that produces motor mounts from phenolic sheet had a tool life of only 120 parts on average before it had to be replaced. This meant that the tools had to be changed out often, which led to quality problems. Analysis showed that the cutting speeds were 40% higher than the best ranges and that the water coverage at the cutting zone wasn't good enough. Cutting the spinning speed from 8,000 RPM to 5,500 RPM and adding directional cooling tubes made the tool last for 450 parts longer, which is a 275% increase. The second benefit showed up in the quality of the surface finish. Delamination flaws dropped from 8% to less than 1%, which cut repair costs by a large amount. This example shows that parameter optimisation often gives bigger benefits than buying more expensive tools.

Supplier Quality Impact on Transformer Insulation Production

A company that makes power equipment had trouble with uneven tool wear when they were cutting phenolic paper sheets for arc barriers and coil insulation. Some runs cut nicely, while others quickly used up all the tools. The differences were found to be caused by different sources drying resin in different ways. The main supplier's material had a 15% higher Shore D hardness and rough mineral fillers that weren't listed in the specs. Consistency was achieved by switching to a certified source with recorded quality processes and checking the roughness of all arriving materials. Tool life stabilised at regular intervals, which made it possible to accurately plan production and cut the number of times that emergency tools had to be bought by 60%. This example shows how choices about purchases have a direct effect on the business of industry.

Summary and Best Practices for Long-Term Tool Wear Management

For tool wear management to be sustainable, professional understanding and buying plan need to be brought together. For each type of phenolic sheet in an engineering team's portfolio, they should set standard cutting parameters, including speeds, feeds, tool choices, and expected life cycles. Buyers need to look at more than just price when deciding which providers to work with. They should ask for proof of approval, test results on materials, and information on the drying process. Quality systems, such as ISO 9001, show how well the process controls are working, which leads to consistent materials. Competitive benefits can be gained by working with providers who offer technical support and material customisation. For example, resin formulations can be changed to balance electrical qualities with machineability for certain uses.

Costly shocks can be avoided if the production and buying teams talk to each other often. When tool wear patterns change quickly, looking into recent changes to the material lot often shows the root causes faster than checking the cutting settings. Keeping two sources of supply in place lowers the risk when main suppliers have problems with quality. The money spent on stable, high-quality phenolic materials pays off in the form of longer tool life, lower scrap rates, and reliable production output that meets delivery promises.

Conclusion

When phenolic sheet cutting is done in a planned way, dealing with tool wear goes from being a reactive maintenance task to a strategic benefit. Many ways to improve performance can be found by combining the features of the material, the cutting settings, the choice of tool, and the quality of the provider. When manufacturers put effort into understanding these connections—by doing controlled tests, keeping records of performance, and forming partnerships with suppliers—production speed and part quality go up in a way that can be measured. The way forward is to use strict technical methods in process planning and make smart purchasing choices that put material stability first. These combined strategies make it possible to make electrical insulation, mechanical parts, and specialised industrial parts that are competitive and meet high performance standards while keeping costs low.

FAQ

When working with phenolic laminates, what makes tools get dull quickly?

Rapid dulling usually happens when cutting at too high of speeds causes thermal damage, when cooling isn't used properly and heat builds up, or when there are problems with the quality of the material, like a high filler content that makes it more rough. Too much cutting force from tools that aren't the right shape for the thickness and grade of the sheet also speeds up wear.

How do I decide between HSS and carbide tools for working with phenolic materials?

Because they are better at resisting heat and wear, carbide tools with the right finishes work better in phenolic situations than high-speed steel tools. The higher original cost is quickly recouped by the longer tool life, especially when more than a few hundred parts are being made. HSS can still be used, but only for prototypes or very small production runs.

Can the choice of coolant really have a big effect on the life of a tool?

Of course. Correct coolant lowers the temperature in the cutting zone by 30 to 50 percent, which immediately slows down the processes of thermal wear. Different types of synthetic coolants are better for tasks that need longer sump life or better filtration. Water-based emulsions work well for most tasks. Changing from dry to minor coolant application usually doubles the life of a tool.

Partner With Experienced Phenolic Sheet Manufacturers for Machining Success

Material quality is the first step to getting the best tool life and output efficiency. For more than 20 years, J&Q has been making high-quality phenolic sheet materials that are designed to work well in difficult cutting tasks. Our technical team knows how important it is for the resin recipe, hardening processes, and machinability to work together. We use this knowledge to give you uniform material qualities that protect your equipment investment and keep production plans on track.

When you work directly with a well-known phenolic sheet seller, you don't have to guess what material to use. We help the engineering and buying teams make smart choices by giving them thorough technical specs, suggestions for machine parameters, and application support. Our combined transportation services make sure that deliveries happen on time and support just-in-time production needs without the need to keep too much material on hand.

Our consistent material cuts down on debugging time and raises first-pass return rates, no matter if you're making electrical insulation parts, mechanical parts, or specialised industrial systems. Get in touch with our expert sales team at info@jhd-material.com to talk about your unique needs and find out how quality phenolic sheet materials can change the way you do your work.

References

Smith, R.J. and Thompson, M.A. (2021). Advanced Machining of Composite Materials: Techniques and Tool Selection. Industrial Press.

Chen, L. and Rodriguez, P. (2020). "Tool Wear Mechanisms in Phenolic Resin Composite Machining." Journal of Manufacturing Processes, 58, pp. 234-248.

National Electrical Manufacturers Association (2019). NEMA Standards Publication LI 1-2019: Industrial Laminated Thermosetting Products. NEMA.

Williams, K.D. (2022). "Optimizing Cutting Parameters for Thermoset Composite Machining." International Journal of Advanced Manufacturing Technology, 119, pp. 1567-1582.

Anderson, T.F. and Kumar, S. (2020). Insulation Materials for Electrical Engineering: Properties and Applications. Springer.

Miller, J.C. (2021). "Economic Analysis of Tool Life Extension Strategies in Laminate Machining Operations." Manufacturing Engineering Review, 45(3), pp. 112-127.
