The Ultimate Guide to FR4 PCB Manufacturing: Processes, Materials, and Design Tips

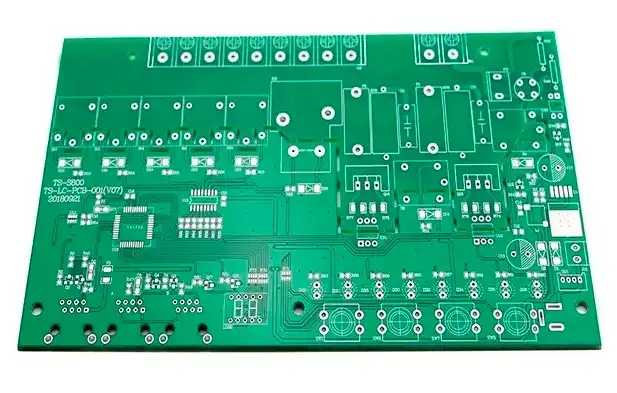

Printed circuit boards are made from FR4 sheets, which are made of fiberglass-reinforced epoxy resin that provides excellent electrical protection and mechanical sturdiness. This composite material has become the standard in its field because it meets important performance needs in power, computing, and industrial machines. By knowing what FR4 is made of, how it is made, and how it should be designed, engineering managers and procurement teams can make smart buying choices that meet technical requirements while also being cost-effective and following the rules.

Understanding FR4 Material: Composition, Properties, and Benefits

What Makes FR4 the Industry Standard

As the most popular PCB base material, FR4 is a fiberglass-reinforced epoxy laminate that has won its spot. The letter "FR" stands for flame-retardant traits, and the number "4" refers to the specific grade of woven glass support. This substance is made up of several layers of knitted fiberglass cloth that are mixed with an epoxy resin binder and then heated and pressed together to form hard sheets with known properties. Electrical and electronics makers can count on consistent performance across production runs because of the manufacturing consistency. This lowers the variation in the quality of the end product.

The material is widely used because it has a good set of properties. In contrast to paper-based phenolic laminates, FR4 keeps its shape even when the temperature and humidity change. This stability is especially useful for power transfer equipment and transformers that are used in places where the weather can change a lot. The epoxy resin matrix helps the copper layers stick to the base and makes the material naturally flame resistant, meeting UL94 V-0 rates for flammability without any other treatments.

Core Electrical and Mechanical Properties

At room temperature, the dielectric constant of FR4 is usually between 4.4 and 4.8. This makes it a good material for medium-frequency uses because it reliably sends signals. Because the insulator behaves consistently, engineers can correctly figure out trace impedances during the design phase, which cuts down on the number of prototypes that need to be made and tested. The dissipation factor stays low, which means that as electrical signals move across the board, little energy is lost. This is an important thing for car parts manufacturers to think about when they're making battery management systems, since efficiency has a direct effect on performance.

FR4 is different from other surfaces because of its mechanical qualities. It can handle mechanical stresses during assembly processes and operating situations because its tensile strength is higher than 40,000 psi. Manufacturers of industrial equipment look for this trait when making control panels and motor drive circuits that will be handled and vibrated. The bending strength is close to 60,000 psi, which keeps the board from warping when the temperature changes. Water absorption rates stay below 0.1%, which means that dielectric qualities stay the same even in wet places like factories that make appliances.

The material starts to soften above a certain temperature, called the "glass transition temperature," which is between 130°C and 140°C. For constant use, the highest temperature that can be reached is usually 130°C, but short trips to higher temperatures are fine when soldering. The flame retardancy of the material comes from bromine or phosphorus chemicals that are mixed into the epoxy. When fire sources are taken away, the material goes out on its own. This safety feature solves important issues for uses in the power sector where arc flashes are very dangerous.

Benefits for B2B Procurement Strategies

The cost-effectiveness of FR4 compared to high-frequency options is appreciated by procurement experts. The material is widely used and has well-established supply lines that keep prices low. This is especially important for companies that make home appliances and need to keep their profit margins low. Standard FR4 sheet thicknesses from 0.4mm to 3.2mm can meet a wide range of application needs without having to be made to order, which cuts down on wait times and minimum order amounts.

The CNC-machinability of the material makes it possible to cut, drill, and route it precisely. This trait helps automakers who need to make insulation walls for electric car battery packs with complicated shapes. Lower production costs and uniform part shape are the results of clean edges and little tool wear during machining. The epoxy matrix sticks strongly to different surface treatments and coats, which lets you build things with more than one layer and give them special finishes that make them easier to connect or less likely to rust.

Because FR4's qualities are well known and controlled, manufacturing yield rates stay high. Setting up production without having to try things and see what works fasters the time it takes to get new electronics on the market. The fact that the material can be used with both lead-free and standard soldering methods makes supply chain management easier because purchasing teams don't have to keep track of different material specifications for each method of assembly. Reliable providers always follow RoHS rules, which means they meet international rules without having to do any extra work to qualify.

The FR4 PCB Manufacturing Process: From Raw Material to Finished Product

Lamination and Copper Cladding

The process of making FR4 sheet starts with raw fiberglass cloth that is mixed with epoxy glue to make prepreg sheets. These layers are stacked with copper foil on one or both sides, and then they are heated and pressed together in big lamination presses. When temperatures hit 170-180°C and pressures go above 300 psi, the epoxy fully cures and the layers join together to form a single structure. Copper coating comes in different thicknesses, with weights of half an ounce, one ounce, or two ounces per square foot, depending on the purpose. For power transfer, heavier copper can carry more current, while lighter copper is better for sending signals in consumer electronics.

Multi-layer boards have extra steps of lamination where inner layers with circuits already cut are lined up and joined with extra copper and prepreg layers. As the number of layers goes up, registration accuracy becomes very important. To keep dimensions from changing, precise tools and climate-controlled settings are needed. After the panels are cured, they go through rounds of cooling that relieve stress and keep them from warping, which could affect later steps in the process. To check the quality, you have to measure the width, test how well the copper sticks, and look for signs of delamination or foreign matter.

Drilling, Imaging, and Etching

Precision drilling makes holes for interlayer links and component lines. Computer-controlled drilling tools with carbide or diamond-coated bits can make holes as small as 0.2 mm in diameter and be accurate to within 0.05 mm in terms of where they are placed. The best drill speeds and feed rates are used to keep the glue from spreading, which can make it hard for electrical connections to work in plated-through holes. After being drilled, panels are deburred and desmeared using chemical or mechanical brushing to get the hole walls ready for copper plating.

Photolithography is used for the circuit design transfer. Copper surfaces are coated with photosensitive resist. The panel is lined up with artwork sheets that show the ideal circuit layout, and then it is exposed to ultraviolet light. When the resist is developed, it covers the copper parts that will become the final circuit lines with a protective mask. Etching chemicals break down copper that isn't protected, but they leave the circuit design behind. Controlling the etching chemical and spray pressure makes sure that the copper is removed evenly and that there is no undercutting below the resist lines. This makes sure that the trace width tolerances meet the design requirements.

Copper is plated into drilled holes during plated-through hole processing. This makes electrical connections between layers. The process starts with electroless copper coating. Next, electrolytic plating adds copper layers until the desired thickness is reached. To make sure that the plating is evenly spread across the panel, this process needs careful handling of the bath chemistry and current density. Through-hole resistance readings make sure that the electricity flows smoothly, finding any problems early on so that later steps in the manufacturing process don't add extra cost and complexity.

Solder Mask, Surface Finish, and Final Inspection

Using a solder mask keeps copper lines from rusting and stops solder bridges from forming while parts are being put together. Screen-printing or spraying liquid photoimageable solder masks onto panel surfaces makes holes at component pads. The masks are then exposed through artwork and developed. The completed solder mask keeps the electrical connections between lines from shorting out and protects the circuit from damage caused by handling. Blue, red, and black are some other colors that can be used besides the standard green. The choice of color doesn't affect how well the wiring works; it's just for looks or to make the product stand out.

Surface finish choices protect copper pads that are visible and make them easier to join. With hot air solder leveling (HASL), pads are covered with a thin layer of tin-lead or lead-free solder. Electroless nickel immersion gold (ENIG) has a flat surface that is great for fine-pitch parts and can be stored for a longer time. Immersion silver and organic solderability additives are two different finishes. Each has pros and cons when it comes to price, shelf life, and compatibility with other parts. Choose based on how it will be put together, the types of parts it has, and how long it will be stored before it is used.

Flying probe testers or bed-of-nails devices are used for electrical testing to check circuit continuity and separation. High-voltage separation testing makes sure that circuits are not connected by accident. Coordinate measuring tools or automatic visual inspection are used for dimension verification to check the total panel size, the positions of the holes, and the flatness of the panel. Samples are put through multiple solder reflow cycles during thermal stress testing. This makes sure that the laminate is intact and that the copper sticks to the laminate during thermal cycling that is typical of assembly processes. Panels that meet all the requirements are sent to be routed to individual board designs and packed up to be shipped.

Practical Design Tips for FR4 PCB in B2B Procurement and Manufacturing

Optimizing Layer Stack-Up and Impedance Control

When figuring out trace impedances for controlled impedance signals, circuit designers have to take FR4 sheet's dielectric constant into account. The usual number of about 4.5 changes the trace width and spacing needed to reach impedance goals of 50 or 100 ohms differential. Stack-up design strikes a balance between the need for signal integrity and the ability to make things. Thinner dielectrics between layers tighten impedance limits, but they also need more precise thickness control during lamination. Working with manufacturing partners during the planning process helps you figure out what the real limits are and how to build things in a way that saves money without sacrificing performance.

Where the ground and power planes are placed in the stack-up affects how well the signal works and how electromagnetically compatible it is. Dedicated plane layers give high-speed signals low-impedance return lines, which lowers noise and radiation. The planes also do a good job of sending power to parts. When choosing a layer count, you have to weigh the costs of manufacturing, route density, and electrical performance. Adding layers raises the cost of materials and labor, but it may also make it possible for boards to have smaller sizes, which saves panel space. The engineering and procurement teams work together to find the best layer count that takes all of these things into account.

Thermal Management and Copper Weight Specification

Careful thermal design is needed for parts that produce a lot of heat. Because FR4 doesn't transfer heat very well, heat moves slowly through the base. As heat spreaders, copper planes and heavy copper traces move heat away from hot parts and toward the board edges or thermal vias that connect to heatsinks. If you choose stronger copper weights (one ounce vs. half-ounce), it helps spread heat better, but it also costs more and is harder to do fine-pitch routing because the trace measurements need to be bigger to carry the same amount of current.

Thermal vias move heat between layers of the board by making electrical paths through the FR4 shielding. Thermal conductance to interior or backside planes is provided by arrays of small metal holes under heat-generating parts. The method of filling a via affects its thermal efficiency. Vias that are filled with air don't conduct heat well, but vias that are filled with copper or thermally conductive epoxy do. Manufacturing partners can give advice on fill methods that work with what they can do and improve performance enough to meet the needs of the application.

Certification Requirements and Compliance Verification

In most areas, FR4 sheets are expected to meet basic requirements like UL recognition and RoHS compliance. These requirements should be made clear in the procurement specs, and papers proving compliance must be included in the supplier's quality paperwork. In addition to these basic requirements, certain uses may need extra certifications. For example, aerospace suppliers need materials that meet IPC-4101 standards, and car parts may need AEC qualification. When non-compliant materials are found late in the product development process, they can cause expensive redesigns or problems in the supply chain. This can be avoided by understanding the industry-specific standards.

Testing for flame resistance makes sure that materials meet UL94 V-0 standards. For this certification, samples have to be put near an open flame and the self-extinguishing time and number of dropping burning bits from the sample have to be measured. Materials that pass the V-0 grade go out in ten seconds and don't make any burning drips. Even higher standards, like V-1 or V-2, are needed for some uses, but V-0 is good enough for most technology uses. Flame resistant claims can be checked by anyone by asking providers for test reports and UL file numbers.

Navigating Procurement and Choosing a Reliable FR4 Sheet Supplier

Evaluating Manufacturing Credentials and Capabilities

Checking the producing skills is the first step in choosing a supplier. ISO 9001 certification shows that there are quality management methods in place, and ISO 14001 certification shows that environmental management promises have been made. Industry-specific certifications, such as IATF 16949 for the auto industry or AS9100 for the aircraft industry, let providers know about the controls and standards that are unique to those sectors. Site checks show that production capabilities go beyond what is claimed in marketing materials. Seeing how equipment is maintained and how processes are controlled gives customers faith in the quality of the products they receive every time.

How resilient a supply chain is depends on its production ability and flexibility. Suppliers with more than one production line can handle changes in demand and offer extra capacity during busy times. Lead time promises should match up with the dates for making and developing the product. Suppliers that offer fast development services speed up the approval of designs, and those that can quickly scale up to production levels avoid delays during the launch of a new product on the market. When it comes to geography, things like being close to assembly lines can help cut down on shipping costs and wait times, but regional cost structures and trade policies can change landing costs.

Building Long-Term Partnerships and Technical Support

The ability to provide technical help sets special sellers apart from commodity vendors. When engineering teams know what the application needs, they can suggest the best material grades, layer builds, and surface finishes that meet those needs while also staying within the budget. Reviewing the plan before production finds problems that might make it hard to make the product before they cause delays or poor quality. This joint method lowers the risk of development and speeds up the time it takes to bring new products to market.

Long-term ties let suppliers put time and effort into really getting what customers want. When the market is tight, volume agreements help keep prices stable and make sure that production capacity is used well. Suppliers act as extensions of internal tech teams, offering ways to make things better based on new materials or ways of doing things. Channels of communication should make it easy to get quick answers to technical questions and worries about quality. Dedicated account management makes sure that the business relationship is consistent and that everyone is held accountable.

Credentials for sustainability are becoming more and more important in buying decisions. Suppliers that run programs to cut down on waste, make products that use less energy, and get things in a responsible way are in line with companies' environmental goals. Transparency about practices in the supply chain and a desire to share data on environmental impacts support the need for sustainability reports. Even though these factors are less important than quality and price, they set forward-thinking suppliers apart by making sure their businesses can adapt to changing stakeholder and governmental standards.

Conclusion

FR4 sheet materials are still the most popular choice for making PCBs because they work well in a wide range of situations and don't cost too much. By learning about the qualities of materials, how they are made, and design factors, you can make smart purchasing choices that meet technical needs and meet business goals. When you compare FR4 to other options, you can see when normal materials are enough and when the extra cost of specialty substrates is worth it. Procurement strategies that work well combine the needs of the materials with the skills, certifications, and possibilities for partnerships of the suppliers. When engineering managers and procurement professionals know about these things, they can help their companies make products that sell well and keep their supply chains strong.

FAQ

What thickness options are available for FR4 materials?

The standard range for thickness is 0.4mm to 3.2mm, but 0.8mm, 1.0mm, 1.6mm, and 2.4mm are the most usual numbers. Custom widths can be made, but there may be a minimum order quantity and longer wait times. Standard grades usually have a thickness range of ±10%. Precision grades, on the other hand, have tighter limits but cost more. The choice of thickness is based on the application. For example, thinner boards work well with small consumer gadgets, while thicker surfaces give industrial equipment more strength.

Does FR4 meet flame retardancy requirements?

The flame retardant label means that FR4 meets the requirements of UL94 V-0 through the use of bromine or phosphorus chemicals in the epoxy mix. The material goes out on its own within seconds of being taken away from a fire source and doesn't make any burning drips. Flame retardant performance should be confirmed by certificates from material sources, and UL94 V-0 compliance should be made clear in purchase requirements to make sure the right materials are sent.

When should high-frequency materials replace FR4?

Specialized materials with lower dielectric loss may be useful for applications that work above 1-2 GHz. FR4 does work well for many radio and RF uses, though, as long as the material qualities are taken into account during circuit design. During the planning phase, signal integrity analysis shows whether normal materials are enough or if special substrates are needed. Cost usually makes FR4 the better choice, unless tests show that it doesn't work well enough.

Partner with J&Q for Your FR4 Sheet Requirements

J&Q has been making epoxy laminates and insulation materials for more than 20 years and has also been trading internationally for 10 years, helping electrical makers, industrial machinery builders, and clients in the power sector. Our combined logistics services make your supply chain more efficient by letting you choose the materials you need and send them all in one place. As a reliable FR4 sheet maker, we keep strict quality standards, such as UL and RoHS certifications, and offer low prices by running our business efficiently. Our technical team works with your engineering groups to find the best material specs so that performance needs are met while staying within the budget. Contact info@jhd-material.com to get samples or unique prices and see for yourself the dependability and support that make long-term relationships possible.

References

Coombs, Clyde F. Printed Circuits Handbook, 7th Edition. McGraw-Hill Education, 2016.

Prasad, Ray P. Surface Mount Technology: Principles and Practice, 2nd Edition. Springer Science & Business Media, 2013.

Gilleo, Ken. MEMS/MOEM Packaging: Concepts, Designs, Materials, and Processes. McGraw-Hill Professional, 2005.

Blackwell, Glenn R. The Electronic Packaging Handbook. CRC Press, 2000.

National Electrical Manufacturers Association. NEMA LI 1-1998 Industrial Laminating Thermosetting Products. NEMA Standards Publication, 1998.

Harper, Charles A. Electronic Materials and Processes Handbook, 3rd Edition. McGraw-Hill Professional, 2003.
