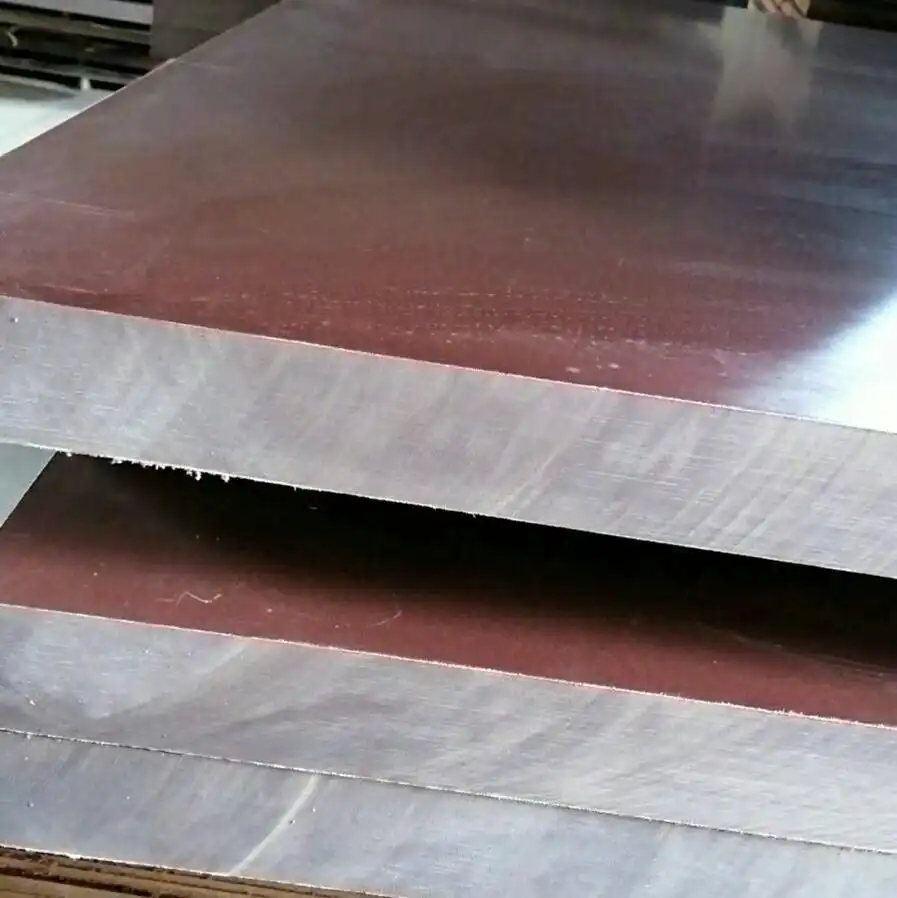

The Importance of Resin Impregnation in Phenolic Cotton Sheets

Resin impregnation is a basic manufacturing method that turns regular cotton cloth into industrial materials that work well. The phenolic cotton sheet that is made when cotton fibers are fully saturated with phenolic resin is much better at keeping heat in, keeping electricity from leaking, and lasting a long time. This important process for improving things makes sure that materials used in industries that need to be highly resistant to heat and chemicals are strong enough to handle harsh conditions and keep working well for a long time.

Understanding Phenolic Cotton Sheets and Resin Impregnation

Understanding how phenolic resin treatment changes cotton cloth is the first step in making industrial-grade insulation materials. Because it is made up of fibers, raw cotton is a great medium because it makes lots of tiny pathways that are perfect for resin to go through. During the impregnation process, molecules of phenolic resin get deep into the cotton matrix and form strong chemical bonds that change the qualities of the material in a basic way.

Manufacturing Process and Material Composition

In order to make fused sheets, the temperature and pressure must be carefully controlled so that the glue is completely saturated. Cotton cloth is pre-treated to get rid of natural oils and other impurities that could make it hard for the glue to stick. After that, the cloth goes through resin baths where phenolic compounds get into every thread. This organized way makes the material's properties the same across the whole length of the sheet, which is important for reliable performance in mechanical and electrical uses.

During production, quality control checks the resin content, which is usually between 35% and 45% by weight. This makes sure that the right balance is reached between flexibility and stiffness. During the curing process, the temperature has to be carefully controlled, normally between 140°C and 160°C. This sets off cross-linking reactions that give the material its final features.

Physical and Chemical Properties Enhancement

Adding resin to these materials makes a big difference in a number of important ways that make them useful for industrial uses. Because thermal conductivity drops so much, treated sheets are great at keeping heat out. At the same time, the dielectric strength goes up a lot, often reaching 15 kV/mm, which is very important for electrical shielding.

It becomes much more resistant to acids, bases, and chemical fluids. This improvement saves equipment in harsh industrial settings where it is often exposed to chemicals that eat away at metal. The change also makes the dimensions more stable by lowering the amount of heat expansion and contraction that could mess up precision uses.

Core Advantages of Resin Impregnation for Industrial Applications

When purchasing workers know the specific benefits that resin impregnation brings to phenolic cotton sheet materials, they can make better decisions about which materials to choose. The process of improvement works on several performance factors at the same time, which makes these materials very adaptable to a wide range of business needs.

Enhanced Electrical Insulation Properties

For electrical uses, materials need to have stable insulating qualities and a high breakdown voltage resistance. Resin-impregnated cotton sheets work better electrically than sheets that haven't been treated. When high voltage is applied, the phenolic glue makes a continuous insulating matrix that stops electricity from tracking and keeps the insulation's integrity.

According to ASTM D495 testing guidelines, arc resistance gets a lot better and usually lasts longer than 180 seconds. In switchgear uses, where electrical arcing could happen during regular operation, this feature is very important. The material's shielding qualities stay the same across a wide range of temperatures, so it works reliably in both normal and high temperatures.

Superior Thermal Stability and Heat Resistance

One of the most important benefits of resin impregnation is that it makes things resistant to changes in temperature. Untreated cotton breaks down quickly at high temperatures, but phenolic cotton sheet materials can stay structurally sound at temperatures up to 180°C for long periods of time, and even longer periods of time.

The cross-linked phenolic structure that doesn't break down at high temperatures gives the material more thermal stability. Because of this property, it can be used in motors, generator parts, and other electronics that make heat when they work normally. The material doesn't expand or contract much when it gets hot or cold, so its dimensions stay the same.

Improved Mechanical Strength and Durability

During the impregnation process, the mechanical qualities get a lot better. Tensile strength usually goes up by 200% to 300% compared to cotton cloth that hasn't been treated. The material can now handle bending loads without delaminating or breaking because its flexural strength has been increased.

Impact resistance also gets a lot better, which means these sheets can be used in places where mechanical shock or shaking is a problem. The resin matrix better spreads stress throughout the structure of the material, stopping isolated breakdowns that could hurt the overall performance. The improved durability directly leads to longer service life and less maintenance needs for industry machinery.

Optimizing Procurement: What Buyers Should Know？

In order to buy industrial insulation materials like phenolic cotton sheet successfully, you need to know the key quality markers and seller skills that guarantee consistent material performance. Procurement experts with a lot of experience know that the original cost of materials is only one part of the overall economics of a project.

Quality Certifications and Standards Compliance

Material approvals are important proof that goods meet certain performance standards. UL certification makes sure that products meet the electrical safety standards needed in many industry settings. NEMA standards list performance qualities and tolerances for sizes that help buying teams choose the right materials for each job.

Suppliers with ISO 9001 certification have strong quality control systems that make sure that the features of materials are the same from one production lot to the next. This stability is very important for uses that need exact limits for size or certain electrical properties. Documentation that supports the tracking of materials lets quality checks happen and helps find the root causes of performance problems.

Supplier Evaluation and Partnership Development

Often, the scientific knowledge of the supplier is just as important to the success of a project as the quality of the materials. Experienced providers can help you choose the best materials and methods for manufacturing by giving you useful application advice. When making new goods or changing current designs to work in different situations, this knowledge is very helpful.

When you evaluate a manufacturing potential, you should look at its production capacity, quality control systems, and technical help resources. Suppliers with full testing facilities can give you data about the properties of a material that helps validate designs and check their performance. Long-term partnerships with skilled suppliers often work out better than choices that are only based on price.

Customization Options and Volume Considerations

Standard sheet sizes might not always work perfectly with the needs of a certain application. Suppliers who can make products in unique sizes can cut down on waste and make the manufacturing process easier. Some makers offer blanks that are already cut or parts that are only partly machined, which cuts down on the work that customers have to do and keeps costs low.

Volume buying deals for phenolic cotton sheet often save money and make sure there is a steady supply of goods for ongoing production needs. These deals can include source inventory management services that lower customers' carrying costs and make sure they always have the materials they need. Flexible ordering plans can work with different production dates and get the best overall purchase costs.

Best Practices for Maintenance and Longevity of Phenolic Cotton Sheets

The service life and dependability of resin-impregnated materials are greatly affected by how they are handled and maintained. Knowing these needs helps users get the most out of the materials they buy and keep them from breaking down too soon, which could stop activities.

Storage and Handling Recommendations

Controlling the environment while a material is being stored keeps it from absorbing water, which could change its features or the way it can be machined. To keep things from changing sizes in ways that could affect precision uses, storage places should keep the relative humidity below 60%. Temperature shifting should be kept to a minimum to avoid thermal stress that could cause materials of poor quality to separate.

Edge damage that could lead to bigger problems in service can be stopped by mechanical safety during handling. When you lift things correctly and use storage supports, you can keep the material from being bent beyond its limits. Inventory turnover makes sure that older items get used first, which keeps them from breaking down after being stored for a long time.

Maintenance Protocols for Extended Service Life

Regular inspections help find early signs of material decline so that problems don't happen. When looking at something visually, you should pay attention to edge conditions, surface cracks, or signs of delamination that mean the end of its useful life is getting close. When needed, electrical testing can make sure that the protection keeps working well in important situations.

When cleaning, you should not use strong agents that could damage the resin core. Mild soap solutions usually clean well enough while still protecting the structure of the material. To keep the surface from getting damaged in a way that could affect electrical or mechanical performance, you should avoid cleaning with rough materials.

Understanding replacement timing helps prevent unexpected failures while optimizing material utilization. Phenolic cotton sheet components typically give good service signs by changing the way they look before they stop working. Setting up replacement plans based on inspection results or working hours helps keep the system reliable while keeping maintenance costs low.

Conclusion

When cotton cloth is impregnated with resin for phenolic cotton sheet, it changes into high-performance industrial materials that can handle tough application needs. The process improvement gives better electrical insulation, temperature stability, and mechanical strength, which lets the product work reliably in harsh conditions. For procurement pros, knowing about these perks helps them choose materials that are both better in terms of performance and cost. If you choose the right provider and keep these materials in good shape, they will last for a long time and be useful in many workplace settings that need reliable insulation solutions.

FAQ

How does resin impregnation enhance the heat resistance of cotton sheets?

When resin is infused into cotton fibers, it forms a thermally stable polymer material that doesn't break down at high temperatures. The phenolic resin creates cross-linked molecule chains that keep their shape up to 180°C constantly. This is in contrast to cotton that has not been treated, which breaks down quickly above 150°C. With this improvement, it can be used in motor windings, transformers, and other things that make heat.

What electrical insulation improvements result from the impregnation process?

The impregnation method makes the dielectric strength much higher, usually reaching over 15 kV/mm thickness. Standard testing procedures say that arc resistance gets better to over 180 seconds. The continuous resin matrix gets rid of air holes and moisture paths that could hurt the electrical performance. This means that these materials can be used in high-voltage situations.

Are custom sizes and resin formulations available for specialized applications?

Most makers offer a wide range of customization choices, such as non-standard sizes, custom resin formulas, and parts that have already been machined. Custom thickness limits can meet precise needs, and for certain uses, specialty resin systems may offer better chemical protection or temperature capability. Lead times and minimum orders depend on how customized the product needs to be.

Partner with J&Q for Premium Phenolic Cotton Sheet Solutions

J&Q offers high-quality phenolic cotton sheet materials and has been in business for more than 20 years, making products and dealing with other countries for more than ten years. Our thorough quality control systems make sure that the properties of our materials always meet the strict standards needed in electrical, automobile, and machinery uses. We make the buying process easier for you by offering one-stop service solutions through our combined transportation capabilities. We also offer reasonable prices for both standard and custom specs. You can talk to our technical team at info@jhd-material.com about your unique needs and find out why top makers around the world choose J&Q as their main source for phenolic cotton sheets.
