How G11 Epoxy Sheets Perform in Aerospace Environments?

G11 epoxy sheet materials excel in aerospace environments through their exceptional combination of thermal stability, electrical insulation, and mechanical durability. These high-performance laminates withstand extreme temperature fluctuations, resist chemical exposure, and maintain structural integrity under intense vibration and stress conditions typical in aviation and space applications. Their proven reliability in critical aerospace systems makes them indispensable for engineering teams seeking materials that meet stringent safety and performance standards.

Understanding G11 Epoxy Sheets and Their Core Properties

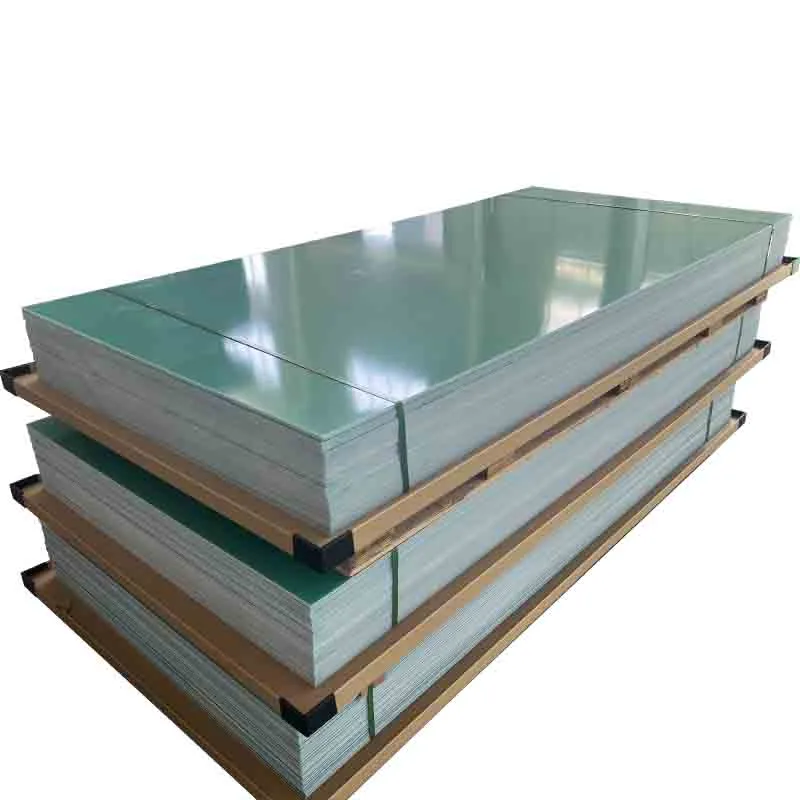

G11 epoxy sheets are the best composite material engineering has to offer. They are made of woven fiberglass fabrics and carefully made epoxy resin systems. Precise heat and pressure sealing methods are used in the production process to make a laminate structure that is very consistent and performs well. These materials are widely used in aircraft because they can keep working well under harsh conditions.

Advanced Composite Construction

The clever layered design of the G11 is what makes it work so well. Each sheet is made up of several layers of woven glass cloth that have been carefully placed and filled with high-quality epoxy glue. This way of building makes sure that mechanical loads are spread out evenly and gives the building great support in all kinds of weather.

The resin system in G11 laminates goes through a carefully managed curing process that makes molecule structures that are cross-linked. This chemical bonding makes the material very resistant to damage from the atmosphere and keeps its qualities for long periods of time. This stability is especially important for engineering teams when they are making parts that need to work reliably on long space journeys.

Temperature and Chemical Resistance

G11 materials can work continuously at temperatures above 180°C, and they can also survive short-term temps above 200°C. This material's heat performance is better than many other materials that are usually thought of for aircraft uses. The material's glass transition temperature stays well above normal aircraft working ranges. This keeps the mechanical properties stable even when the temperature changes.

Another important benefit in aircraft settings is chemical resistance. These materials can stand up to hydraulic fluids, fuel vapors, cleaning solvents, and other chemicals that are common in spaceship and airplane systems. Over time, this resistance stops wear and tear that could damage electrical wiring or mechanical stability.

Performance of G11 Epoxy Sheets in Aerospace Environments

Materials used in aerospace are put through situations that are very difficult and test every part of their performance. The G11 epoxy sheet materials are very good at a lot of different performance areas that have a direct effect on the safety and efficiency of aircraft systems.

Thermal Stability Under Extreme Conditions

Managing temperature is a big problem in aircraft design because parts can go through quick temperature changes from working on the ground to being in high-altitude flight. Within these temperature ranges, G11 materials keep their structure and electrical qualities. This gives engineers reliable performance for important system functions.

The low rate of thermal expansion of the material keeps its shape even when the temperature changes. This feature stops warping or changes in size that could affect precise setups or make stress concentrations in attached parts. When making circuit board bases and structural insulation parts, aerospace engineers really like how stable these materials are.

Testing from flight uses shows that G11 keeps more than 90% of its mechanical properties at higher working temperatures compared to room temperature. This keeping of strength and stiffness makes sure that parts keep working within the limits of their design for as long as they are used.

Electrical Insulation Excellence

In aerospace uses, electrical systems have to work in tough situations with high voltages, changing frequencies, and possible electromagnetic interference. G11 materials have a dielectric strength of more than 15 kV/mm, which means they can reliably separate electrical currents even in small component designs where electrical gaps may be limited.

Because the material has low dielectric loss, it works well for high-frequency tasks that are common in current aviation systems. There is no interference that could affect guidance, communication, or control systems because the signal quality stays high over a wide frequency range. Because of its performance, G11 is a popular choice for high-frequency circuit boards and parts of radar systems.

Mechanical Durability and Vibration Resistance

Parts in aerospace settings are subject to high levels of mechanical stress, vibration, and shock loads. G11 epoxy sheet materials are very resistant to wear, meaning they keep their shape through millions of stress cycles that are normal for airplane operations. The high strength-to-weight ratio of the material makes the system work better overall and gives it the mechanical performance it needs.

Impact resistance tests show that G11 materials can effectively absorb and distribute impact energy, stopping cracks from spreading that could cause the component to fail. For situations where parts may be handled heavily during repair or hit by foreign items from time to time, this feature is especially useful.

Comparative Analysis: G11 Epoxy Sheet vs Other Materials for Aerospace

When choosing materials for aerospace uses, you have to carefully weigh a lot of performance factors against cost and supply issues. G11 materials are special in this review because they have performance benefits that make them worth choosing for important uses.

Performance Comparison with Alternative Materials

When compared to G10 laminates, G11 offers enhanced mechanical properties and can handle higher temperatures better. The difference is especially clear in situations where the part is constantly exposed to hot temperatures or heavy loads. Despite having similar electrical properties, G11 is the better choice for structure uses because it performs better mechanically.

Even though FR4 materials are used a lot in consumer devices, they aren't strong enough or resistant to high temperatures for many aircraft uses. At temperatures where FR4 starts to soften and lose its mechanical strength, G11 materials still work consistently. This ability to handle higher temperatures expands the range of conditions that aircraft devices can work in.

Phenolic materials are good at keeping electricity from flowing, but they are not as strong or resistant to damage from the environment as G11 laminates. Because G11 is more resistant to chemicals, it is better for uses where it will be exposed to cleaning agents and aircraft fluids.

Thickness and Configuration Options

The performance of a material changes a lot depending on its thickness, which affects both its heat and mechanical properties. For circuit board uses, thinner G11 sheets are perfect because they offer great electrical insulation with little weight effect. For structural uses, thicker designs offer better mechanical strength while still having great electrical qualities.

Because G11 materials can be machined to very precise standards, they can be put together in ways that are unique to each application. CNC machining lets you make shapes with complicated shapes while keeping the tight limits needed for aircraft uses.

Procurement Insights: Sourcing G11 Epoxy Sheets for Aerospace Applications

To successfully buy materials for aircraft, you need to know both the technical standards and the issues that come up in the supply chain. When looking for G11 epoxy sheets, you have to judge providers based on their quality processes, ability to get certifications, and consistency in their manufacturing.

Supplier Selection Criteria

For aerospace products to work, suppliers must have strict quality systems that are in line with industry norms. Certification to AS9100 or a similar quality management system makes sure that the ways things are made meet the standards for quality control, paperwork, and being able to be tracked in aerospace.

When judging a company's ability to make things, you should look at its process controls, testing skills, and stability from batch to batch. When suppliers keep statistical process control and give full material certifications, buying teams can be sure that the performance of the materials meets the standards set by the specifications.

Quality Assurance and Testing Requirements

Aerospace-grade G11 materials need to be put through a lot of tests to make sure they work right. Checking the properties of a material should include trying its mechanical strength, measuring its electrical properties, and checking its resistance to the environment. Suppliers who provide full test paperwork help make the buying process run smoothly and make sure that regulations are followed.

In aerospace uses, traceability rules mean that raw materials, manufacturing methods, and quality control tests must be carefully recorded. This paperwork helps with legal compliance throughout the lifetime of the component and lets any performance problems be looked into.

Custom size lets you get the most out of your materials and make your products more efficiently. Aerospace makers can cut down on waste and make assembly easier by working with suppliers who offer precise cutting and custom setups.

Future Outlook and Innovation in G11 Epoxy Sheet Usage in Aerospace

The aircraft business is always changing to meet higher performance standards and come up with new uses. As material science improves, its main goal is to make things work better while still being reliable enough for aerospace uses.

Advanced Manufacturing Integration

More and more, automated processes and precise assembly methods are used in modern aircraft production. G11 materials work well with these ways of making things because they are consistently easy to machine and stable in size, which helps with automatic handling and assembly processes.

Integration with advanced composite structures is a new area of use for G11 materials that provide electrical shielding and mechanical support in complicated systems. This ability to integrate lets designers come up with new ways to make things that are lighter and better at what they do at the same time.

Customization and Performance Enhancement

Customizing materials keeps getting better to meet the specific needs of the aircraft industry. New resin mixes are lighter and better at withstanding high temperatures, but they still have the same mechanical and electrical qualities that make G11 materials useful for aircraft uses.

Technologies for treating the surface of things allow for better sealing in situations where they need to be stuck together or coated. These processes make it easier to build parts out of G11 epoxy sheet materials while still making them resistant to the elements over time.

Conclusion

G11 epoxy sheets have established themselves as essential materials for aerospace applications through their exceptional combination of thermal stability, electrical insulation, and mechanical durability. Their proven performance across demanding aerospace environments, from commercial aviation to space exploration, demonstrates the reliability that engineering teams require for critical applications. The material's ability to maintain consistent properties across extreme temperature ranges, resist chemical exposure, and withstand mechanical stress makes it an optimal choice for components where failure is not acceptable. As aerospace technology continues advancing, G11 materials will remain fundamental to enabling innovative designs that push the boundaries of performance while maintaining the safety and reliability standards that define aerospace excellence.

FAQ

What temperature range can G11 epoxy sheets handle in aerospace applications?

For constant use, G11 epoxy sheets work reliably at temperatures from -65°C to +180°C, and they can work at +200°C for short periods of time. This range of temperatures fits most aerospace working situations, from working at high altitudes to working on the ground in harsh weather.

How does G11 compare to FR4 for aerospace electrical insulation?

G11 offers superior temperature resistance and mechanical strength compared to FR4 materials. While both provide excellent electrical insulation, G11 maintains its properties at elevated temperatures where FR4 begins to soften, making G11 the preferred choice for aerospace applications involving high-temperature exposure.

Can G11 epoxy sheets be machined to custom specifications for aerospace components?

G11 materials can be machined very well with standard CNC tools, which lets precise unique shapes be made for aircraft uses. The material stays stable in size while being machined and has clean, precise edges that are good for important aircraft parts that need to be made with tight tolerances.

What certifications are required for aerospace-grade G11 materials?

Aerospace applications typically require materials manufactured under AS9100 quality systems with full traceability documentation. Material certifications should include mechanical properties, electrical characteristics, and environmental resistance test data to support aerospace qualification requirements.

Partner with J&Q for Premium G11 Epoxy Sheet Solutions

J&Q brings over two decades of expertise in manufacturing and supplying high-performance insulation materials to aerospace and industrial markets. Our extensive experience includes more than 10 years in international trade, establishing partnerships with leading companies worldwide. We maintain our own logistics capabilities, enabling comprehensive one-stop service from manufacturing through delivery. Contact our technical team at info@jhd-material.com to discuss your specific requirements for aerospace-grade G11 epoxy sheet materials. As a trusted G11 epoxy sheet supplier, we provide custom solutions, competitive pricing, and reliable delivery schedules that support your project success.
