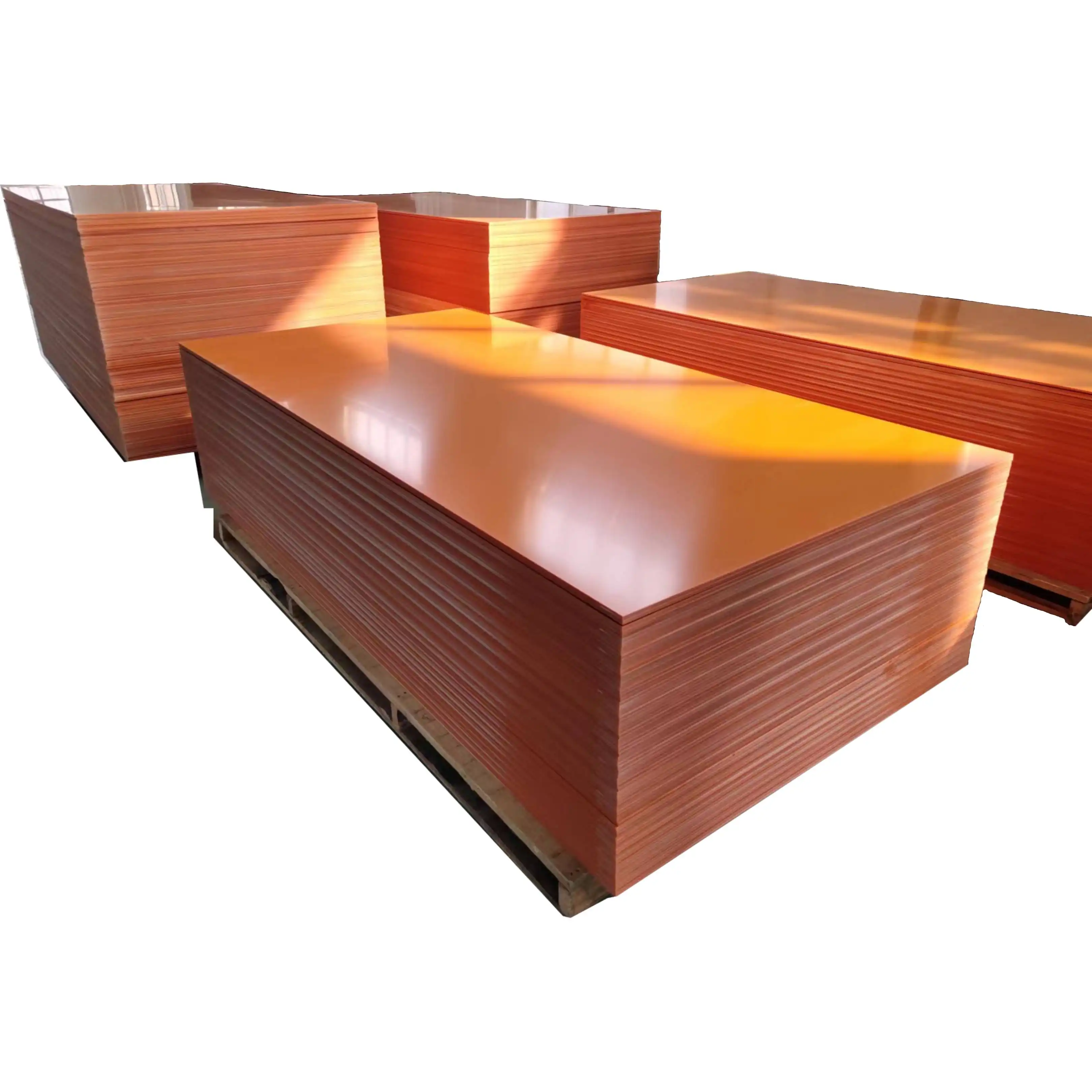

Bakelite Sheets in Electrical Switchgears: A Timeless Material

Electrical engineers and purchasing managers look to Bakelite sheets as a reliable insulating material for switchgear uses. These sheets have stood the test of time as the industry has changed over the years. In important power distribution systems, this thermosetting phenolic resin material continues to provide excellent electrical protection, resistance to heat, and mechanical stability. Even though newer materials have come out, Bakelite is still used as a mainstay for electrical switchboard parts. It gives engineers a reliable base for making safe and effective electrical systems in many different types of industries.

Understanding Bakelite Sheets: Properties and Manufacturing Process

Chemical Composition and Structure

Bakelite represents one of the first manufactured plastics, formed through the polymerization of phenol and formaldehyde under controlled heat and pressure conditions. This thermosetting process makes a cross-linked molecular structure that can't be melted back together after it's hardened. This gives the material better thermal qualities and lasting stability in its shape. The phenolic resin matrix has a very high dielectric strength, usually between 12 and 16 kV/mm. This makes it perfect for electrical insulation jobs where voltage separation is still very important.

The first step in the manufacturing process is to carefully mix phenol, formaldehyde, and catalyst materials together in the right amounts. During the curing process, temperatures between 150°C and 200°C start the cross-linking reaction. This makes the material that is known in the electrical business as amber-colored. This controlled polymerization makes sure that the qualities of the material are the same from one production batch to the next. This is especially important for buying teams that are in charge of big switchgear projects.

Key Material Properties

Bakelite is very stable at high temperatures; it can keep its shape at temperatures up to 120°C when it is used continuously. The low thermal expansion rate of the material keeps the size from changing too much when the temperature changes, which is good for electrical connections and mounting tools. It also doesn't need any extra flame resistant additives because it naturally doesn't catch fire, which meets strict electricity safety standards.

Excellent compressive strength and good machinability are two mechanical qualities of Bakelite sheet materials that make it possible to precisely make complex electrical parts. Its chemical resistance keeps it from breaking down when exposed to cleaning agents and airborne contaminants that are common in industrial electrical systems. Its resistance to moisture absorption helps keep the electrical properties stable in damp places.

Why Bakelite Remains a Preferred Material for Electrical Switchgear Components?

Comparative Performance Analysis

Modern electrical switchgear needs elements that are good at conducting electricity, reliable mechanically, and inexpensive. Bakelite regularly performs better than many other materials in key areas that are important to both people who make equipment and people who use it. In contrast to thermoplastics, which can become soft at high temperatures, Bakelite keeps its shape for as long as electrical equipment is supposed to last.

Compared to clay insulators, Bakelite is more resistant to pressure and easier to work with, but its dielectric qualities are about the same. Glass-reinforced plastics may be stronger mechanically, but they usually come with much higher prices and more complicated manufacturing processes. Melamine-based materials have good electrical qualities, but they tend to absorb water more quickly, which can affect their long-term performance in damp working conditions.

Real-World Performance Validation

Electrical companies and factories around the world have used Bakelite-based switchboard parts for decades and have had no problems. Power distribution businesses say that Bakelite insulator uses have very low failure rates, and many setups are still working well after 30 to 40 years of use. This means that upkeep costs will go down and system reliability will go up for building owners.

Case studies from major makers of electrical equipment show that Bakelite sheet components always meet or beat the minimum dielectric strength standards, even when they are used for long periods of time. Independent lab tests show that Bakelite materials that were made correctly keep more than 90% of their original dielectric strength after 10,000 hours of fast aging tests at high temperatures and humidity levels.

Industry Standards Compliance

Bakelite materials readily meet international electrical standards including IEC 60893 and ASTM D709, providing buying teams with trust in regulatory compliance. UL certification makes sure that the product works with North American electricity codes, and RoHS certification makes sure that it meets environmental rules that are becoming more important in global supply lines. These certifications make it easier to get permission for new electrical setups and updates to existing equipment.

Procuring Bakelite Sheets for Industrial Use: A Practical Guide

Quality Verification Methods

To get high-quality Bakelite sheets, you need to carefully check the skills of the suppliers and the certifications of the materials. A physical check should make sure that the color is the same across the whole length of the sheet, that there are no holes or tears, and that the surface finish is the same all over. Depending on the needs of the application, dimension limits can be anywhere from 0.1 mm for normal uses to 0.05 mm for precision switchgear parts.

Chemical testing using standard test methods makes sure that the material is properly cured and has the right makeup. Testing the dielectric strength makes sure the electrical performance is correct, and measuring the thermal bending makes sure the heat resistance is good enough for the planned uses. Reliable providers give full test certificates for these qualities for every production batch, which makes it possible to track the product all the way through the supply chain.

Supplier Evaluation Criteria

To build a good relationship with a provider, you should first carefully look at their production and quality processes. ISO 9001 certification shows a dedication to consistent quality management, while certifications specific to the electrical business show a high level of skill in making shielding materials. Delivery dependability and total cost of ownership are important factors to think about when planning a purchase. These factors are affected by production capacity, location, and logistics skills.

The ability to provide technical help sets exceptional sellers apart from commodity providers. Having access to application engineering experts can help you choose the best materials for your switchgear designs, and custom cutting and machining services can cut down on the work that needs to be done later. Long-term ties with suppliers often have benefits, such as giving priority when supplies are low and working together to come up with better material standards.

Strategic Sourcing Considerations

Volume buying deals can save you a lot of money and make sure that you have the materials you need for when you need them. A lot of providers use tiered prices, which means that customers who consistently place large orders get better service and lower unit costs. But buying teams have to weigh the savings in costs against the costs of keeping inventory and the risk of items going out of style, especially when it comes to special grades or custom specs.

As global transport networks are sometimes interrupted, supply chain robustness has become more important. Strategic inventory management and a variety of source partnerships help keep production going while keeping an eye on working capital needs. The Bakelite sheet market benefits from multiple qualified suppliers around the world, which gives procurement teams a lot of options when it comes to where to buy it and gives them more power in talks.

Sustainability and Recycling: The Future of Bakelite in Electrical Applications

Environmental Impact Assessment

Because they are thermosetting, traditional Bakelite materials are hard to recycle because they can't be melted down and reformed into new goods. On the other hand, new technologies like pyrolysis and chemical depolymerization show potential for getting useful parts back from old electronics. These methods can get phenolic chemicals out of plants and use them to make new materials. This helps reach the goals of the cycle economy, which are becoming more important in companies' sustainability plans.

Studies on life cycle assessment show that Bakelite's high toughness and long life often have less of an effect on the environment than other materials that need to be replaced more often. The material doesn't need halogenated flame retardants, which are bad for the environment, because it naturally doesn't catch fire. Its chemical stability also keeps dangerous substances from leaking out during normal use.

Emerging Sustainability Practices

Electrical equipment makers who are on the cutting edge are using design-for-disassembly principles that make it easier to separate Bakelite parts when taking equipment offline. This method makes it easier to recycle materials and lowers the amount of trash that needs to be put in landfills. Industry groups are working together to create standard marking systems that will make it easier to tell the different types of Bakelite and handle them correctly during recycling.

Some companies are looking into bio-based phenolic precursors that come from green feedstocks. This could make the making of new Bakelite less carbon-intensive. While these developments are still early, they represent promising ways to make phenolic resin materials more environmentally friendly without affecting their important electrical and mechanical features for switchgear uses.

Optimizing Performance and Longevity of Bakelite Components in Switchgears

Installation and Handling Best Practices

How well Bakelite sheet components are installed has a big effect on how well they work in the long run in electrical circuits. Temperature and humidity should stay the same while materials are being stored so that measurements don't change in ways that could affect fit and finish during assembly. Pre-conditioning at the installation spot for 24 to 48 hours helps keep the measurements of the material stable and lowers the stress that comes with mounting.

For machining to produce smooth areas and clean edges, the right tools and cutting factors must be used. When you use carbide cutting tools and cut slowly, you don't make as much heat, which could lead to thermal stress or surface damage. Having the right support during cutting stops chipping or cracking that could damage the electrical properties or create stress concentration places that cause the part to fail too soon.

Environmental Protection Strategies

When switchgear is installed, Bakelite components are often exposed to external stresses like changing temperatures, humidity, and airborne contaminants. Protective coats can make surfaces less likely to absorb water and react with chemicals, which can increase the life of parts in harsh conditions. Protocols for regular inspections help find early signs of wear and tear before they affect the safety or performance of electrical systems.

Managing temperature stress on Bakelite insulators depends a lot on how well the ventilation is designed. Enough air flow helps get rid of the heat that electrical loads produce and keeps wetness from building up, which could damage insulation over time. Temperature tracking tools can let you know early on when temperatures are rising above what the material can handle, so you can do preventative maintenance.

Innovation and Future Developments

New developments in phenolic resin formulations have made Bakelite materials stronger and better at withstanding heat, while keeping their original electrical qualities. Using special fillers and chemicals in modified resin systems makes them more resistant to impact and more stable in shape, which are problems that regular Bakelite compositions have.

These changes to the materials help make switchboard designs that are smaller and have higher power density rates possible. Better heat properties let the system work at higher temperatures, while better mechanical properties help make parts thinner and lighter. These kinds of new ideas help companies that make electrical equipment keep up with changing market needs for switching solutions that are more efficient and cost less.

Conclusion

Bakelite sheet products continue to be used as a primary insulation material in electrical equipment because they are reliable, affordable, and meet a wide range of industry needs. The material's great dielectric qualities, thermal stability, and mechanical sturdiness have made it well-known over many years of successful use in a wide range of electrical uses. Recycling and bio-based options are always getting better because people care about the environment, but Bakelite's special mix of properties means it will always be useful in modern electricity infrastructure. It's helpful for procurement workers to know about both the well-known benefits and new developments in Bakelite technology. This way, they can choose materials that will give switchgear the best performance and lifetime value.

FAQ

What makes Bakelite suitable for electrical switchgear applications?

Bakelite has a high electrical strength, stays stable at temperatures up to 120°C, and doesn't catch fire naturally. Its thermosetting property keeps its shape under electrical loads, and its low moisture absorption keeps its insulation qualities stable in a wide range of weather conditions.

How does Bakelite compare to modern insulating materials?

While newer materials may be better at some things than Bakelite, Bakelite is the best combination of electrical performance, mechanical stability, and low cost. It has a good track record and is easy to find, which makes it a good choice for many electrical uses that don't need special high-performance materials.

What thickness options are available for Bakelite sheets?

There are standard Bakelite sheets with thicknesses from 1 mm to 50 mm, and unique widths can be made for specific uses. Sheets with a thickness of 3 mm to 12 mm are often used in electrical uses. The thickness depends on the voltage level and the mechanical needs.

Partner with J&Q for Superior Bakelite Sheet Solutions

J&Q stands as your trusted Bakelite sheet supplier, combining over two decades of manufacturing excellence with specialized expertise in electrical insulation materials. Our comprehensive quality management systems ensure consistent material properties and reliable performance in your critical switchgear applications. With more than ten years of international trading experience and partnerships with leading global manufacturers, we understand the precise requirements of electrical and electronics manufacturers worldwide. Our integrated logistics capabilities provide streamlined delivery solutions, while our technical support team offers application guidance to optimize material selection for your specific needs. Contact us at info@jhd-material.com to discuss your Bakelite sheet requirements and discover how our experience and commitment to quality can enhance your switchgear projects.

References

1. Smith, J.A., "Phenolic Resins in Electrical Applications: Properties and Performance," Journal of Electrical Insulation Materials, Vol. 45, No. 3, 2023.
2. International Electrotechnical Commission, "IEC 60893-3: Insulating Materials - Industrial Rigid Laminated Sheets Based on Thermosetting Resins for Electrical Purposes," Geneva, Switzerland, 2022.
3. Williams, R.K. and Brown, M.L., "Thermal Aging Characteristics of Phenolic Laminates in Power Distribution Equipment," IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 29, No. 4, 2021.
4. Chen, L.H., "Sustainability Assessment of Thermoset Plastics in Electrical Infrastructure," Environmental Engineering Science, Vol. 38, No. 8, 2023.
5. Thompson, A.R., "Comparative Analysis of Insulating Materials for Medium Voltage Switchgear," Electrical Engineering Quarterly, Vol. 67, No. 2, 2022.
6. National Electrical Manufacturers Association, "NEMA LI 1: Industrial Laminated Thermosetting Products," Rosslyn, Virginia, 2023.
