CNC machining FR4 epoxy sheet requires precision and expertise to achieve optimal results. This versatile material, known for its excellent electrical insulation and mechanical properties, demands specific handling techniques during the machining process. To ensure high-quality outcomes, it's crucial to consider factors such as tool selection, cutting speed, and feed rate. Proper cooling and dust extraction are also essential to maintain the integrity of the FR4 epoxy board and protect equipment. By following industry best practices and leveraging advanced CNC technology, manufacturers can efficiently produce complex components with tight tolerances, maximizing the potential of FR4 epoxy sheet in various applications.

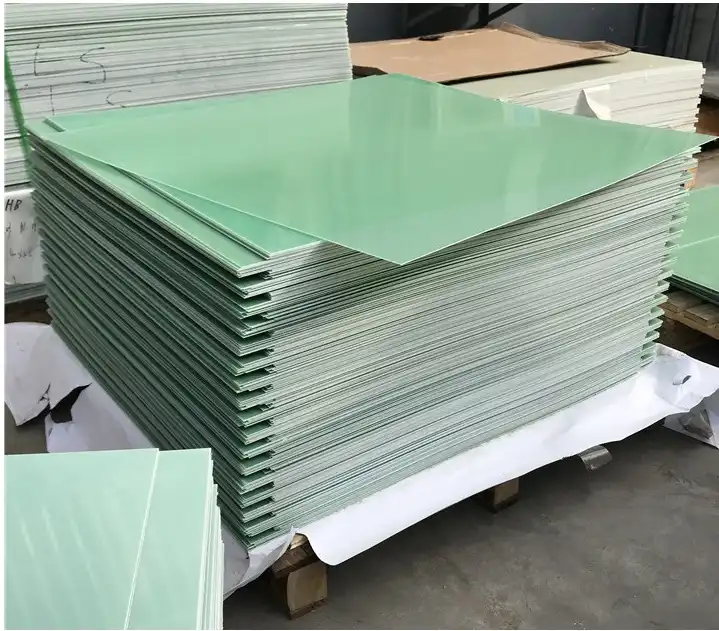

FR4 Epoxy Sheet

Understanding FR4 Epoxy Sheet Properties

Composition and Structure

FR4 epoxy sheet is a composite material consisting of woven fiberglass cloth impregnated with epoxy resin. This unique composition gives FR4 its characteristic strength, durability, and flame-resistant properties. The fiberglass reinforcement provides dimensional stability, while the epoxy resin offers excellent electrical insulation and resistance to moisture absorption. Understanding the layered structure of FR4 epoxy board is crucial for optimizing machining parameters and achieving desired results.

Mechanical Characteristics

FR4 epoxy sheet exhibits remarkable mechanical properties that make it suitable for a wide range of applications. Its high flexural strength and tensile strength contribute to its ability to withstand mechanical stress. The material's low coefficient of thermal expansion ensures dimensional stability across varying temperatures. These characteristics influence the machining process, requiring careful consideration of cutting forces and tool pressure to prevent delamination or chipping.

Thermal and Electrical Properties

The thermal and electrical properties of FR4 epoxy board play a significant role in its performance during machining. Its low thermal conductivity can lead to heat buildup during cutting operations, necessitating appropriate cooling strategies. The material's excellent dielectric strength and high volume resistivity make it ideal for electrical applications. However, these properties also mean that FR4 can generate static electricity during machining, requiring proper grounding and dust extraction measures to maintain a safe working environment.

CNC Machining Techniques for FR4 Epoxy Sheet

Tool Selection and Optimization

Choosing the right tools is paramount when CNC machining FR4 epoxy sheet. Carbide-tipped or diamond-coated tools are often preferred due to their hardness and wear resistance. The tool geometry should be optimized for FR4, with sharp cutting edges and appropriate clearance angles to minimize delamination and ensure clean cuts. Multi-flute end mills can improve material removal rates while reducing the risk of chip clogging. It's essential to consider the specific requirements of each project when selecting tools, as different FR4 grades may respond differently to various tool types.

Cutting Parameters and Feed Rates

Optimizing cutting parameters is crucial for achieving high-quality results when machining FR4 epoxy board. Spindle speed and feed rate must be carefully balanced to maintain cutting efficiency while minimizing heat generation and tool wear. Generally, higher spindle speeds with moderate feed rates work well for FR4, but these parameters may need adjustment based on the specific grade and thickness of the material. Implementing climb milling techniques can help reduce the risk of delamination and improve surface finish. It's also important to consider the depth of cut, as taking lighter passes can often yield better results than aggressive material removal.

Cooling and Dust Management

Effective cooling and dust management are essential aspects of CNC machining FR4 epoxy sheet. The low thermal conductivity of FR4 can lead to localized heat buildup, potentially causing tool damage or degradation of the material's properties. Implementing a compressed air cooling system or mist coolant can help dissipate heat and extend tool life. Dust extraction is equally important, as FR4 machining generates fine, abrasive particles that can pose health risks and interfere with machine operation. High-efficiency vacuum systems and proper enclosure of the machining area are necessary to maintain a clean and safe working environment.

Advanced Strategies for Precision Machining

Fixturing and Workholding Techniques

Proper fixturing is critical when CNC machining FR4 epoxy sheet to ensure accuracy and prevent workpiece movement. Vacuum tables or mechanical clamps can be used to secure the material, but care must be taken to avoid applying excessive pressure that could cause warping or damage. For thin FR4 sheets, sacrificial backing boards can help prevent breakthrough and improve edge quality. When machining complex shapes, custom fixtures may be necessary to support the workpiece throughout the cutting process. Implementing a consistent and reliable workholding strategy is essential for achieving tight tolerances and reproducible results.

Optimizing Tool Paths and Cutting Strategies

Developing efficient tool paths is crucial for maximizing the potential of CNC machining FR4 epoxy board. Adaptive clearing strategies can help maintain consistent cutting loads and reduce tool wear. Trochoidal milling techniques can be particularly effective for creating slots or pockets in FR4, as they minimize heat buildup and reduce the risk of delamination. When machining thin FR4 sheets, ramping or helical entry methods are preferable to plunging, as they distribute cutting forces more evenly. Careful consideration of entry and exit points can help prevent chipping or burring at the edges of the workpiece.

Quality Control and Inspection Methods

Implementing robust quality control measures is essential when CNC machining FR4 epoxy sheet to ensure consistent and accurate results. In-process monitoring systems can help detect issues such as tool wear or deflection in real-time, allowing for immediate adjustments. Post-machining inspection using coordinate measuring machines (CMMs) or optical measurement systems can verify dimensional accuracy and surface quality. For critical applications, non-destructive testing methods such as ultrasonic inspection may be employed to check for internal defects or delamination. Establishing a comprehensive quality control protocol helps maintain high standards and meet stringent customer requirements.

Conclusion

Mastering the art of CNC machining FR4 epoxy sheet requires a deep understanding of material properties, advanced machining techniques, and quality control measures. By carefully selecting tools, optimizing cutting parameters, and implementing effective cooling and dust management strategies, manufacturers can achieve exceptional results with FR4 epoxy board. Embracing advanced fixturing methods, innovative cutting strategies, and comprehensive quality control processes further enhances the precision and efficiency of FR4 machining operations. As technology continues to evolve, staying informed about the latest advancements in CNC machining will be crucial for maintaining a competitive edge in the industry.

Contact Us

To learn more about our FR4 epoxy sheet products and how we can support your CNC machining needs, please contact us at info@jhd-material.com. Our team of experts is ready to help you optimize your manufacturing processes and achieve superior results with FR4 epoxy board.
