Understanding 3240 Epoxy Board: Properties and Applications
Composition and Manufacturing Process

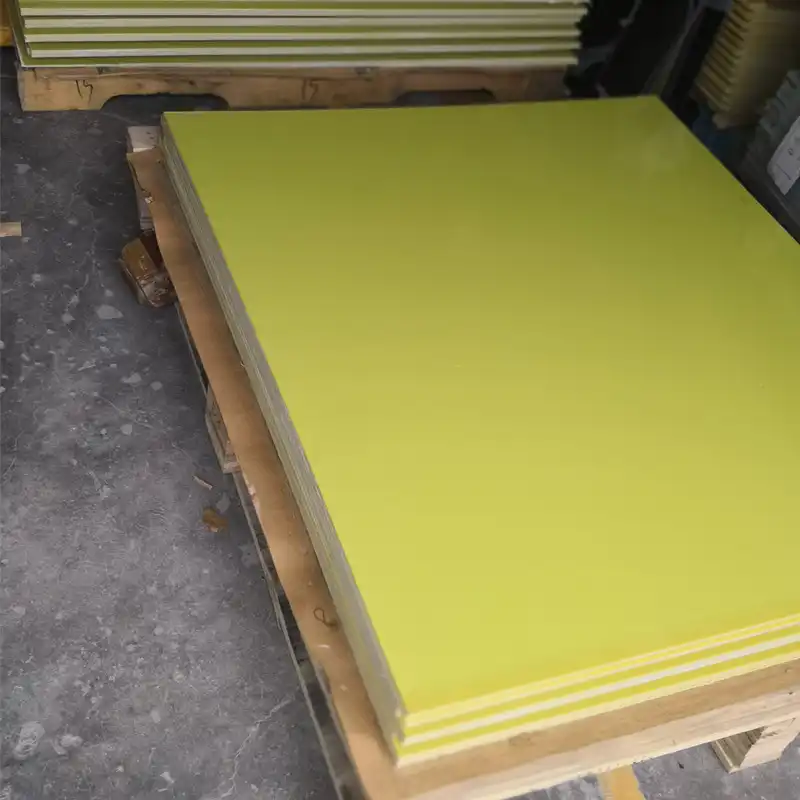

3240 epoxy board is a composite material that combines epoxy resin with glass fiber reinforcement. The manufacturing process involves impregnating glass fabric with epoxy resin, followed by heat curing under pressure. This process results in a dense, uniform material with exceptional mechanical and electrical properties. The glass fiber provides strength and dimensional stability, while the epoxy resin offers excellent electrical insulation and chemical resistance.
Key Properties of 3240 Epoxy Sheet
3240 epoxy sheet boasts an impressive array of properties that make it a versatile choice for various applications. It exhibits high dielectric strength, low moisture absorption, and excellent thermal stability. The material maintains its mechanical properties over a wide temperature range, making it suitable for use in harsh environments. Additionally, 3240 epoxy board offers good machinability, allowing for easy cutting, drilling, and shaping without compromising its structural integrity.
Applications Across Industries
The unique combination of properties in 3240 epoxy board makes it invaluable in numerous industries. In the electrical sector, it serves as an insulating material for transformers, switchgear, and motor components. The aerospace industry utilizes 3240 epoxy sheet for structural components and radomes due to its lightweight nature and high strength-to-weight ratio. In the automotive field, it finds applications in electric vehicle battery insulation and structural reinforcement. The material's chemical resistance and thermal stability also make it suitable for use in chemical processing equipment and high-temperature industrial applications.
FR4: A Closer Look at the Industry Standard
Composition and Manufacturing of FR4
FR4, short for Flame Retardant 4, is a composite material consisting of woven fiberglass cloth impregnated with an epoxy resin binder. The manufacturing process involves layering multiple sheets of this material and subjecting them to heat and pressure. This results in a rigid, flame-resistant laminate with excellent electrical insulation properties. The "4" in FR4 denotes the specific formulation of flame-retardant chemicals used in its composition, which gives it its characteristic fire-resistant qualities.
Characteristics and Advantages of FR4
FR4 and 3240 epoxy board have become the industry standard for printed circuit boards due to their unique combination of properties. It offers high electrical insulation, low moisture absorption, and good mechanical strength. The material maintains its electrical and mechanical properties across a wide range of temperatures and humidity levels, making it suitable for various electronic applications. FR4's flame-retardant properties also contribute to its popularity, as it meets stringent safety standards required in many electronic devices.
Common Applications of FR4
While FR4 is primarily associated with PCB manufacturing, its versatility extends to other applications. In the electronics industry, it serves as a substrate for multi-layer PCBs, providing a stable platform for complex circuit designs. FR4 is also used in the production of electrical panels, switchboards, and insulating components for various electronic devices. Its dimensional stability and ease of machining make it a preferred choice for prototyping and small-scale production runs in the electronics sector.
Comparing 3240 Epoxy Board and FR4: Making the Right Choice
Thermal Performance and Temperature Resistance
When it comes to thermal performance, 3240 epoxy board generally outperforms FR4. The 3240 epoxy sheet exhibits higher heat resistance and can maintain its properties at elevated temperatures. This makes it suitable for applications involving high-temperature environments or components that generate significant heat during operation. FR4, while offering good thermal stability for most electronic applications, may not be the ideal choice for extreme temperature conditions. The superior thermal performance of 3240 epoxy board makes it a preferred option in industries where heat management is critical, such as power electronics and high-performance computing.
Mechanical Strength and Durability
Both 3240 epoxy board and FR4 offer excellent mechanical strength, but they excel in different areas. 3240 epoxy sheet typically provides higher flexural and tensile strength, making it more suitable for applications requiring structural integrity under high stress. It also exhibits better impact resistance and dimensional stability over time. FR4, while strong enough for most electronic applications, may not match the mechanical robustness of 3240 epoxy board in extreme conditions. The choice between the two materials often depends on the specific mechanical requirements of the application, with 3240 epoxy board being favored in scenarios demanding superior structural performance.
Cost Considerations and Availability
Cost and availability are crucial factors in material selection for any project. FR4 is widely available and generally more cost-effective due to its widespread use in the electronics industry. The established manufacturing processes and high demand contribute to its lower cost. 3240 epoxy board, while more specialized, may come at a higher price point due to its advanced properties and more limited production. However, the cost difference can be justified in applications where the superior performance of 3240 epoxy sheet leads to improved product longevity or efficiency. When considering the total cost of ownership, including potential maintenance and replacement costs, 3240 epoxy board may prove more economical in certain high-performance applications.
Conclusion
The choice between 3240 epoxy board and FR4 depends on the specific requirements of your application. While FR4 remains the go-to material for standard PCB manufacturing and many electronic applications, 3240 epoxy sheet offers superior performance in high-stress, high-temperature environments. Its exceptional thermal, mechanical, and electrical properties make it an ideal choice for specialized applications across various industries. By understanding the unique characteristics of each material, engineers and designers can make informed decisions to optimize their products' performance, reliability, and cost-effectiveness.
