FR4 epoxy sheet, also known as FR4 epoxy board, is a crucial material in the electronics industry, renowned for its exceptional electrical insulation and mechanical properties. This guide delves into the essential characteristics of FR4 epoxy sheets, providing electronics professionals with comprehensive insights into their composition, applications, and performance attributes. From its flame-retardant nature to its impressive dielectric strength, FR4 epoxy sheet has become the go-to substrate for printed circuit boards (PCBs) and various electronic components. Understanding these properties is vital for engineers and designers to make informed decisions in their projects, ensuring optimal performance and reliability in electronic devices across diverse applications.

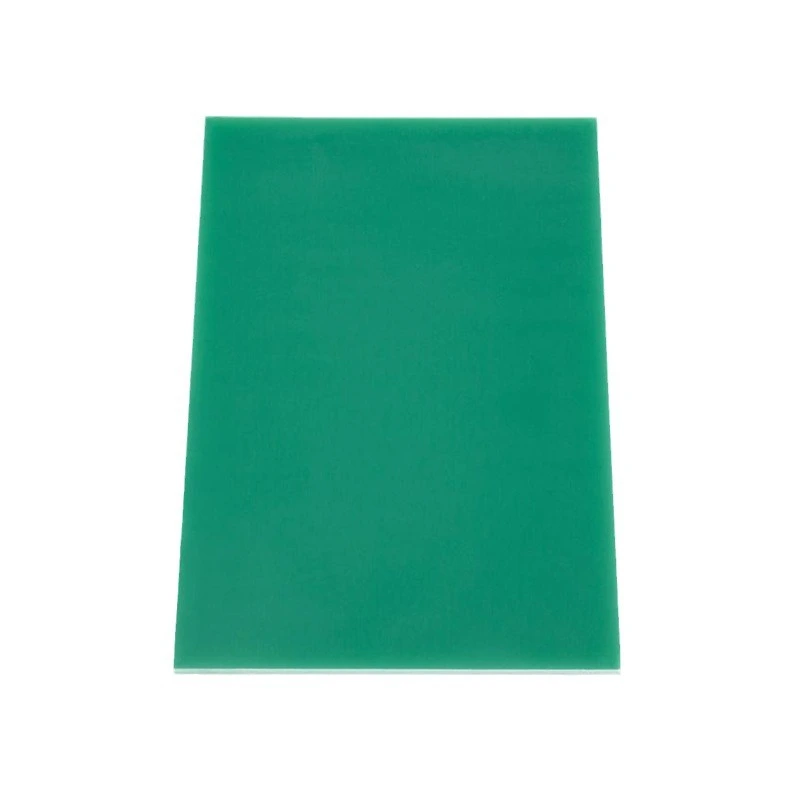

FR4 Epoxy Sheet

Composition and Manufacturing of FR4 Epoxy Sheets

Raw Materials and Their Roles

FR4 epoxy sheets are composed of a carefully selected blend of materials, each contributing to the overall performance of the final product. The primary components include:

- Epoxy resin: Provides the matrix for the composite material, offering excellent electrical insulation and mechanical strength.

- Fiberglass reinforcement: Enhances the structural integrity and dimensional stability of the sheet.

- Flame retardants: Incorporated to meet fire safety standards and reduce flammability.

- Curing agents: Facilitate the cross-linking of epoxy molecules, resulting in a rigid and durable structure.

The specific combination and proportions of these materials are tailored to achieve the desired properties for different applications in the electronics industry.

Manufacturing Process

The production of FR4 epoxy sheets involves a multi-step process that ensures consistent quality and performance:

- Impregnation: Fiberglass cloth is saturated with liquid epoxy resin.

- B-staging: The impregnated cloth is partially cured to create a semi-solid state.

- Layering: Multiple layers of B-staged material are stacked to achieve the desired thickness.

- Lamination: The layered stack is subjected to heat and pressure in a press, fully curing the epoxy and bonding the layers.

- Finishing: The cured laminate is trimmed, sanded, and inspected for quality control.

This meticulous process results in FR4 epoxy sheets or FR4 epoxy board with uniform properties and minimal defects.

Grade Variations

FR4 epoxy sheets are available in various grades, each optimized for specific applications:

- Standard FR4: Suitable for most general-purpose PCB applications.

- High-Tg FR4: Offers improved thermal stability for high-temperature environments.

- Halogen-free FR4: Environmentally friendly option with reduced toxicity.

- Low-loss FR4: Designed for high-frequency applications with improved signal integrity.

Understanding these grade variations allows electronics professionals to select the most appropriate FR4 epoxy sheet for their specific requirements.

Electrical and Thermal Properties of FR4 Epoxy Sheets

Dielectric Strength and Insulation Resistance

FR4 epoxy sheets excel in their electrical insulation properties, making them ideal for use in circuit boards and electronic components. Key electrical characteristics include:

- Dielectric strength: Typically ranging from 20 to 30 kV/mm, providing excellent resistance to electrical breakdown.

- Insulation resistance: Exceeding 10^6 megohms, ensuring minimal current leakage between conductive elements.

- Dielectric constant: Usually between 4.0 and 4.5 at 1 MHz, offering a balance between signal propagation and impedance control.

- Dissipation factor: Typically less than 0.025 at 1 MHz, indicating low energy loss in high-frequency applications.

These properties contribute to the reliability and performance of electronic devices across various operating conditions.

Thermal Conductivity and Coefficient of Thermal Expansion

The thermal behavior of FR4 epoxy sheets or FR4 epoxy board is crucial for managing heat dissipation and ensuring dimensional stability in electronic assemblies:

- Thermal conductivity: Generally around 0.25-0.4 W/m·K, providing moderate heat dissipation capabilities.

- Coefficient of Thermal Expansion (CTE): Approximately 50-70 ppm/°C in the x and y directions, and 200-250 ppm/°C in the z direction.

- Glass transition temperature (Tg): Ranging from 130°C to 180°C for standard FR4, with high-Tg variants exceeding 170°C.

Understanding these thermal properties is essential for designing reliable electronic systems that can withstand temperature fluctuations and thermal stress.

Flame Retardancy and UL Ratings

FR4 epoxy sheets are renowned for their flame-retardant properties, which are critical for ensuring the safety of electronic devices:

- UL 94 V-0 rating: Indicates self-extinguishing properties and minimal flame propagation.

- Limiting Oxygen Index (LOI): Typically above 28%, indicating high resistance to combustion.

- Halogen-free options: Available for applications requiring reduced environmental impact and toxicity.

These flame-retardant characteristics make FR4 epoxy sheets compliant with stringent safety regulations in the electronics industry.

Mechanical and Environmental Properties of FR4 Epoxy Sheets

Tensile Strength and Flexural Modulus

FR4 epoxy sheets exhibit robust mechanical properties, contributing to the structural integrity of electronic assemblies:

- Tensile strength: Typically ranging from 250 to 450 MPa, providing excellent resistance to mechanical stress.

- Flexural modulus: Generally between 17 and 24 GPa, offering high stiffness and minimal deformation under load.

- Impact resistance: Sufficient to withstand moderate shocks and vibrations in typical electronic applications.

These mechanical attributes ensure that FR4 epoxy sheets or FR4 epoxy board can maintain their form and function under various operating conditions.

Moisture Absorption and Dimensional Stability

The behavior of FR4 epoxy sheets in humid environments is crucial for maintaining the reliability of electronic components:

- Moisture absorption: Typically less than 0.5% by weight after 24 hours of immersion.

- Dimensional stability: Minimal change in dimensions (less than 0.1%) after exposure to elevated temperatures and humidity.

- Water absorption: Generally below 0.15% after long-term immersion, ensuring consistent electrical properties.

These characteristics help prevent warpage, delamination, and changes in electrical performance due to environmental factors.

Chemical Resistance and Durability

FR4 epoxy sheets demonstrate excellent resistance to various chemicals and environmental factors:

- Solvent resistance: High resistance to common organic solvents used in electronics manufacturing.

- Acid and alkali resistance: Capable of withstanding exposure to mild acids and bases without significant degradation.

- UV stability: Maintains properties when exposed to ultraviolet light, suitable for outdoor electronic applications.

- Long-term reliability: Retains mechanical and electrical properties over extended periods, contributing to the longevity of electronic devices.

These durability features make FR4 epoxy sheets suitable for use in diverse environments and applications within the electronics industry.

Conclusion

FR4 epoxy sheets stand as a cornerstone material in the electronics industry, offering a unique combination of electrical, thermal, and mechanical properties. Their versatility, reliability, and performance characteristics make them indispensable for a wide range of applications, from simple printed circuit boards to complex high-frequency devices. By understanding the nuanced properties of FR4 epoxy sheets, electronics professionals can make informed decisions, optimizing their designs for enhanced performance, durability, and safety. As technology continues to evolve, FR4 epoxy sheets remain at the forefront of innovation in electronic materials, adapting to meet the ever-increasing demands of modern electronic systems.
