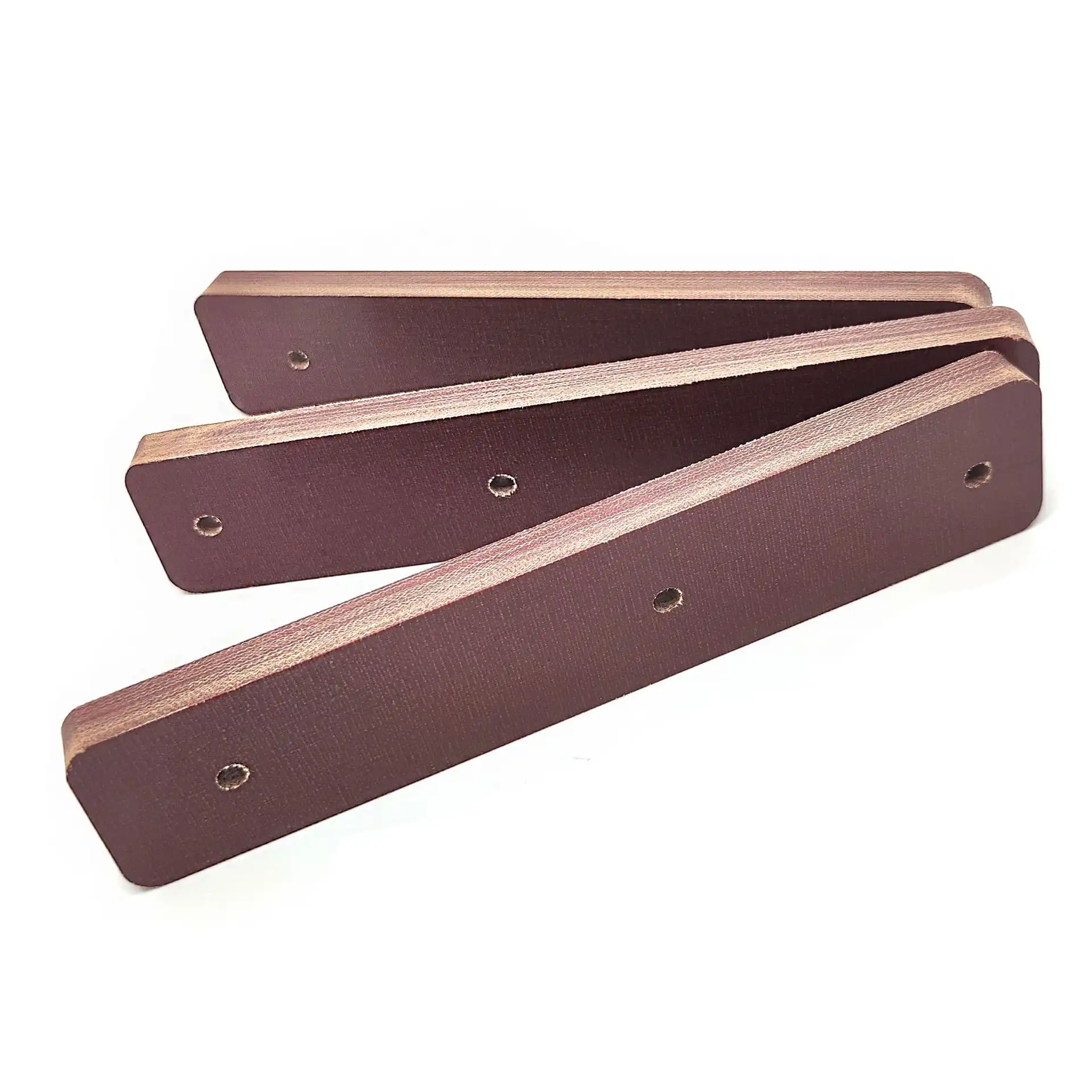

Managing Thermal Buildup When Milling Large NEMA CE Sheet Components

Controlling thermal buildup is very important when working with large NEMA CE sheet components to keep the material's structure and make sure the certification requirements are met. Too much heat during milling processes weakens the structural qualities of phenolic laminates, causing the resin to break down, the dimensions to warp, and the dielectric strength to be lost. When engineers know how friction, cutting forces, and the properties of the material affect each other, they can come up with plans that protect both the workpiece and the approval status needed for electrical covers and power distribution applications.

Understanding Thermal Buildup in Large NEMA CE Sheet Milling

The Physics Behind Heat Generation

Milling large-format phenolic cotton laminates makes heat in three main ways: mechanical friction between the tool and the object, plastic deformation of the resin matrix, and the inability to form chips. In contrast to metal machining, thermoset materials such as canvas-based phenolic laminates are not as good at transferring heat through thermal conductivity. The structure of the cotton reinforcements makes areas where heat builds up, especially when cutting pieces that are more than half an inch thick. Spindle speeds above 3,000 RPM and fast feed rates make this problem worse by raising temps above 130°C, which is the Class B limit for the material.

Consequences of Uncontrolled Heat

Thermal harm shows up in a number of ways that directly affect how well the NEMA CE sheet works. Resin carbonization makes burn marks that aren't the same color along the edges of cuts. This is a sign of chemical breakdown that makes the bond between laminate layers weaker. We've seen that when internal temps rise, physical stability goes down. Sheets can warp by 0.015 inches or more over a 24-inch span, which is unacceptable for switchgear parts that need to be within tight tolerances. When phenolic resin is heated, the dielectric breakdown voltage drops significantly, which puts at risk the electrical safety standards that clients in the power sector need.

Material-Specific Thermal Characteristics

Grade CE phenolic cotton sheets react to heat in a different way than glass-reinforced epoxy laminates. The base of the cotton cloth soaks up wetness from the air, which changes how heat moves through the material when it is being cut. Electrical-grade formulas (with the CE and LE labels) have resin modifiers that make the shape more stable when heated but need different cutting settings. When buying teams know about these differences in materials, they can choose the right grade for situations where the accuracy of grinding has a direct effect on the final assembly tolerances in motor housings or transformer barriers.

Key Principles for Managing Thermal Buildup in NEMA CE Sheet Components

Fundamental Heat Dissipation Strategies

Realizing that phenolic laminates act as thermal insulators instead of conductors is the first step in controlling temperature well. Instead of depending on the qualities of the material, heat must be taken out of the cutting zone by cooling it from the outside. Coolant distribution methods should keep the fluid in contact with both the edge of the tool and the newly cut surface all the time. Compressed air blast cooling is good for small cuts but not for taking away material at speeds higher than 10 cubic inches per minute. Liquid coolants are better at absorbing heat, but they need to be tested for compatibility with the material to make sure that cotton-based types don't swell up from the wetness.

Optimizing Milling Parameters for Thermal Management

To balance output with temperature limits, you need to be very careful when choosing the parameters. Cutting the depth of cut from 0.125 inches to 0.080 inches per pass makes a lot less heat and makes the tool last longer. Temperatures stay within acceptable ranges for constant operation when feed rates are between 8 and 15 inches per minute. The width of the tool affects the spindle speed. For example, smaller end mills need higher RPMs but produce more friction heat per unit of material removed. We suggest keeping track of temperature readings during the first production runs so that you have a starting point for each mix of material thickness and grade.

Maintaining Certification Compliance Through Process Control

NEMA grades depend on the material qualities being the same throughout all of the parts that were made. If thermal damage weakens the dielectric strength or makes the measurements less accurate, licenses can be revoked. This can make it hard to get insurance for electrical boxes used in industrial settings. Quality control procedures should include checking the workpiece after it has been machined for signs of heat, like discoloration, delamination at the cut edges, or departure from the flatness standards that were set. When making a lot of precision parts, even small changes in temperature can add up to big changes in quality that make it harder to check for compliance. This is when statistical process control comes in handy.

Effective Milling Techniques to Minimize Thermal Buildup

Advanced Tooling Solutions

Compared to high-speed steel tools, carbide-tipped cutting tools with special finishes produce a lot less heat through friction. Titanium aluminum nitride (TiAlN) layers keep things hard even at high temperatures by making a surface with low friction that lowers the cutting forces. The shape of the tool is very important. Positive rake angles between 10 and 15 degrees cut through material more effectively, turning less kinetic energy into heat energy. When edges wear down and cause more friction, insert-style cutting can be quickly replaced. This keeps the heat performance constant throughout production runs without having to change the whole tool.

Adaptive Machining Strategies

With variable feed rate setting, the cutting speed is changed based on the real-time power draw. When the force needed to remove material rises, the machine automatically slows down. This flexible method stops thermal overload in places where the density of the material changes or where previous processes caused areas of high internal stress. For phenolic laminates, climb milling makes smoother cuts with less heat generation than standard milling, but the machines have to be set up rigidly to stop chatter. Allowing stay times between heavy roughing passes lets built-up heat escape before the next cut, which is especially important when working on parts with complicated pocket shapes.

Thermal Monitoring and Quality Verification

Infrared temperature monitors placed close to the cutting zone give constant feedback that can cause changes to be made to the process before thermal damage happens. We've built heat tracking into CNC programs that stop work when surface temperatures of NEMA CE sheet get close to 110°C so that they can cool down before continuing. Verification of dimensions after cutting should happen after the parts have cooled down to room temperature, since measures taken on warm parts give inaccurate results that don't match the final installed dimensions. The number of transformers that were scrapped dropped by 40% after the company we worked with put in place thermal tracking routines that caught overheating problems during initial roughing operations.

Comparing Thermal Management Solutions for NEMA CE Sheet Milling

Traditional flood cooling systems use a lot of fluid, which is great for getting rid of heat but can cause problems with wetness for cotton-reinforced laminates that absorb it. Mist cooling systems break up coolant into tiny droplets that cool the object quickly while avoiding direct touch with the liquid, which lowers the risk of moisture absorption problems. Using liquid nitrogen or carbon dioxide for cryogenic freezing is the best way to control temperature, but it needs special tools and safety rules that make it harder to use. Minimum quantity lubrication (MQL) uses tiny amounts of grease mixed with compressed air to keep things cool while using as little fluid as possible.

Each method comes with its own set of costs. For medium-sized businesses, flood coolant systems cost an extra $2,000 to $5,000 a year because they need infrastructure for filtering and removal. Cryogenic systems have higher costs for consumables but don't have to pay to get rid of coolant. MQL equipment requires a modest initial investment and cheap ongoing costs, which makes it appealing for shops that only work with phenolic materials. Environmental laws are pushing for dry or almost dry machining methods more and more. This is especially true for ISO 14001-certified facilities, which have to choose a process that produces the least amount of trash.

The choice of cooling method is affected by how well it meets NEMA rating standards. If you want to put parts in NEMA 4X containers that will be exposed to corrosive environments, you should not use coolants that have chlorinated chemicals because they might leave behind leftovers that make the material less stable over time. When the power distribution industry needs arc barrier parts, they often ask for them to be machined without any pollution that might affect how well they work during high-voltage tests. When procurement teams are qualifying suppliers, knowing these application-specific standards helps them choose the right machining methods.

Procurement and Supplier Considerations for NEMA CE Sheet Milling Components

Verifying Material Certifications and Supplier Capabilities

Reliable sources provide full material tracking, including test records for each batch of NEMA CE sheet that show the dielectric strength, moisture absorption, and dimensional stability. As part of ASTM D709 compliance verification, phenolic cotton sheets are checked to make sure they meet basic performance standards. NEMA LI-1 approval checks the electrical properties of each grade. Procurement managers should ask for proof that materials are stored and handled in a way that keeps them at the right temperature. This is because materials that are exposed to too much heat or humidity before they are machined don't work as well when they are machined.

Negotiating Terms for Large-Scale Projects

Looking closely at a supplier's cutting skills needs more than just looking at basic CNC equipment lists. Temperature-controlled production settings keep outside factors from changing how materials behave while they are being processed. Quality systems that include thermal tracking, recorded parameter validation, and statistical process control show that providers can keep results consistent over long production runs. We've found that suppliers with specialist thermoset machining teams know more about how phenolic laminates react to heat than general-purpose machine shops that work with a variety of materials.

When you buy more than 500 square feet of phenolic sheet at once, you can usually get 15% to 25% off the price. However, the exact prices rely on the material grade and thickness requirements. By making blanket buy deals with scheduled releases, you can plan your costs more accurately and let providers make the best use of production schedules to improve thermal management during milling. Offering value-added services, such as pre-cut blanks that are the right size for particular parts, cuts down on material waste and cutting time. This indirectly improves thermal control by lowering the total cut length needed.

When thermal problems come up in new uses, long-term ties with suppliers make it possible to work together to solve the problem. Technical support that goes beyond the initial buy, such as on-site machine talks and thermal profiling help, sets providers who care about their customers' success apart. Purchasing professionals who work with clients in the power or car sectors can benefit from suppliers that send certification update messages when standards change. This way, ongoing compliance can be ensured without having to constantly keep an eye on changing requirements.

Conclusion

To control the rise of heat during large-scale phenolic laminate grinding, you need a plan that includes the right tools, the best settings, and good ways to cool down. When engineering teams know the thermal properties of a material, they can choose methods that keep the structure's integrity and make sure they meet approval requirements. Thermal management is becoming more and more important for competitive manufacturing as the electrical and industrial sectors demand better tolerances and higher dependability. When buying something, the choices you make about which material grade to use, what the seller can do, and the exact steps needed for the cutting process all affect the quality of the final product and the long-term success of your business.

FAQ

How does thermal management preserve NEMA CE ratings during milling?

When temps are controlled, the resin doesn't break down or change size, which would damage the electrical insulation qualities and physical safety levels set by NEMA standards. Keeping the material's temperature below 110°C while cutting it keeps its dielectric strength and stops delamination that could throw off certification testing results.

What milling parameters most significantly affect thermal buildup?

The biggest effects on temperature are the depth of cut and the speed of the needle. Lowering the depth of each pass from 0.125 inches to 0.080 inches per pass makes a big difference in reducing heat production. Spindle speeds between 2,500 and 3,500 RPM are good for most phenolic cotton sheet thicknesses because they balance output with thermal control.

What factors in milling have the biggest impact on heat buildup?

Burn lines and staining show that the item was exposed to too much heat. Measuring the dimensions after thermal stability can find warping, and measuring the dielectric strength can find loss of electrical properties. Before parts go into the assembly process, these steps of checking should be done.

Partner with J&Q for Thermally Optimized NEMA CE Sheet Solutions

J&Q has been making thermoset laminates for more than 20 years and has also been trading internationally for ten years, helping clients in the electrical, industrial machinery, and power sectors. Our temperature-controlled machining centers and written thermal management routines make sure that all of our precision-milled phenolic cotton sheet parts stay in line with certification requirements during production. As a well-known NEMA CE sheet supplier, we offer full material tracking, testing documents specific to each batch, and expert support for tough thermal uses. Our combined logistics skills allow us to provide a one-stop service from purchasing materials to delivering final parts. Get in touch with our engineering team at info@jhd-material.com to talk about your thermal management needs and find out how our tried-and-true methods can help you keep your product's quality and approval status.
