Understanding FR4 Material Properties and Applications
Composition and Characteristics of FR4

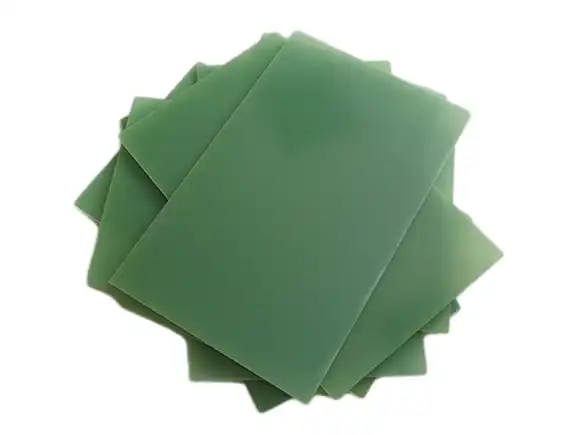

FR4, short for Flame Retardant 4, is a composite material consisting of woven fiberglass cloth impregnated with an epoxy resin binder. This unique composition endows FR4 with remarkable properties, making it a preferred choice in various high-performance applications. The glass fibers provide mechanical strength and dimensional stability, while the epoxy resin contributes to excellent electrical insulation and moisture resistance.
Key characteristics of FR4 include:
- High strength-to-weight ratio
- Excellent electrical insulation properties
- Low moisture absorption
- Good thermal stability
- Flame retardant capabilities
- Favorable machinability
These properties make FR4 epoxy sheets and boards ideal for applications requiring both mechanical strength and electrical insulation.
Common Applications of FR4 in High-Performance Components
FR4 finds extensive use in numerous industries due to its versatile properties. Some common applications include:
- Printed Circuit Boards (PCBs): FR4 serves as the primary substrate material for PCBs, providing a stable foundation for electronic components.
- Aerospace and Defense: FR4 components are utilized in aircraft interiors, radomes, and military equipment due to their lightweight nature and electromagnetic shielding properties.
- Automotive: FR4 is employed in various automotive components, including electrical insulators and structural parts.
- Industrial Machinery: FR4 sheets and boards are used in the construction of industrial equipment, offering both insulation and structural support.
- Medical Devices: FR4 components find applications in medical imaging equipment and diagnostic devices, benefiting from their non-conductive properties.
Advantages of FR4 over Alternative Materials
When compared to other materials used in high-performance components, FR4 offers several distinct advantages:
- Cost-effectiveness: FR4 provides an excellent balance of performance and affordability, making it a cost-effective choice for many applications.
- Versatility: The material's adaptability allows for use in a wide range of applications across various industries.
- Ease of Machining: FR4 can be easily machined using various techniques, enabling the creation of complex geometries and precise components.
- Thermal Stability: FR4 maintains its properties across a wide temperature range, ensuring consistent performance in diverse environments.
- Chemical Resistance: FR4 exhibits good resistance to many chemicals, enhancing its durability in challenging operational conditions.
Essential Machining Techniques for FR4 Materials
CNC Routing: Precision and Versatility in FR4 Fabrication
CNC (Computer Numerical Control) routing is a widely employed technique for machining FR4 sheets and boards. This method offers unparalleled precision and versatility in creating complex geometries and intricate details.
Key aspects of CNC routing for FR4 include:
- Tool Selection: Carbide-tipped or diamond-coated tools are often used to withstand the abrasive nature of FR4.
- Cutting Parameters: Optimal spindle speed, feed rate, and depth of cut are crucial for achieving clean edges and preventing delamination.
- Dust Extraction: Efficient dust collection systems are essential to manage the fine particles generated during machining.
- Temperature Control: Monitoring and controlling the temperature during cutting helps prevent thermal damage to the FR4 material.
- CNC routing allows for the creation of precise cutouts, slots, and holes in FR4 sheets, making it ideal for producing custom PCB shapes and other specialized components.
Laser Cutting: Achieving High-Precision Edges in FR4 Components
Laser cutting has emerged as a powerful technique for machining FR4 materials, offering exceptional precision and clean edge quality. This non-contact method utilizes a focused laser beam to vaporize the material along the cutting path.
Advantages of laser cutting FR4 include:
- Minimal Heat Affected Zone (HAZ): The concentrated energy of the laser beam results in minimal thermal distortion of the surrounding material.
- High-Speed Processing: Laser cutting can achieve rapid cutting speeds, enhancing productivity in FR4 component manufacturing.
- Complex Geometries: The ability to create intricate shapes and fine details makes laser cutting ideal for producing sophisticated FR4 components.
- No Tool Wear: As a non-contact process, laser cutting eliminates the need for tool replacement, reducing maintenance costs.
Laser cutting is particularly effective for thin FR4 sheets and applications requiring extremely precise edge quality.
Water Jet Cutting: Cold Cutting Solution for FR4 Fabrication
Water jet cutting offers a unique approach to machining FR4 materials, utilizing a high-pressure stream of water mixed with abrasive particles to cut through the material. This cold cutting process presents several advantages for FR4 fabrication:
- No Thermal Distortion: The absence of heat generation during cutting eliminates the risk of thermal damage to the FR4 material.
- Versatility: Water jet cutting can handle a wide range of FR4 thicknesses, from thin sheets to thick boards.
- Clean Edges: The process produces smooth, burr-free edges, reducing the need for secondary finishing operations.
- Material Conservation: The narrow kerf width of water jet cutting minimizes material waste, improving overall efficiency.
Water jet cutting is particularly advantageous for thick FR4 boards or applications where thermal effects must be avoided entirely.
Optimizing FR4 Machining for High-Performance Components
Tool Selection and Optimization for FR4 Machining
Selecting the appropriate tools for machining FR4 epoxy board materials is crucial for achieving optimal results in high-performance component production. Considerations for tool selection include:
- Material Composition: Tools with carbide or diamond coatings are often preferred due to their ability to withstand the abrasive nature of FR4.
- Cutting Geometry: Tools with specific geometries, such as compression routers or spiral flute end mills, can help minimize delamination and produce clean edges.
- Tool Life Management: Implementing tool wear monitoring and replacement strategies ensures consistent machining quality throughout production runs.
- Customized Tools: In some cases, specially designed tools may be necessary to address unique challenges in FR4 machining for specific applications.
Optimizing tool selection and usage not only improves the quality of machined FR4 components but also enhances overall production efficiency.
Process Parameters and Best Practices for FR4 Machining
Achieving optimal results in FR4 machining requires careful consideration of process parameters and adherence to best practices. Key factors to consider include:
- Cutting Speed and Feed Rate: Balancing these parameters is crucial for achieving clean cuts while minimizing tool wear and heat generation.
- Depth of Cut: Appropriate depth of cut selection helps prevent delamination and ensures structural integrity of the FR4 component.
- Coolant Usage: Proper coolant application can help manage heat generation and improve chip evacuation during machining.
- Fixturing and Workholding: Secure and stable workholding is essential for maintaining precision and preventing vibration-induced defects.
- Dust and Debris Management: Implementing effective dust extraction systems protects both the machined components and the equipment.
By optimizing these process parameters and following established best practices, manufacturers can consistently produce high-quality FR4 components.
Quality Control and Inspection Techniques for FR4 Components
Ensuring the quality of machined FR4 components is paramount for high-performance applications. Implementing robust quality control and inspection techniques is essential:
- Dimensional Inspection: Utilizing precision measurement tools and coordinate measuring machines (CMMs) to verify component dimensions and tolerances.
- Surface Quality Assessment: Employing visual inspection and surface roughness measurement techniques to evaluate the machined surfaces of FR4 components.
- Delamination Detection: Implementing non-destructive testing methods, such as ultrasonic inspection, to identify any internal delamination within the FR4 material.
- Electrical Testing: Conducting electrical insulation and continuity tests to ensure the FR4 components meet the required electrical specifications.
- Environmental Testing: Subjecting FR4 components to simulated environmental conditions to verify their performance and durability in intended applications.
By integrating these quality control and inspection techniques into the manufacturing process, producers can ensure that machined FR4 components consistently meet or exceed the stringent requirements of high-performance applications.
Conclusion
Mastering machining techniques for FR4 materials is essential for producing high-performance components across various industries. By understanding the unique properties of FR4 sheets and boards, selecting appropriate machining methods, and optimizing process parameters, manufacturers can harness the full potential of this versatile material. The combination of CNC routing, laser cutting, and water jet cutting provides a comprehensive toolkit for addressing diverse FR4 machining challenges. As technology continues to advance, ongoing research and development in FR4 machining techniques will further enhance the capabilities and applications of this remarkable material in high-performance components.
