The Composition and Properties of FR4 Epoxy Board
Raw Materials and Manufacturing Process

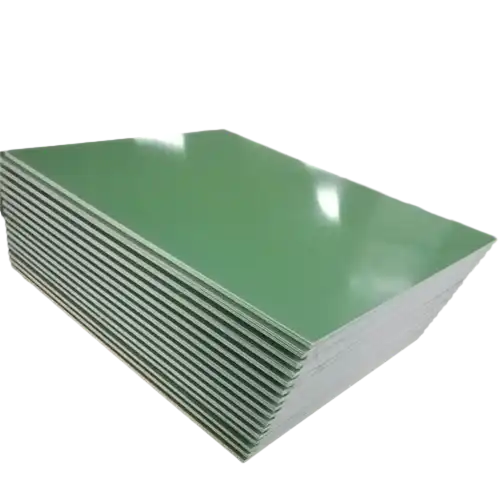

FR4 epoxy board is produced by combining layers of woven fiberglass cloth with a specially formulated epoxy resin. This resin acts as a binding agent, providing rigidity and insulation. The fiberglass layers are impregnated with resin and carefully stacked before undergoing lamination - a process that applies heat and pressure to cure the resin and fuse the layers into a solid sheet. This results in a highly stable and durable FR4 sheet that exhibits consistent performance and dimensional integrity across a wide range of applications.
Electrical Characteristics of FR4
The FR4 epoxy sheet is engineered to provide excellent electrical insulation, which is critical for high-performance electronic components. Its high dielectric strength prevents electrical breakdown, while its low dielectric constant supports signal clarity and speed. The material also offers strong insulation resistance, which reduces leakage currents and enhances circuit stability. These attributes make FR4 an ideal choice for printed circuit boards (PCBs), high-frequency devices, and other sensitive electrical systems that demand consistent performance and signal fidelity.
Thermal and Mechanical Attributes
FR4 epoxy board is not only electrically efficient but also excels in thermal and mechanical performance. It can operate under elevated temperatures without losing structural integrity, making it suitable for heat-generating components. Its low thermal expansion rate ensures dimensional stability, even in changing environmental conditions. Mechanically, the fiberglass reinforcement provides impressive tensile and flexural strength, allowing the FR4 sheet to withstand physical stress such as drilling, vibration, and impact. These qualities ensure long-term reliability in applications from consumer electronics to aerospace systems.
Insulation Grade Classifications and Standards
UL94 Flammability Rating
The UL94 flammability rating is an essential benchmark used to evaluate the fire resistance of insulating materials such as the FR4 epoxy sheet. This standard classifies materials based on how they burn when exposed to an open flame, with criteria including ignition time, burn length, and dripping behavior. FR4 typically earns a V-0 rating - the highest classification - indicating that it stops burning within 10 seconds without dripping flaming particles. This high level of flame retardancy makes FR4 highly suitable for applications where fire safety is paramount.
IPC Standards for FR4 Materials
The Institute for Printed Circuits (IPC) defines stringent performance standards for FR4 epoxy boards, particularly those used in printed circuit boards (PCBs). These IPC specifications - such as IPC-4101 - cover key parameters like glass transition temperature (Tg), dielectric constant, mechanical strength, and thermal stability. Meeting IPC standards ensures that FR4 materials are consistent in quality, reliable in performance, and compatible with high-density, multilayer PCB designs. For manufacturers, IPC compliance is a mark of trust, enabling the production of dependable electronic assemblies across global markets.
Dielectric Strength and Breakdown Voltage
Dielectric strength is a fundamental property of FR4 epoxy sheets that defines their capacity to resist electrical breakdown under high-voltage stress. Measured in volts per unit thickness (typically kV/mm), this parameter helps engineers determine the maximum voltage the material can withstand without allowing current to pass through. A high dielectric strength ensures excellent insulation, which is especially critical in applications such as transformers, power supplies, and high-voltage PCBs. By optimizing FR4’s dielectric properties, manufacturers can enhance system safety, longevity, and electrical performance.
Applications and Considerations for FR4 Insulation
PCB Manufacturing and Electronics
The primary application of FR4 epoxy board lies in printed circuit board (PCB) production, where its outstanding insulation and mechanical stability are critical. FR4’s ability to maintain precise dimensions during fabrication allows for accurate layering in complex multilayer PCBs. This makes it ideal for use in consumer electronics, telecommunications, and industrial control systems. The insulation grade directly influences the electrical performance and durability of PCBs, ensuring signal integrity and long-term reliability in a wide variety of electronic devices.
Aerospace and Defense Applications
In aerospace and defense industries, the high-performance FR4 epoxy sheet is valued for its ability to preserve insulation properties under extreme environmental stressors. Operating conditions such as low atmospheric pressure, rapid temperature changes, and exposure to vibration require materials with exceptional stability. FR4’s flame retardancy and electrical insulation reliability make it suitable for avionics, radar systems, and satellite electronics. Selecting the correct insulation grade ensures these critical systems function safely and reliably in demanding aerospace and defense applications.
Environmental Factors and Insulation Performance
Although FR4 epoxy board provides excellent insulation, environmental conditions such as humidity, temperature extremes, and exposure to chemicals can degrade its performance over time. Moisture absorption may reduce electrical resistance, while thermal cycling can induce mechanical stress leading to micro-cracks. Chemical exposure might affect the epoxy matrix, altering insulation properties. Designers and engineers must evaluate these factors carefully, selecting FR4 materials with appropriate insulation grades to guarantee stable performance and longevity throughout the product’s operational life.
Conclusion
The insulation grade of FR4 epoxy board and FR4 sheet is a cornerstone of its functionality and versatility in the electronics industry. Its unique composition of fiberglass and epoxy resin yields a material with superior electrical insulation, mechanical strength, and thermal stability. By understanding the nuances of FR4's insulation properties, manufacturers and designers can optimize their products for performance, reliability, and safety across a wide spectrum of applications. As technology continues to advance, the role of FR4 epoxy sheet in enabling innovation and progress remains indispensable.
