Laser Cutting FR4 for Precision PCBs

Cutting FR4 with a laser to make precise PCBs is a completely new way to make electronics today. The standard base material in the industry is FR4 sheet, which is made of woven fiberglass cloth that is soaked with epoxy resin. This advanced cutting method solves important problems that engineering managers and buying teams face by providing better edge quality, more accurate measurements, and less heat stress than traditional mechanical routing. As electronic devices need more precise measurements and higher dependability, laser processing of FR4 materials has become an essential way to make sure that PCB production results are always of high quality.

Understanding FR4 Material and Its Role in Precision PCB Manufacturing

Choosing the right materials is the first step in making sure that your PCBs are effective. FR4 is the most popular choice in electrical and electronics making because it has the right amount of electrical insulation, mechanical strength, and temperature stability.

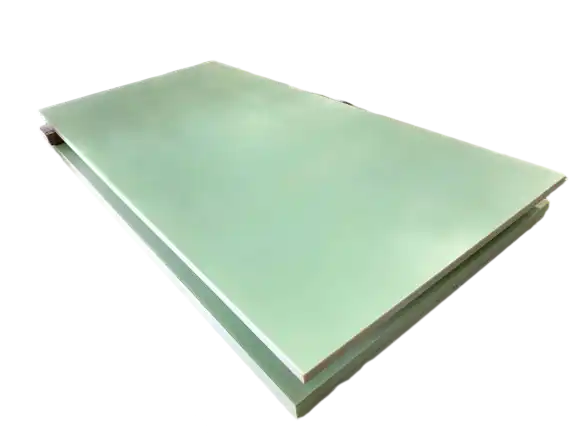

Composition and Core Properties of FR4 Laminates

The name "FR4" comes from the fact that it is "flame retardant 4," which means it can put out fires on its own according to UL94 V-0 standards. The material is made up of several layers of knitted fiberglass cloth that has been mixed with epoxy glue and then pressed together under high heat and pressure. This composite structure has a high dielectric strength, usually between 20 and 35 kV/mm, which stops electricity from leaking across circuit traces. The material works well in a wide range of temperatures, from -50°C to 130°C, so it can be used in a variety of settings in industry machinery, car electronics, and power distribution equipment.

Thickness Variations and Design Flexibility

FR4 laminates come in a range of sizes, from 0.2 mm to 6 mm, so they can be used for a wide range of design needs. For smaller device designs, thinner bases are needed, while thicker boards are better for structural uses because they are more rigid. To get the best signal integrity in multilayer setups, engineering managers often ask for special thickness combinations. The constant thickness tolerance—usually within ±10% for normal grades—ensures accurate impedance control, which is very important for high-frequency uses in aircraft and telecommunications electronics.

Comparative Advantages Over Alternative Substrates

When compared to Rogers laminates, metal core PCBs, or ceramic substrates, FR4 has clear benefits in most situations. Metal core boards are great at getting rid of heat, but they need special tools to be made and cost more to buy. Rogers materials work better at high frequencies, but they cost more, which might not make sense for uses outside of RF applications. FR4 is the best combination of efficiency and cost-effectiveness, especially when it is processed through modern laser cutting systems that make the best use of materials and reduce waste.

Laser Cutting Technology: Enhancing FR4 PCB Fabrication

Using traditional mechanical routing for PCBs comes with problems like tool wear, delamination risks, and uneven dimensions. Laser cutting technology gets around these problems by working without touching the material and producing accurate results.

Laser System Fundamentals for FR4 Processing

There are two main types of lasers used to cut FR4: CO2 lasers with a wavelength of 10.6-microns and fiber lasers with a wavelength of about 1-micron. When the conditions are just right, CO2 systems can effectively remove the organic epoxy matrix while completely vaporizing the glass support. This leaves smooth edges with little to no charring. Fiber lasers are faster and use less energy than other lasers, but when setting up the parameters, it's important to be careful not to create too many hot spots. The best cutting speeds are between 200 and 800 mm/s, based on the thickness of the material, the laser's power output, and the quality of the edge that is wanted.

Process Parameter Optimization

To get better results, you need to have exact control over many factors. For FR4 sheets that are between 0.5 mm and 3 mm thick, the laser power settings are usually between 30 and 150 watts. The focus position on the material surface has a big effect on the kerf width and edge perpendicularity. Beams that are slightly defocused often give better results than points of focus that are right on the surface. The choice of assist gas affects both the speed and cleaning of the cutting edge. Compressed air is good for most tasks, but nitrogen atmospheres can prevent oxidation discoloration for tasks that need to look perfect.

Measured Performance Improvements

Companies that use laser cutting to handle FR4 say they see measurable gains. The accuracy of the dimensions goes up to ±0.05 mm, which is better than the ±0.15 mm that is common with mechanical routing. By getting rid of tool changes and reducing the need for fixturing, production rate goes up by 40 to 60 percent. Defect rates go down a lot—delaminations happen about 75% less often—and edge quality consistency gets better, which cuts down on processing steps further down the line. These changes directly lead to more reliable products and fewer guarantee claims for companies that make electronics for the medical, industrial, and automobile sectors.

Choosing the Right FR4 Material and Supplier for Laser-Cut Precision PCBs

Choosing where to get materials has a big effect on how things turn out in making. When choosing FR4 materials and forming partnerships with suppliers, technical buying teams have to look at a number of factors.

Critical Material Specifications

The FR4 grade labels show certain success traits. Standard FR4 is good for most general electronics uses, but there are also specialized versions that have better properties. For example, high Tg (glass transition temperature) grades keep their shape during lead-free soldering processes, halogen-free formulations meet environmental standards, and low-loss versions are good for high-frequency circuit designs. Impedance control is affected by how consistent the dielectric constant (Dk) is across production lots. For important RF uses, choose materials with Dk variations less than ±0.05. When building structural insulation parts, mechanical engineers should make sure that the flexural strength is higher than 415 MPa to make sure that the parts will last under working loads.

Supplier Evaluation Framework

To build solid supply lines, you need to carefully evaluate your suppliers. Check standards like UL recognition for flame retardancy promises and ISO 9001 quality management systems. Ask for proof of testing for dielectric strength, water absorption, and peel strength. Reliable providers will give you full material data sheets with real test results instead of general standard ranges. Different providers have very different minimum order numbers. Some allow prototype amounts as low as 5–10 sheets, while others need pallet quantities. Lead times for normal thicknesses are usually between 2 and 4 weeks, but they can be up to 6 to 8 weeks for special orders.

Technical Support and Customization Capabilities

The most valuable supplier relationships extend beyond material transactions. Find people who can help with application engineering and can suggest the best FR4 grades based on your needs. Customization services, such as pre-cut blocks, CNC machining, and special surface processes, make it easier for factories to make things. When suppliers keep a wide range of thicknesses and copper cladding choices in stock, they can adapt to changing project needs without having to make design compromises because of limited material supply.

Best Practices and Technical How-Tos for Laser Cutting FR4 PCBs

To get the most out of laser cutting, you need to pay attention to planning, process execution, and proof after processing.

Design Considerations for Laser Processing

Laser-friendly features should be built into circuit board layouts. Keep a minimum of 0.3 mm of space between cut paths and copper traces to keep nearby circuits from getting damaged by heat. Instead of sharp curves, use corner radii—a 0.5 mm radius reduces stress concentrations and makes cutting more efficient. Orient cut lines to keep changes in direction to a minimum. This will cut down on processing time and make edges more consistent. Panelization techniques that group profiles with similar shapes and sizes increase throughput by letting cutting processes go on without having to be repositioned often.

Pre-Processing and Fixturing Requirements

Before laser processing, clean the FR4 sheet surfaces to get rid of any dirt or dust that could lead to inconsistent results. Isopropyl alcohol wipes get rid of oils and residues well. Use vacuum hold-down systems or edge clamps to keep things in place without getting in the way of the laser beam. Verifying the flatness is very important because material warpage of more than 0.5 mm across the processing area leads to focus differences that lower the quality of the edges. Pre-drying things that have been stored at 80°C for two to four hours gets rid of the wetness that they absorb and makes the edges rough.

Quality Control and Inspection After Cutting

Set up systematic processes for checking to make sure that the result is always the same. When looked at closely under a microscope, edge flaws like charring, resin smearing, or fiber growth can be seen. Using calibrated tools to measure dimensions proves that they are within the tolerances set by the manufacturer. Coordinate measuring machines offer full verification for complicated shapes. Electrical testing shows that laser processing has not changed the insulation resistance; compare values between neighboring lines to make sure readings are higher than 100 megohms. Copper-to-laminate bonding stays strong next to laser-cut edges thanks to mechanical testing using peel strength evaluation.

Cost, Procurement, and Logistics Insights for FR4 Laser-Cut PCBs

Buying plans for laser-processed FR4 parts are based on practical and financial factors.

Cost Structure Analysis

The price of FR4 laminate depends on its thickness, the way the copper covering is set up, and any special formulas that are needed. Prices per square meter for standard grades are usually between modest and expensive, while prices for high-performance grades are higher. Laser cutting service fees include the cost of running the machine, the time it takes to set up, and how complicated the job is. Total costs are affected by how well materials are used; improved nesting methods that reduce scrap production cut costs per unit by 15–25%. Economies of scale are caused by factors like volume; when compared to small-quantity sales, bulk buying programs often lead to price cuts of 20–30%.

Regional Sourcing Strategies

There are many choices in global production lines. Domestic suppliers in the United States offer benefits like shorter wait times, easier transportation, and direct technical contact, but the cost of materials may be higher than those from foreign sources. Asian providers have low prices and a lot of space, but the trade-offs are longer transit times and possibly more difficult contact. For projects that need special grades or certifications, European sources work well. Having ties with several suppliers in different areas makes the supply chain more stable, lowering the risk of problems caused by disruptions in one region or a lack of capacity.

Minimum Order Sizes and Delivery Times

MOQ standards are very different between vendors. When you buy directly from a manufacturer, you may have to make bigger promises that are better for established production plans, but distributors can usually handle smaller amounts that are good for prototyping or low-volume production. Standard materials ship within days to weeks, but unique specs cause production schedules to increase lead times. Strategic inventory management weighs the costs of keeping inventory against the need to keep making things. The amount of safety stock you keep should take into account changes in lead times and changes in demand. Through OEM partnership agreements, specialized inventory programs can be set up to make sure that materials are always available and in line with production plans.

Conclusion

Laser cutting technology has greatly improved the ability to make FR4 PCBs, providing accuracy, stability, and speed that were not possible with older methods. Advanced laser systems and high-quality FR4 sheet surfaces work well together, which helps electronics companies meet stricter standards in consumer, industrial, power, and car settings. Your success rests on how well you choose your materials, how well you optimize your process factors, and how well you work with your suppliers. When companies use these cutting-edge manufacturing methods, they set themselves up to make better goods while keeping their costs low and their delivery times reliable.

FAQ

Can laser cutting damage the electrical properties of FR4 sheets?

When laser settings are properly adjusted, they have the least amount of effect on the electrical properties of FR4. When the production conditions are right, the heat-affected zone is usually less than 0.1 mm from the cut edges. This small amount of heat exposure keeps the dielectric strength and shielding resistance of the whole material. Independent tests show that when best practices are followed, laser-cut FR4 sheets keep the same electrical performance as materials that were handled physically.

What is the thinnest material that can be cut with a laser?

Laser systems can work with FR4 laminates that are as thin as 0.2 mm, but it gets harder to handle and fixture laminates that are thinner than 0.5 mm. To keep from building up too much heat, thinner materials need lower power sets and faster cutting speeds. Most precision PCB uses thicknesses between 0.8 and 2.0 mm. This is the best range for laser cutting because it combines speed, edge quality, and accurate measurements.

How does FR4 compare to Rogers or metal core boards for laser processing?

When it comes to laser cutting, FR4 works better than specific surfaces. Rogers materials need factors to be carefully controlled so that their PTFE-based dielectrics don't delaminate. To cut through aluminum or copper base layers, metal core boards need a lot more laser power, which slows down processes and raises costs. The balanced mix of glass reinforcement and epoxy resin in FR4 makes it react regularly to laser energy. This makes it the most useful substrate for laser manufacturing in a wide range of situations.

Partner with J&Q for Premium FR4 Sheet Solutions

J&Q has been making and providing high-quality insulation materials to the electronics and industry sectors around the world for more than twenty years. We can give you exactly what your precision PCB projects need because we know a lot about how to use FR4 sheets and have been trading internationally for ten years. We keep a large collection of materials in a wide range of thicknesses and performance grades to make sure that your production plans are met. Our combined logistics services make delivery planning easy, getting rid of the supply chain problems that procurement teams often face. Our expert support staff works with your engineering teams to find the best materials and processing methods for your needs, whether you need small quantities for prototypes or large quantities for production runs. Get in touch with us at info@jhd-material.com to talk about your unique FR4 sheet provider needs and find out how our proven skills can help your manufacturing operations.
