Four Common FR4 Epoxy Sheet Processing Methods

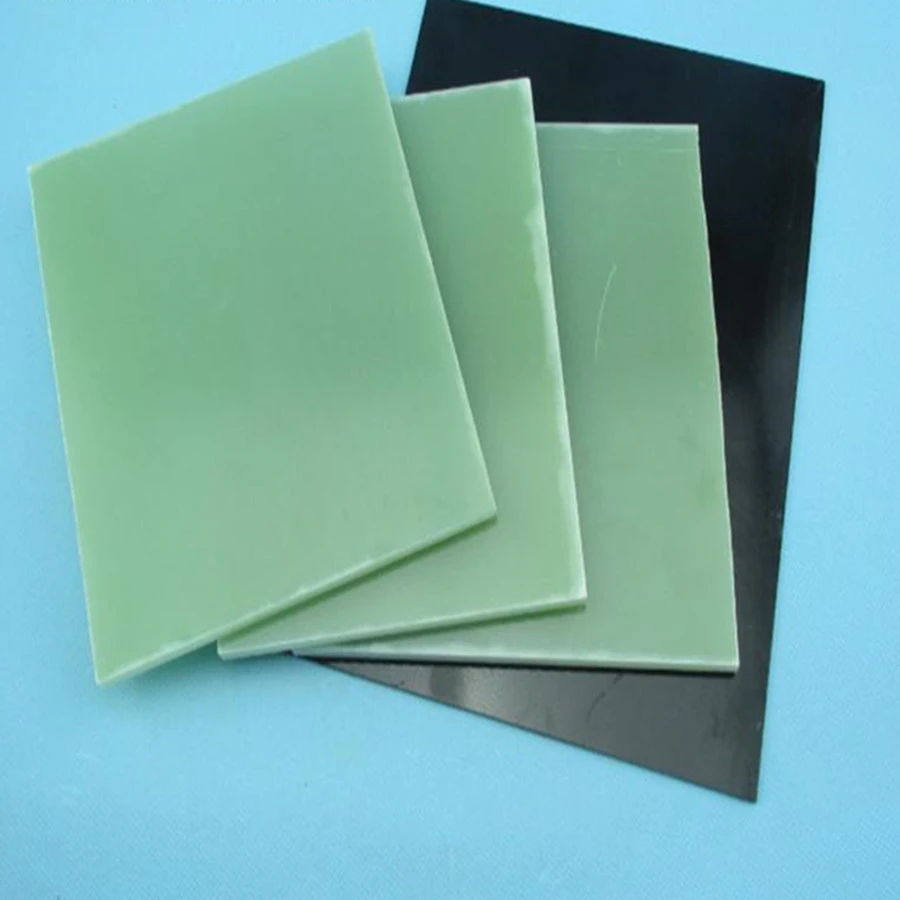

When working with FR4 epoxy sheet, knowing the right way to handle it makes all the difference in getting good results and saving money. At its core, FR4 is a flame-resistant composite material made of fiberglass cloth that is glued together with epoxy resin. CNC machining, laser cutting, waterjet cutting, and drilling/punching are the four main processing methods. Each has its own benefits, based on your production needs, level of accuracy, and number needs. Choosing the right method affects not only how accurately your parts are measured, but also how long it takes to make them, how much material is wasted, and how much the whole job costs.

Understanding FR4 Epoxy Sheet: Key Properties and Application Context

When it comes to high-performance insulation materials, FR4 epoxy sheet stands out because it has great electrical qualities and strong mechanical properties. The substance is made of woven fiberglass cloth that has been mixed with epoxy glue and then heated and compressed very hard to make a stiff, stable laminate.

Core Physical and Chemical Properties

The material has a very high dielectric strength and can keep its electrical insulation resistance above 500 megaohms even when it's wet. The "FR" mark means that it is self-extinguishing and meets UL 94 V-0 flammability standards. This is an important safety feature that sets it apart from options that aren't flame-retardant. For normal grades, temperature stability stays the same up to 130°C. Specialized versions can handle 200–250°C settings. The rate of moisture absorption stays incredibly low at about 0.01% after being submerged in water for 24 hours. This keeps the insulation from changing size and staying strong in tough circumstances.

Industrial Applications Across Sectors

This laminate material is used by electrical and electronics companies to make PCB boards, switchgear insulation, and motor parts that need to be electrically isolated and strong. Manufacturers of industrial machinery use phenolic and epoxy laminates to make structural insulation systems, mechanical spacers, and wear-resistant gears that can handle high loads for long periods of time. Companies that distribute electricity use these sheets for thermal safety parts in transformers and substations, as well as for coil shielding and arc barriers. They are used by auto suppliers to make battery pack dividers, insulation pads, and heat-resistant fixings that meet strict safety standards for cars. Manufacturers of home appliances like the material because it can be used to make motor brackets, insulation frames, and thermal separation parts that need to be both cost-effective and reliable.

Procurement Considerations for B2B Buyers

Engineering managers and procurement specialists look at a number of important factors when they are looking for fiberglass epoxy laminates. Thickness options usually run from 0.2mm to 50mm, and 1020x2040mm and 1020x1200mm sheets are popular sizes. Different colors, like green, black, and natural, are used for both recognition and personal taste. Compliance approvals, such as UL recognition and RoHS conformity, give controlled markets peace of mind. Lead times depend on how customized the item is. Standard stock items ship within days, but custom-sized items may take weeks. Unit costs are affected by minimum order amounts, so volume planning is important for keeping costs low.

Four Common FR4 Epoxy Sheet Processing Methods

The accuracy, speed, and cost-effectiveness of turning raw FR4 epoxy sheet into final parts are all directly affected by the processing methods used. Each method has its own pros and cons that make it useful in different business situations.

CNC Machining: Precision and Versatility

Cutting tools that are controlled by a computer are used in CNC machining to remove material by milling, routing, or turning. This method of subtractive production is great at making shapes with complicated geometries, tight tolerances, and detailed contours that are hard to make with other methods.

The method provides very accurate measurements, usually within ±0.05mm, which makes it ideal for parts that need to fit precisely with other parts. Repetition stays the same between production runs, which is important for group uniformity in assembly processes. With a wide range of tools to choose from, operators can make threaded holes, chamfered edges, radius corners, and custom shapes all in one setup. The quality of the surface finish meets strict requirements for parts that need to fit together smoothly or look good.

When cutting rough fiberglass composites, on the other hand, manufacturing costs go up because carbide or diamond-coated bits wear out and need to be replaced more often. Processing speed is slower than cutting methods for simple profiles, but multi-axis equipment makes up for it by letting multiple tasks run at the same time. To keep work areas clean and get back valuable materials, material waste like chips and dust needs to be collected in the right way.

Laser Cutting: Speed and Fine Detail

Focused high-energy light beams are used in laser cutting to melt or vaporize material along lines that have been set. This heating process doesn't involve touching the workpiece, so it cuts quickly with little mechanical stress.

The edge quality is very clean, and there isn't much burring, which cuts down on secondary finishing steps and handle time. Narrow kerf widths (often less than 0.5 mm) make the best use of material and allow for complex patterns with tight stacking setups. For thin to medium-thick sheets, processing speed is faster than mechanical cutting. This cuts cycle times by a large amount for high-volume production. Setup changes can be made quickly by making changes to the software instead of swapping out tools, which allows for a variety of part designs.

Temperature is the main problem because heat-affected areas close to the cut edges might get some resin charring or changing color. Compared to mechanical ways, the laser can only work on sheets that are less than 3 mm thick, and it can only go up to 6 mm in practical situations based on the laser power. Initial equipment costs more than basic mechanical systems, but ongoing costs go down because tools don't need to be replaced as often and work gets done faster.

Waterjet Cutting: Cold Processing Advantage

Ultra-high-pressure water mixed with abrasive bits are pushed along predetermined cutting lines by waterjet cutting. This way of cutting without heat or chemicals changes the qualities of the material.

Heat-affected areas go away completely, protecting the material's electrical and mechanical properties all the way to the cutting edge. This is very important for uses where thermal degradation would hurt the insulation's performance or the stability of its dimensions. Thickness variety can work with materials from 0.5 mm sheets to 50 mm plates without having to change the tools, which gives handling options across product lines. There are no worries about heat breakdown or tool wear caused by different hardness levels when the materials are compatible across all grades and formulations.

Edge finish looks a little rougher than laser cutting, so light grinding may be needed for jobs that need smooth surfaces. Cutting absorbs moisture, so drying is needed afterward, especially for parts that need to be put together or coated right away. Operating costs include the use of coarse media and the upkeep of high-pressure systems, which raise the cost of each piece.

Drilling and Punching: High-Volume Efficiency

When you drill, you use rotational cutting to make holes in the shape of a cylinder. When you punch, you use die-and-punch tools to cut holes through material. Both ways are most effective for making holes over and over again, which is common in PCB manufacturing and installing hardware.

Automated drilling tools can make thousands of holes an hour across multiple boards at the same time, which is a huge improvement over other ways for standard hole patterns. For standard hole sizes, tooling costs stay reasonable, and drill bits and punches have expected service lives when they are kept in good shape. To get the tight tolerances needed for PCB alignment and component lead insertion, registration precision between holes is very important. Adding automation to CNC equipment makes it possible to make things without using any electricity. This cuts down on work costs and boosts output.

Hole width variety means keeping drill bits in stock in all the sizes that are needed, which makes managing tools and switching between them more difficult. If cutting factors aren't controlled correctly, the risk of delamination goes up, especially at the entry and exit places of the drill where there isn't much supporting material. For non-standard hole configurations, the cost of the punch tools goes up. This makes the method most cost-effective for designs that are used over and over again.

Comparing FR4 Processing Methods: How to Choose Based on Industry Needs

To choose the best FR4 epoxy sheet processing method, you need to look at a number of things that are relevant to your business environment, quality standards, and budget. Different fields and uses can benefit from picking the right way based on their own operational objectives.

Accuracy and Precision Requirements

Components that need dimensional limits smaller than ±0.1mm usually benefit from CNC machining, which uses controlled cutting settings and rigid fixtures to keep the accuracy high. Laser cutting is great for making sure that the edges of profiles are straight and that they are cut exactly where they need to be. However, heat expansion during processing may slightly change the end measurements of heat-sensitive designs. For most commercial uses, waterjet cutting is very accurate, and the positioning accuracy is good enough for structure parts and insulation systems. When the right registration and fixturing methods are used to control where the part is, drilling and punching can make holes that are very accurately placed.

Production Scale and Volume

CNC machining's programming freedom and quick setup changes without the need to buy special tools make it a good choice for small-batch testing and unique one-off parts. Laser cutting works well for medium-sized production runs because it balances speed with proper equipment use for a wide range of part designs. Waterjet cutting works well for both prototypes and large batches of parts, but its slower cutting speeds make it less suitable for very large quantities of common parts. When patterns are repeated a lot, automatic equipment is a good investment because it saves time and money on each piece. This is where drilling and punching really shine.

Cost Structure Analysis

Initial setup costs vary a lot depending on the method used. CNC machining needs programming and fixturing, but not custom tools. Laser cutting needs very little setup, while waterjet cutting requires setting up the blade. For complex patterns, drilling and pressing may need custom tools to be made. The amount of material wasted affects operating costs. For example, laser and waterjet cutting produce less scrap than CNC router bits because their kerfs are narrower. Mechanical cutting methods use less energy than laser systems, but differences in speed often cancel out differences in electricity costs. The level of automation lowers the amount of work that needs to be done by hand. This makes high-volume drilling processes very cost-effective per piece.

Material Thickness and Complexity

Laser cutting is a fast and efficient way to work with thin sheets (less than 2 mm) because there is little chance of mechanical damage. All four ways can use materials with a thickness of 2 mm to 10 mm. The choice of material is based on other factors, such as the production number and edge quality needs. Plates that are thicker than 10 mm work best for CNC machining and waterjet cutting, since laser power limits and drilling depth limits make them less useful. Multi-axis CNC machining is needed for complex three-dimensional profiles, but faster cutting methods can be used for easier two-dimensional forms to get the most work done.

Supplier Capabilities and Logistics

Working with providers that have more than one processing capability under one roof makes procurement more efficient. This is because consolidated production eliminates coordination problems and cuts down on wait times. The choice of method is affected by the minimum order numbers. For example, sellers may need larger amounts for automatic drilling than for flexible CNC machining services. Shipping costs and wait times are affected by how close the materials are to where they will be used. This is especially true for heavy plate materials, where freight costs can have a big effect on the total landing costs. When making new uses, having technical help is important because experienced suppliers can give you good advice on choosing the right materials and making the best use of processing.

Enhancing Procurement Efficiency: Supplier Selection and Customization Options

Strategic FR4 epoxy sheet supplier partnerships include more than just buying materials. They also include services that add value, working together on technology, and making sure the supply chain is reliable. Building ties with skilled suppliers who know the needs of your business and the limitations of your operations gives you a competitive edge through better quality, lower costs, and faster time-to-market.

Certification and Compliance Standards

Quality approvals let you know that the materials you're buying meet the standards and rules that are needed for global markets. UL certification shows that the flame resistance and electrical qualities meet the safety standards needed for business and industry settings. RoHS compliance checks that a product doesn't contain any banned dangerous substances. This lets the product be sold in places where environmental rules apply, like European and North American markets. If a seller has an ISO quality management system certification, it means they follow regular process controls and documentation practices that help with efforts for traceability and ongoing growth.

Customization Services and Technical Support

Custom sizing services get rid of waste and extra work by sending you materials that are cut to the exact sizes you need. This cuts down on handling costs and speeds up production plans. CNC cutting lets suppliers send fully finished parts that are ready to be put together. This streamlines your supply chain and makes managing vendors easier. Engineering support helps choose the right materials, suggest processing methods, and improve designs in a way that makes them easier to make and lowers the cost of production. Testing and confirming prototype development services before committing to full production volumes lowers risk and makes sure that design purpose is translated into useful reality.

Delivery Performance and Inventory Management

Reliability in lead times is very important when planning production plans and keeping track of the costs of keeping supplies. Standard stock items usually ship within a few business days, which helps just-in-time stocking tactics keep working capital from getting stuck in raw materials. Custom-processed parts have longer lead times, often measured in weeks. This means that they need to be planned for ahead of time and may need extra stock for important uses. Ordering habits are affected by minimum order amounts. Suppliers may be flexible for long-term customers or combined orders of multiple items that meet value limits.

Building Long-Term Supplier Relationships

We at J&Q have a deep understanding of customer needs across a wide range of businesses and global markets thanks to our twenty years of experience in manufacturing and over ten years of experience in foreign trade. Our in-house logistics company offers combined shipping solutions that make it easier to coordinate imports and lower shipping costs by using better routes and grouping packages together. Working together with many trade partners, both in and outside of the United States, shows that we are dedicated to providing reliable service and building business relationships that benefit both sides. Our technical knowledge, gained from working with thousands of customers' projects, lets us give you well-informed advice that helps you choose the best materials and processes for your needs.

Conclusion

Knowing the four main ways that FR4 epoxy sheet is processed helps you make smart choices that match technical needs with production realities. CNC machining is accurate and flexible for complex shapes, laser cutting is fast and can handle fine details, waterjet cutting can be used for cold processing across a range of thicknesses, and drilling and punching is the most efficient way to make a lot of holes. The best method is chosen by looking at things like the level of accuracy needed, the amount of work that needs to be done, the cost structure, and the specs of the materials. Strategic supplier partnerships include more than just buying materials. They also include technical support, customization services, and a reliable supply chain that make a business more competitive.

FAQ

What thickness of FR4 epoxy sheet works best for high-temperature applications?

Sheets of FR4 epoxy sheet need to be between 1.6 mm and 3 mm thick in high-temperature areas so that they are both strong and good at keeping heat out. The structural strength and heat dissipation ability of thicker materials are higher, while the weight saves and faster thermal reaction of thinner sheets are higher. Choosing the right material grade is also very important. For example, choosing high-temperature versions that can work at 200–250°C makes sure that the performance will stay reliable even when exposed to long-term thermal stress.

Does laser cutting affect the electrical insulation properties of fiberglass epoxy laminates?

Laser cutting leaves tiny heat-affected areas, usually less than 0.5 mm wide, where glue may slightly carbonize. For most uses, this limited effect doesn't change how well the insulation works overall because the bulk qualities of the material stay the same. For high-voltage uses, parts that need absolutely perfect edge conditions can benefit from waterjet cutting's cold-processing advantage, which doesn't change the temperature.

What lead times should I expect for custom-sized material orders?

Standard stock sheet delivery usually happens three to five business days after the order is confirmed. Custom-sized pieces that are cut to order take 7–14 days, based on how complicated the process is and how long the production line is. Depending on how complicated the plan is and how much can be made at the moment, fully finished parts with many small details may take two to four weeks. For pressing needs, rush services can sometimes speed up delivery, but they usually charge extra.

Partner with J&Q for Your FR4 Epoxy Sheet Requirements

Project success and long-term operating efficiency depend on choosing the right processing method and a dependable provider. As a trusted FR4 epoxy sheet maker with over twenty years of experience and a lot of knowledge about the foreign market, J&Q brings a lot of knowledge to the table. Our combined processing capabilities, which include CNC machining, cutting services, and custom fabrication, allow us to make parts that are exactly made and meet your exact requirements.

Technical consulting services can help you choose the right materials and working methods so that you get the best performance at the best cost. Our experienced tech team looks over your applications and suggests ways to handle them that meet both quality standards and cost concerns. We offer a seamless one-stop service from the initial request to the delivery of goods thanks to our own transportation infrastructure and materials that are UL- and RoHS-compliant. Email our team at info@jhd-material.com to talk about your needs and get thorough quotes that are made to fit your project.

References

National Electrical Manufacturers Association (NEMA). "Industrial Laminating Thermosetting Products - LI 1-1998 Standards Publication." NEMA Standards, 1998.

Coombs, Clyde F. "Printed Circuits Handbook, Seventh Edition." McGraw-Hill Professional, 2016.

Tummala, Rao R. "Fundamentals of Microsystems Packaging." McGraw-Hill Professional, 2001.

Harper, Charles A. "Electronic Materials and Processes Handbook, Third Edition." McGraw-Hill Professional, 2003.

Jawitz, Martin W. "Printed Circuit Board Materials Handbook." McGraw-Hill Professional, 1997.

Prasad, Ray P. "Surface Mount Technology: Principles and Practice, Second Edition." Springer Science & Business Media, 2013.
