How to Cut FR4 Sheets with Precision and Safety?

To cut FR4 sheets accurately and safely, you need to know how the material's unique blend structure works and use the right tools. As a fiberglass-reinforced epoxy laminate, FR4 sheet needs to be cut in a way that is different from how normal materials are cut. This complete guide shows you how to choose the right tools, follow safety rules, and make professional-quality cuts that don't damage the material. If you're in charge of PCB production lines or making electrical insulation parts, learning these methods will help you keep the quality high and keep your workers safe from the possible dangers of working with composite materials.

Understanding FR4 Material and Its Cutting Challenges

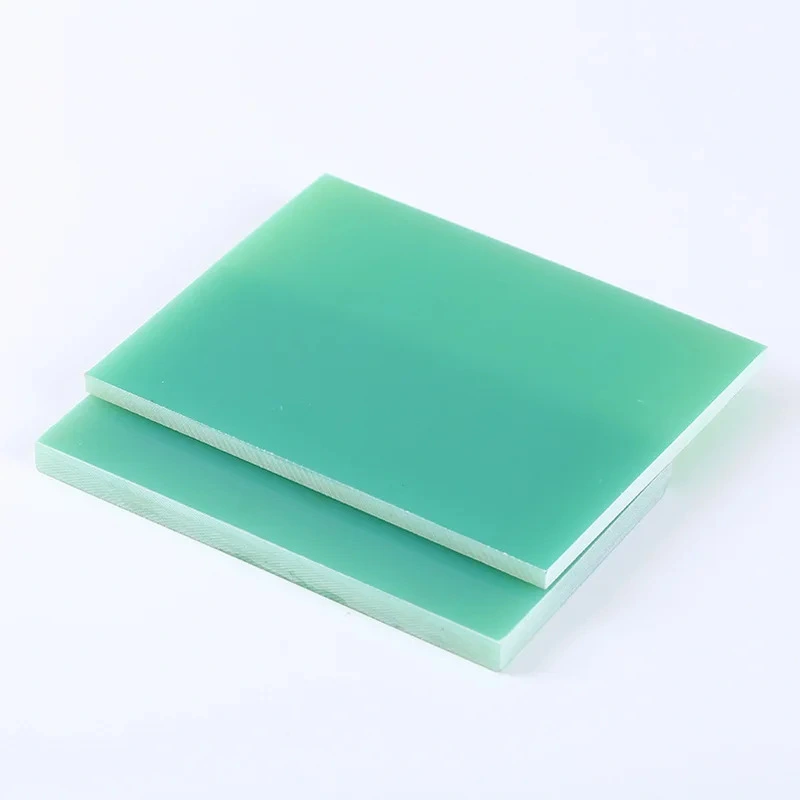

FR4 sheet is a high-tech composite material made of thermosetting epoxy glue and continuous filament glass cloth. In addition to being strong, this mixture is also very good at insulating electricity, which makes it essential for making electronics, power transfer systems, and industrial equipment. The NEMA LI 1-1998 standard sets the standards for FR4, making it the world standard for high-pressure composite laminates.

What Makes FR4 Distinct from Alternative Materials

When epoxy glue is mixed with knitted fiberglass, it makes a material that is much harder than phenolic laminates or CEM-1 composites. This longer resilience costs more when it's being made. Cutting tools have a hard time cutting through the glass threads, and edge chipping is always a problem because the finished epoxy is so brittle. FR4 needs special carbide or diamond-coated tools to keep its dimensions accurate, while paper-based Bakelite pieces are pretty easy to cut.

Because epoxy glue changes shape when heated by friction, it is very important to keep the temperature under control while cutting. When the temperature gets too high, the resin matrix gets soft, which leads to delamination, which is when the layers of glass cloth separate from the binder. This structure flaw lowers the dielectric strength, which is an important trait for electrical uses. To make sure that the quality of each batch is the same, procurement experts who are reviewing suppliers must make sure that the suppliers understand these temperature sensitivities.

Health and Environmental Hazards During Processing

Microparticles of glass become airborne when fiberglass-reinforced laminates are cut. These particles can get into the lungs and irritate the skin when they come in touch with them. When heated, the epoxy glue gives off volatile organic substances that are harmful to your health in the long run if you don't have enough air flow. In the US, regulations like OSHA guidelines for safe exposure levels require certain controls to be in place when working composite materials.

Environmental compliance is more than just making sure workers are safe. In cleanrooms, like those used for PCB assembly, dust control systems keep particles from getting into the air. Businesses that care about the environment look for providers with ISO 14001 certification, which shows that they are committed to reducing environmental effect all along the supply chain. These things affect buying choices, especially for buyers in the power and car industries who need proof of compliance for auditing reasons.

Step-By-Step Guide to Cutting FR4 Sheets with Precision

For skilled results when cutting epoxy laminates, you need to plan and do things in an organized way. The process changes a lot depending on the amount being made—prototyping one-of-a-kind items is very different from mass production. Knowing the difference between these terms helps engineering managers choose the right methods for each project involving FR4 sheets.

Preparation and Safety Setup

Before you start cutting, make sure that the material's specs meet the needs of the job. Thickness limits have a direct effect on cutting parameters. For example, if there is a 0.5mm difference between runs, the feed rate needs to be changed to keep the tools from breaking. Check sheets for current delamination or resin holes that could weaken the structure. Even though these flaws are rare in quality-certified materials, they make cutting tools act in odd ways.

Set up airflow in the room that can keep the negative pressure around the cutting areas. Industrial dust catchers with HEPA filters catch particles smaller than 0.3 microns, which is the smallest size range that is most harmful to your lungs. For best catch effectiveness, place vent hoods within six inches of the cutting areas. As your last line of defense, you should wear NIOSH-approved respirators with a rating of N95 or higher, safety glasses with side shields, and gloves that can't be cut with a rating of ANSI A4 or higher.

Manual Cutting Techniques for Low-Volume Applications

Scoring and breaking work well for PCB boards that are made of thin sheets less than 1.6 mm thick. Score both sides along a straightedge with a tungsten carbide pen, making sure to apply even pressure along the whole cut line. The scoring level should be about a third of the thickness of the cloth. Hold the sheet in place along the score line and bend it in a controlled way so that it doesn't touch the surface. When scored correctly, the laminate breaks neatly, but the quality of the edges is still worse than with made cuts.

Diamond-abrasive wheels on hand-held rotary tools make them good for small customizing jobs. Keep the wheel speeds between 15,000 and 20,000 RPM and move slowly forward to keep the wheels from getting too hot. Staying in one place for too long can cause burning and resin breakdown, but continuous motion keeps things moving. Use clamps or vacuum supports to hold the workpiece firmly in place. Vibration during cutting can cause tiny cracks to spread, which makes finished parts weaker. After the cutting is done, the edges should be checked to make sure they don't come apart and that any chipping doesn't go beyond 0.5 mm from the cut line.

CNC Routing for Production Environments

When it comes to precision cutting in industrial setups, computer numerical control routing is the gold standard. Carbide end mills with diamond coats stay sharp over long production runs, which is important for keeping standards for dimensions within ±0.1mm. Spindle speeds are usually between 18,000 and 24,000 RPM, and feed rates are between 1,000 and 2,500 mm per minute, based on the thickness of the material and the size of the tool.

Climb milling, in which the movement of the cutter fits the direction of the feed, makes better edges than regular milling. This method lowers the amount of fiber pullout and grit growth along the edges of cuts. Climb milling, on the other hand, needs rigid machines that can handle the cutting forces without bowing. Chatter happens when a machine isn't rigid enough. This leaves tool marks and measurement errors that are obvious and cause parts to be rejected during quality control review.

Laser Cutting for Complex Geometries

At bands around 10.6 microns, CO2 lasers can easily remove epoxy glue and cut fiberglass reinforcement. This non-contact method completely stops tool wear, so the quality stays the same over and over again. Laser cutting is great for making detailed shapes that can't be made with other methods, like internal cutouts, tight radius corners, and the complex shapes that are popular in switchgear insulation parts.

Power settings of 30 to 100 watts and cutting speeds of 5 to 20 millimeters per second work well for most FR4 sizes. Compared to single-pass cutting, multi-pass cutting lowers the amount of heat-affected areas, keeping the material's qualities near the cut edges. The laser beam turns resin into mist and melts glass fibers, making a sealed edge that is better at keeping water out than surfaces that are cut by hand. This trait helps in functions in the power sector where damp might lower the performance of shielding.

Ensuring Safety and Environmental Compliance

It is essential for FR4 sheet processing activities to protect the health of the workers while also meeting legal requirements. Companies in the US have to follow strict rules set by several legal systems that guide workers' exposure to hazardous materials.

Implementing Comprehensive Protective Measures

The most important part of safe handling of composite materials is respiratory safety. Half-face rubber respirators with P100 screens are good for most cutting tasks because they catch 99.97% of airborne particles. Full-face respirators protect your eyes as well, which is helpful when cutting things up high or in small areas where the dust can't be predicted how it will spread. Powered air-purifying respirators (PAPRs) make long shifts more comfortable by lowering the resistance to breathing that makes workers tired and less likely to follow safety rules.

Eye protection needs to protect against both impact dangers from small pieces of material and dust getting into the areas around the eyes that you can see. Safety glasses that meet ANSI Z87.1+ standards protect your eyes from impacts, and the design's indirect airflow keeps dust from building up on the lenses. Face shields can be used in addition to glasses during activities that produce large amounts of particles, but they can't be used instead of proper eyewear because there are gaps around the edges of the shields.

Hand safety strikes a mix between cutting resistance and the need for dexterity. Gloves made of aramid fibers or high-performance polyethylene can meet ANSI cut level A4 standards while still being flexible enough to use machine controls. Avoid gloves with textured hands that collect glass fiber particles. When changing gloves regularly, smooth nitrile coats are better at getting rid of contamination.

Engineering Controls and Ventilation Systems

Local exhaust airflow stops toxins where they start before they spread to the outside air. Particle entrainment works best when capture speeds are between 100 and 150 feet per minute at the cutting site. The design of ductwork should keep elbow bends to a minimum and keep transport speeds high enough to keep particles from settling in the ducts. Using HEPA filters on exhaust streams saves the quality of the air outside and meets EPA standards for particulate emissions.

Downdraft tables have air built right into the work areas, which moves contaminants out of the way of the operator's breathing. When cutting by hand, these methods work well when the cutting spots are spread out across the work area. Negative pressure separation keeps CNC equipment inside boxes that are only used for collecting dust. This keeps contamination from spreading to nearby production areas. Regular maintenance on the filters keeps the system running smoothly. Pressure difference gauges show when the filters need to be replaced.

Selecting Environmentally Responsible Suppliers

More and more, companies' pledges to sustainability show up in their purchasing choices. Suppliers with an ISO 14001 license have written environmental management systems that control pollution, reduce trash, and use energy more efficiently. These approvals give people confidence that the methods used in manufacturing have the least possible effect on the environment during all stages of production.

Material traceability lets you check that raw materials come from trustworthy places. RoHS compliance makes sure that laminates don't contain any banned materials, such as lead, mercury, or some brominated flame retardants. This compliance is especially important for companies that make gadgets for the European market, where the RoHS guidelines are law. UL certification shows that the flame-retardant performance meets UL94 V-0 standards. This is very important for places where fire safety is very important, like generator insulation and circuit breaker parts.

Procurement Considerations for FR4 Sheets and Cutting Services

Sourcing choices have a direct effect on how well products are made, how consistent the quality is, and the total cost of ownership. To find the best supplier connections, engineering managers and procurement experts need to look at more than just unit price when sourcing FR4 sheet.

Verifying Material Quality Through Certifications

When suppliers get ISO 9001 approval, it means they have quality control methods in place that make sure the properties of materials are the same across all output lots. This stability stops the changes in size and performance that slow down the production process. Instead of depending only on what the supplier says, ask for certification papers that prove compliance—audit trails show a commitment to quality assurance.

When it comes to electrical uses, UL approval is very important. Standardized tests show that the UL94 flammability grade shows that a substance is flame-resistant. UL certification also makes sure that materials meet certain electrical property standards, such as dielectric strength and spark resistance. When the end product is certified, parts that use materials that aren't recognized may be rejected, which can cause costly reworking delays.

Shipments should come with material test results that list qualities like flexural strength, dielectric constant, water absorption, and dimensional limits. These reports make it possible for new inspections to check for mistakes, finding material problems before they get into production. Concerns about quality control and material authenticity are raised when suppliers refuse to provide thorough test paperwork.

Evaluating Supplier Capabilities and Responsiveness

Reliability in lead times affects production schedules and the cost of keeping supplies on hand. Just-in-time manufacturing methods work better when suppliers keep enough stock on hand, which lowers the cost of warehousing. However, very short wait times could mean that there aren't enough quality control measures in place, as goods may ship before they've been fully inspected. To keep quality high, find a balance between speed and the level of detail in the checks.

When internal machine capacity is limited, custom cutting services are very useful. Suppliers who can do CNC shaping and laser cutting send parts that are ready to be put together right away, so there are no extra steps needed for processing. Carefully look at the cutting tolerances. Suppliers with ±0.1mm accuracy are good for precise tasks, while ±0.5mm tolerances are fine for less difficult tasks. Before placing a big order, ask for sample parts to make sure that the real powers match the advertised ones.

Responding quickly to technical help requests is what sets great providers apart from average ones. Help from engineers with choosing materials, optimizing cutting parameters, and fixing problems speeds up the project timeline. When suppliers hire application engineers who know your industry, they can give you advice that is tailored to your problems instead of general suggestions that can be used in any field. When making new goods that need material property validation, this specialized information is very helpful.

Understanding Pricing Structures and Volume Considerations

Costs of materials change based on diameter, grade, and order size. Standard types that meet basic electrical needs are a lot cheaper than high-performance versions that have better heat resistance or lower dielectric loss. Make sure you clearly describe the needs of the application so you don't end up selecting too many expensive grades when standard materials will do the job just fine.

Volume price tiers lower the cost per unit to encourage people to buy more. But having too much inventory ties up money and puts products at risk of becoming obsolete if patterns change. Using buy discounts, carrying costs, and the risk of obsolescence, figure out the economic order numbers. Flexible minimum order numbers from suppliers let you do testing and low-volume production without having to commit to large amounts of inventory.

The cost of freight has a big effect on the total landing cost, especially for heavy sheets of material. Due to lower shipping costs and shorter wait times, domestic providers may be able to offer competitive prices even if the cost per unit is higher. When you buy something from another country, you have to look at the total cost, which includes freight, customs fees, and the need for a longer inventory chain. When you buy something from another country, the logistics get more complicated. Buying from local sellers makes supply chain management easier and lowers your risk of shipping problems.

Conclusion

To cut FR4 sheets accurately and safely, you need to know a lot about the material's features, choose the right tools, and follow strict safety rules. For the fiberglass-reinforced epoxy structure to work, special methods are needed that are very different from working with normal materials. Using the right airflow, PPE, and environmental controls saves the health of workers and makes sure that regulations are followed. Pricing should not be the only thing that goes into a procurement choice. Supplier certifications, professional skills, and responsiveness should also be taken into account. Systematic root cause analysis is a way to find and fix common problems that keeps production running smoothly and cuts down on waste. Manufacturers of electronics and electrical goods, machinery, and industrial equipment can get constant results that support quality goals and operational success by mastering these concepts.

FAQ

Can I use standard woodworking saws to cut FR4 sheets?

Because glass threads are rough, regular wooden blades wear out quickly when cutting fiberglass composites. Normal blades can make rough cuts in thin materials, but they leave a bad edge and chip the material too much. Blades with a carbide tip or a diamond coating that are made for composite materials give better results and last longer. Investing in the right tools pays off in the form of lower scrap rates and more accurate measurements when cutting FR4 sheets.

What kind of personal safety tools do you need to cut FR4 materials?

Glass fiber particles can be caught by respirators with a rating of at least N95, and safety glasses with side shields keep your eyes safe. Cut-resistant gloves keep your hands safe from glass fibers and sharp edges. These are the bare minimums. Full-face respirators and arm protection are better for higher-risk jobs. The right PPE is chosen based on the exposure levels found in job risk assessments.

How can I achieve smooth edges on cut FR4 sheets?

Sharp cutting tools, the right feed rates, and good support during cutting all lead to smooth edges. CNC cutting with carbide end mills makes the smoothest edges, and mechanical deburring gets rid of small flaws. Laser cutting makes lines that are fixed and don't need much finishing. The end edge quality is affected by many things. For professional results, set the cutting settings so they are best for the material thickness and tooling.

Partner with J&Q for Premium FR4 Sheet Solutions

J&Q has been making high-quality insulation materials for more than 20 years. They make precision-grade FR4 sheet that are designed for tough electrical and industrial uses. Our manufacturing knowledge makes sure that the material always has the same UL and RoHS qualities, which are important for making PCBs, power distribution equipment, and car parts. We've been serving foreign markets for more than ten years, so we know what technology needs and compliance standards global procurement teams have.

Our combined logistics skills allow us to offer a smooth one-stop service from choosing materials to delivering them, which gets rid of the coordination problems that come up when you buy from more than one seller. Our expert team works with your engineers to make sure that the specs are best for your application, whether you need standard sheets or parts that are cut just for you. As a reliable FR4 sheet provider, we keep a large inventory that can support both small trial runs and large production runs. Email our team at info@jhd-material.com to talk about your unique needs and get solutions that are made to fit your buying goals.
