Yes, it is possible to use a laser to cut epoxy sheets, and this method is becoming more and more useful for precise industrial tasks. Using modern laser technology, different types of epoxy sheets can be cut through easily, leaving perfectly straight edges and accurate measurements. To be successful, you need to know how to optimize the parameters, choose the right materials, and understand how epoxy glue systems react to heat. With the right laser settings and methods, makers can make clean cuts without the charring or delamination problems that happened when these composite materials were first tried to be processed.
Understanding Epoxy Sheets and Their Properties Relevant to Laser Cutting

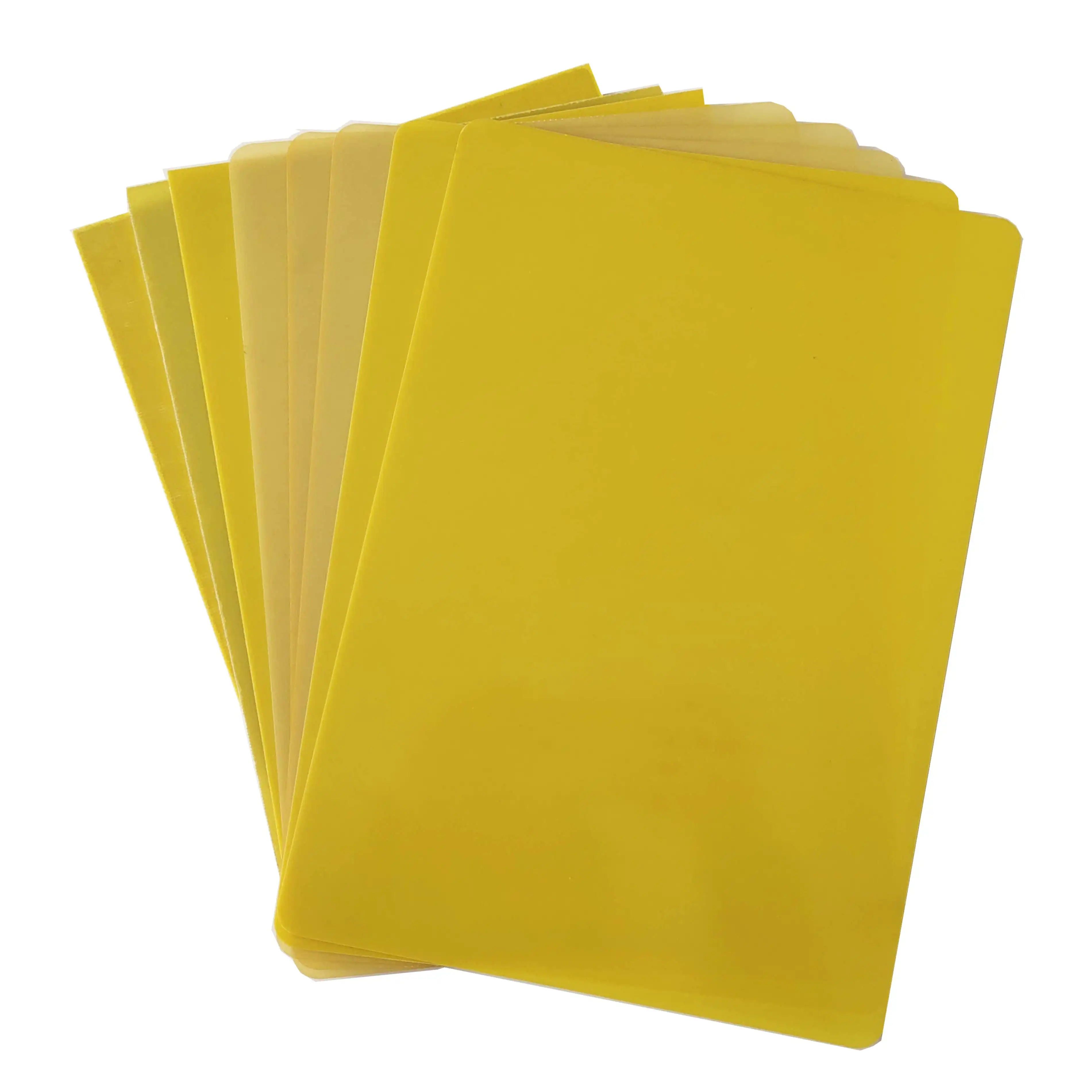

Epoxy sheets are an important material in modern industry because they are both very strong and good at keeping electricity from flowing through them. These designed composites are made up of epoxy glue that is strengthened with different bases. This makes materials that work well in harsh conditions in the electronics, power generation, and car industries.
Material Composition and Thermal Characteristics
The basic structure of epoxy laminates has a direct effect on how well they cut with a laser. The phenolic cotton bases are stronger mechanically, and the glass cloth support keeps the dimensions stable. During laser processing, the temperature changes depend on the resin matrix. Most epoxy systems have glass transition temperatures between 130°C and 180°C. When choosing laser settings to keep materials from breaking down, it's important to understand these temperature qualities.
Key Properties Affecting Laser Processing
Several properties of the material have a big effect on how well it cuts with a laser. Changes in density affect the laser's ability to go deep into a material, while thermal conductivity affects how heat is lost during cutting. When planning laser activities, the following factors need to be carefully thought through:
- Dielectric strength: High electrical resistance stops arcing while processing, but in sensitive uses, it needs to be heated slowly to avoid thermal shock.
- Flexural strength: Mechanical resilience lets you cut precisely without cracking, which is especially important for cutting thin parts and shapes with lots of corners.
- Chemical resistance checks how well the material works with the cooling and help gases that are used during laser processing.
- Surface finish: affects how lasers absorb energy and the quality standards for the end edge
These qualities of the epoxy sheet material work together to find the best laser cutting settings and the tightest limits that can be reached. Modern epoxy formulas have changed over time to be better able to handle heat processing while still keeping their main performance traits.
Comparison with Alternative Materials
When it comes to laser cutting, epoxy resins are better than other materials used for standard grinding. Epoxy materials can be cut well with modest power levels, while metals need high power sets. When properly made, epoxy sheets don't change size during the cutting process like thermoplastics do, which can melt and leave bad edges.
The Feasibility of Laser Cutting Epoxy Sheets: Technical Analysis
If you want to use a laser to cut resin materials, you need to know how the laser energy and the composite structure work with each other. When used correctly, modern laser devices have shown to be very good at working with these materials.
Laser Technology and Parameter Optimization
It has been shown that CO2 lasers with a wavelength of 10.6 microns absorb epoxy glue systems very well. Power levels are usually between 10 and 100 watts, based on the thickness of the material. Cutting speeds are changed to keep the machine from getting too hot. Pulse frequency modulation lets you precisely control the amount of heat that goes in, which keeps the cutting efficiency high and stops thermal damage.
Fiber lasers with a range of 1.064 microns can be used for different kinds of processing. They work especially well on glass-reinforced materials. The shorter frequency changes the way light is absorbed in ways that can be helpful for some types of materials. In order to get the best results from parameter adjustment, cutting speed, power density, and help gas flow must all be balanced.
Process Challenges and Solutions
To laser cut epoxy sheets successfully, you need to solve a number of technical problems. If the temperature goes too high, heat-affected zones can break down the plastic. Proper airflow gets rid of waste products from processes and helps gases flow. stops burning and makes the edge better.
Edge quality management represents a critical success factor. When the settings are optimized, cuts are made that are smooth and straight with little heat damage. Advanced beam shape methods and multi-pass cutting strategies make it possible to work with bigger pieces while still keeping the accuracy of the limits.
Quality Control and Dimensional Accuracy
Laser cutting can keep the thickness of an epoxy sheet within 0.05 mm of its original size for most uses. When edges are perpendicular, angles stay within 1-2 degrees of vertical, which is good for precise building needs. Surface roughness values rely on the type of material and the cutting settings, but most of the time, they are within acceptable limits for commercial use.
Practical Considerations for Procurement and Use of Laser-Cut Epoxy Sheets
When looking for laser-ready polymer materials, people who work in procurement have to think about a number of things. Specifications for materials, the skills of suppliers, and quality control methods all have an effect on the success of a project and its dependability in the long run.
Material Selection Criteria
Choosing the right grade has a direct effect on how well the laser cuts and the quality of the finished product. For use in electronics, FR4 epoxy glass has great electrical qualities, and for structure parts, phenolic cotton has better material strength. Different grades have different temperature reaction properties that change the best laser settings.
Thickness affects both how easy it is to cut and how long it takes to process. Most commercial needs can be met by standard sheet widths ranging from 0.5 mm to 25 mm. However, cutting bigger parts requires different techniques to keep the quality of the edges.
Supplier Evaluation and Quality Assurance
Controlled manufacturing methods used by reliable sources keep the qualities of materials uniform. Quality approvals show that foreign standards are being met, and batch tracking makes sure that performance can be repeated across production runs. The most reliable partners give thorough material data sheets that include temperature qualities that are important for developing laser parameters.
Managing lead time becomes very important for planning projects. As a general rule, established providers keep popular types in stock and can speed up handling for urgent needs. While custom formulas may have longer wait times, they offer the best performance for specific uses.
Cost Optimization Strategies
By buying in bulk, you can often save a lot of money and make sure that the quality of the materials is the same from batch to batch. Standardizing on fewer types of materials makes it easier to keep track of supplies and lowers the cost of setting up a laser for processing. A lot of providers give extra services, like pre-cutting and packing, that can lower the overall cost of the job.
J&Q: Your Trusted Partner for Premium Epoxy Sheet Solutions
J&Q is a world leader in making high-performance epoxy sheets. They have more than 20 years of experience in production and more than 10 years of experience dealing internationally, so they can serve customers all over the world. Working together with many trading partners across the country and around the world has helped us get better at providing high-quality services that meet the strictest industry standards.
Comprehensive Product Portfolio
Our selection of products includes all the different kinds of epoxy laminate materials that are needed in modern production. We focus on FR4 epoxy glass sheets, which are great for electrical protection in electronics, and phenolic cotton laminates, which are great for structure parts because they have better material qualities. Each product goes through strict quality control to make sure it always works the same way, which is important for laser cutting uses.
Material approvals include UL recognition and RoHS compliance, which meet the foreign standards that big producers need. Our quality control systems make sure that the uniformity from batch to batch that laser processing needs is maintained, along with the temperature stability that is needed for precise cutting.
Value-Added Services and Capabilities
Our approach to combined service goes beyond just supplying materials; through our specialized shipping section, we also offer full transportation solutions. Because we're vertically integrated, we can offer a true one-stop service that makes buying things easier and lowers the overall cost of the job. Custom size lets us get the most out of the materials we use and cut down on waste during laser cutting.
Customers can get technical advice on how to get the most out of their laser cutting equipment so that it works as efficiently and accurately as possible. Our engineering team works closely with clients to create working standards that make sure results are always the same and waste and processing time are kept to a minimum.
Global Reach and Customer Support
Our years of experience dealing internationally in a wide range of markets has given us a deep knowledge of how different customers' needs and legal settings can change. Just-in-time shipping is supported by our inventory control tools, which also keep extra items on hand in case of emergency. During the purchase and execution process, customer service teams offer support in multiple languages and expert help.
Conclusion
Laser cutting epoxy sheets has gone from being an experimental method to a tried-and-true production process that benefits many fields with better accuracy and efficiency. To make something technically possible, you need to know how the material works, figure out how to make the laser work best, and make sure that quality control measures are followed correctly. Modern tools and better materials have mostly fixed the problems that existed in the beginning, which means that laser processing can now be used for difficult tasks.
To make implementation work, you need to carefully choose the materials, build relationships with trusted suppliers, and develop the process in-depth. Advanced laser technology and high-quality epoxy materials work together to help makers keep production costs low while still getting tight limits. As technology keeps getting better, laser cutting will probably become an even better way to work with epoxy sheets.
FAQs
What kinds of epoxy sheets work best for cutting with a laser?
The best laser cutting results are seen with FR4 epoxy glass and phenolic cotton laminates. These materials are stable at high temperatures and have a uniform makeup, which lets you make clean cuts with few areas that get hot. Grades that are strengthened with glass cloth stay very stable in size while they are being processed.
How thick can resin materials be before they can't be cut with a laser?
Most laser systems can cut epoxy sheets up to 12 to 15 mm thick in a single pass. Multiple pass methods or specialized high-power tools can be used to work with solids up to 25 mm thick. The highest thickness that can be achieved depends on the type of material and laser used.
Is it dangerous to use a laser to cut epoxy sheets?
Processing fumes must be removed with good airflow, but current epoxy formulas make very few harmful leftovers. Standard laser safety rules apply, such as wearing eye protection and making sure the machine is properly guarded. When working composite materials, normal safety rules for the workplace are followed.
