To get the best results in industrial settings, CNC cutting of phenolic cotton sheet materials needs special skills and knowledge. The phenolic glue is soaked into cotton cloth to make these hybrid materials. They have great mechanical properties and electrical protection properties that make them very useful in many industrial sectors. Using the right cutting methods will give you clean cuts, exact measurements, and little waste, all while keeping the material's natural qualities. Manufacturers can improve their production methods and make better parts for electrical, automobile, and industrial uses by learning about the unique properties of these layered sheets.
Understanding Phenolic Cotton Sheets for CNC Machining

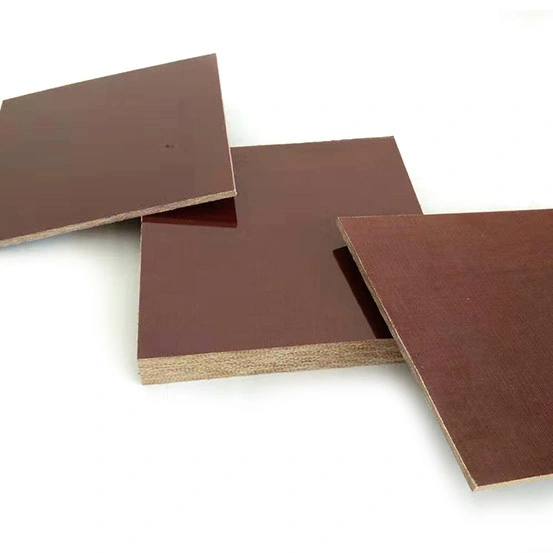

Phenolic cotton sheets are a high-tech building material made by carefully laminating natural cotton cloth with phenolic glue that hardens at high temperatures. When these two things are put together, they make a hybrid material that is very strong, well-insulated from electricity, and very stable at temperatures up to about 150°C. Because the material is made up of layers, its shape stays stable and it doesn't break easily, which makes it perfect for precision cutting.
Material Composition and Properties
The cotton fabric base gives the fabric compressive strength and flexibility, and the phenolic resin matrix gives the fabric stiffness, chemical resistance, and flame retardancy. This special mix gives the material a density that is usually between 1.3 and 1.4 g/cm³, which means it has a great strength-to-weight ratio. Sheets like these often have a dielectric strength of more than 15 kV/mm, which makes them perfect for insulating electrical parts like transformers, switches, and motors.
Standard Dimensions and Grades
Standards for manufacturing allow thicknesses between 1 mm and 30 mm, and sheets are usually 1000 mm x 2000 mm or 1220 mm x 2440 mm. Different grades have different material qualities. Some are better for high-temperature uses, while others are better for insulating against electricity. Custom measurements can be made to fit the needs of a particular project, which helps makers cut down on waste and get the most out of their CNC processes.
Essential CNC Machining Tips for Phenolic Cotton Sheets
When CNC-machining these hybrid materials, it's important to pay close attention to the cutting settings, the tools you choose, and how you hold the workpiece. Because the material is made up of layers, it needs to be handled in a certain way to keep it from delaminating and make sure the edges are clean. Knowing these standards helps makers keep the quality high while also making the tools last longer and making the production process more efficient.
Tool Selection and Cutting Parameters
When working with phenolic cotton sheet materials, the best results come from using carbide cutting tools with sharp edges and positive rake angles. However, carbide tools usually last longer and have better surface finishes, even though high-speed steel tools can also work well for lower-volume tasks. The following cutting settings have been shown to work well for a variety of tasks:
For drilling jobs, twist drills with point angles of 118 degrees and modest speeds work best so that heat doesn't build up. Pecking processes help get rid of chips and lower the stress that heat puts on the tool and the material. To keep the quality of the hole and stop damage to the material on the exit side from breakthrough, feed rates should stay low.
When milling, the cutting speed and feed rate need to be carefully balanced so that the surface is smooth and doesn't burn or chip. Most of the time, climb milling makes better edges than regular milling, especially when making complicated shapes or profiles. If you use sharp tools and make sure the chips get rid of properly, heat won't build up and break down the resin matrix.
Workholding and Setup Considerations
Using the right workholding stops shaking and movement while cutting, which is very important for keeping the dimensions and quality of the surface accurate. When holding sheet materials, vacuum clamps work well because they spread the gripping forces out evenly across the surface. If you don't want to damage the surface or build up stress that could lead to cracking, mechanical clamps should have soft teeth or safety pads.
Safety and Environmental Controls
When cutting phenolic materials, it's important to have dust collection systems because the cutting process creates fine particles that need to be filtered and ventilated properly. Personal safety equipment, like respirators, helps keep workers safe from dust in the air. With good lighting and clear lines of sight, workers can keep an eye on the quality of the cuts and quickly spot any problems that arise.
Comparing Phenolic Cotton Sheets with Alternative Materials in CNC Applications
Choice of material has a big effect on both the amount of work that needs to be done and how well the end product works. Knowing the pros and cons of various insulation materials helps engineers make smart choices based on the needs of the application and the limits of the manufacturing process.
Phenolic Cotton versus Fiberglass Composites
Compared to plastics strengthened with fiberglass, phenolic cotton sheets are easier to work with because they wear down tools less and there is a lower chance that fibers will come loose while cutting. Because cotton fibers are not as rough as glass fibers, they make tools last longer and finish surfaces more smoothly. Fiberglass materials, on the other hand, tend to have higher strength-to-weight ratios and better chemical protection in harsh settings.
Performance Comparison with Epoxy Laminates
Most of the time, epoxy-based laminates are stronger and better at keeping out water than phenolic cotton materials. Phenolic sheet materials, on the other hand, typically provide better thermal stability at high temperatures and greater flame resistance. Which of these materials to use depends on the needs of the application. Phenolic cotton works best in situations where flame resistance and mild motor loads are needed.
Cost-Effectiveness Analysis
When used in situations where their properties match what is needed, phenolic cotton sheets usually offer great value. When compared to modern composites, the lower cost of materials and easier cutting can save a lot of money in the long run. Because these materials allow for faster cutting speeds and less tool wear, the cost of making each part is cheaper.
Procurement Insights for Phenolic Cotton Sheets in CNC Projects
To successfully buy phenolic cotton products, you need to know both the technical specs and what the seller can do. Quality certification, on-time delivery, and expert help are all important to the success of a project and should be taken into account when evaluating suppliers.
Quality Standards and Certifications
Reliable providers give materials that meet industry standards and come with a lot of scientific information. Certifications for materials should include information on their mechanical properties, electrical properties, and heat performance. Traceability paperwork helps make sure that quality is always the same and supports quality control processes in factories.
Supplier Evaluation Criteria
When you evaluate a manufacturing potential for a phenolic cotton sheet, you should look at things like production capacity, quality control systems, and the availability of expert help. Suppliers who have a lot of experience with composite materials can often give you good advice on how to choose the best materials and set the right working settings. Location and the ability to handle operations affect shipping times and prices, especially when a lot of items need to be sent.
Inventory Management Strategies
When planning supplies for phenolic cotton sheets, things like material stability and store life come into play. Controlling the temperature and humidity while storing something properly can help keep its qualities for a long time. Forecasts of demand and wait times from suppliers help set the right amount of inventory to balance the costs of having it with the needs for material availability.
Advanced Machining Techniques and Troubleshooting
To get the most out of CNC processes for phenolic cotton materials, you need to know about common problems and use tried-and-true methods. Modern methods and ways of fixing problems help makers get uniform results and get past handling problems.
Surface Finish Optimization
To get a smooth surface finish, you need to pay attention to the cutting settings, the state of the tools, and how the machine is set up. When using sharp tools for light finishing passes, the results are often better than trying to get the end size in one big cut. Using coolant when it's needed helps keep the temperature down and makes the surface better.
Dimensional Accuracy Considerations
In precision uses, thermal expansion and pressure caused by cutting can change the accuracy of the dimensions. Knowing how a material reacts to different cutting situations can help you predict these effects and make up for them. Accurate measures can only be made by letting cut parts cool and settle at room temperature before the final check.
Conclusion
For best results, CNC cutting of phenolic cotton sheets needs special skills and close attention to detail. To be successful, you need to know how the material works, choose the right cutting tools, and set the right machine settings. These materials are useful in many industrial settings because they are strong, don't conduct electricity, and don't change temperature. The success of a project and the quality of the materials used are guaranteed by good purchasing practices and partnerships with suppliers. Manufacturers can quickly make high-quality parts that meet strict performance standards while keeping costs low and production running smoothly by sticking to tried-and-true methods and safety rules.
FAQs
How fast should the blades be moving when CNC cutting phenolic cotton sheets?
For grinding, the best cutting speeds are between 100 and 300 surface feet per minute, and for drilling, they are between 200 and 500 revolutions per minute. Lower speeds help keep the surface finish quality high while preventing burning and glue breakdown.
Should phenolic cotton sheets be cut dry or can they be machine washed?
If the right steps are taken to collect the dust, these materials can usually be made dry. However, light air blast cooling helps get rid of chips. Avoid water-based coolants because they might change the features of the material. Air cooling stops heat from building up without hurting the structure of the composite.
How does the width of a sheet change the factors for CNC machining?
To keep the tool from getting too hot and overloaded, thicker sheets usually need slower feed rates and may need more than one pass for deep cuts. Sheets that are between 3mm and 12mm thick are the best for most CNC uses because they are easy to cut and have a strong structure.
