Improving Precision in NEMA CE CNC Machining

For CNC cutting to be very accurate, it takes more than just high-tech tools. It also needs careful material choice and following industry standards. When working with NEMA CE sheet materials, it's important to know what approval standards there are and what the best cutting settings are. To keep tight standards and physical stability, these high-pressure thermoset laminates, especially phenolic cotton and epoxy-based types, need to be handled in a certain way. Manufacturers can greatly cut down on errors, extend the life of tools, and improve overall production quality by carefully choosing which parts to use and setting up their machines correctly.

Understanding NEMA CE Standards and Their Impact on CNC Machining Precision

The National Electrical Manufacturers Association sets guidelines that have a direct effect on how we work with insulation materials when we need to do precise cutting. One group in this system is NEMA Grade CE (Canvas Electrical), which is different from normal mechanical grades because it has better electrical qualities and can handle damp better.

What Sets NEMA CE Materials Apart?

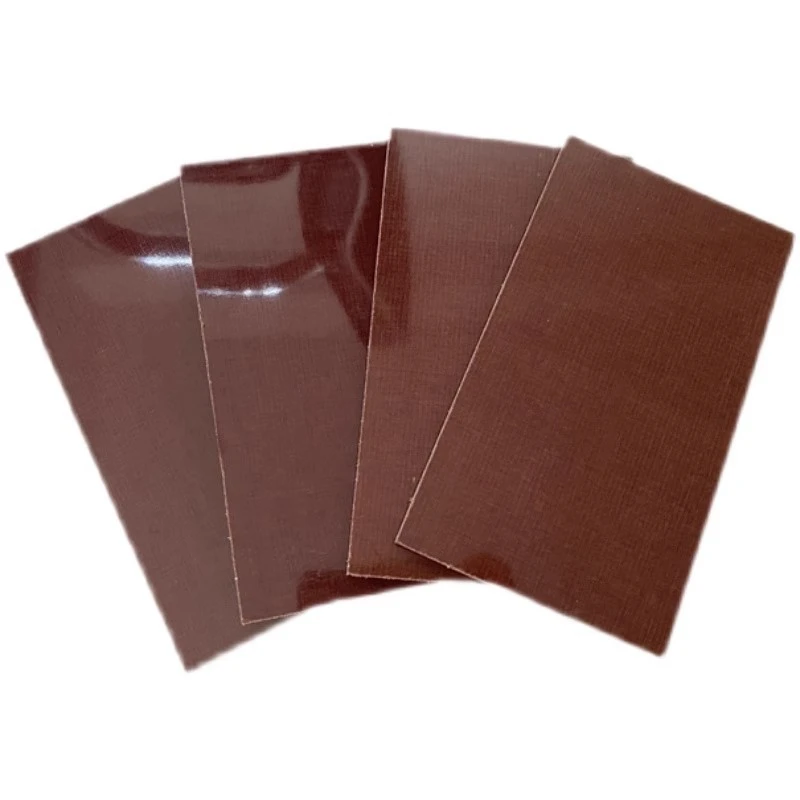

Phenolic cotton laminates that are classified by NEMA CE go through a lot of tests to make sure they meet certain dielectric strength and weather protection standards. Unlike normal Grade C materials that are mostly used in mechanical applications, these electrical-grade sheets don't change size when they are exposed to changes in moisture. The phenolic glue mixed with the fine cotton fabric weave makes a matrix that doesn't swell, which is very important when working on parts that need to be precise to within ±0.003 inches.

Certification Compliance and Quality Assurance

Materials that meet NEMA LI-1 standards are put through standard tests that check their mechanical power, ability to conduct electricity, and heat performance. We work with surfaces that always give us Class B insulation ratings (130°C constant operation) when we make these approved sheets. This stability means that the cutting will behave in a reliable way, which cuts down on the trial-and-error phase that is common in making precision parts.

How Standards Influence Machine Performance

Choosing approved materials has measured effects on how a CNC machine works. Rockwell hardness ratings for phenolic cotton sheets are between 100 and 105 M Scale, which has a direct effect on the choice of cutting tool and feed rate. Materials that aren't certified may change a lot from batch to batch, which means that machines need to be re-calibrated often. Certified grades have the same density (specific gravity 1.35–1.38), which means that chips form and the surface finish stays the same from one production run to the next.

Common Challenges in Achieving Precision with CNC Machines Using NEMA CE Components

There are a number of things that can make cutting less accurate, even when using approved materials. When buying teams and experts know about these problems, they can make smart choices that keep production from being held up, which costs a lot of money.

Thermal Management During Cutting Operations

When high-speed machines work on NEMA CE sheet, they produce a lot of heat. When temperatures get too high, resin carbonises, making hard spots that dull cutting edges and make surface finishes that aren't uniform. When cutting bigger sheets, especially ones that are more than 0.5 inches thick, it gets harder to get rid of the heat. While the cotton support is great at absorbing pressure, it doesn't conduct heat as well as glass-fiber surfaces.

Moisture Absorption and Dimensional Instability

By their very nature, cotton-based laminates absorb water. When materials aren't properly conditioned before they are machined, shops in wet areas often have to deal with differences in size. In a controlled setting, a sheet that is exactly 12 inches across may grow to 12.008 inches after a few days in a workshop with a lot of humidity. This difference, which seems small, messes up tight-tolerance work, especially when parts are stacked or mated.

Tool Selection Mismatches

A lot of machine shops use the same kinds of tools to work with phenolic laminates as they do with metals or plastics. Even though high-speed steel cuts work, they wear out quickly and cause too much friction. Because finished phenolic resin is rough, tools with carbide tips or diamond coatings are needed to keep the edges sharp. Not only does using the wrong tools lower the accuracy, but they also raise the risk of delamination along the cut edges.

Vibration and Chatter Issues

Harmonic vibrations can happen during machining because of the way the phenolic cotton sheets are put together, especially when cutting complex shapes or thin walls. Unlike materials that are all the same, these laminates can chatter, which leaves marks on smooth surfaces that can be seen. This problem gets worse when you're making gears or parts with repeated geometric designs, because any shaking affects more teeth or features at once.

Best Practices for Improving CNC Machining Precision with NEMA CE Rated Materials

When working with electrical-grade phenolic laminates, things go much more smoothly when you use smart methods to moving materials and setting up machines.

Material Conditioning and Storage Protocols

Before starting to machine, letting the sheets get used to the shop for 24 to 48 hours stabilises the amount of moisture in them. Keeping things consistent means storing them in climate-controlled places. The most consistent results have been seen in places that keep the temperature and relative humidity between 45 and 55% and the humidity between 20 and 25°C. Putting leftover parts in packaging that blocks moisture stops soaking between production runs.

Optimized Cutting Parameters

Choosing the right tool speeds and feed rates can make a big difference in the quality of the edges and the accuracy of the measurements. When used for cutting, carbide tools work best at higher speeds (18,000 to 24,000 RPM) and modest feed rates. When speeds are too slow, friction and heat build up, and when feed rates are too high, the cotton weave direction tears out.

The choice of coolant for NEMA CE sheet is also very important. Even though phenolic materials don't need to be cooled down in a flood like metals do, misting compressed air across the cutting zone gets rid of dust and lowers thermal stress. When cutting, don't use water-based coolants with cotton-reinforced grades because adding water during the process can change the dimensions right away.

Workholding and Fixturing Strategies

When clamps are used correctly, sheets don't bend, which reduces accuracy. Phenolic cotton laminates have a bending strength of more than 15,000 psi along their length, but thin sheets still need to be supported properly. Using vacuum tables spreads the supporting force out widely, which stops stress points from forming in one place that could lead to microcracking. When vacuum systems aren't available, stability can be kept by placing clamps close to cutting paths without getting in the way of tool paths.

Quality Control Checkpoints

By measuring while the process is going on, differences can be found before whole batches are thrown away. Thermal growth effects can be seen by checking the sizes of things right after rough cutting (while they are still at cutting temperature) and then again after cooling. By doing this, workers can better change the gaps for the next pieces. Checking the dielectric strength of sample cuts after cutting to make sure that delamination or resin damage hasn't changed the electrical shielding qualities.

Comparison of NEMA CE Materials and Related Standards to Support Informed Procurement Decisions

When buying teams know how different insulation laminate standards connect to each other, they can choose the best materials for each CNC application.

NEMA CE vs. NEMA Grade C

Both types are reinforced with cotton fabric, but the "E" grade has better electrical qualities. Grade CE sheets go through extra steps to make them less likely to absorb water and improve the dielectric breakdown voltage. When making parts for switches or bus bar supports, where electrical separation is very important, the extra cost of CE grades pays off because they are less likely to break down in high-voltage settings.

Phenolic Cotton vs. FR4 Epoxy Glass

When compared to cotton phenolic materials, FR4 sheets are better at resisting water and can handle higher temperatures. But phenolic cotton types work really well in situations where strength against force and shaking are needed. The cotton matrix reduces shock loads that would break glass-epoxy laminates when gears or mechanical spacers are being machined. Because they are easier to work with and make less dust, FR4 materials are better for places that make a lot of PCBs.

Cost Considerations Across Material Grades

Most of the time, phenolic cotton sheets cost 30 to 40 percent less than FR4 epoxy glass products that are similar. Because they are cheaper, they are good for uses where the highest temperature will stay below 130°C and the amount of moisture will be managed. Manufacturers of transformers and power distribution equipment often choose cotton phenolic grades for structural parts that will be submerged in mineral oil. This is because the material is very resistant to oil, which is more important than its moisture sensitivity.

Sourcing from Qualified Suppliers

Controls over how the seller makes NEMA CE sheet goods have a big impact on how consistent the materials are across orders. Well-known manufacturers keep close eye on the resin-to-fabric ratios and finish cycle factors that make sure that each batch is the same. When looking at different sources, it's a good idea to ask for material certifications that show they meet ASTM D709 or MIL-I-24768 standards. When suppliers offer custom thickness standards and sheet sizes, less extra processing is needed, which lowers the cost of production as a whole.

Practical Guide to Procuring and Maintaining NEMA CE CNC Components

Procurement strategies that work do more than just buy goods; they also coordinate transportation, check quality, and keep in touch with suppliers.

Evaluating Supplier Capabilities

It's just as important for suppliers to be able to provide good technical help as it is to have high-quality phenolic laminate sheets for precision cutting. When manufacturers suggest cutting parameters based on specific grades, it saves them a lot of time during setup. Inquiring about minimum order quantities, custom sizing options, and lead times for non-standard thicknesses prevents project delays.

Test results that show bending strength, dielectric breakdown voltage, water absorption rates, and physical tolerances should be included with quality approvals. Reliable providers include these papers with all packages immediately. This makes it possible to track down problems with quality during production.

Managing Inventory for Production Continuity

When kept properly, phenolic materials have a long shelf life that makes it easy to keep track of your goods. Ordering in bulk of sizes and types that are used a lot cuts down on per-sheet costs and makes sure that the material is always available. However, cotton-based laminates need to be stored in a way that controls wetness. Keeping them in sealed packaging until they are needed stops leakage that can affect the accuracy of the cutting process.

Using first-in, first-out inventory movement stops you from working with items that have been stored for longer than the suggested time. Even though phenolic sheets don't break down as quickly as some thermoplastics, moisture can get in through protected packaging if they are stored for a long time in an uncontrolled environment.

Building Long-Term Supplier Partnerships

Building ties with providers who know how to use CNC machines to make things is good for everyone. Manufacturers that work with companies that make electrical equipment and industrial tools often keep grades on hand that are perfect for making accurate parts. When there are urgent sales or uses that need materials with tighter standards than usual, these relationships help get things done faster.

Getting things from suppliers who offer combined shipping makes the process a lot easier. It is more accurate to plan production when materials are sent straight to factories with known wait times (7–14 days for normal grades and 21–30 days for custom specs).

Conclusion

To do precise CNC cutting on NEMA CE sheet materials, you need to know how the qualities of the material, the machine's powers, and the process settings all work together. When treated properly, cotton phenolic laminates have great mechanical strength and electrical protection, but they need to be kept dry and the right tools need to be used. Manufacturers can get uniform standards and longer tool life by properly preparing materials, using the best cutting strategies, and keeping strict quality controls. When you buy from knowledgeable suppliers who offer certified materials and technical support, you can be even more sure that the production will go smoothly. This means that engineers can confidently use these cost-effective laminates in a wide range of situations, from switchgear parts to mechanical spacers in industrial equipment.

FAQ

What effect does NEMA CE approval have on the precision of CNC machining?

When materials get NEMA CE approval, they are guaranteed to have the same electrical and mechanical properties. This means that all sheets will have the same density and strength. Because of this, CNC workers can set accurate cutting settings that give the same results every time, without having to make constant changes to the machine between runs.

Can phenolic cotton sheets handle being machined at high speeds?

Together with carbide tools, these materials work well at high spinning speeds. The main problem is that it creates heat, and cutting for too long without enough cooling breaks down the plastic. Thermal damage can be avoided by letting chips escape properly and cutting thick parts in sections that are cut at regular intervals.

What kinds of tolerances can be used when cutting NEMA Grade CE materials?

Keeping limits of ±0.003 inches is possible for most features with the right fixtures and temperature control. Tight-tolerance work needs to be inspected after the materials have cooled down to room temperature, because the thermal expansion during cutting changes the sizes briefly.

How does being exposed to moisture change the size of a final part?

In places with a lot of moisture, cotton-based laminates can grow by up to 0.4%. After absorbing water, parts that were made to exact specs when they were dry may not meet standards anymore. Dimensional creep can be stopped by sealing finished parts properly or keeping them in a controlled environment.

Partner With J&Q for Your Precision NEMA CE Sheet Machining Needs

For more than 20 years, J&Q has been making high-quality insulation laminates that are specifically made for CNC uses that are very specific. Our NEMA CE sheet materials go through strict quality checks to make sure that every production batch has the same level of electrical performance and ability to be machined. Working with machinery builders and electrical equipment makers from around the world has helped us better understand the tight limits that your operations need. We keep a large stock of both standard and special sizes, and our combined transport network makes sure that deliveries happen on time. Technical consulting services help you find the best types of materials for your needs, whether you're making accurate mechanical spacers or parts for circuitry. Email our team at info@jhd-material.com to talk about the details of your project and get full quotes from a reliable NEMA CE sheet provider who wants to help your manufacturing success.
