What Testing Methods Are Used for Dielectric Property Evaluation?
Parallel Plate Capacitor Method

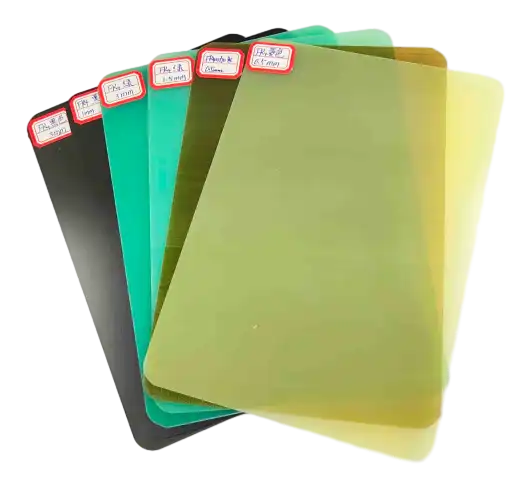

The parallel plate capacitor method is a fundamental technique for evaluating the dielectric properties of FR4 sheet. This approach involves sandwiching a sample of the FR4 material between two conductive plates, effectively creating a capacitor. The capacitance of this setup is measured using a precision LCR meter or impedance analyzer. By knowing the dimensions of the sample and the measured capacitance, technicians can calculate the dielectric constant using the appropriate equations. This method is relatively straightforward and can provide accurate results when performed carefully.
Microstrip Resonator Technique
Another sophisticated method for determining the dielectric constant of FR4 is the microstrip resonator technique. This approach utilizes a microstrip transmission line fabricated on the FR4 substrate. The resonant frequency of this structure is measured and compared to theoretical models. By analyzing the resonant behavior, researchers can extract the dielectric constant of the FR4 material. This method is particularly useful for evaluating the dielectric properties at higher frequencies, making it valuable for applications in RF and microwave circuit design.
Split-Post Dielectric Resonator
The split-post dielectric resonator method offers a non-destructive way to measure the dielectric constant of FR4 sheets. This technique employs a resonant cavity split into two halves, with the FR4 sample placed between them. The resonant frequency and quality factor of the cavity are measured both with and without the sample present. By analyzing the changes in these parameters, technicians can determine the dielectric constant and loss tangent of the FR4 material. This method is advantageous for its ability to measure thin samples with high accuracy.
Capacitance Measurement and Frequency Dependency
Precision LCR Meters and Impedance Analyzers
Accurate capacitance measurement is crucial for determining the dielectric constant of FR4 sheet. Precision LCR meters and impedance analyzers are indispensable tools for this task. These instruments can measure capacitance with high accuracy across a wide range of frequencies. Modern equipment often features automated measurement capabilities, allowing for swift and reliable data collection. When selecting measurement equipment, it's essential to consider factors such as frequency range, measurement accuracy, and resolution to ensure compatibility with the specific requirements of FR4 dielectric constant evaluation.
Frequency Sweep Analysis
The dielectric constant of FR4 is not a static value but can vary with frequency. Conducting a frequency sweep analysis provides valuable insights into this behavior. By measuring the dielectric constant across a range of frequencies, technicians can create a comprehensive profile of the material's electrical properties. This information is particularly crucial for applications where the FR4 sheet will be used in circuits operating at different frequencies. Frequency sweep data can reveal subtle variations in the dielectric constant, which may significantly impact circuit performance in high-frequency applications.
Temperature and Humidity Considerations
Environmental factors, particularly temperature and humidity, can influence the dielectric properties of FR4 sheet. When measuring capacitance for dielectric constant calculations, it's essential to control and document these variables. Some advanced measurement setups incorporate environmental chambers to maintain consistent conditions throughout the testing process. Understanding how temperature and humidity affect the dielectric constant of FR4 is crucial for ensuring accurate measurements and predicting material performance under various operating conditions.
Accuracy Factors in Dielectric Constant Testing of Laminates
Sample Preparation and Handling
Proper sample preparation is paramount for accurate dielectric constant measurements of FR4 sheet. The samples must be cut to precise dimensions, with smooth, parallel surfaces to ensure good contact with measurement electrodes. Any contamination, scratches, or irregularities can introduce errors in the measurements. Careful handling of the samples is essential to prevent moisture absorption or surface contamination, which could alter the dielectric properties. Some testing protocols may require conditioning of samples in controlled environments before measurement to ensure consistent results.
Calibration and Reference Materials
To achieve high accuracy in dielectric constant measurements, proper calibration of test equipment is crucial. This process often involves using reference materials with known dielectric properties to verify and adjust the measurement system. Standard reference materials, such as fused silica or specific polymers, can be used to check the accuracy of the measurement setup. Regular calibration helps identify and correct any drift in the measurement equipment, ensuring consistent and reliable results over time. Maintaining detailed calibration records is also essential for traceability and quality assurance purposes.
Uncertainty Analysis and Measurement Repeatability
Understanding the sources of uncertainty in dielectric constant measurements is vital for assessing the reliability of the results. Factors contributing to measurement uncertainty include instrument accuracy, sample variability, and environmental fluctuations. Conducting multiple measurements and performing statistical analysis can help quantify the repeatability and reproducibility of the results. Uncertainty analysis provides valuable information about the confidence level of the measured dielectric constant values. This information is crucial when specifying the electrical properties of FR4 sheet for critical applications or when comparing materials from different suppliers.
Conclusion
Measuring the dielectric constant of FR4 sheet requires a combination of precise techniques, specialized equipment, and careful attention to detail. From parallel plate capacitor methods to advanced resonator techniques, each approach offers unique advantages for characterizing the electrical properties of FR4 laminates. By understanding the nuances of frequency dependency, environmental influences, and accuracy factors, technicians and engineers can obtain reliable dielectric constant measurements. This knowledge is invaluable for optimizing circuit designs, ensuring consistent performance, and advancing the development of high-frequency electronic applications using FR4 materials.
