Which Factors Determine FR4 Quality?
Material Composition and Manufacturing Process

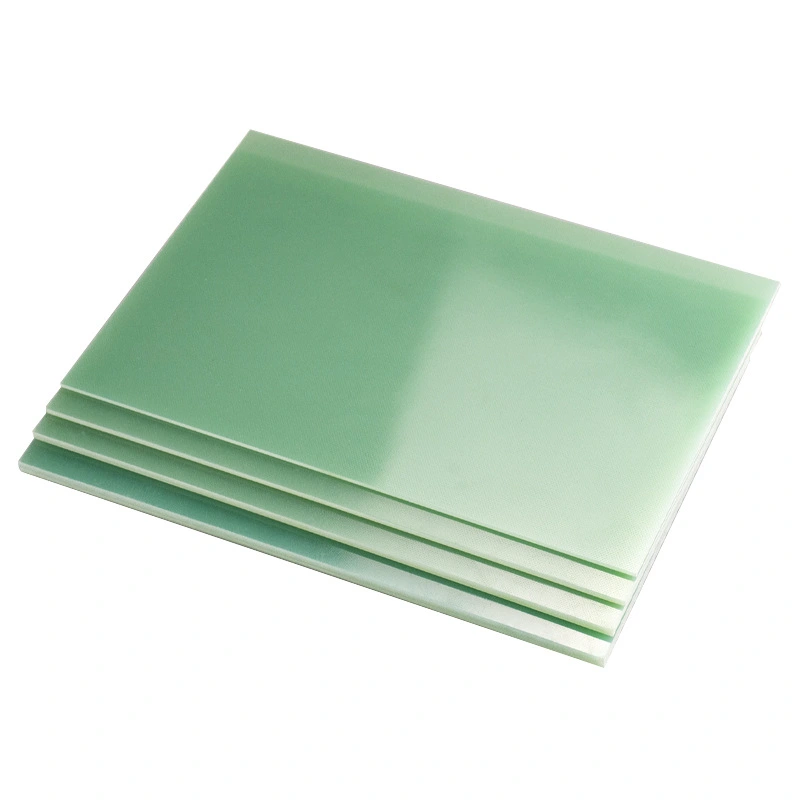

The quality of FR4 epoxy sheet is largely determined by its material composition and manufacturing process. High-grade FR4 consists of woven fiberglass cloth impregnated with epoxy resin. The fiberglass provides strength and dimensional stability, while the epoxy resin offers excellent electrical insulation and flame retardant properties. During manufacturing, precise control of temperature, pressure, and curing time is crucial to achieve optimal cross-linking of the epoxy matrix. This ensures uniform properties throughout the sheet and minimizes issues like delamination or inconsistent thickness.
Physical Characteristics and Appearance
Visual inspection can reveal much about FR4 quality. Premium sheets exhibit a uniform color without discoloration or blemishes. The surface should be smooth and free from pits, bumps, or foreign particles. Edges should be clean-cut without fraying or chipping. High-quality FR4 maintains consistent thickness across the entire sheet, typically within tight tolerances of ±10% or better. When flexed, the material should demonstrate resilience without cracking or permanent deformation, indicating good mechanical properties and proper curing.
Electrical and Thermal Properties
Superior FR4 epoxy sheets boast excellent electrical insulation characteristics. They should have high dielectric strength, typically above 50 kV/mm, to prevent breakdown under strong electric fields. Low dielectric constant and dissipation factor are desirable for high-frequency applications. Thermal properties are equally important, with high-quality FR4 exhibiting a glass transition temperature (Tg) of 130°C or higher for standard grades, and even higher for specialized high-Tg variants. Good thermal conductivity helps dissipate heat in electronic assemblies, while low thermal expansion ensures dimensional stability across operating temperatures.
Physical and Electrical Performance Tests
Dielectric Strength and Breakdown Voltage
Dielectric strength testing is crucial for evaluating the insulation capability of FR4 epoxy sheets. This test measures the maximum electric field the material can withstand before electrical breakdown occurs. High-quality FR4 typically exhibits dielectric strength exceeding 50 kV/mm. The test involves applying an increasing voltage across the sheet until breakdown occurs. A related parameter, breakdown voltage, is measured by gradually increasing the applied voltage until the material fails to insulate. These tests ensure the FR4 sheet can reliably isolate electrical components and withstand high voltages in circuit board applications.
Glass Transition Temperature (Tg) Analysis
Glass transition temperature (Tg) is a critical parameter that indicates the thermal stability of FR4 epoxy sheets. It represents the temperature at which the material transitions from a rigid, glassy state to a more flexible, rubbery state. High-quality FR4 should have a Tg of at least 130°C for standard grades, with some specialized variants exceeding 170°C. Differential Scanning Calorimetry (DSC) or Dynamic Mechanical Analysis (DMA) are commonly used to determine Tg. A higher Tg indicates better thermal stability, allowing the material to maintain its mechanical and electrical properties at elevated temperatures encountered in electronic devices.
Flammability and Thermal Conductivity Tests
Flame retardancy is a defining characteristic of FR4 materials. The UL 94 V-0 rating is the industry standard for flame resistance in FR4 sheets. This test evaluates how quickly the material self-extinguishes after ignition and whether it produces flaming drips. High-quality FR4 should achieve the V-0 rating, indicating excellent flame retardant properties. Thermal conductivity tests measure the material's ability to dissipate heat, which is crucial for maintaining temperature stability in electronic assemblies. While FR4 is not a high thermal conductor, better quality sheets often exhibit improved heat dissipation characteristics, enhancing the overall reliability of the final product.
Supplier Certifications and Quality Assurance
ISO and IPC Standards Compliance
Reputable FR4 epoxy sheet suppliers adhere to internationally recognized standards. ISO 9001 certification ensures the manufacturer follows a robust quality management system, consistently meeting customer and regulatory requirements. For electronics applications, compliance with IPC-4101 (Specification for Base Materials for Rigid and Multilayer Printed Boards) is crucial. This standard defines the performance requirements for laminate materials used in printed circuit boards. High-quality FR4 suppliers should provide documentation demonstrating their products meet or exceed these standards, ensuring reliability and consistency in their materials.
UL Recognition and Safety Certifications
Underwriters Laboratories (UL) recognition is a key indicator of FR4 quality and safety. UL 94, which classifies materials based on flammability, is particularly important for FR4 sheets. The V-0 rating, the highest in this category, indicates that the material self-extinguishes within 10 seconds vertically and produces no flaming drips. Additionally, UL 746E certification for electrical insulation systems provides assurance of long-term thermal endurance. These certifications not only validate the material's safety characteristics but also facilitate compliance with regulatory requirements in various industries and markets.
Manufacturer's Quality Control Processes
The robustness of a manufacturer's quality control processes significantly impacts FR4 epoxy sheet quality. Look for suppliers who employ advanced process control techniques, such as Statistical Process Control (SPC), to maintain consistent product quality. Regular in-process testing and final product inspection should be standard practices. This may include dimensional checks, visual inspections, and sample testing for key electrical and mechanical properties. Suppliers should be able to provide detailed quality control documentation, including test reports and certificates of conformance. A commitment to continuous improvement and willingness to work with customers on specific quality requirements are hallmarks of top-tier FR4 manufacturers.
Conclusion
Identifying high-quality FR4 epoxy sheet requires a multi-faceted approach. By evaluating material composition, physical characteristics, electrical and thermal properties, and conducting rigorous performance tests, you can ensure the FR4 meets your specific requirements. Supplier certifications and robust quality assurance processes further validate the material's reliability. Remember, superior FR4 quality translates to enhanced performance and longevity in electronic applications. When in doubt, consult with reputable manufacturers and conduct thorough testing to make informed decisions about your FR4 epoxy sheet selection.
FAQs
What is the typical thickness range for FR4 epoxy sheets?
FR4 sheets are available in thicknesses ranging from 0.2mm to 50mm, with common thicknesses for PCB applications being 0.8mm to 3.2mm.
How does FR4 compare to G10 in terms of performance?
FR4 and G10 are similar in many aspects, but FR4 has enhanced flame-retardant properties, making it the preferred choice for many electronic applications.
Can FR4 epoxy sheets be machined easily?
Yes, FR4 can be machined using standard tools, but care must be taken to avoid delamination. Specialized equipment designed for composites often yields better results.
Trust J&Q for High-Quality FR4 Epoxy Sheets
At J&Q, we pride ourselves on delivering premium FR4 epoxy sheets and serving as a trusted FR4 epoxy sheet manufacturer that meets the highest industry standards. With over two decades of manufacturing expertise and a decade of international trade experience, we offer unparalleled quality and service. Our in-house logistics company ensures seamless delivery worldwide. For top-tier FR4 epoxy sheets and expert guidance, contact us at info@jhd-material.com.
References
Smith, J. (2022). "Advanced Materials for Printed Circuit Boards: A Comprehensive Guide"
Johnson, L. et al. (2021). "Thermal and Electrical Properties of FR4 Laminates: Current Trends and Future Prospects"
International Electrotechnical Commission. (2020). "IEC 61189-2: Test methods for electrical materials, printed boards and other interconnection structures and assemblies"
Underwriters Laboratories. (2023). "UL 94: Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances"
IEEE. (2022). "Handbook of Electrical and Electronic Insulating Materials"
Zhang, Q. (2021). "Quality Control Methodologies in Laminate Manufacturing for Electronics"
