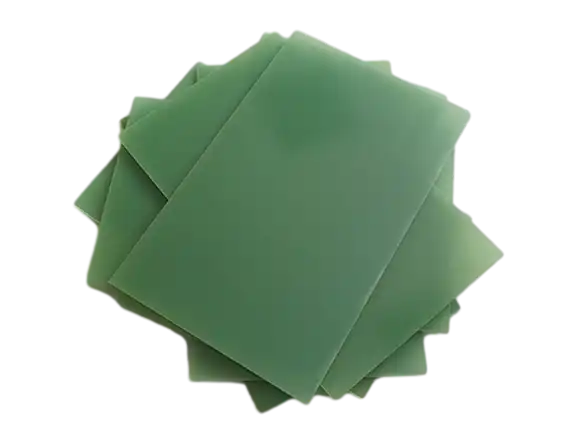

What Is the Dielectric Strength of G10 Epoxy Sheet?
Understanding Dielectric Strength
Dielectric strength is one of the most important properties of insulating materials, as it defines their ability to resist electrical breakdown under high voltage. G10 epoxy sheet stands out in this regard, providing excellent dielectric strength that helps maintain system safety and stability. Its strong insulating capability makes it widely used in demanding electrical and electronic applications where reliability is critical.
Quantifying G10's Dielectric Strength
The dielectric strength of G10 epoxy sheet generally falls between 800 and 900 volts per mil (0.001 inch), which is about 31.5 to 35.4 kV/mm. This high rating highlights its excellent resistance to electrical breakdown, even when exposed to strong electric fields. Such performance makes G10 a trusted choice for insulating components in power equipment, transformers, and other high-voltage applications where long-term reliability is essential.
Factors Influencing Dielectric Strength
Several factors influence the dielectric strength of G10 epoxy sheet, such as material thickness, operating temperature, surrounding humidity, and the frequency of the applied voltage. Each of these conditions can alter the insulating performance, either enhancing or reducing its ability to resist breakdown. By carefully considering these variables, engineers can ensure G10 delivers reliable insulation and maintains safety in a wide range of electrical and electronic applications.
Insulation Performance and Electrical Reliability of G10
Low Dielectric Constant and Dissipation Factor
G10 epoxy sheet features a low dielectric constant, typically ranging from 4.5 to 5.2, which ensures efficient electrical insulation in a variety of applications. Its low dissipation factor, usually below 0.025, minimizes energy loss during high-frequency operation, preserving signal integrity and overall electrical efficiency. These characteristics make G10 particularly suitable for use in transformers, PCBs, and high-voltage equipment, where maintaining reliable insulation and minimizing heat generation are critical for both performance and safety over extended service periods.
Volume and Surface Resistivity
G10 epoxy sheet demonstrates exceptional volume and surface resistivity, with volume resistivity often exceeding 10^16 ohm-cm and surface resistivity around 10^14 ohms. These properties enable the material to effectively impede electrical current, providing robust isolation between conductive components. Such resistivity ensures consistent performance even in high-voltage or high-stress electrical environments. By maintaining reliable insulation over time, G10 protects sensitive equipment, reduces the risk of leakage currents, and supports the safe and efficient operation of industrial, automotive, and aerospace electrical systems.
Arc Resistance and Tracking Resistance
G10 epoxy sheet exhibits excellent arc resistance, allowing it to withstand electrical arcing events without significant structural or electrical degradation. Its superior tracking resistance prevents the formation of conductive paths on the surface, maintaining insulation integrity under demanding environmental conditions, including moisture and dust exposure. These properties ensure that G10 performs reliably in high-voltage and high-stress applications, contributing to long-term electrical safety and reducing maintenance requirements. The combination of arc and tracking resistance makes G10 a preferred choice for transformers, switchgear, and other critical electrical components.
How G10 Enhances Safety in High-Voltage Applications?
Electrical Breakdown Prevention
G10 epoxy sheet offers exceptionally high dielectric strength, providing a robust barrier against electrical breakdown in high-voltage systems. This property is essential for preventing short circuits, arcing, and other potentially catastrophic failures that could compromise both equipment and personnel safety. By maintaining consistent insulation performance under high electric stress, G10 ensures reliable operation of transformers, switchgear, and other critical high-voltage components. Its predictable electrical properties also allow engineers to design safer systems with minimal risk of unexpected insulation failure over the lifespan of the equipment.
Thermal Stability and Fire Resistance
The thermal stability of G10 epoxy sheet plays a key role in enhancing safety in high-voltage applications. The material retains its dielectric properties at elevated temperatures, reducing the likelihood of insulation breakdown during operational stress or overheating. Coupled with inherent flame-retardant characteristics, G10 minimizes the risk of fire propagation within electrical systems. This combination of heat endurance and fire resistance ensures that G10 maintains safe performance in demanding environments, protecting both devices and operators while meeting stringent safety regulations for high-voltage installations.
Long-Term Reliability
G10 epoxy sheet demonstrates outstanding durability and chemical resistance, which supports long-term reliability in high-voltage environments. Its low moisture absorption and dimensional stability under thermal and environmental stress prevent degradation of insulation performance over time. This consistency ensures that high-voltage components continue to operate safely and efficiently throughout their service life. By maintaining structural and electrical integrity even under challenging conditions, G10 contributes to the overall reliability, longevity, and safety of high-voltage systems in industrial, power generation, and transportation applications.
Conclusion
G10 epoxy sheet's remarkable dielectric properties position it as a cornerstone material in electrical systems. Its high dielectric strength, low dielectric constant, and excellent insulation performance make it an invaluable asset in various high-voltage applications. The material's ability to enhance safety through electrical breakdown prevention, thermal stability, and long-term reliability further solidifies its importance. As electrical systems continue to evolve and demand higher performance, G10 epoxy sheet remains at the forefront, offering unparalleled dielectric properties that drive innovation and reliability in the electrical industry.
FAQs
What makes G10 epoxy sheet ideal for electrical applications?
G10 epoxy sheet is ideal for electrical applications due to its high dielectric strength, low dielectric constant, excellent insulation properties, and ability to withstand high temperatures and harsh environments.
How does G10 compare to other insulating materials?
G10 often outperforms many other insulating materials in terms of mechanical strength, chemical resistance, and thermal stability, making it a versatile choice for a wide range of electrical applications.
Can G10 be used in outdoor electrical equipment?
Yes, G10's low moisture absorption and excellent weather resistance make it suitable for outdoor electrical equipment, though protective measures may be needed for prolonged UV exposure.
Experience the Superior Dielectric Properties of G10 Epoxy Sheet with J&Q
At J&Q, we leverage our two decades of expertise in insulating sheet production to deliver top-quality G10 epoxy sheets. Our global presence and in-house logistics ensure seamless service from production to delivery. Experience the unparalleled dielectric performance of our G10 epoxy sheets in your electrical systems. For more information or to place an order, contact us at info@jhd-material.com.
