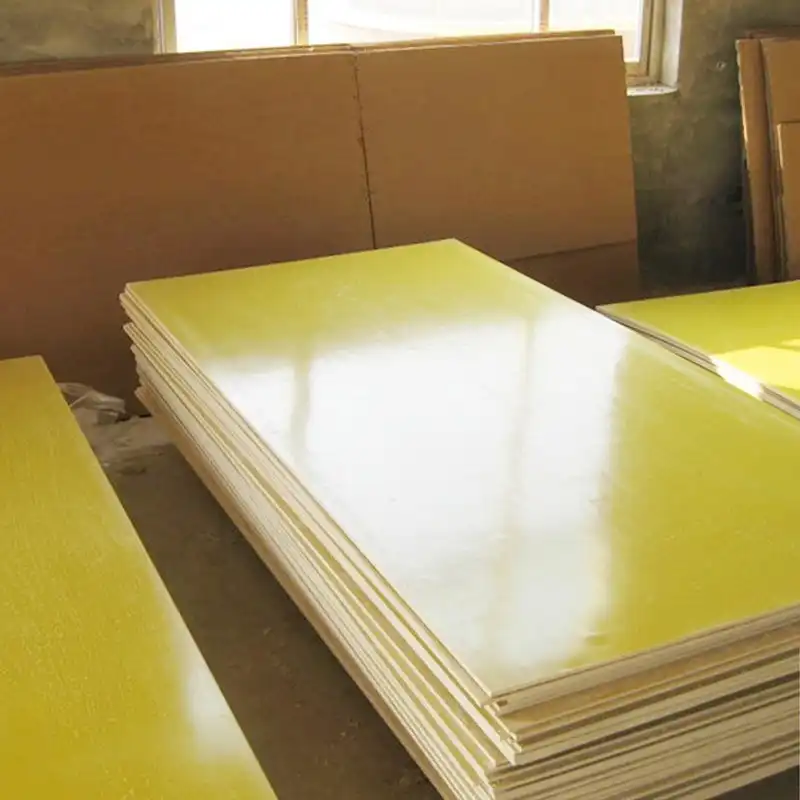

3240 Epoxy Sheet Testing Standards You Should Know

3240 epoxy sheets are crucial components in various industries, renowned for their exceptional electrical insulation and mechanical properties. To ensure these sheets meet the stringent requirements of their applications, a comprehensive set of testing standards has been established. These standards encompass mechanical, electrical, and thermal properties, as well as environmental resistance. Key tests include dielectric strength, tensile strength, flexural strength, and thermal conductivity. Manufacturers and end-users must adhere to these standards to guarantee the reliability and performance of 3240 epoxy sheets in critical applications such as electrical insulation, circuit boards, and high-temperature environments. Understanding these testing standards is essential for quality control, product development, and ensuring the safety and efficiency of systems utilizing 3240 epoxy sheets.

What Are the Essential Standards for 3240 Epoxy Sheet?

International Standards and Specifications

3240 epoxy sheets are manufactured in accordance with internationally recognized standards to ensure consistent quality and performance across global applications. Key specifications include ASTM D709, which outlines requirements for industrial laminated thermosetting products, and IEC 60893, covering rigid laminated sheets based on thermosetting resins for electrical use. Compliance with these standards guarantees that 3240 epoxy sheets meet rigorous global benchmarks, ensuring uniformity in mechanical, electrical, and thermal properties. Such adherence facilitates their adoption in critical industries, including electrical, aerospace, and industrial machinery applications.

Material Property Requirements

The essential standards for 3240 epoxy sheets define precise material property requirements to ensure reliable performance. These include minimum thresholds for tensile strength, flexural strength, and impact resistance, ensuring the material can withstand mechanical stresses in demanding applications. Electrical properties, such as dielectric strength, volume resistivity, and insulation resistance, are critical for safety and efficiency in electrical systems. Thermal characteristics, including heat deflection temperature and thermal conductivity, are also specified, ensuring the sheets maintain structural and electrical integrity under elevated temperatures and long-term operational conditions.

Environmental and Safety Compliance

3240 epoxy sheets are required to meet stringent environmental and safety standards to ensure safe industrial use. Compliance with RoHS (Restriction of Hazardous Substances) ensures they are free from hazardous elements such as lead, mercury, and cadmium. Additionally, fire safety standards like UL 94 classify the material’s flammability and determine suitability for use in high-risk environments. Adhering to these environmental and safety requirements ensures that 3240 epoxy sheets provide reliable, long-lasting performance while minimizing environmental impact and supporting workplace safety in industrial, electrical, and electronic applications.

Mechanical, Thermal, and Electrical Testing Protocols

Mechanical Testing Procedures

Mechanical testing of 3240 epoxy sheets involves several key procedures. Tensile strength testing, conducted according to ASTM D638, measures the sheet's ability to withstand longitudinal stress. Flexural strength testing, following ASTM D790, evaluates the material's ability to resist deformation under load. Impact resistance testing, such as the Izod impact test (ASTM D256), assesses the sheet's toughness and ability to absorb sudden impacts.

Thermal Testing Methods

Thermal testing is crucial for understanding the behavior of 3240 epoxy sheets under various temperature conditions. The heat deflection temperature test (ASTM D648) determines the temperature at which the material begins to deform under a specified load. Coefficient of thermal expansion testing (ASTM E831) measures how the material's size changes with temperature variations. Additionally, thermal conductivity tests evaluate the sheet's ability to conduct heat, which is particularly important for applications involving heat dissipation.

Electrical Property Evaluation

Electrical testing is fundamental for 3240 epoxy sheets, given their frequent use in electrical applications. Dielectric strength testing (ASTM D149) measures the maximum electric field the material can withstand without breakdown. Volume and surface resistivity tests (ASTM D257) assess the material's ability to resist electrical current flow. Arc resistance testing (ASTM D495) evaluates the sheet's ability to withstand high-voltage electrical arcs, which is crucial for certain high-voltage applications.

Ensuring Quality Compliance in Industrial Applications

Quality Control Measures in Manufacturing

Ensuring quality compliance of 3240 epoxy sheets begins at the manufacturing stage. Manufacturers implement rigorous quality control measures, including in-process testing and final product inspection. This involves continuous monitoring of resin mixture ratios, curing conditions, and dimensional accuracy. Advanced techniques like ultrasonic testing may be employed to detect internal defects or delamination in the sheets. Regular calibration of testing equipment and adherence to standardized testing procedures are crucial for maintaining consistent quality.

Application-Specific Testing

Different industrial applications may require additional, specific testing for 3240 epoxy sheets. For instance, sheets used in high-humidity environments might undergo moisture absorption tests (ASTM D570) to ensure they maintain their properties in wet conditions. For applications involving exposure to chemicals, chemical resistance testing is essential. Sheets used in aerospace applications might require additional testing for resistance to UV radiation or low-temperature performance.

Certification and Documentation

To ensure quality compliance, manufacturers of 3240 epoxy sheets often seek certification from recognized bodies. This may include ISO 9001 certification for quality management systems. Comprehensive documentation of testing results, material traceability, and conformance to specified standards is maintained. Many manufacturers provide certificates of conformance or test reports with each batch of 3240 epoxy sheets, assuring customers of the product's compliance with required standards and specifications.

Conclusion

Understanding and adhering to the testing standards for 3240 epoxy sheets is crucial for manufacturers, distributors, and end-users alike. These standards ensure the reliability, safety, and performance of 3240 epoxy sheets across various industrial applications. By following rigorous testing protocols and quality control measures, manufacturers can produce 3240 epoxy sheets that consistently meet or exceed industry requirements. For users, familiarity with these standards aids in selecting the right material for specific applications and ensures the longevity and efficiency of their systems.

FAQs

What are the key properties tested in 3240 epoxy sheets?

Key properties tested include mechanical strength (tensile, flexural, impact), electrical properties (dielectric strength, volume resistivity), and thermal characteristics (heat deflection temperature, thermal conductivity).

How often should 3240 epoxy sheets be tested?

Testing frequency depends on the application, but typically includes batch testing during manufacturing and periodic testing during use, especially in critical applications.

Are there specific environmental tests for 3240 epoxy sheets?

Yes, environmental tests may include moisture absorption, chemical resistance, and UV exposure tests, depending on the intended application.

Trust J&Q for Premium 3240 Epoxy Sheets

J&Q, a leading insulating sheet manufacturer with over 20 years of experience in producing and selling insulating sheets, offers premium 3240 epoxy sheets that meet and exceed industry standards. Our rigorous quality control processes and state-of-the-art testing facilities ensure that every sheet we produce is of the highest quality. For more information about our 3240 epoxy sheets and our comprehensive testing procedures, contact us at info@jhd-material.com.

References

ASTM International. (2017). ASTM D709 - Standard Specification for Laminated Thermosetting Materials.

International Electrotechnical Commission. (2019). IEC 60893 - Specification for Industrial Rigid Laminated Sheets Based on Thermosetting Resins for Electrical Purposes.

Underwriters Laboratories. (2020). UL 94 - Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances.

ASTM International. (2018). ASTM D638 - Standard Test Method for Tensile Properties of Plastics.

ASTM International. (2019). ASTM D149 - Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies.

International Organization for Standardization. (2015). ISO 9001:2015 - Quality management systems — Requirements.
