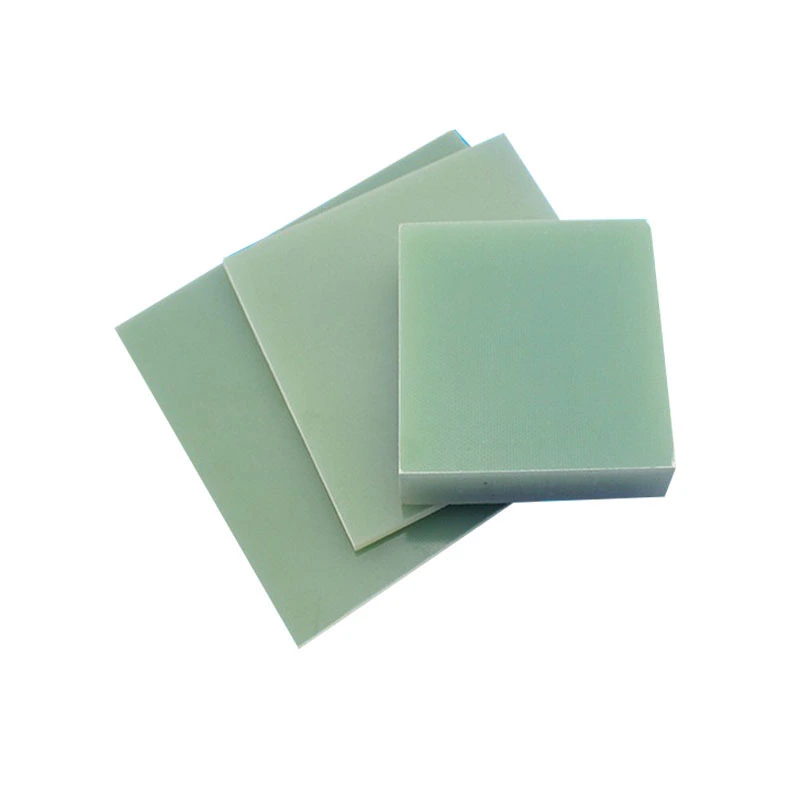

How Hot Press Machines Ensure Void-Free G10 Epoxy Sheets?

Hot press machines make sure that the G10 epoxy sheet they make is free of air bubbles by carefully controlling the temperature and pressure during the lamination process. Heat that is evenly spread out, usually between 150°C and 180°C, and controlled pressure between 1000 and 1500 PSI are used in these machines. This gets rid of air pockets and fully soaks the fiberglass layers in epoxy resin. The automated cycle monitoring stops the curing process from starting before it's finished and makes sure that all of the laminate layers are fully consolidated. This creates a dense microstructure that doesn't have any microscopic holes that could affect the strength or electrical insulation.

Understanding the Problem of Voids in G10 Epoxy Sheets

Microscopic examination of bad insulation materials often shows that the problem is caused by tiny air pockets built into the laminate structure. These very small holes are one of the biggest quality problems that come up when G10 epoxy sheet is made for industrial use.

What Causes Void Formation During Manufacturing?

During the curing and layup stages, voids form when air that is trapped between the layers of resin-impregnated fiberglass cloth can't get out. When resin flow isn't even, pockets form where polymer chains can't crosslink properly. When there isn't enough pressure during the pressing cycle, air bubbles get stuck and don't escape. Differences in temperature across the laminate surface cause different curing rates, which makes stress points and microgaps in the finished sheet.

The strict process parameters needed to get rid of these flaws can't be kept up with traditional manual pressing methods. Human operators have a hard time applying consistent pressure over large areas of surface, and standard heating systems cause temperature changes that directly cause voids to form.

How Voids Compromise Material Performance？

Even if the voids are very small, they seriously hurt the functional properties that engineering managers and procurement teams depend on. When air pockets form in electrical insulation, they make it easier for current to leak through and the dielectric to break down. Mechanical engineers notice that voids cause lower tensile strength and impact resistance because they act as stress concentration points where cracks start when the material is loaded.

When voids appear in a continuous matrix structure, thermal conductivity changes. This creates hot spots that speed up the breakdown of power distribution equipment. The amount of moisture that is absorbed goes up a lot when interconnected void networks let water in. This causes the material to become less stable and its electrical properties to get worse.

In the 20 years we've been in the manufacturing business, we've kept records of failure analysis reports from clients whose switchgear assemblies and transformer insulation systems broke down early because of voided laminates. These problems in the field show that void elimination is an important quality requirement and not just a nice-to-have issue.

Why Conventional Methods Fall Short？

Basic heating plates and hydraulic presses that are operated by hand can't provide the process control needed for void-free production. Pressure is still not applied evenly across the laminate surface; areas near the edges are compressed with different forces than areas in the middle. When you use simple contact heating to move heat, you create temperature differences that make some areas over-cure while others stay partially cured.

Without automated monitoring systems, it's almost impossible to get consistency from batch to batch. Operators don't notice small changes in the process that add up to quality problems until the final inspection shows them. This reactive approach wastes materials, delays production, and makes the quality of the products inconsistent, which hurts the supplier's relationship with OEM customers.

The problems with traditional processing show how important it is to have advanced manufacturing equipment that can meet the exact needs of clients in the power sector, industries that make electrical equipment, and companies that make industrial machinery.

How Hot Press Machines Solve the Void Formation Issue？

Modern hot press equipment for G10 epoxy sheet changes the way things are made by having built-in control systems that precisely manage all the factors that affect the quality of the laminate. The development of technology that makes it possible to consistently make high-integrity epoxy glass laminates is shown by these complex machines.

Precise Temperature and Pressure Control Mechanisms

Hot press machines have several heating zones, and each zone has its own temperature controller that keeps the temperature uniform across the whole platen surface to within ±2°C. This precise temperature control makes sure that the whole thickness of the laminate gels and cures at the same time, which stops the uneven shrinkage that traps air pockets. Programmable heating profiles let you slowly raise the temperature, which gives trapped air enough time to escape before the crosslinking process makes the resin more viscous.

Hydraulic pressure systems apply a steady pressing force that is spread out evenly by precision-machined platens. Real-time pressure monitoring with feedback loops takes into account the flow of resin and the compression of the material, keeping the consolidation pressure at the right level during the cure cycle. The constant pressure pushes air out from between the layers and forces resin into every crack in the fiberglass weave.

Advanced Automation and Process Monitoring

These days' hot press machines have programmable logic controllers that run precisely defined cure cycles over and over again in a way that manual operations can't match. Sensor arrays constantly check the temperature at different platen locations, the distribution of pressure, and even the vacuum levels in systems that use vacuum to help with consolidation.

Every process parameter is recorded by data logging systems for each production batch. This makes it possible for quality assurance teams and certification auditors to see proof of traceability. Statistical process control algorithms look at production data to find problems that are happening more often before they cause bad material. This lets them make changes ahead of time that keep the quality of the output consistent.

When we upgraded the hot press systems in our manufacturing facility, these automation features were very helpful. The number of defects dropped significantly, and the consistency of the dimensions got better to the point where there were fewer tool breaks caused by material differences in CNC operations.

Enhanced Resin Impregnation and Layer Consolidation

When controlled heat and pressure are used together, they make the best conditions for the resin to fully soak into the fiberglass fabric structure. At high temperatures, the resin's viscosity drops, which lets the polymer flow all the way around each glass filament, covering every surface and every space in the woven structure.

When uniform pressure is applied to the layer stack, it gets compressed, which lowers the total thickness and gets rid of any air pockets between the plies. The mechanical consolidation force and the flowing resin work together to make close contact between layers. This creates strong interlaminar bonding that keeps the layers from coming apart when they are under mechanical stress or changing temperatures.

Vacuum-assisted hot press systems go one step further by creating negative pressure that actively pulls air out of the inside of the laminate before the hydraulic force and atmospheric pressure finish pressing it down. This combination method produces the least amount of empty space possible in thermoset composite production.

Compliance with Industry Quality Standards

Standards for electrical insulation materials set by NEMA, IEC, and UL are very strict, and hot press manufacturing processes are in line with those standards. Automated hot press systems make process control documentation and batch traceability that directly help with quality audits and certification compliance.

We've worked with companies that make electrical equipment whose UL listing requirements for G10 epoxy sheet say they have to meet certain maximum void content thresholds that can only be seen under a cross-sectional microscope. These requirements could only be consistently met by hot press manufacturing, even when making thousands of sheets per month. The money spent on the equipment paid for itself because of lower rejection rates and the ability to serve high-end markets where quality deserves a higher price.

Key Properties of G10 Epoxy Sheets Enhanced by Hot Pressing

Getting rid of voids through proper hot press manufacturing leads to measurable improvements in all performance parameters that are important for industrial uses. These improvements directly lead to more reliable finished goods and lower failure rates in the field.

Superior Electrical Insulation and Dielectric Strength

Void-free microstructure improves dielectric strength by getting rid of the air-filled flaws that cause electrical breakdown. For hot-pressed materials, the dielectric strength is usually higher than 40 kV/mm perpendicular to the laminations. This is in contrast to 30-35 kV/mm for normally processed sheets that still have empty spaces in them. In high-voltage switchgear and transformer applications, this performance margin is a key safety factor.

Because the continuous resin matrix blocks moisture entry pathways, insulation resistance stays the same across temperature and humidity ranges. The dissipation factor stays low, which reduces energy loss in high-frequency electrical applications where even small increases in dielectric loss cause heating problems.

Enhanced Mechanical Strength and Durability

When the material is properly made, its tensile strength can reach 400 MPa in the warp direction. This is because the void-free structure lets the full load be transferred between the resin matrix and the glass reinforcement. Flexural strength is higher than 550 MPa, which gives it the rigidity needed for structural insulation parts in industrial machinery that can't bend when they're loaded.

When voids are removed, impact resistance goes up a lot. This is because it takes more energy for a crack to spread through a homogeneous material than through a laminate with defects, where the voids make it easy for the crack to start. This toughness is very important in transportation applications where vibration and mechanical shock put insulation parts through many stress cycles.

Precision-machined parts keep their tolerances during service because they are dimensionally stable under mechanical load. This avoids the fit and clearance problems that happen when weaker materials creep or deform under long-term stress.

Improved Thermal Stability and Heat Resistance

When heated to high temperatures, hot-pressed sheets keep their mechanical properties because the fully cured, void-free epoxy matrix doesn't break down. Continuous operation at 130°C is fine, and short trips to 155°C don't damage the property in a way that can't be fixed. This thermal strength is higher than that of phenolic laminates and meets the needs of motor insulation and power electronics.

The thermal conductivity stays the same and predictable through the thickness. This lets you do heat dissipation calculations that accurately predict the temperatures of the parts. Voids cause thermal properties that aren't consistent, which leads to hot spots that make insulation wear out faster and premature failure in power equipment where managing heat determines service life.

Consistent Thickness and Dimensional Uniformity

Controlled pressure is an important part of hot press manufacturing. It makes sheets with a thickness tolerance of ±0.1mm across standard sheet sizes. This consistency is very helpful for automated manufacturing processes where changes in material thickness lead to issues with assembly and poor quality in finished goods.

Specifications for flatness for G10 epoxy sheet meet the needs of precise machining operations, which cuts down on waste during CNC drilling and cutting. The uniformity of hot-pressed sheets directly leads to higher yield rates and lower production costs for our customers when we sell materials to companies that make automotive parts and make battery insulation barriers with strict size requirements.

Procurement Insights: Finding Reliable Hot Pressed G10 Epoxy Sheet Suppliers

Choosing the right material supplier is a strategic choice that affects the quality of the product, the stability of the supply chain, and the long-term costs of manufacturing. Managers of engineering projects and people in charge of buying things should look at potential suppliers in more than just price terms.

Evaluating Manufacturing Capabilities and Quality Systems

Manufacturers with a good reputation have quality management systems that are at least ISO 9001 certified. Leading suppliers also hold other certifications, like IATF 16949 for automotive use or AS9100 for aerospace supply chains. These certifications show that the company is dedicated to process control and continuous improvement, which leads to consistent product quality.

Modern hot press equipment with automation and process monitoring systems should be part of the manufacturing capabilities for void-free production. Ask possible suppliers about the details of their pressing equipment, the records they keep for the cure cycle, and the ways they test for quality control. The technical sophistication that sets premium manufacturers apart from commodity producers can be seen in suppliers who can provide detailed process capability data and statistical quality metrics.

Understanding Customization Options and Technical Support

For industrial uses, materials often need to be customized beyond the standard sheet sizes. Suppliers who offer cut-to-size services, CNC machining, and custom thickness options give you a lot of useful options that make your manufacturing processes easier and lower the costs of keeping inventory on hand.

The ability to provide technical support sets exceptional suppliers apart from transactional vendors. Having access to applications engineers who know the specific needs of your industry can help you choose the best materials and quickly solve processing problems. We've put a lot of money into hiring technical staff who work directly with customers to answer questions about machining parameters, bonding procedures, and material selection. These services help build long-term partnerships instead of one-time deals.

Assessing Supply Chain Reliability and Logistics

Lead times, minimum order quantities, and regular delivery times all have a direct effect on how you plan your production and keep track of your inventory. Suppliers with a lot of finished goods in stock and a lot of production capacity can meet urgent needs quickly and support the idea of "just-in-time" manufacturing.

With more than ten years of experience in international trade, our integrated logistics capabilities make sure that your materials arrive on time, no matter where you are in the world. Our logistics company makes sure that manufacturing, warehousing, and transportation all work together smoothly. This cuts down on the delays and communication problems that happen when these tasks are spread out among different companies.

Verification Through Samples and Testing

Before committing to large purchases, ask for samples of the material to test and qualify internally. Suppliers you can trust will gladly send you samples and back up your testing needs with material certifications and test data. You can check that the material meets your needs by comparing the measurements you take of its properties to the ones given by the supplier.

Cross-sectional microscopy is a direct way to check the quality of manufacturing by measuring the number of voids. Electrical testing should check the dielectric strength and insulation resistance in conditions that are similar to the ones you will be using the product in. Mechanical testing shows that the strength properties are what were expected from the design. This qualification testing is the right thing to do to avoid problems that will cost a lot of money after the material has been put into production.

Conclusion

The most important step forward in manufacturing is hot press technology, which makes it possible to make void-free epoxy glass laminates that meet the strict needs of electrical equipment, industrial machinery, and power system applications. Modern hot press machines have very accurate temperature and pressure controls that get rid of the tiny flaws that hurt electrical insulation, mechanical strength, and long-term dependability.

Investing in advanced processing equipment and supplier partnerships with manufacturers who maintain strict quality systems is worth it because properly manufactured materials have better properties. When your products need insulation that works consistently under electrical stress, mechanical loading, and thermal cycling, hot pressed G10 epoxy sheet is the best choice. This will keep your customers happy and lower your warranty costs.

FAQ

What thickness tolerances can hot press manufacturing achieve for epoxy glass laminates?

Modern hot press methods usually keep thickness tolerances of ±0.1mm for standard sheet sizes. Tighter tolerances can be reached by adding more processing steps. When you use an automated hot press system, the controlled compression and even distribution of pressure get rid of the differences in thickness that happen when you press by hand. This consistency is especially helpful for tasks that need precise machining or where the thickness of the material has a direct effect on electrical clearances and mechanical fit. Tighter tolerances may cost more, so talk to your supplier about your specific needs during the quotation process to find a balance between performance needs and cost concerns.

How does void content affect the long-term reliability of electrical insulation components?

Void shapes make it easier for water and electricity to move through, which speeds up the breakdown of insulation over time. It is possible to measure how much even small amounts of voids shorten the useful life of parts that are exposed to high voltage, changing temperatures, or humid conditions. Field experience from power distribution equipment shows that the rate of insulation failure goes up a lot when the laminate void content is more than 2% by volume. When hot presses are used to make things, the void contents are always less than 1%. This gives them the reliability they need for long service lives in tough situations. This quality advantage usually justifies higher prices, since avoiding just one failure in the field usually costs more than the cost of all the materials used in the whole production run.

Can hot pressed sheets be machined using standard CNC equipment and tooling?

When made correctly, epoxy glass laminates are easy to machine using carbide tools and standard CNC equipment. The structure that is created by hot press processing is void-free, which makes it easier to machine because cutting tools don't have to deal with chip-out and delamination issues that happen when they hit internal voids. Standard machining parameters made for fiberglass composites work directly with this material. However, dust collection systems are necessary because glass-reinforced materials produce rough particles that wear down tools faster if they get stuck together. Many of our customers cut complicated shapes with tight tolerances directly from sheet stock. They find that hot-pressed material quality makes it less likely for tools to break and gives the surface a better finish than other options that are processed in the usual way.

Partner with J&Q for Premium G10 Epoxy Sheet Solutions

Every customer relationship at J&Q is based on more than twenty years of experience making things and ten years of experience trading with other countries. We've invested in high-tech hot press machines and full quality control systems to make sure that every sheet we make meets the exact requirements of your applications. We have been making G10 epoxy sheet for a long time, so we know how important void-free laminates are to the reliability and reputation of your products.

Our technical team works directly with your engineering staff to meet the needs of each application, suggest the best material grades, and help your manufacturing processes. Through our dedicated shipping operations, we offer integrated logistics services that make sure your material arrives on time, properly packaged, and ready to use right away. We offer the quality, service, and dependability that turns suppliers into strategic partners, whether you need standard sheets or parts that are made to order. Email us at info@jhd-material.com to talk about the insulation materials you need and find out how our services can help you succeed.
