Why Does G10 Absorb Moisture in Humid Environments?
Microscopic Structure and Porosity

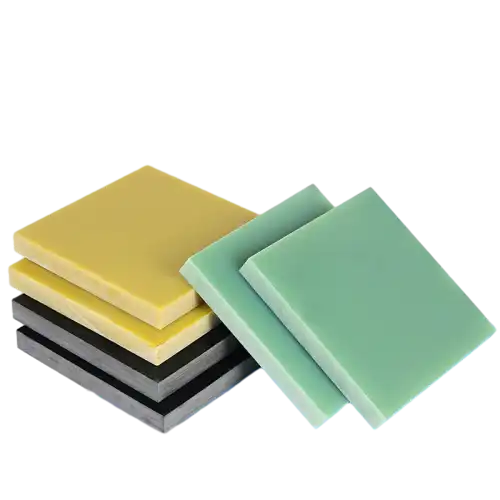

G10 sheet, despite its robust composition, contains microscopic pores and voids within its structure. These minute spaces allow water molecules to penetrate the material when exposed to humid conditions. The epoxy resin matrix, while generally resistant to moisture, is not entirely impermeable. Over time, water molecules can slowly diffuse through these microscopic channels, leading to gradual moisture absorption.
Hygroscopic Nature of Glass Fibers
The glass fibers used in G10 composites exhibit hygroscopic properties, meaning they have an affinity for water molecules. This characteristic contributes to the material's tendency to absorb moisture from its surroundings. While the epoxy resin provides some protection, it cannot completely prevent the glass fibers from attracting and retaining water molecules, especially under prolonged exposure to humid conditions.
Environmental Factors Influencing Absorption
Several environmental factors play a role in the rate and extent of moisture absorption in G10 sheet. Ambient humidity levels, temperature fluctuations, and exposure duration all contribute to this process. Higher humidity levels naturally increase the moisture content in the air, accelerating absorption. Temperature changes can cause expansion and contraction of the material, potentially creating additional pathways for moisture ingress. Extended exposure to these conditions exacerbates the absorption effect, highlighting the importance of considering environmental factors in applications where G10 is used.
Impact of Moisture on Dielectric Strength and Insulation Resistance
Reduction in Dielectric Strength
Moisture absorption in G10 sheet can lead to a notable decrease in its dielectric strength. As water molecules infiltrate the material's structure, they create conductive pathways that weren't present in the dry state. This phenomenon reduces the voltage required to initiate electrical breakdown, compromising the material's ability to withstand high electric fields. The extent of this reduction depends on the amount of moisture absorbed and can significantly impact the performance of electrical components relying on G10's insulating properties.
Deterioration of Insulation Resistance
The presence of moisture within G10 sheet also adversely affects its insulation resistance. Water, being a polar molecule, increases the material's conductivity. This change results in a lower resistance to electrical current flow, potentially leading to increased leakage currents in electrical systems. The degradation of insulation resistance can be particularly problematic in high-precision electronic applications where even small leakage currents can cause malfunctions or reduced efficiency.
Frequency-Dependent Effects
The impact of moisture absorption on G10's electrical properties is not uniform across all frequencies. At higher frequencies, the presence of water molecules can lead to increased dielectric losses and changes in the material's dissipation factor. This frequency-dependent behavior is crucial to consider in applications involving high-frequency signals or power transmission, as it can affect signal integrity and power efficiency. Understanding these nuanced effects is essential for designers working with G10 in diverse electrical and electronic applications.
Long-Term Reliability of G10 Under High-Humidity Conditions
Gradual Degradation of Electrical Properties
Prolonged exposure to high-humidity environments can lead to a gradual but significant degradation of G10's electrical properties. Over time, the cumulative effects of moisture absorption may result in a permanent alteration of the material's dielectric characteristics. This long-term degradation can manifest as a persistent decrease in insulation resistance and dielectric strength, even if the material is subsequently dried. Such changes can compromise the reliability and performance of electrical systems, particularly in applications where consistent electrical properties are critical over extended periods.
Potential for Physical and Structural Changes
Extended moisture exposure not only affects G10 sheet's electrical properties but can also induce physical and structural changes. Prolonged absorption may lead to swelling or dimensional instability, potentially affecting the fit and function of components made from G10. In extreme cases, this can result in delamination or weakening of the composite structure. These physical changes can further exacerbate the degradation of electrical properties and may lead to mechanical failures in load-bearing applications.
Strategies for Mitigating Long-Term Moisture Effects
To ensure the long-term reliability of G10 in high-humidity conditions, various strategies can be employed. These include the use of moisture-resistant coatings or sealants to protect the material from direct exposure to humid environments. Implementing proper storage and handling procedures can also minimize moisture absorption before installation. In critical applications, regular monitoring and testing of electrical properties may be necessary to detect early signs of degradation. Additionally, selecting specialized grades of G10 with enhanced moisture resistance can provide improved long-term performance in challenging environmental conditions.
Conclusion
Understanding the impact of moisture absorption on G10 sheet's electrical performance is crucial for ensuring the reliability and efficiency of electrical systems. While G10 offers excellent electrical properties, its susceptibility to moisture absorption can lead to significant changes in dielectric strength and insulation resistance. Engineers and designers must carefully consider environmental factors and implement appropriate measures to mitigate these effects, especially in applications requiring long-term stability. By addressing these challenges, the inherent benefits of G10 can be maximized, ensuring its continued effectiveness as a versatile electrical insulation material across various industries.
FAQs
How quickly does G10 sheet absorb moisture?
The rate of moisture absorption in G10 sheet varies depending on environmental conditions but is generally slow. In typical ambient conditions, significant moisture absorption may take weeks or months.
Can the effects of moisture absorption in G10 be reversed?
To some extent, yes. Drying G10 sheet can remove absorbed moisture and partially restore its electrical properties. However, prolonged exposure may cause permanent changes.
Are there G10 variants with improved moisture resistance?
Yes, some manufacturers offer specialized G10 grades with enhanced moisture resistance, achieved through modified resin systems or additional protective treatments.
Choose J&Q for Superior G10 Sheet Performance and Reliability
At J&Q, we specialize in manufacturing high-quality G10 sheets that excel in moisture resistance and electrical performance. With over 20 years of experience in insulating sheet production and 10 years in international trade, we offer unparalleled expertise and product quality. Our comprehensive services, including our own logistics company, ensure seamless delivery and support. For top-tier G10 sheets and expert guidance, contact us at info@jhd-material.com and experience the J&Q difference in electrical insulation solutions.
