What Are the Typical Electrical Properties of FR4 Sheets?

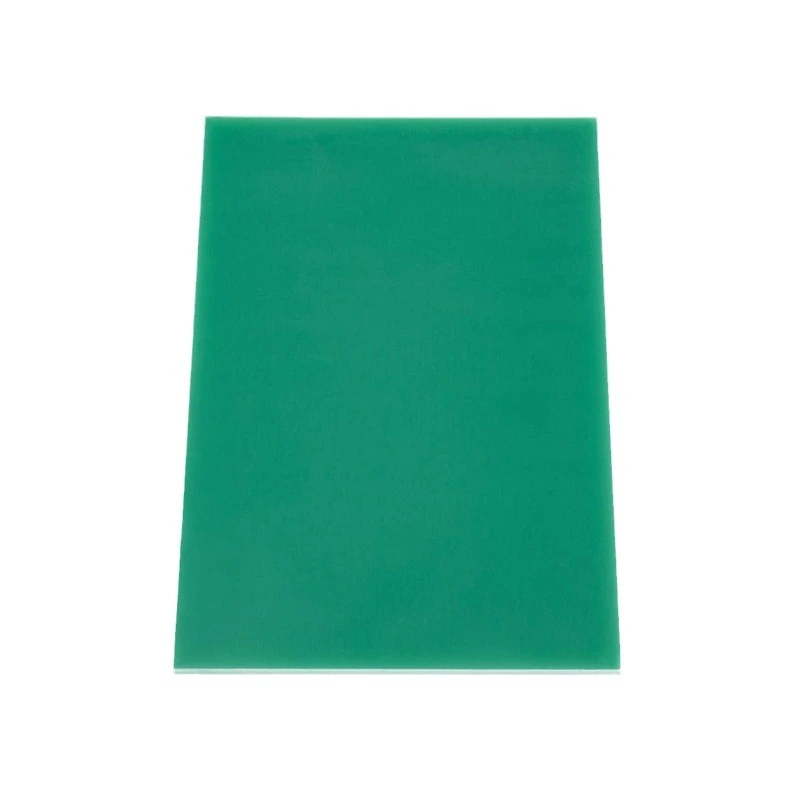

FR4 sheets, widely used in printed circuit boards (PCBs), exhibit exceptional electrical properties that make them ideal for various electronic applications. These sheets boast a dielectric constant typically ranging from 4.2 to 4.8, ensuring consistent electrical performance across circuits. Their low dissipation factor, usually between 0.01 and 0.03, minimizes energy loss as signals traverse the PCB. FR4 sheets also demonstrate impressive dielectric strength, often exceeding 50 kV/mm, providing excellent insulation. Moreover, their volume resistivity, typically around 10^9 ohm-cm, contributes to their superior electrical insulation capabilities. These properties collectively make FR4 sheets a cornerstone material in the electronics industry, enabling reliable and efficient performance in diverse applications.

What Is the Dielectric Strength Range of Standard FR4?

Understanding Dielectric Strength in FR4 Materials

Dielectric strength, a crucial property of FR4 sheets, represents the maximum electric field the material can withstand without breaking down. For standard FR4, this value typically ranges from 50 to 80 kV/mm. This impressive dielectric strength ensures that FR4 sheets can effectively insulate against high voltages, preventing electrical breakdown and maintaining circuit integrity.

Factors Affecting FR4's Dielectric Strength

Several factors can influence the dielectric strength of FR4 sheets. These include the material's thickness, temperature, humidity, and the presence of impurities. Thicker FR4 sheets generally exhibit higher dielectric strength. However, elevated temperatures and high humidity can potentially reduce this property. Manufacturers must carefully control these factors during production to maintain consistent dielectric strength across FR4 sheets.

Comparing FR4's Dielectric Strength to Other Materials

When compared to other materials used in electronics, FR4's dielectric strength stands out. For instance, it significantly surpasses that of common plastics like polyethylene (about 20 kV/mm) or polypropylene (30-40 kV/mm). This superior dielectric strength contributes to FR4's widespread use in high-voltage and high-frequency applications, where insulation is paramount.

Electrical Insulation Resistance and Breakdown Voltage of FR4

Measuring Insulation Resistance in FR4 Sheets

Insulation resistance is another critical electrical property of FR4 sheets. It quantifies the material's ability to resist current flow when subjected to a voltage. FR4 typically exhibits excellent insulation resistance, often exceeding 10^6 megohms. This high resistance ensures minimal current leakage, contributing to the overall efficiency and reliability of electronic circuits built on FR4 substrates.

Breakdown Voltage Characteristics of FR4

The breakdown voltage of FR4, closely related to its dielectric strength, represents the voltage at which the material's insulating properties fail. For standard FR4 sheets, this value can range from 40 to 70 kV, depending on thickness and environmental conditions. This high breakdown voltage ensures that FR4-based circuits can withstand substantial electrical stresses without compromising their functionality.

Impact of Environmental Factors on Insulation Properties

Environmental conditions significantly influence FR4's insulation properties. High humidity can lead to moisture absorption, potentially reducing insulation resistance and breakdown voltage. Similarly, extreme temperatures can affect these properties. FR4's ability to maintain its insulation characteristics under varying conditions contributes to its versatility and reliability in diverse applications, from consumer electronics to aerospace systems.

Frequency-Dependent Electrical Performance of FR4 Materials

FR4's Behavior at Different Frequencies

FR4's electrical properties exhibit frequency dependence, a crucial consideration in high-speed digital and RF applications. As frequency increases, the material's dielectric constant tends to decrease slightly, while its dissipation factor increases. This behavior can affect signal propagation and loss in PCBs, particularly at frequencies above 1 GHz. Understanding these frequency-dependent characteristics is essential for engineers designing high-frequency circuits using FR4 substrates.

Signal Integrity Considerations in FR4-Based PCBs

The frequency-dependent nature of FR4 sheet impacts signal integrity in high-speed circuits. As frequencies rise, increased signal attenuation and dispersion can occur, potentially leading to signal distortion and timing issues. To mitigate these effects, designers often employ techniques such as controlled impedance routing, proper stackup design, and in some cases, the use of alternative materials for critical high-frequency sections of the PCB.

Comparing FR4 with High-Frequency Laminates

While FR4 remains a popular choice for many applications, its performance at very high frequencies (typically above 10 GHz) may be limited compared to specialized high-frequency laminates. Materials like PTFE-based laminates or ceramic-filled hydrocarbon resins offer lower dielectric constants and dissipation factors at high frequencies. However, FR4's cost-effectiveness and adequate performance in most applications continue to make it a preferred choice for a wide range of electronic products.

Conclusion

FR4 sheets exhibit a remarkable set of electrical properties that have cemented their position as a staple material in the electronics industry. Their high dielectric strength, excellent insulation resistance, and favorable breakdown voltage characteristics make them suitable for a wide array of applications. While FR4 materials show some limitations at very high frequencies, their overall performance, combined with cost-effectiveness and ease of manufacturing, ensures their continued relevance in PCB design and production. As technology advances, understanding and leveraging these electrical properties will remain crucial for engineers and designers in creating efficient and reliable electronic systems.

FAQs

What is the typical dielectric constant of FR4 sheets?

FR4 sheets typically have a dielectric constant ranging from 4.2 to 4.8.

How does FR4's dielectric strength compare to other materials?

FR4's dielectric strength (50-80 kV/mm) is significantly higher than common plastics like polyethylene (20 kV/mm) or polypropylene (30-40 kV/mm).

How do environmental factors affect FR4's electrical properties?

High humidity and extreme temperatures can potentially reduce FR4's insulation resistance and breakdown voltage.

Is FR4 suitable for high-frequency applications?

FR4 is suitable for many applications, but its performance may be limited at very high frequencies (above 10 GHz) compared to specialized high-frequency laminates.
