How does FR4 Epoxy Sheet Compare to Other PCB Materials?

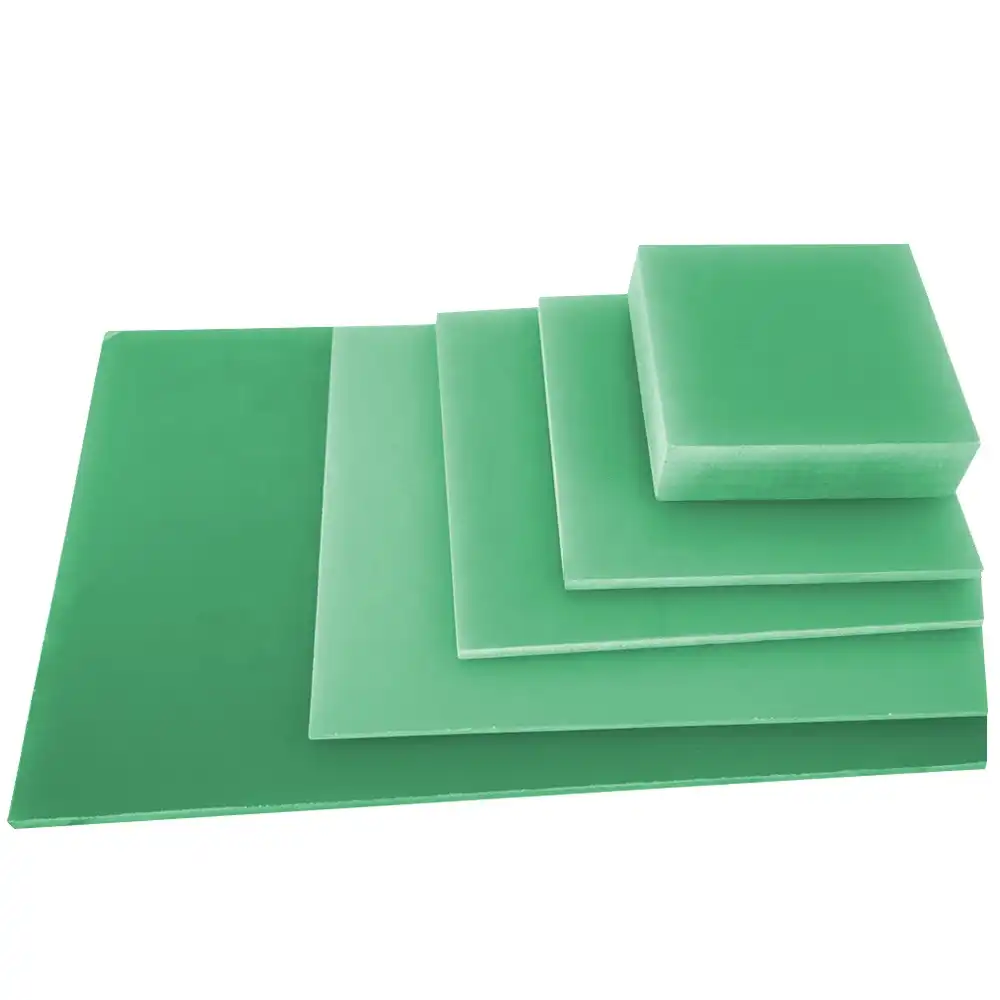

FR4 epoxy sheet stands out as the dominant material in PCB manufacturing due to its exceptional balance of properties and cost-effectiveness. Compared to alternatives like polyimide, ceramic, and PTFE, FR4 offers superior flame resistance, excellent electrical insulation, and remarkable mechanical strength. Its widespread availability and ease of processing make it the go-to choice for most PCB applications. While specialized materials may outperform FR4 in specific areas, such as high-frequency performance or extreme temperature resistance, FR4's versatility and reliability across a broad range of conditions solidify its position as the industry standard for PCB substrates.

What Are the Key Mechanical Differences Between FR4 and Alternative Materials?

Strength and Durability Comparisons

FR4 epoxy sheet exhibits impressive mechanical properties that set it apart from many alternative PCB materials. Its glass-reinforced structure provides excellent tensile strength and rigidity, allowing PCBs to withstand various stresses during manufacturing and operation. Compared to materials like phenolic resin (FR-2) or polyimide, FR4 offers superior resistance to flexing and warping, maintaining dimensional stability even under thermal cycling. This robustness makes FR4 particularly suitable for applications where reliability under mechanical stress is crucial.

Thermal Expansion Characteristics

The coefficient of thermal expansion (CTE) is a critical factor in PCB material selection, especially for applications involving extreme temperature fluctuations. FR4 epoxy sheet demonstrates a relatively low and consistent CTE compared to many alternatives. This property helps minimize stress on solder joints and component connections during thermal cycling, enhancing the overall reliability of the PCB. While specialized materials like polyimide may offer even lower CTE values, FR4's thermal expansion characteristics are sufficient for a wide range of applications, contributing to its widespread adoption.

Machinability and Processing Ease

One of FR4's significant advantages lies in its excellent machinability and ease of processing. Unlike ceramic substrates or some high-performance polymers, FR4 can be easily drilled, routed, and shaped using standard PCB manufacturing equipment. This processability translates to lower production costs and faster turnaround times. Additionally, FR4's compatibility with various surface finishes and plating processes further enhances its versatility in PCB fabrication. The material's ability to maintain structural integrity during these processes contributes to higher yields and more reliable end products.

Comparative Electrical Insulating Properties of FR4 Versus Other Composites

Dielectric Strength and Breakdown Voltage

FR4 epoxy sheet boasts impressive dielectric strength, typically ranging from 20 to 85 kV/mm, depending on thickness and specific formulation. This high breakdown voltage ensures excellent electrical isolation between conductive layers, critical for preventing short circuits and maintaining signal integrity. When compared to alternatives like FR-2 or CEM-3, FR4 generally offers superior dielectric strength, making it suitable for a wider range of voltage applications. However, for extremely high-voltage scenarios, specialized materials like polyimide or ceramic substrates may be preferred due to their even higher dielectric strengths.

Frequency Response and Signal Integrity

In terms of frequency response, FR4 epoxy sheet performs admirably for most general-purpose applications, typically up to frequencies around 1-2 GHz. Its relatively low dielectric constant (typically around 4.0-4.5 at 1 MHz) and loss tangent contribute to good signal integrity in this range. However, for high-frequency or high-speed digital applications beyond this range, FR4 epoxy sheet may exhibit limitations due to increased signal loss and dispersion. In such cases, specialized materials like Rogers RO4000 series or PTFE-based substrates offer superior high-frequency performance, albeit at a higher cost.

Moisture Absorption and Environmental Stability

FR4 epoxy sheet demonstrates good resistance to moisture absorption, with typical values ranging from 0.1% to 0.5% by weight after 24 hours of immersion. This low moisture uptake helps maintain stable electrical properties and prevents delamination issues commonly associated with moisture ingress. While not as moisture-resistant as some advanced composites or ceramic materials, FR4's performance is sufficient for most commercial and industrial applications. Its balance of moisture resistance and cost-effectiveness contributes significantly to its widespread use in diverse environmental conditions.

Evaluating Cost-Efficiency and Availability Among Common PCB Substrates

Raw Material and Manufacturing Costs

FR4 epoxy sheet offers a compelling cost advantage over many alternative PCB materials. Its raw material components – epoxy resin and fiberglass – are relatively inexpensive and widely available. The manufacturing process for FR4 laminates is well-established and highly optimized, leading to economies of scale that further reduce costs. In contrast, specialized materials like polyimide or PTFE-based substrates often come with significantly higher price tags due to more complex manufacturing processes and lower production volumes. This cost-efficiency makes FR4 the preferred choice for a vast majority of PCB applications where extreme performance is not required.

Supply Chain Considerations and Lead Times

The ubiquity of FR4 epoxy sheet in the PCB industry translates to robust supply chains and generally shorter lead times compared to more specialized materials. Multiple manufacturers worldwide produce FR4 laminates, ensuring a steady supply and competitive pricing. This availability is particularly advantageous during periods of supply chain disruptions or when rapid prototyping is needed. In contrast, niche materials may suffer from limited production capacity, longer lead times, and potential supply constraints, which can impact project timelines and costs.

Long-Term Cost Implications and Performance Trade-offs

While the initial material cost is an important factor, it's crucial to consider long-term cost implications when selecting PCB substrates. FR4's balanced properties often result in lower overall project costs due to its ease of processing, high yields, and reliability in diverse applications. However, in specific scenarios where FR4's limitations become apparent – such as very high-frequency applications or extreme environmental conditions – the cost savings may be offset by potential performance issues or the need for more complex designs. In these cases, investing in higher-performance materials might prove more cost-effective in the long run, despite higher upfront costs.

Conclusion

FR4 epoxy sheet remains the cornerstone of PCB manufacturing due to its exceptional balance of mechanical strength, electrical properties, and cost-effectiveness. While specialized materials may outperform FR4 in specific applications, its versatility and reliability make it the ideal choice for a wide range of PCB designs. As technology advances, FR4 continues to evolve, with manufacturers developing enhanced formulations to meet emerging challenges. For most PCB applications, FR4 offers the optimal compromise between performance and cost, solidifying its position as the industry standard.

FAQs

What makes FR4 epoxy sheet the preferred choice for PCB manufacturing?

FR4 offers an excellent balance of mechanical strength, electrical insulation, flame resistance, and cost-effectiveness, making it suitable for a wide range of applications.

How does FR4 compare to high-frequency PCB materials?

While FR4 performs well up to 1-2 GHz, specialized materials like PTFE-based substrates offer superior performance at higher frequencies.

Is FR4 suitable for high-temperature applications?

FR4 can withstand temperatures up to about 130°C, but for higher temperature requirements, polyimide or ceramic substrates may be more appropriate.
